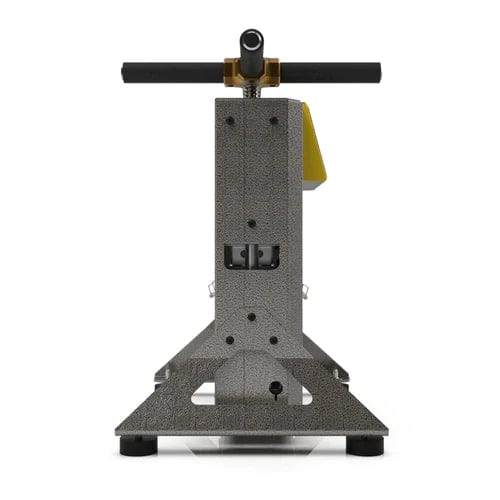

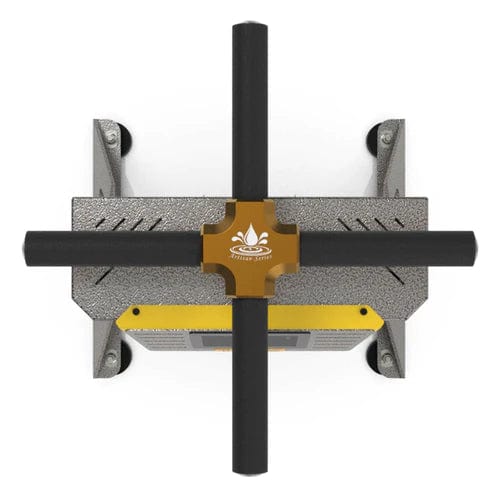

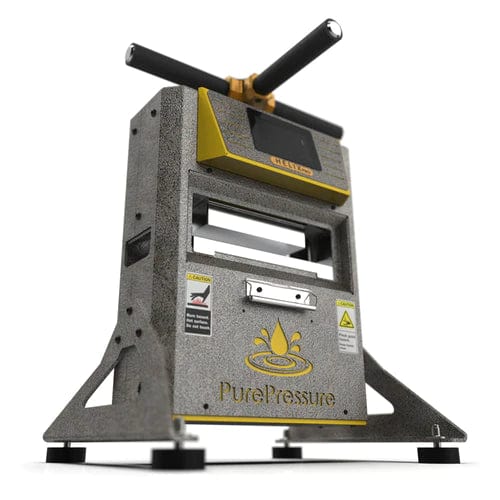

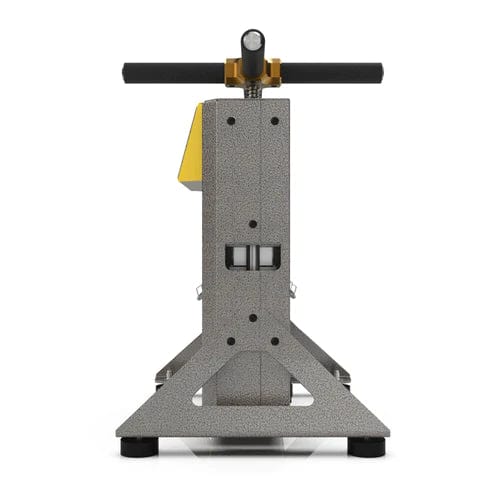

PurePressure Helix Pro 5 Ton Rosin Press

PurePressure Helix Pro 5 Ton Rosin Press

For those looking for a small-sized rosin press that can produce quality rosin, the Pure Pressure Helix Pro is right for you.

Using the tried and tested design of its bigger brothers, the Pikes Peaks, the Helix Pro gives you the same quality of rosin in a small package.

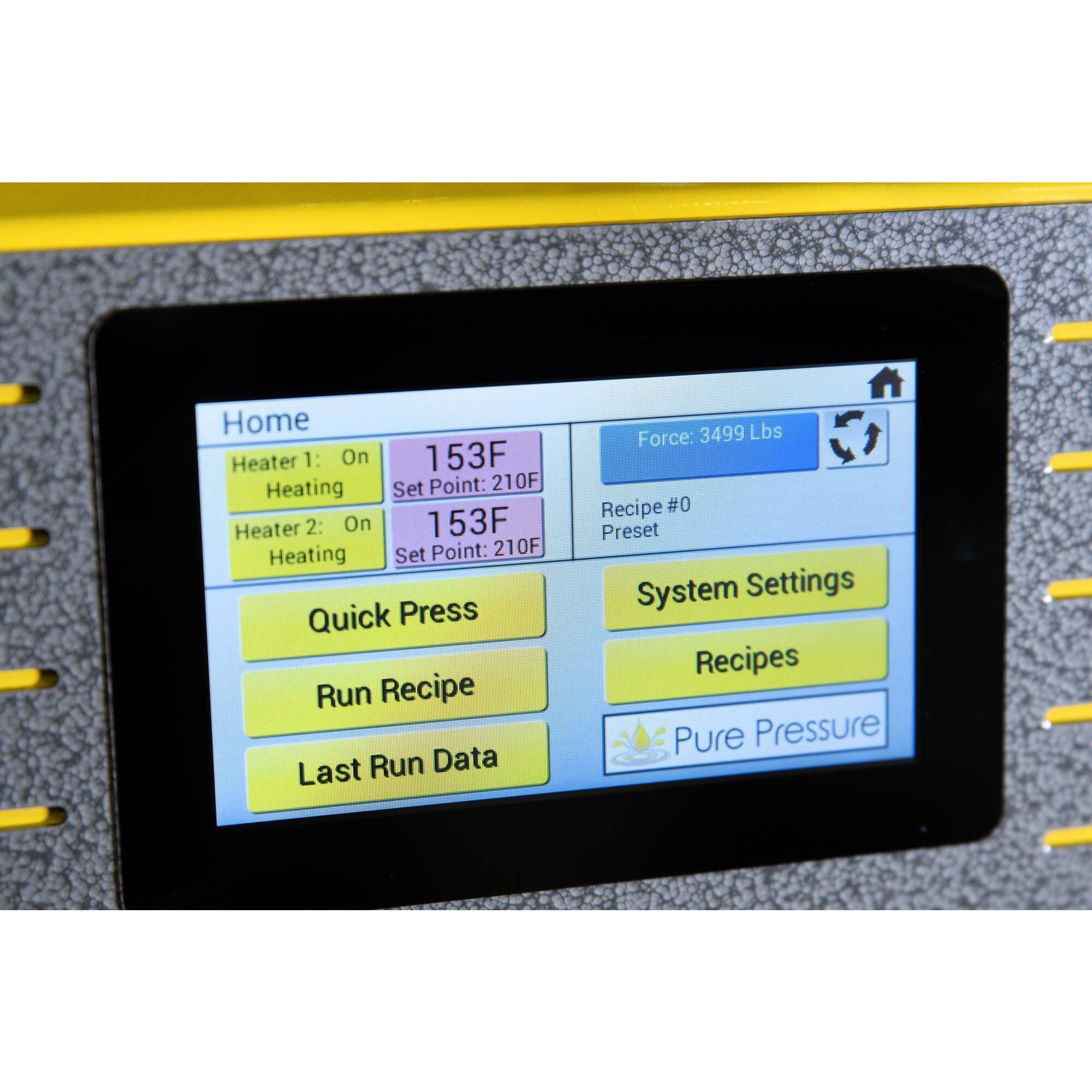

The Helix Pro uses the trademark Pressware Technology of Pure Pressure, which lets you set the right amount of temperature and pressure in each press.

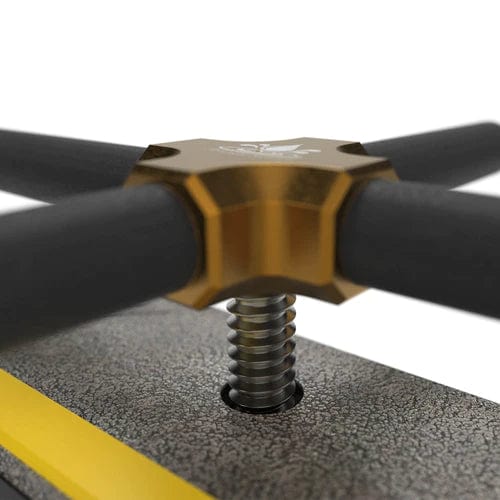

Don’t let its size fool you. Using its two (2) premium 6061 aluminum heat plates, the Helix Pro can press up to 12 grams of flowers, or 20 grams of Kief or Hash in one go with up to five (5) tons of force using its lead screw twist technology.

While the Helix Pro is a manual press, the Pressware Technology also gives you an accurate measurement of the amount of pressure exerted. Adjust pressure and temperature in small increments to get the right settings for your strains.

Once you have found your sweet spot, save it in 1 of the 29 presets slots so you can recall and get consistent results.

Standing only 21.4 inches tall, the Helix Pro fits perfectly on your counter, and can be taken anywhere, without the bulk.

All Helix Pro units are handmade* so you can expect topnotch quality control in every machine.

• Up to 5 tons of force (10,000 lbf) output
• No air compressor required, manual twist force application

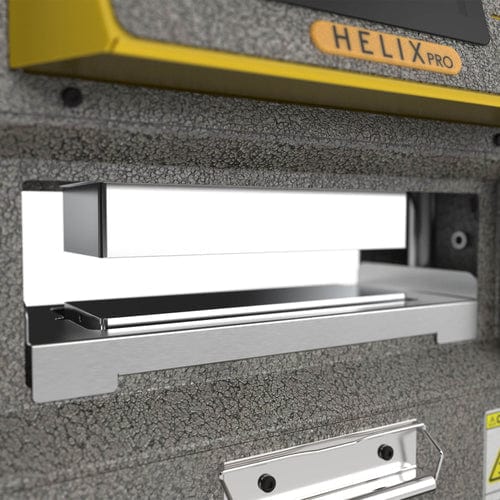

• Built with two 2.5" x 7" 6061 aluminum heat plate assemblies, each with independent thermocouples
• 0°F - 300°F temperature range
• Temperature accuracy to within 1 degree Fahrenheit
• Powder coated housing
• Measures 14" D x 21.4" T x 15.5" W
• Weighs 70 lb
• Patent pending
• 115v version electrical information: 4 amps peak draw, 460 watts, 50/60 Hz, 5-15P plug, no dedicated circuit required

*All Helix Pro units are made to order, and need two weeks lead time before shipping

Which Material Should I Use?

Yields range significantly and depend largely on the quality of the materials used.

• Trim: 3% - 8%
• Shake: 8% - 15%
• Flower: 15% - 30%
• Kief / Dry Sift: 30% - 60%+
• Bubble Hash / Hash: 30% - 70%+

Which Micron Bag To Use?

Depending on your material, the proper micron bags are suggested but results will always vary.

For kief, dry sift, hash, and bubble hash, use a 36 micron or 72-micron bag.

72-micron rosin bags will offer higher yields compared to 36-micron rosin bags, but the 36-micron bags will provide the highest quality product.

For the flower, trim, and shake, use a 115 micron or 90-micron bag.

You will get the highest yield from a 115-micron rosin bag compared with a 90-micron rosin bag, but the 90-micron bags will give you more filtration and slightly higher quality product.

36 micron - Most filtration available, highest quality output rosin for use with kief, dry sift, hash, and bubble hash

72 micron - High level of filtration, increased yields over 36 microns when pressing kief, dry sift, hash, and bubble hash

90 micron - A higher level of filtration for use with flower, trim and shake rosin pressing

115 micron - Ideal level of filtration and high yielding for use with flower, trim and shake rosin pressing

What Temperature Is Ideal?

How Much Pressure Should I Use?

There is no magic number for how much you need to press but most people use the formula of press pounds/plate surface area.

For example:

A 10-ton press = 20,000 lbs. If you have a 3"x5" plate = 15 square inch.

Hence, 20,000/15 = 1,333 PSI
