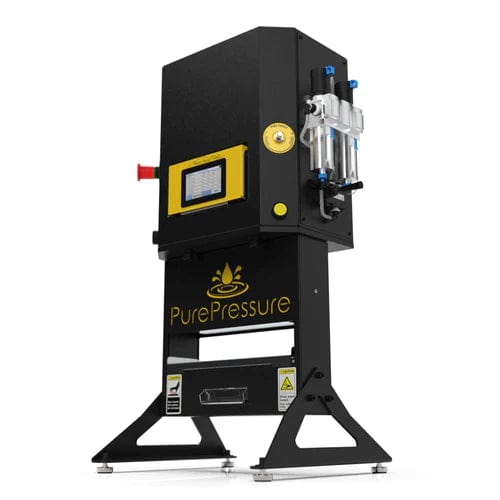

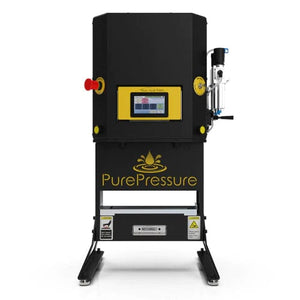

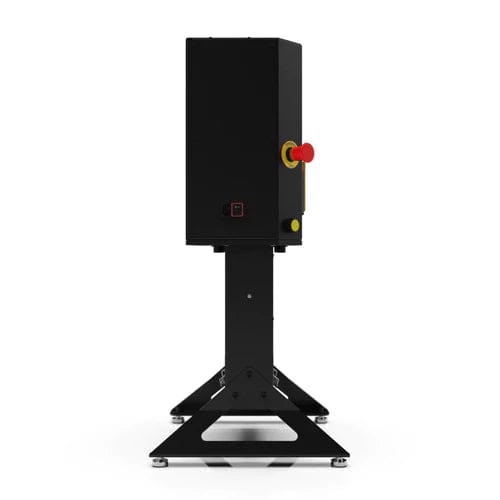

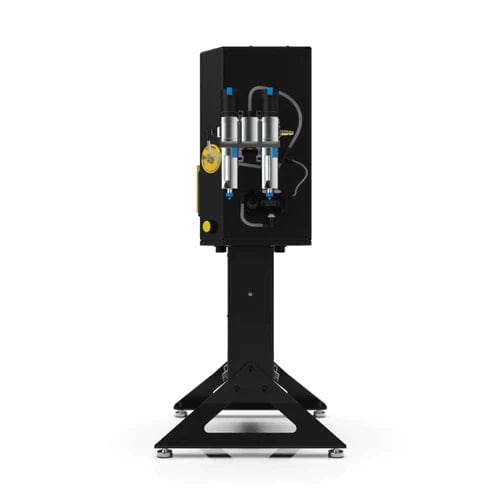

PurePressure Pikes Peak V2 5 Ton Rosin Press

Press Type
Pneumatic
Plate Size
10" x 2.5"
Pressure
5 Tons
Squish Capacity
20 grams
Warranty
1 Year

PurePressure Pikes Peak V2 5 Ton Rosin Press

The best way to increase your production without sacrificing quality is to automate your process.

And that’s what the Pure Pressure Pikes Peak gives you.

Using its trademark Pressware Technology, you can set the right amount of temperature and pressure in each press.

With two premium 6061 aluminum heat plates, the Pikes Peak can press up to 20 grams of flower, or 35 grams of Kief or Hash in one go with up to five (5) tons of force. The heat plates can heat up to 300 degrees Fahrenheit, and even pre-heat without having to press.

The wrong amount of pressure produces terrible results. That’s why the Pikes Peak gives you precision control over temperature and pressure, so you get the best results for each strain.

Once you have found your sweet spot, save it in 1 of the 29 presets slots so you can recall and get consistent results.

Can’t figure where to put it? The Pikes Peak comes with two (2) sets of orientation legs, which lets you use the press either vertical or horizontal position.

All Pikes Peak units are handmade*, so you can expect topnotch quality control in every machine.

---

Optional Automated Pressure Control

The APC system enables unparalleled force control at the touch of a button with the PurePressure Pressware® touchscreen interface. As opposed to manual force adjustments using the toggle lever of the Dual Pressure Control system, rosin press users control all force adjustments with extreme precision.

A single operator can run up to 3 presses simultaneously, taking advantage of this system’s fully-automated nature. Users can create custom recipes or have the machine learn recipes on-the-fly. With full pressure control at the tip of your fingers, adjust operating pressure by as little as 1 psi at a time.

This system was engineered for those who demand high output and have uncompromising attention to detail in their rosin press extractions.

---

• Heat plates measure 10" x 2.5", maximum temperature of 300°F
• Total force output: 5 tons, or 9,876 lbf @ 120 PSI
• Weighs 130 lb
• Air compressor requirements: 2.1 CFM and over 140 maximum PSI for optimal operation
• Utilizes 5 - 120 PSI compressed air input
• Frame and enclosure is made of A36 steel
• Available in both 115-230v electrical versions (operating voltages are set at the factory, not by the user, so please contact us for more information)
• 115v version electrical information: 6 amps peak draw, 690 watts, 50/60 Hz, 5-15P plug, no dedicated circuit required

*All Pikes Peak units are made to order, and require two weeks lead time before shipping

• 1x Pikes Peak Press
• 2x Vertical orientation legs

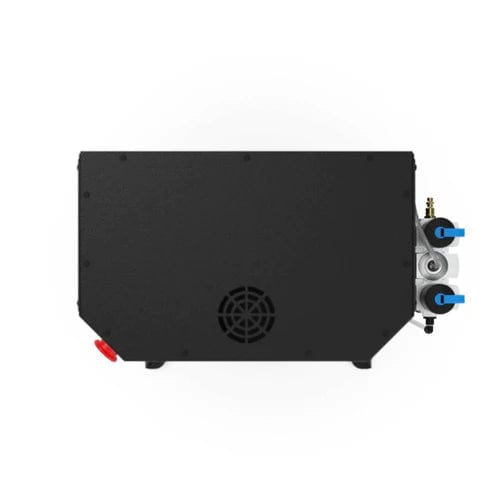

• 2x Horizontal orientation legs
• 4x Leveling feet
• 1x Compressed air filter/regulator
• 1x Industrial male air fitting

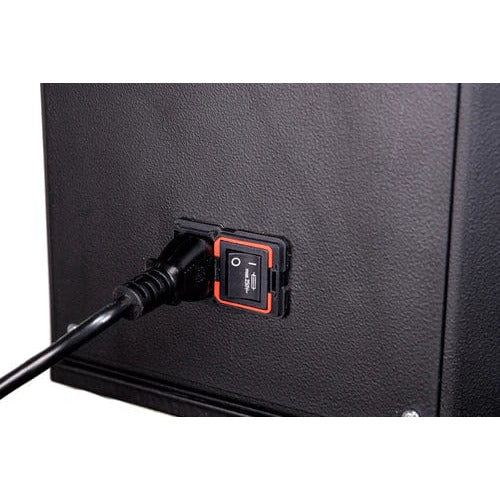

• 1x Power cable
• 1x 50 pack of PurePressure Tea Bags

• Heat plate size: 10" x 2.5"
• Heat plate material: 6061 Aluminum or 316 Stainless Steel
• Maximum force output: 9,876 lbs (5 tons)
• Supply air pressure: 120 psi or less
• Air input fitting: "industrial" male
• Maximum heat temperature:300°F
• Digital press time: No limit
• Digital pressure readout
• High accuracy dual heating system
• Vertical or horizontal machine orientation

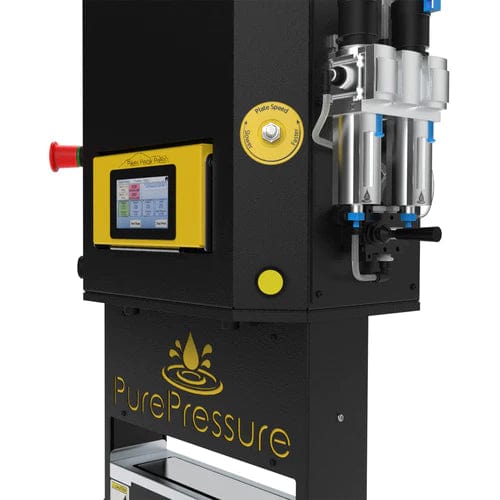

• Speed control of heat plate actuation
• Dual button safety start
• Parchment clip holders

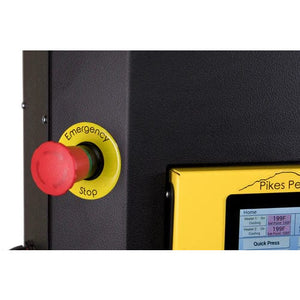

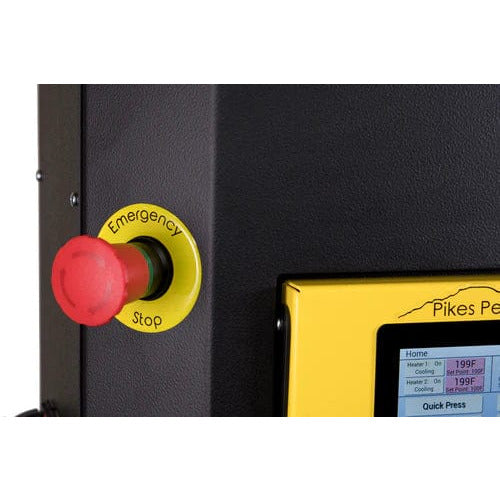

• Industry-leading safety controls
• Ergonomic user panel in both orientations

Which Material Should I Use?

Yields range significantly and depend largely on the quality of the materials used.

• Trim: 3% - 8%
• Shake: 8% - 15%
• Flower: 15% - 30%
• Kief / Dry Sift: 30% - 60%+
• Bubble Hash / Hash: 30% - 70%+

Which Micron Bag To Use?

Depending on your material, the proper micron bags are suggested but results will always vary.

For kief, dry sift, hash, and bubble hash, use a 36 micron or 72 micron bag.

72 micron rosin bags will offer higher yields compared to 36 micron rosin bags, but the 36 micron bags will provide the highest quality product.

For flower, trim, and shake, use a 115 micron or 90 micron bag.

You will get the highest yield from a 115 micron rosin bag compared with a 90 micron rosin bag, but the 90 micron bags will give you more filtration and slightly higher quality product.

36 micron - Most filtration available, highest quality output rosin for use with kief, dry sift, hash, and bubble hash

72 micron - High level of filtration, increased yields over 36 microns when pressing kief, dry sift, hash, and bubble hash

90 micron - A higher level of filtration for use with flower, trim and shake rosin pressing

115 micron - Ideal level of filtration and high yielding for use with flower, trim and shake rosin pressing

What Temperature Is Ideal?

How Much Pressure Should I Use?

There is no magic number for how much you need to press but most people use the formula of press pounds/plate surface area.

For example:

A 10-ton press = 20,000 lbs. If you have a 3"x5" plate = 15 square inch.

Hence, 20,000/15 = 1,333 PSI
