- 1 × AC Remote Station (ARS-1)
- 1 × Signal Emitter
- 1 × 16ft RJ12 Cable
- 1 × 4ft RJ12 Cable
- 1 × RJ12 T-Splitter
TrolMaster ARS-1 Mini-Split AC IR Remote Station
$172.50 CAD
starting from 0% interest financing from
/mo.
- Controls mini-split AC units by learning existing infrared remote commands.
- Features a dedicated LCD screen and Micro-SD slot for firmware updates.
- Connects via standard RJ12 cabling for integration with Hydro-X or Tent-X systems.
- 3-year warranty on all mechanical and electronic components
- View More Details
Gagnez 172 points en faisant vos achats et obtenez $1.72 de réduction sur votre prochaine commande. Adhérez gratuitement au Club Récolte.
Livraison gratuite sur la plupart des articles
Vers les 48 États continentaux
Tarification transparente
Bénéficie d'une garantie d'alignement tarifaire
4.8/5 Rating
1938+ verified reviews
Paiement sécurisé
Paiements sécurisés SSL
VOLUME PRICING
Achats commerciaux et en gros
Nous assistons les opérations et les installations agréées grâce à des tarifs dégressifs, des gestionnaires de compte dédiés et des consultations personnalisées sur l'équipement.
À qui s'adresse cet article ?
- You are adding this remote station because your current climate controller cannot talk to your mini-split AC units without manual input.
- You are upgrading to an automated environmental system because you need your heating and cooling cycles to trigger precisely without your physical presence.
Ce que nous avons découvert
- We keep these in stock because they act as the essential bridge between high-end controllers and standard air units.
- The simple setup process saves time because the unit learns the specific infrared codes from your existing handheld remote.
Ce que disent les utilisateurs
- Growers who installed this in their climate-controlled zones say they no longer worry about manual adjustments during the night.
- Users managing multiple mini-split units say the ability to address each station individually brought much-needed order to their facility.

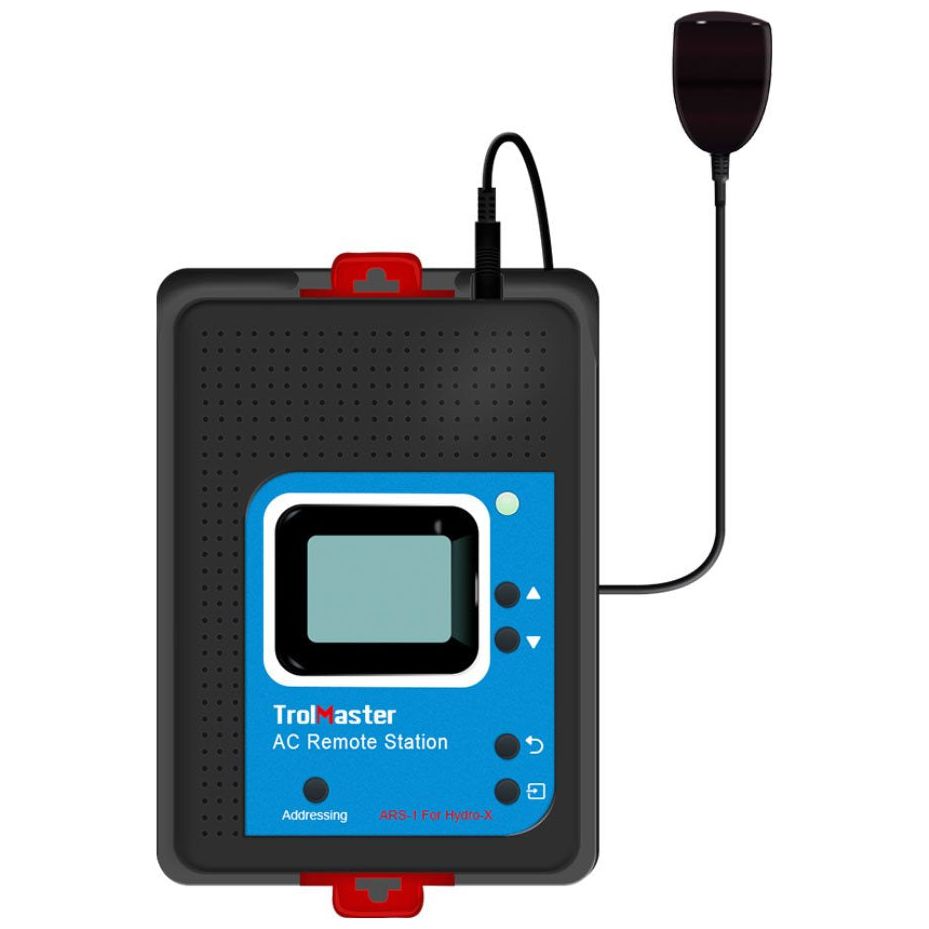

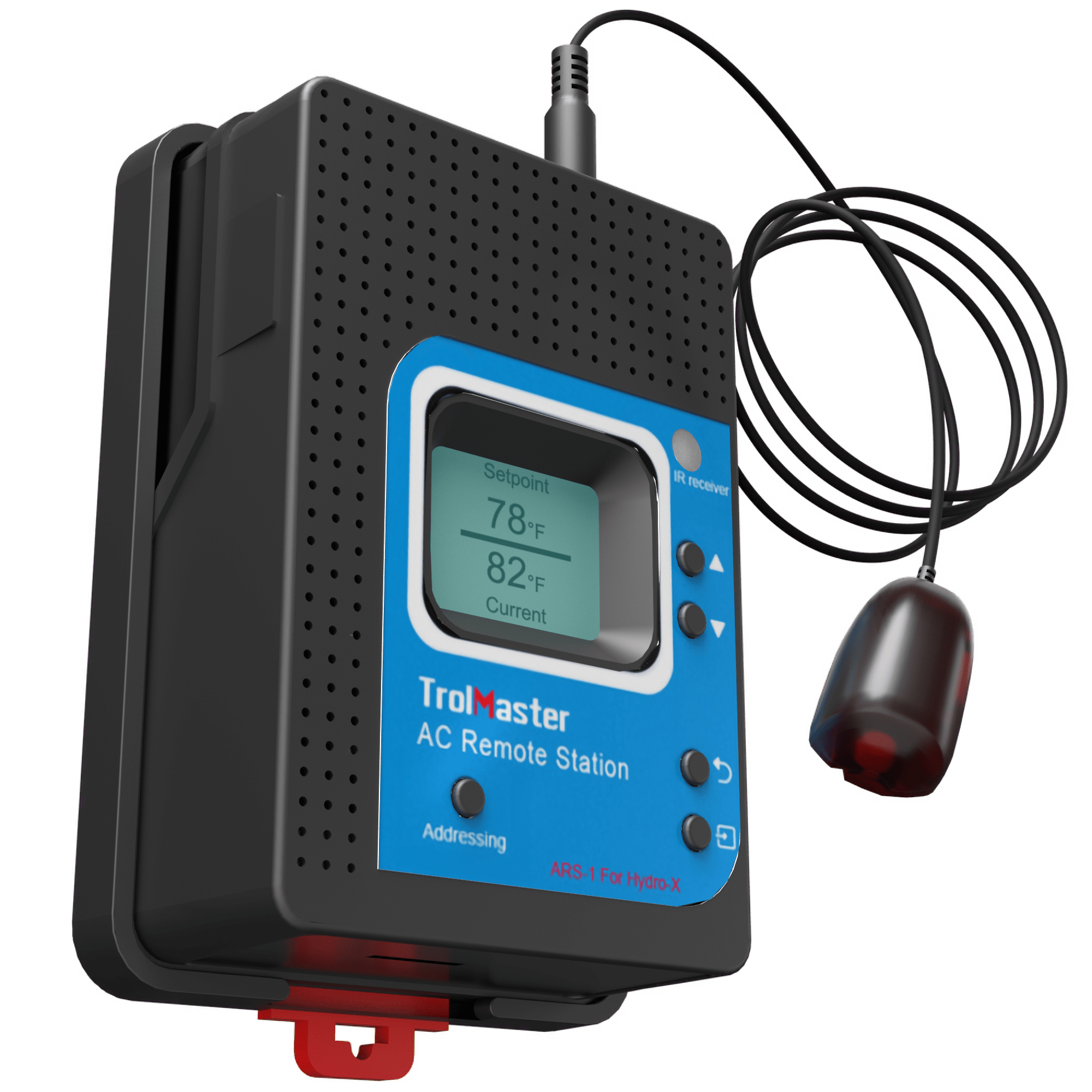

TrolMaster ARS-1 Mini-Split AC IR Remote Station
Managing the temperature in your grow room shouldn't require constant manual intervention. While mini-split AC units are powerful climate tools, their reliance on handheld remotes often leaves a gap in automation. The TrolMaster ARS-1 AC Remote Station bridges this gap by learning the IR commands from your existing remote, allowing your climate controller to take full command of your cooling and heating cycles.
By integrating the ARS-1 with your TrolMaster Hydro-X HCS-1 Grow Tent Control or Tent-X system, you can eliminate manual adjustments forever. Once the signal emitter is positioned and programmed, the system automatically sends commands based on your precise environmental setpoints. With a simple setup process and a Micro-SD slot for future firmware updates, the ARS-1 is the ultimate solution for professional mini-split automation.
Compatibility: TrolMaster Hydro-X and Tent-X Systems | IR Remote-Controlled Mini-Split AC Units
What's Included
Features
❄️
IR Mini-Split Control
Learns IR commands directly from your existing remote to bring any compatible mini-split under automation.
🖥️
LCD Display & Easy Setup
The built-in LCD screen guides you through a straightforward programming process that takes only minutes.
📍
Address Assignment
Individually identify the ARS-1 within your TrolMaster network for precise control in multi-unit grow environments.
💾
Micro-SD Updates
Stay current with the latest AC compatibility and features via the integrated Micro-SD firmware slot.
🔌
Plug & Play Design
Comes complete with RJ12 cables, T-splitter, and signal emitter for immediate installation out of the box.
TrolMaster ARS-1 Specifications
| Specification | Value |
|---|---|
| Output Voltage | 24V |
| Maximum Current | 1A |
| Firmware Updates | Micro-SD slot |
| Working Environment | Temperature 32–122°F (0–50°C), Humidity ≤90% |
| Package Dimensions | 160mm (L) × 86mm (W) × 86mm (H) |
| Gross Weight | 0.43 kg |
| Compatibility | TrolMaster Hydro-X, Tent-X |
Support & Manuals
Warranty
TrolMaster provides a 3-year warranty for the ARS-1 from the original date of purchase. This warranty covers all mechanical and electronic components under normal operating conditions. Damage resulting from improper use or abnormal conditions is not covered.
FAQs
Will the ARS-1 work with my mini-split AC unit?
The ARS-1 is designed to work with any AC unit that utilizes an infrared (IR) remote. By learning the signals from your existing remote, it can control the majority of mini-split and window-style units on the market.
What is the difference between the ARS-1 and the ARS-2?
The ARS-1 controls a single operating mode learned from your remote. The ARS-2 is an advanced version that can manage multiple modes (Cool, Heat, Auto) and is compatible with a wider range of controllers, including the HCS series.
How do I program the IR commands?
Programming is done directly on the ARS-1 using its LCD screen. You simply point your AC remote at the station and follow the prompts to record the on, off, and temperature signals.
Where should the signal emitter be placed?
The emitter should be placed with a clear line of sight to the IR receiver on your AC unit. If the unit is mounted far away, an extension cable (ECS-8) may be required.
How do I update the firmware?
Firmware updates are performed using the built-in Micro-SD slot. Download the latest firmware from TrolMaster, save it to a card, and insert it into the ARS-1 following the update guide instructions.
