- 1 × Device Station (DSP-1)
- 1 × 16ft RJ12 Cable
- 1 × 4ft RJ12 Cable
- 1 × RJ12 T-Splitter
TrolMaster DSP-1 110V Program Timer Device Station
$110.64 CAD
starting from 0% interest financing from
/mo.
- Supports 100; 240 VAC power at up to 10A current.
- Integrates via RJ12 cables for plug and play module addressing.
- Compatible with Aqua-X, Hydro-X, Green-X, and Tent-X control systems.
- 3-year warranty on all mechanical and electronic components
- View More Details
Gagnez 110 points en faisant vos achats et obtenez $1.10 de réduction sur votre prochaine commande. Adhérez gratuitement au Club Récolte.
Livraison gratuite sur la plupart des articles
Vers les 48 États continentaux
Tarification transparente
Bénéficie d'une garantie d'alignement tarifaire
4.8/5 Rating
1938+ verified reviews
Paiement sécurisé
Paiements sécurisés SSL
VOLUME PRICING
Achats commerciaux et en gros
Nous assistons les opérations et les installations agréées grâce à des tarifs dégressifs, des gestionnaires de compte dédiés et des consultations personnalisées sur l'équipement.
À qui s'adresse cet article ?
- You are adding independent irrigation or sterilization units because your main controller needs to manage their start times independently of environmental levels.
- You are consolidating multiple standalone timers into one interface because you need to simplify your workflow across a complex facility setup.
Ce que nous avons découvert
- The one-button addressing saves a lot of labour when you are adding multiple devices to a single controller rack.
- We prefer the RJ12 daisy-chain setup over traditional relay timers because it eliminates messy wiring at the outlet.
Ce que disent les utilisateurs
- Users who shifted their dosing pumps to this module report they stopped seeing inconsistencies in nutrient concentrations during peak shifts.
- Growers who integrated their UV sterilizers into their main controller say they no longer worry about timing resets after power flickers.

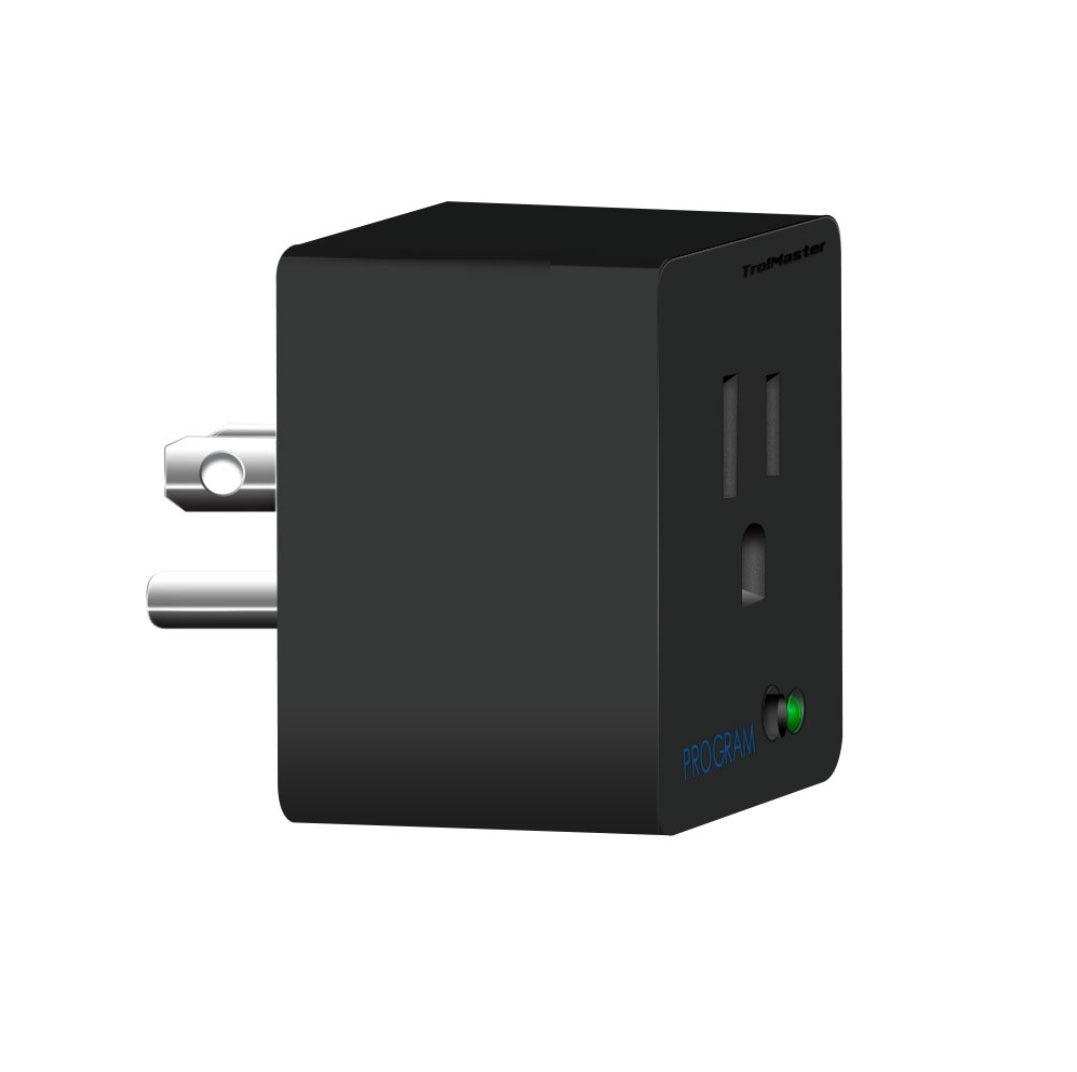

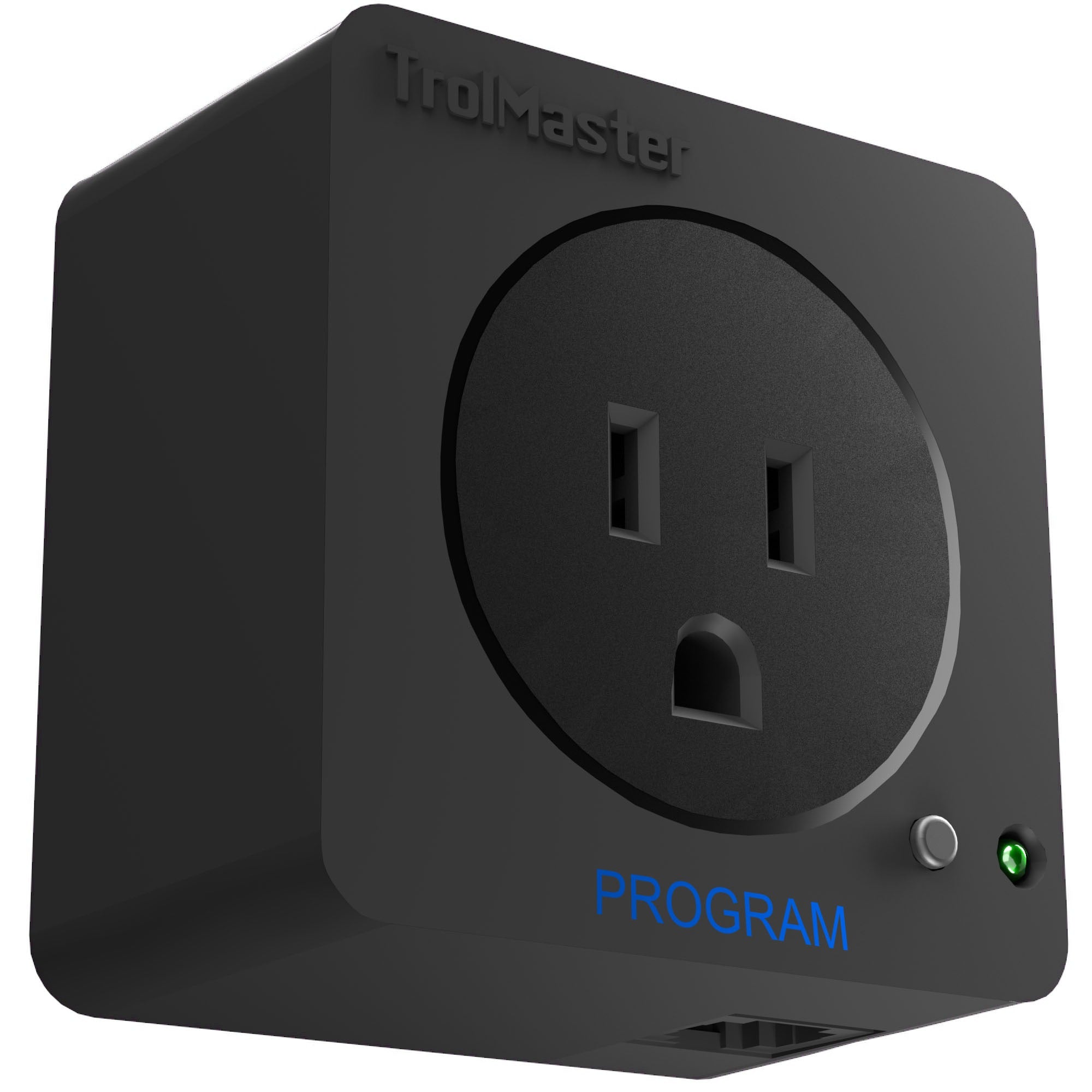

TrolMaster DSP-1 110V Program Timer Device Station
Some devices don't respond to environmental readings — they run on time. Dosing pumps, UV sterilizers, circulation equipment, and other time-activated devices need a reliable trigger that fires on schedule, every time, without manual intervention. The TrolMaster DSP-1 Program Device Station is a multi-function timer module that connects any time-activated device directly into your TrolMaster controller, such as the Hydro-X HCS-2, putting its on/off schedule under full programmatic control. It supports any device running on 100–240 VAC at up to 10 amps, making it compatible with a wide range of grow room and irrigation equipment worldwide.
The DSP-1 uses the same proven DS module design as the rest of the TrolMaster device station lineup—including the DSD-1 CO2 Station—connect via RJ12, address with a single button press, and the controller takes over scheduling entirely.
Compatibility: TrolMaster Aqua-X, Hydro-X, Green-X, and Tent-X Systems

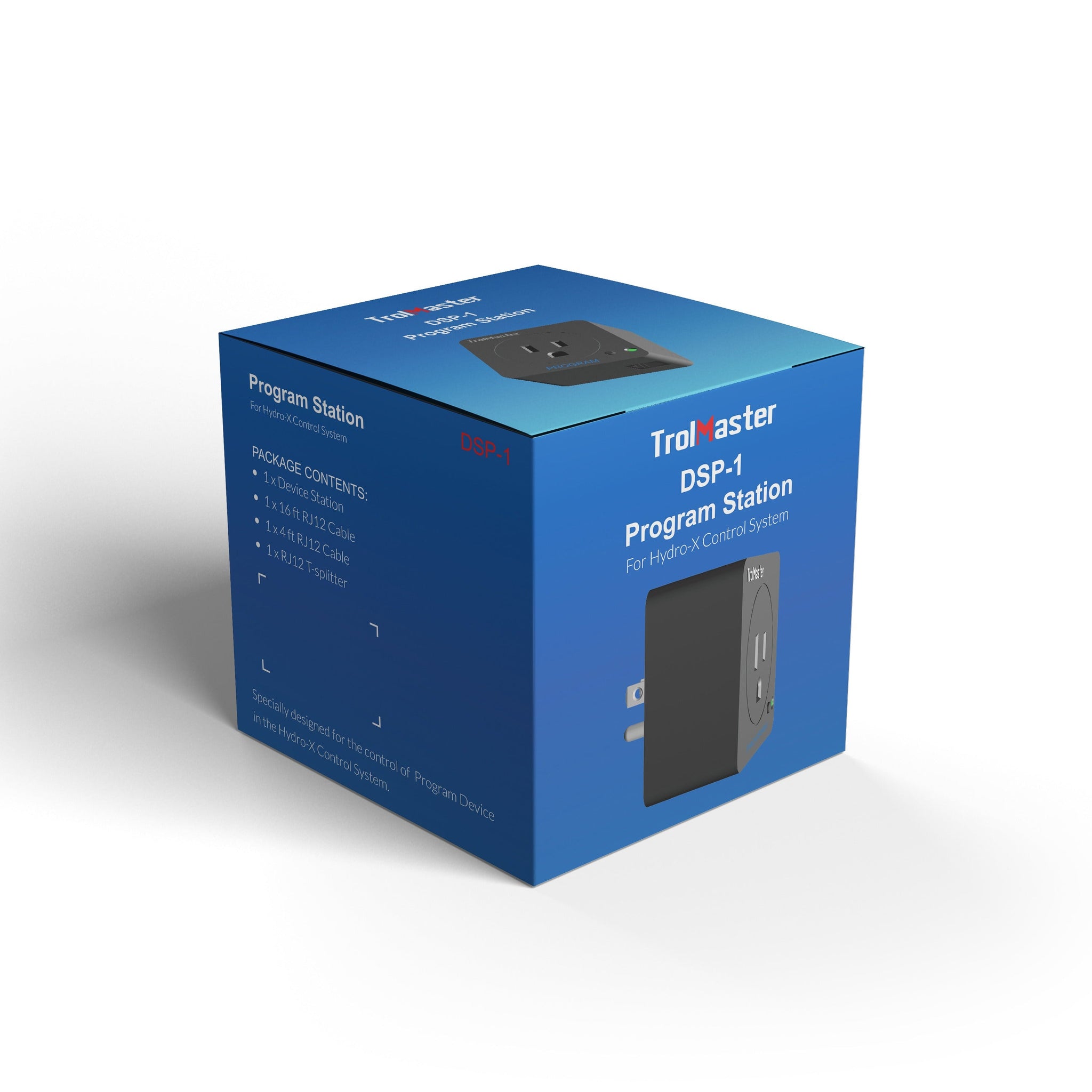

What's Included
Features
⏱️
Multi-Function Timer
Programs time-activated devices to switch on and off precisely on schedule — no manual triggering or separate timer hardware needed.
🌍
Universal Voltage Support
Supports 100–240 VAC, 50/60 Hz at up to 10A — compatible with time-activated devices on any standard electrical system worldwide.
📍
One-Button Addressing
Press the onboard button once to link the module to your controller. Hold to manually override the connected device on or off.
🔌
Plug & Play Setup
Both RJ12 cables and a T-splitter included. Integrates into any TrolMaster system in minutes — no wiring or tools required.
TrolMaster DSP-1 Specifications
| Specification | Value |
|---|---|
| Input Voltage | 100–240 VAC, 50/60 Hz |
| Output Voltage | 100–240 VAC, 50/60 Hz |
| Output Current | 10A |
| Working Environment | Temperature 32–122°F (0–50°C), Humidity ≤90% |
| Package Dimensions | 85mm (L) × 80mm (W) × 90mm (H) |
| Gross Weight | 0.34 kg |
| Compatibility | TrolMaster Aqua-X, Hydro-X, Green-X, Tent-X |
Support & Manuals
Warranty
TrolMaster backs the DSP-1 with a 3-year warranty from the original date of purchase, covering all mechanical and electronic components under normal operating conditions. Components that fail due to abnormal or improper usage are excluded from this coverage.
FAQs
What types of devices can I control with the DSP-1?
The DSP-1 is designed for any device that operates on a time-based schedule rather than responding to environmental sensor readings. Common applications include dosing pumps, UV sterilizers, circulation fans, agitation equipment, and lighting — anything running on 100–240 VAC at up to 10 amps that needs to switch on and off at programmed intervals.
How is the DSP-1 different from the DST-1, DSH-1, or DSC-1?
The DST-1, DSH-1, and DSC-1 are sensor-driven device stations — they switch connected devices on or off in response to real-time temperature, humidity, or CO2 readings. The DSP-1 is a program-driven station, much like the TrolMaster DSP-2, which controls devices based purely on time schedules you define, making it the right choice for equipment that needs to run at fixed intervals regardless of environmental conditions.
How do I address (link) the DSP-1 to my controller?
After connecting the DSP-1 via RJ12 cable, press the small button on the module once to link it to your TrolMaster controller. Once addressed, the controller can assign and manage the device's schedule directly. The LED will confirm the connection status — fast blinking green means unaddressed, slow blinking green means addressed and standing by.
Can I manually override the DSP-1 without changing the programmed schedule?
Yes. Press and hold the button on the DSP-1 to manually toggle the connected device on or off directly from the module. This override is useful during setup, testing, or maintenance without needing to modify the programmed schedule on the controller.
How many DSP-1 modules can I connect to one controller?
The number of DSP-1 modules you can connect depends on the device station capacity of your specific TrolMaster controller. The included RJ12 T-splitter and cables allow for daisy-chain connectivity across the controller's bus. Consult your controller's documentation for the maximum supported device station count for your specific model.
Is the DSP-1 compatible with the Aqua-X, Hydro-X, Green-X, and Tent-X?
Yes — the DSP-1 is compatible across all four TrolMaster control platforms: Aqua-X, Hydro-X, Green-X, and Tent-X. This cross-platform compatibility makes it a practical timer module whether you're managing irrigation schedules on an Aqua-X NFS-2 setup or running time-activated grow room equipment on a Hydro-X HCS-2 or Tent-X controller.
Does the DSP-1 work with the DS Modules Plug List for international plug types?
Yes — like all TrolMaster DS-type modules, the DSP-1 is available in multiple global plug configurations. The DSP-1 supports 100–240 VAC input, making it electrically compatible worldwide. Download the DS Modules Plug List to confirm which plug version is correct for your country before ordering.
