- 1 × 12-Output 24V Control Board (OAT-24)
- 1 × 16ft RJ12 Cable
- 1 × Power Cable
- 1 × 13-Pin Phoenix Type Connector
TrolMaster OAT-24 12-Output 24V Irrigation Control Board
$410.95 CAD
starting from 0% interest financing from
/mo.
- Controls 12 independent 24V AC solenoid valves from a single module.
- Supports five irrigation modes including volume and demand-based delivery.
- Daisy-chains to manage up to 600 valves across commercial operations.
- 3-year warranty on all mechanical and electronic components
- View More Details
Gagnez 410 points en faisant vos achats et obtenez $4.10 de réduction sur votre prochaine commande. Adhérez gratuitement au Club Récolte.
Livraison gratuite sur la plupart des articles
Vers les 48 États continentaux
Tarification transparente
Bénéficie d'une garantie d'alignement tarifaire
4.8/5 Rating
1938+ verified reviews
Paiement sécurisé
Paiements sécurisés SSL
VOLUME PRICING
Achats commerciaux et en gros
Nous assistons les opérations et les installations agréées grâce à des tarifs dégressifs, des gestionnaires de compte dédiés et des consultations personnalisées sur l'équipement.
À qui s'adresse cet article ?
- You are scaling your irrigation zones because your current controller cannot handle the volume of independent valves.
- You are centralizing your room management because manually adjusting individual timers is costing you too much labour.
Ce que nous avons découvert
- The Phoenix type connectors make a real difference during install because they save you from dealing with loose wires.
- We like that this unit offloads the processing power from your main controller, keeping your system response snappy.
Ce que disent les utilisateurs
- Operators who integrated these boards say they eliminated the uneven moisture levels across their different crop zones.
- Users who added these to their greenhouse say the organized wiring reduced their troubleshooting time during harvests.

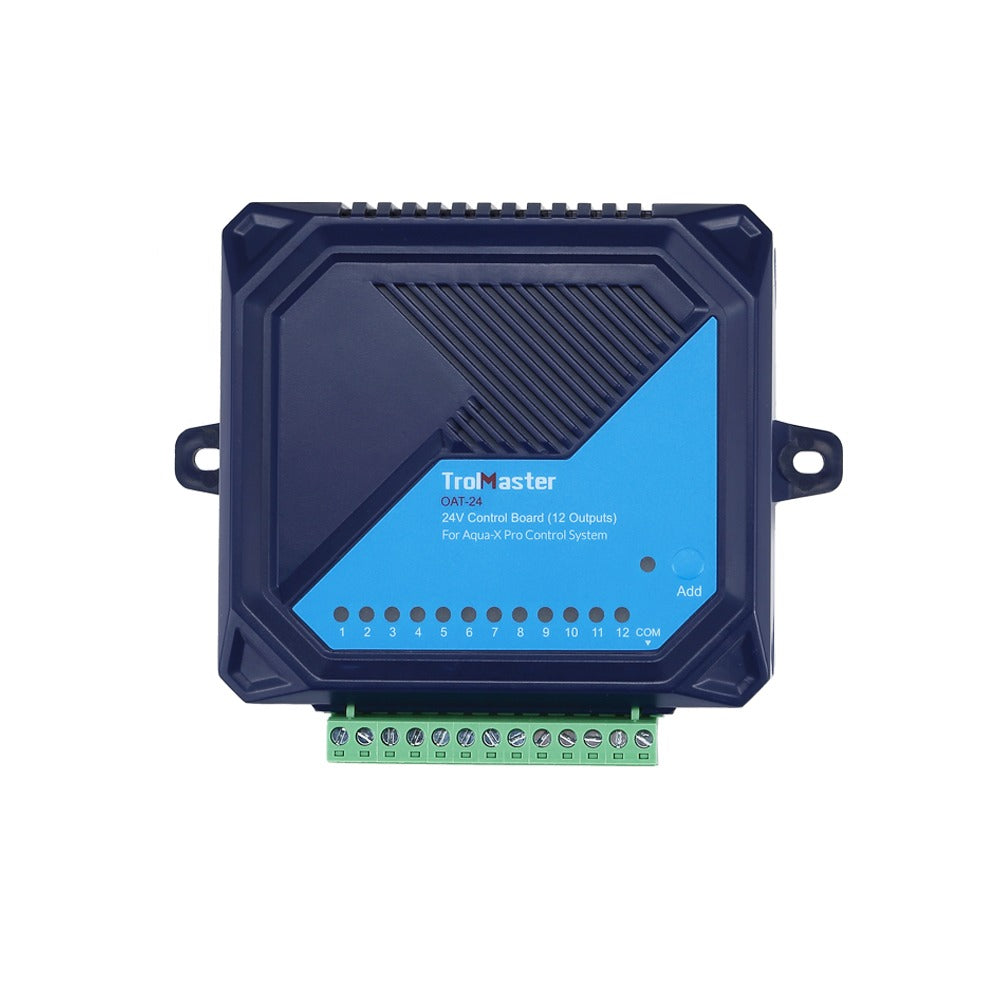

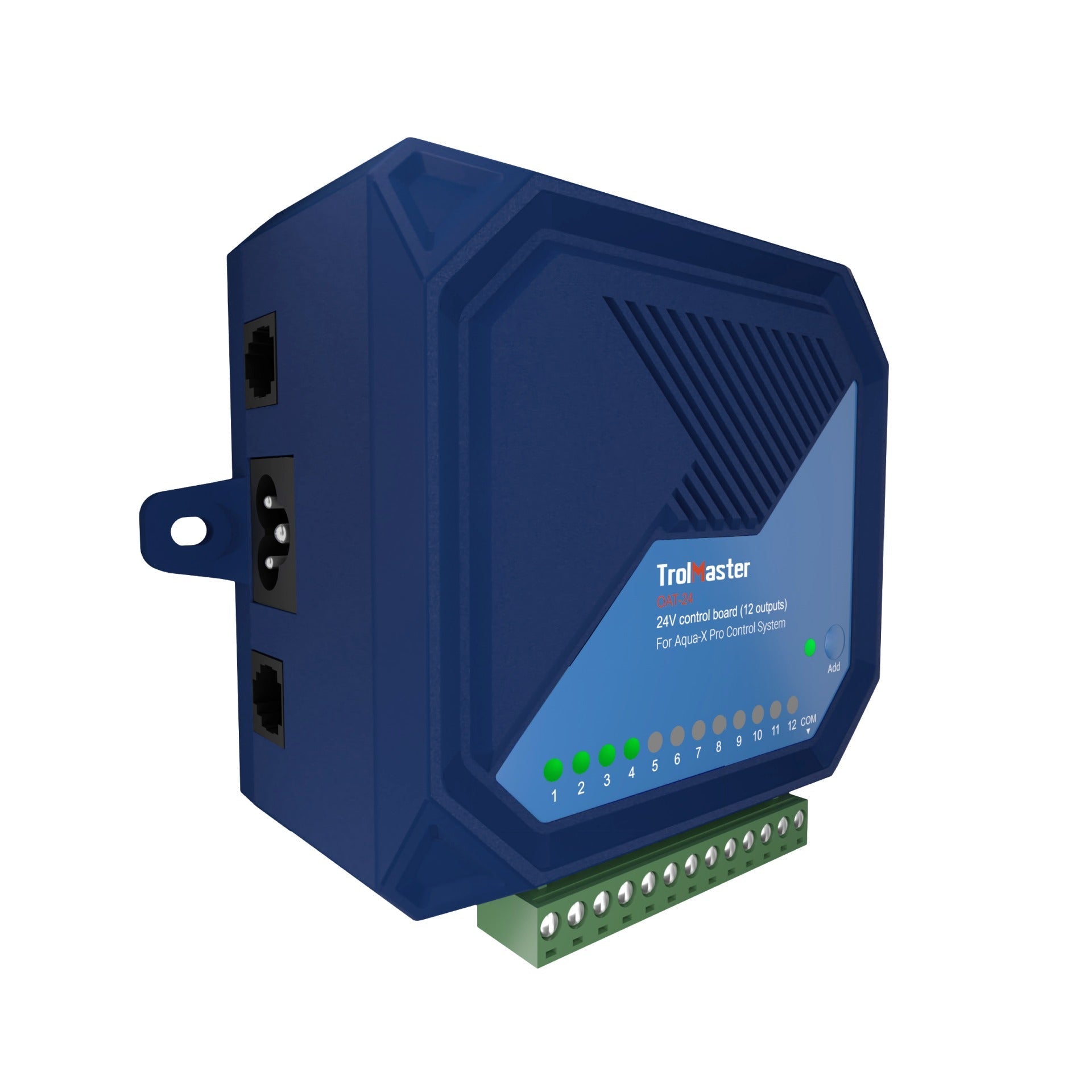

TrolMaster OAT-24 12-Output 24V Irrigation Control Board
Managing a complex irrigation network across multiple zones often feels like an impossible task when limited by standard controller ports. The TrolMaster OAT-24 Environmental Control solves this scaling bottleneck by providing 12 individually controlled 24V solenoid valve outputs in a single, robust module. Each output is independently programmable, allowing you to tailor your irrigation strategy to the specific needs of different crop types or growth stages. For those monitoring water flow, the OAT-24 pairs perfectly with the TrolMaster DFM-1 to ensure volume-based irrigation accuracy.
The OAT-24 is designed for maximum scalability and precision. By integrating this module with your TrolMaster Green-X GCS-1, you can expand your system's reach to up to 600 valves. This makes it an essential tool for commercial cultivators who require granular control over their greenhouse control environment while maintaining a clean and organized wiring setup via the included Phoenix type connectors.
Compatibility: TrolMaster Green-X and Aqua-X Systems
What's Included
Features
💧
12 Independent 24V Outputs
Controls up to 12 individual 24V AC solenoid valves simultaneously with independent configuration.
🎛️
Five Irrigation Control Modes
Choose between Recycle, Schedule, Demand, Volume, or Auto-fill modes for precise delivery.
📈
Scalable to 600 Valves
Daisy-chain multiple modules to manage massive commercial operations from a single system.
🌐
Multi-Zone Control
Manage irrigation across multiple nutrients and rooms simultaneously from one central module.
🔌
Universal Voltage Input
Accepts 100–240 VAC for global compatibility without the need for external transformers.
TrolMaster OAT-24 Specifications
| Specification | Value |
|---|---|
| Input Voltage | 100–240 VAC, 50/60 Hz |
| Max Input Current | 1.7A |
| Output Voltage | 24 VAC |
| Max Output Current | 0.5A per output |
| Number of Outputs | 12 independently controlled |
| Control Modes | Recycle, Schedule, Demand, Volume, Auto-fill |
| Max System Valves | 600 (multi-module) |
| Connector Type | 13-Pin Phoenix Type |
| Working Environment | 32–122°F (0–50°C), Humidity ≤90% |
| Compatibility | TrolMaster Green-X, Aqua-X |
Support & Manuals
Warranty
TrolMaster backs the OAT-24 with a 3-year warranty from the original date of purchase, covering all mechanical and electronic components under normal operating conditions. Components that fail due to abnormal or improper usage are excluded from this coverage.
FAQs
What irrigation control modes does the OAT-24 support?
Each of the 12 outputs can be independently configured with one of five control modes: Recycle, Schedule, Demand, Volume, or Auto-fill. This allows each irrigation zone to operate on its own logic rather than sharing a single blanket schedule across all zones.
How many OAT-24 modules can I connect?
Multiple OAT-24 modules can be combined within the same TrolMaster system to scale irrigation capacity. The system supports up to 600 individually controlled valves in total across all connected modules, making it suitable for large commercial greenhouses.
What type of solenoid valves is the OAT-24 compatible with?
The OAT-24 is designed for standard 24 VAC irrigation solenoid valves, with each output rated at up to 0.5A. This covers the vast majority of commercially available 24V solenoids used in horticultural irrigation systems.
Can the OAT-24 manage irrigation across multiple rooms?
Yes, the OAT-24 is specifically designed to handle irrigation scheduling across multiple nutrients, rooms, and zones simultaneously. Each output is independently configurable to avoid conflicts between different crop requirements.
Does the OAT-24 work on both 110V and 240V systems?
Yes. The OAT-24 accepts a universal input of 100–240 VAC at 50/60 Hz, making it compatible with standard electrical infrastructure in North America, Europe, and other regions without additional adapters.
How does the OAT-24 connect to the controller?
The OAT-24 connects to your TrolMaster controller via the included 16ft RJ12 cable. Solenoid valves wire into the module through the included 13-pin Phoenix type connector for organized and secure field wiring.
