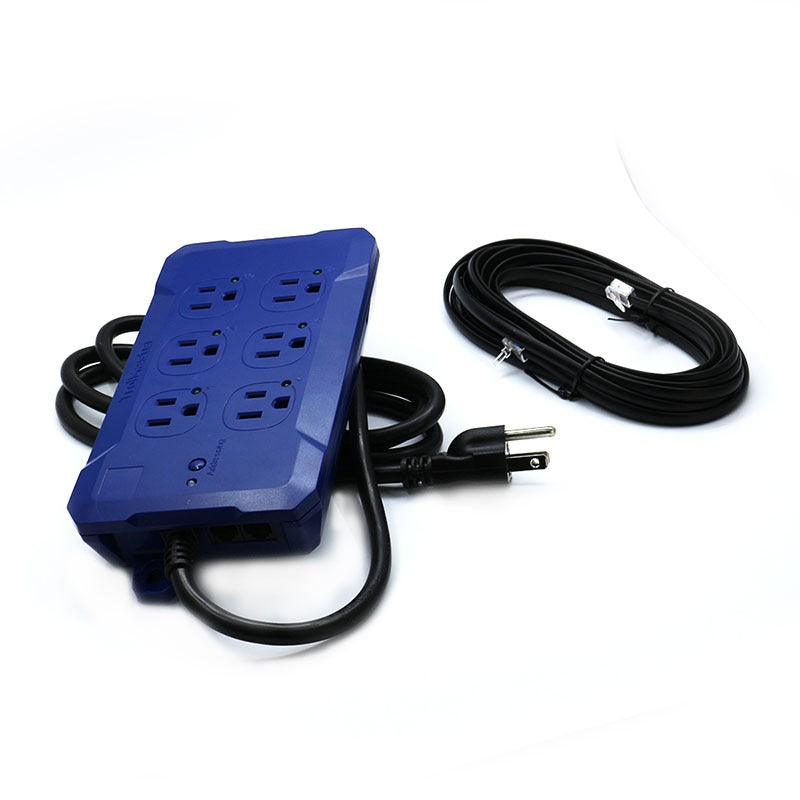

- 1 × 110V Control Board (OA6-110)
- 1 × 16ft RJ12 Cable
TrolMaster Aqua-X OA6-110 110V Irrigation Control Board
$172.50 CAD
starting from 0% interest financing from
/mo.
- Supports up to 30 individually controlled 120V devices when daisy-chained to a single controller.
- Six independent 120V AC outlets each capable of handling solenoid valves or pumps up to 1.5A.
- Connects directly to the controller via a single RJ12 cable for instant addressing.
- 3-year warranty, covering all mechanical and electronic components
- View More Details
Gagnez 172 points en faisant vos achats et obtenez $1.72 de réduction sur votre prochaine commande. Adhérez gratuitement au Club Récolte.
Livraison gratuite sur la plupart des articles
Vers les 48 États continentaux
Tarification transparente
Bénéficie d'une garantie d'alignement tarifaire
4.8/5 Rating
1938+ verified reviews
Paiement sécurisé
Paiements sécurisés SSL
VOLUME PRICING
Achats commerciaux et en gros
Nous assistons les opérations et les installations agréées grâce à des tarifs dégressifs, des gestionnaires de compte dédiés et des consultations personnalisées sur l'équipement.
À qui s'adresse cet article ?
- You are moving away from low-voltage systems because your current solenoid valves require 120V power to function correctly.
- You are expanding your irrigation zones because your current setup lacks the individual output control needed for precision.
Ce que nous avons découvert
- The one-button addressing system saves a lot of labour when you are syncing multiple modules to the controller.
- We suggest keeping the RJ12 cables away from high-voltage lines to prevent signal interference during cycle shifts.
Ce que disent les utilisateurs
- Users who added these modules say they finally stopped dealing with mismatched valve voltages across their facility.
- Operators who daisy-chained five units report that having individual LED indicators makes troubleshooting zones much faster.
What's Included
Features
🔧
110V Solenoid & Pump Support
Designed for 120V AC solenoid valves drawing under 1.5A per output and small 110V irrigation pumps — no step-down transformer needed.
🔢
6 Individually Controlled Outputs
Six independent 120V outlets let you schedule and control each irrigation zone or pump separately from the controller.
💡

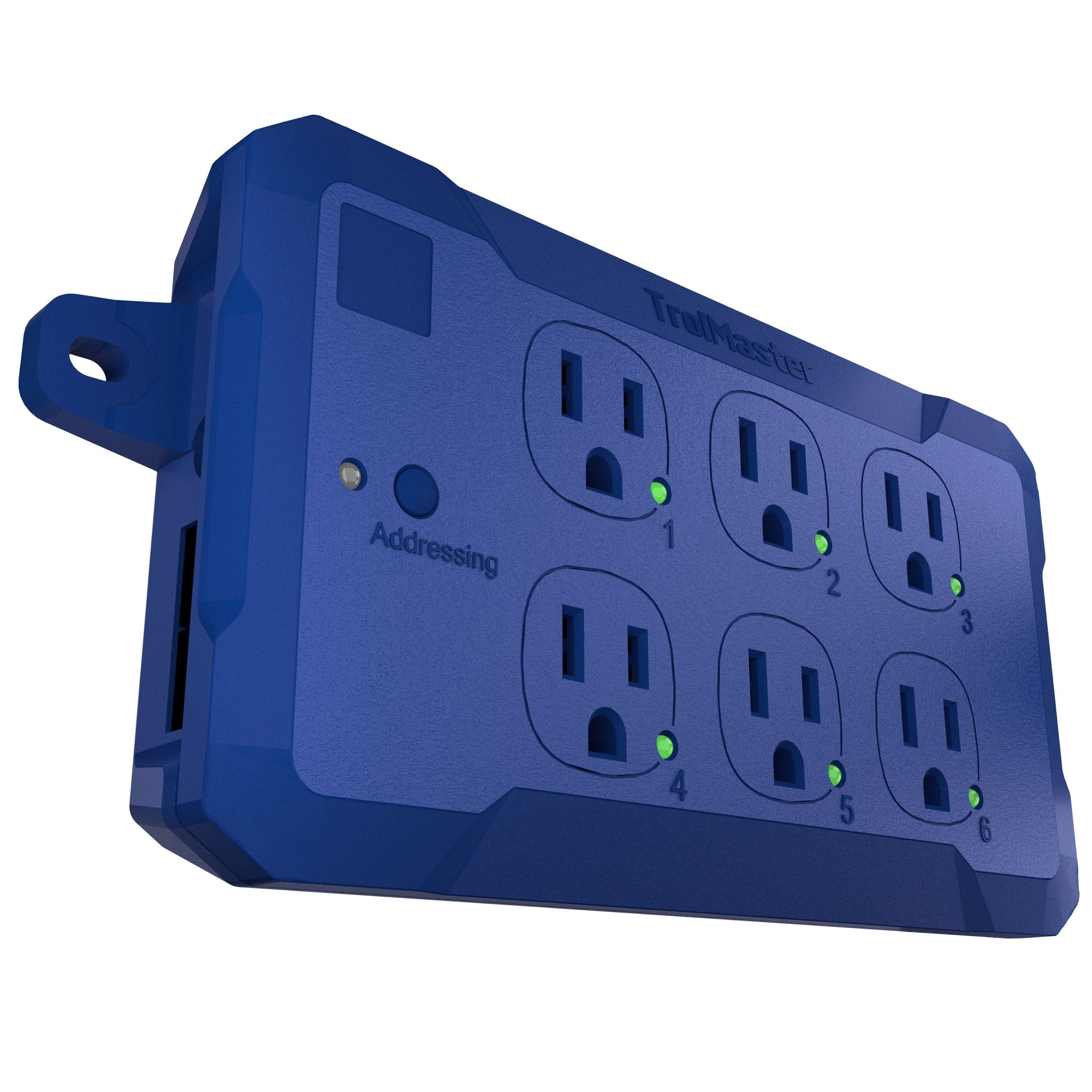

Per-Output LED Indicators
Each of the six outputs has a dedicated LED indicator showing active or inactive status — confirm zone activity at a glance.
🔗
Daisy Chain Connectivity
Connect up to 5 OA6-110 modules to a single controller to manage up to 30 line-voltage devices across your operation.
📍
One-Button Addressing
Onboard addressing button links the module to your controller in a single press — no software or configuration tools required.
🔌
Plug & Play Setup
RJ12 cable included. Connects directly to the controller with no additional wiring or hardware required.
TrolMaster OA6-110 Specifications
| Specification | Value |
|---|---|
| Input Voltage | 120 VAC |
| Max Input Current | 9A |
| Max Output Voltage / Current | 120 VAC / 1.5A per output |
| Number of Outputs | 6 individually controlled |
| Max Modules Per Controller | 5 (up to 30 devices) |
| Working Environment | Temperature 32–122°F (0–50°C), Humidity ≤90% |
| Package Dimensions | 275mm (L) × 164mm (W) × 62mm (H) |
| Compatibility | TrolMaster Aqua-X, Green-X, Tent-X |
Support & Manuals
Warranty
TrolMaster backs the OA6-110 with a 3-year warranty from the original date of purchase, covering all mechanical and electronic components under normal operating conditions. Components that fail due to abnormal or improper usage are excluded from this coverage.
FAQs
What is the difference between the OA6-110 and the OA6-24?
The key difference is output voltage. The OA6-24 is designed for low-voltage 24V AC solenoid valves — the standard used in most irrigation systems. The OA6-110 is designed for line-voltage applications, providing six 120V AC outlets for solenoid valves drawing under 1.5A per output and small 110V pumps. Both modules support up to five units per controller and share the same six-output, daisy-chain-capable design.
What devices can I connect to the OA6-110?
The OA6-110 is rated for 120V AC solenoid valves with a current draw of less than 1.5 amps per output, as well as small 110V irrigation pumps within the same current limit. The total max input current across all six outputs is 9A, so ensure the combined draw of all connected devices stays within that limit.
How many solenoid valves or pumps can I control with one OA6-110?
Each OA6-110 provides six independently controlled 120V outputs, so a single module can drive up to six solenoid valves or small pumps. By connecting up to five OA6-110 modules to a single controller, you can scale the system to manage up to 30 line-voltage devices in total.
How do I expand beyond six zones with the OA6-110?
The OA6-110 supports daisy-chain expansion — connect additional modules in sequence to add six more outputs per module, up to a maximum of five modules (30 outputs) per controller. Each module is addressed individually so the controller can schedule and manage each zone independently.
How do I address (link) the OA6-110 to my controller?
After connecting the OA6-110 via the included RJ12 cable, press the onboard addressing button once to link the module to your controller. When multiple OA6-110 modules are daisy-chained, each unit must be addressed individually so the controller can distinguish between them and schedule each zone independently.
What do the LED indicators on each output show?
Each of the six outputs has a dedicated LED indicator that shows whether that output is currently active or inactive. This lets you confirm at a glance which valves or pumps are running without checking the controller display or physically inspecting each device in your irrigation layout.
Which controllers is the OA6-110 compatible with?
The OA6-110 is compatible with the TrolMaster Aqua-X NFS-2 irrigation controller as its primary use case, and also works with the Green-X and Tent-X environmental control systems. It connects via standard RJ12 cable and integrates directly into the TrolMaster control ecosystem alongside other OA6 and OAT series modules.
