- 1 × Device Station (DSH-2)
- 1 × 16ft RJ12 Cable
- 1 × 4ft RJ12 Cable
- 1 × RJ12 T-Splitter
TrolMaster DSH-2 240V Humidity Device Station
$147.07 CAD
starting from 0% interest financing from
/mo.
- Supports up to 10 amps on a 240V dedicated circuit.
- Connects directly via RJ12 cables for plug and play integration with the Hydro-X system.
- Includes status LED to monitor connection and overload activity at a glance.
- 3-year warranty, covering all mechanical and electronic components
- View More Details
Gagnez 147 points en faisant vos achats et obtenez $1.47 de réduction sur votre prochaine commande. Adhérez gratuitement au Club Récolte.
Livraison gratuite sur la plupart des articles
Vers les 48 États continentaux
Tarification transparente
Bénéficie d'une garantie d'alignement tarifaire
4.8/5 Rating
1938+ verified reviews
Paiement sécurisé
Paiements sécurisés SSL
VOLUME PRICING
Achats commerciaux et en gros
Nous assistons les opérations et les installations agréées grâce à des tarifs dégressifs, des gestionnaires de compte dédiés et des consultations personnalisées sur l'équipement.
À qui s'adresse cet article ?
- You are upgrading to a 240V system because your current hardware draws too much power for standard 120V circuits to handle safely.
- You are integrating heavy-duty dehumidifiers into your existing setup because you need precise humidity control for larger spaces.
Ce que nous avons découvert
- We use this when a client needs to run powerful dehumidifiers without overloading their standard power drops.
- The simple one-button addressing saves a lot of time when you are configuring a complex room in a hurry.
Ce que disent les utilisateurs
- Operators who switched to this station say they stopped blowing breakers since their equipment runs on dedicated lines.
- Buyers who added this to their existing controller say they have not had to worry about humidity spikes since installation.

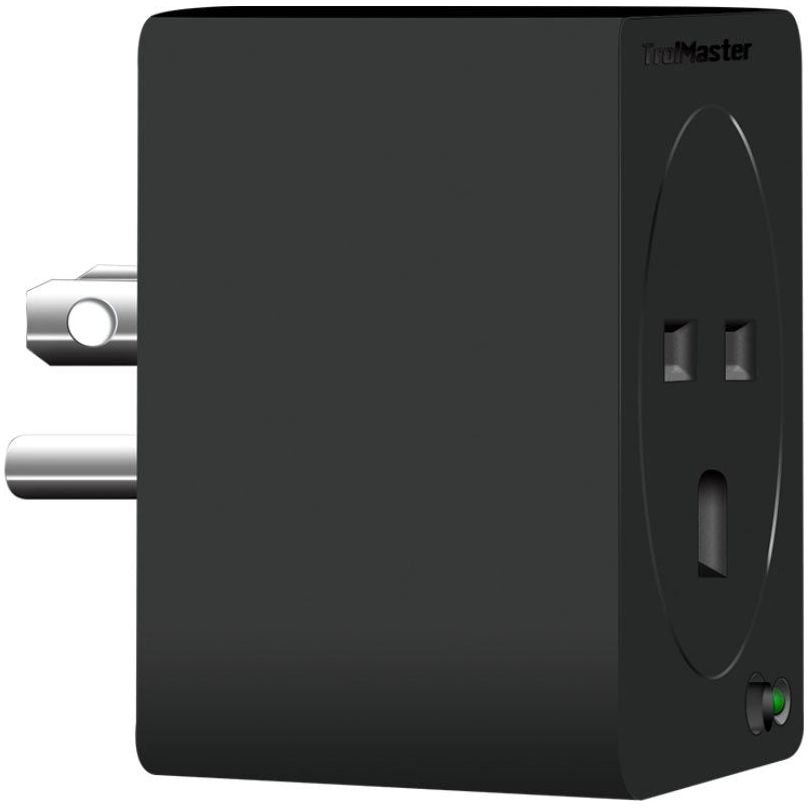

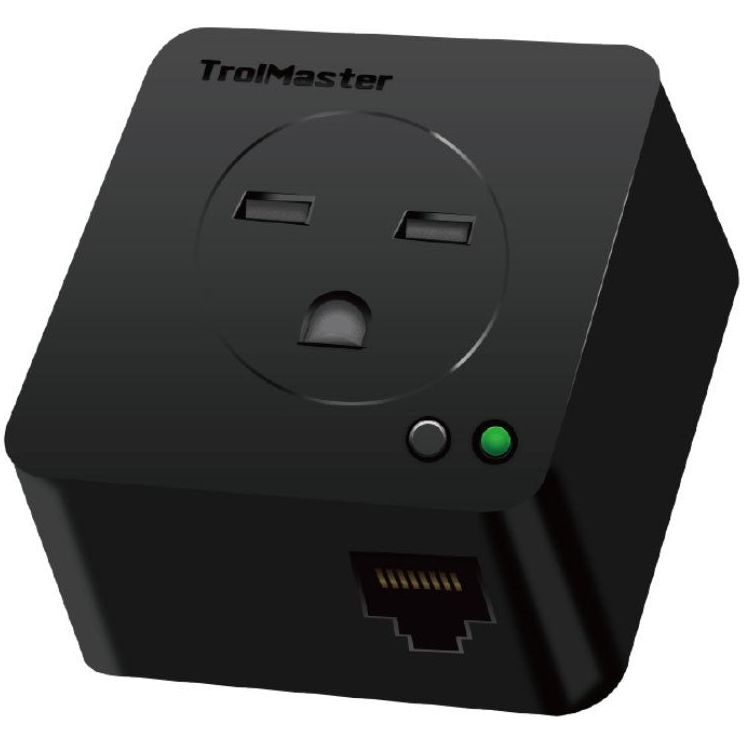

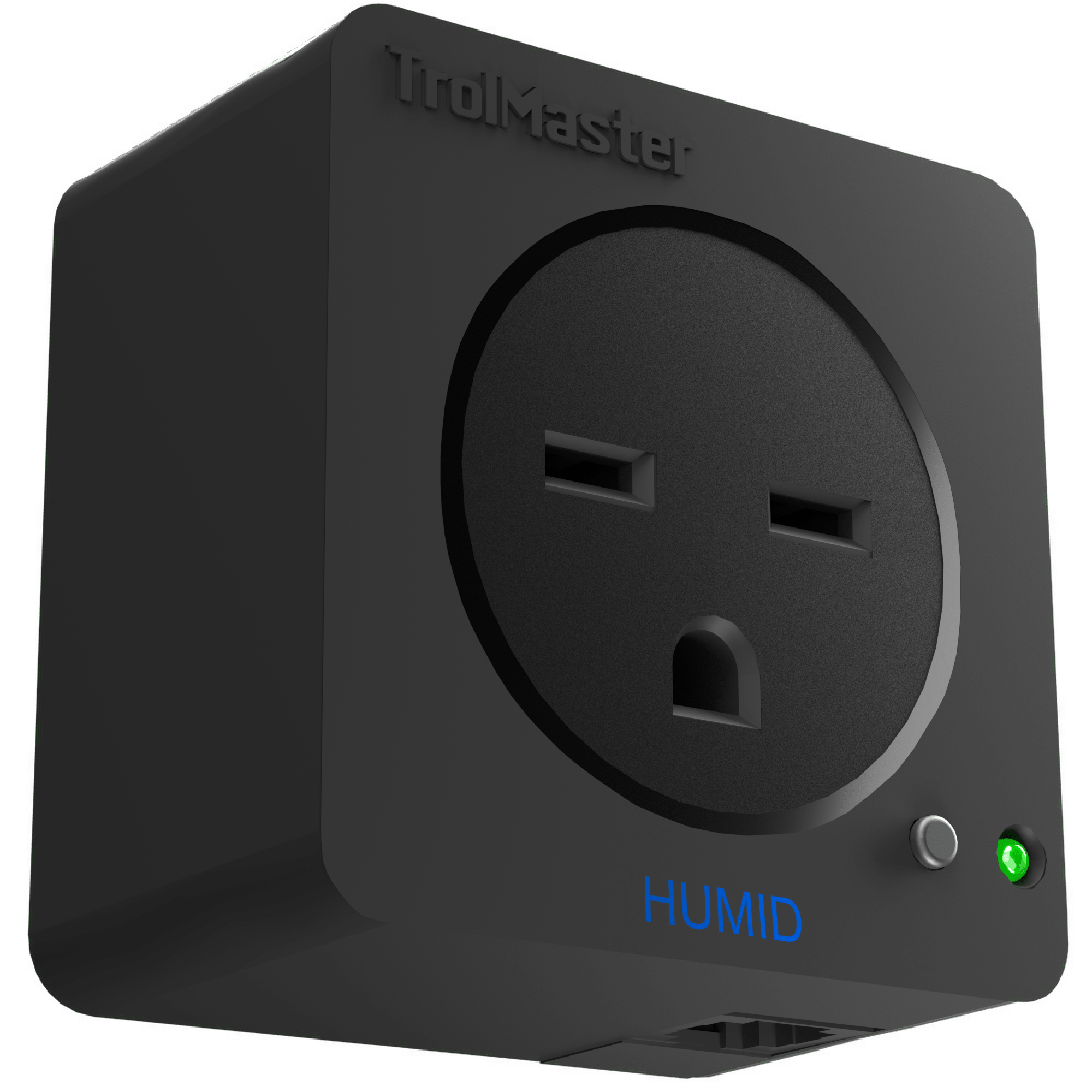

TrolMaster DSH-2 240V Humidity Device Station

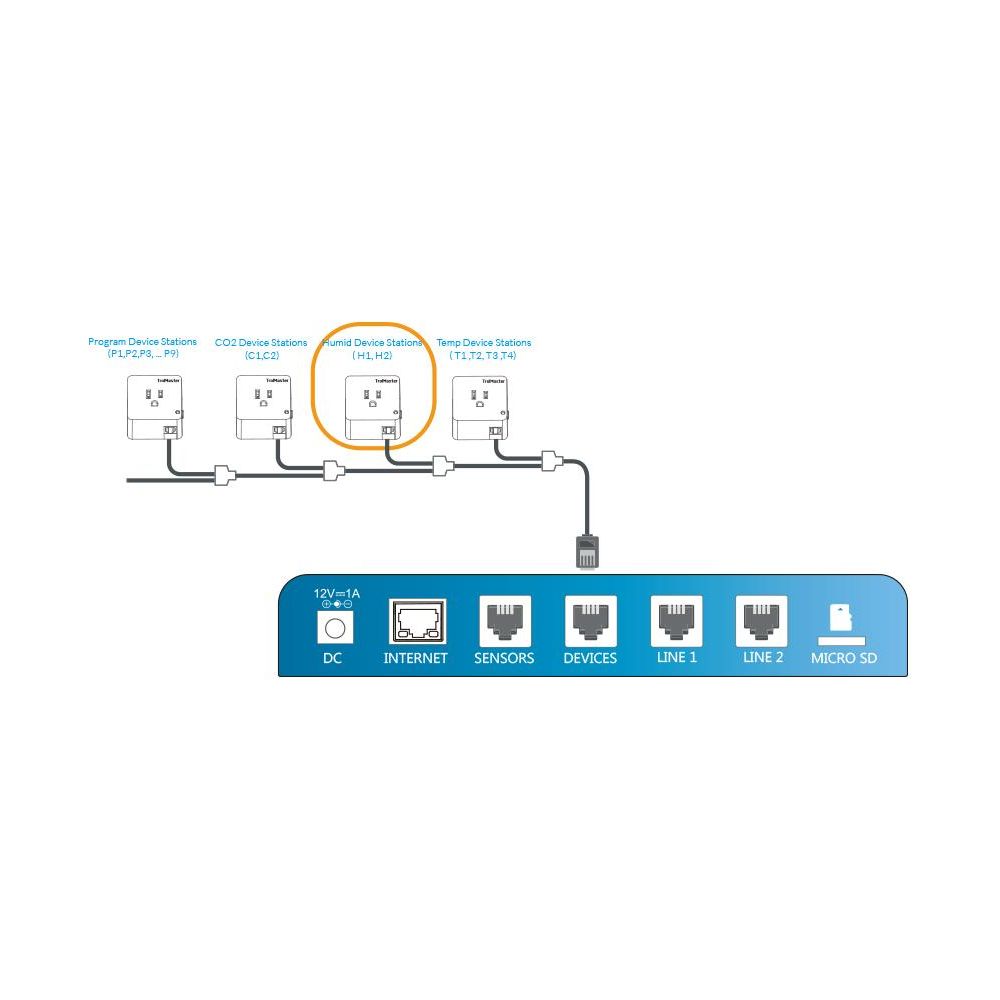

Commercial grow environments often rely on high-capacity equipment that demands dedicated power. Standard controllers often struggle with high-voltage loads, but the TrolMaster 240V DSH-2 is engineered specifically to bridge that gap, providing precise, automated humidity management for your most powerful equipment. This station allows you to integrate any 240V humidifying or dehumidifying device directly into your existing TrolMaster Hydro-X HCS-1 Grow Tent Control setup.
By supporting up to 10 amps, it ensures that even heavy-duty gear operates in perfect sync with your environmental parameters without the need for complex wiring or external adapters. Whether you are expanding a large-scale facility or upgrading a specialized room, adding a TrolMaster DSH-1 or this high-voltage DSH-2 variant ensures your humidity levels remain within the optimal range for maximum crop health.
Compatibility: TrolMaster Hydro-X, Green-X, and Tent-X Systems
⚠️ When controlling a dehumidifier, ensure the unit draws less than 7 amps to avoid triggering current overload on the DSH-2.
What's Included
Features
⚡
240V Dedicated Input
Designed specifically for 240V circuits—ideal for high-capacity humidifiers and dehumidifiers.
💡
LED Status Indicator
Colour-coded LED shows connection, activity, and overload status at a glance.
📍
One-Button Addressing
Instantly link the module to your controller or use manual override with a single press.
🔌
Plug & Play Setup
Includes RJ12 cables and a T-splitter for fast, tool-free integration into your system.
TrolMaster DSH-2 Specifications
| Specification | Value |
|---|---|
| Input Voltage | 240 VAC, 50/60 Hz |
| Output Voltage | 100–240 VAC, 50/60 Hz |
| Output Current | 10A (7A max recommended for dehumidifiers) |
| Working Environment | Temperature 32–122°F (0–50°C), Humidity ≤90% |
| Package Dimensions | 85mm (L) × 80mm (W) × 90mm (H) |
| Gross Weight | 0.34 kg |
| Compatibility | TrolMaster Hydro-X, Green-X, Tent-X |
Support & Manuals
Warranty
TrolMaster backs the DSH-2 with a 3-year warranty from the original date of purchase, covering all mechanical and electronic components under normal operating conditions. Components that fail due to abnormal or improper usage are excluded from this coverage.
FAQs
What is the difference between the DSH-1 and the DSH-2?
The primary difference is the voltage requirement. While the DSH-1 is a universal module, the DSH-2 is designed specifically for dedicated 240V circuits. This makes it ideal for commercial-grade dehumidifiers and humidifiers that require higher voltage to operate efficiently.
What devices can I control with the DSH-2?
You can control any humidifier or dehumidifier that runs on 240 VAC and draws up to 10 amps. However, for dehumidifiers specifically, we recommend a maximum draw of 7 amps to ensure longevity and prevent overload protection triggers.
What do the LED status lights indicate?
Fast blinking green means the module is waiting to be addressed. Slow blinking green means it is connected and standing by. Solid green indicates the device is currently active. Blinking red indicates an overload; simply unplug the unit to reset.
How do I address the DSH-2 to my controller?
Connect the station via the provided RJ12 cable and press the addressing button once. Your TrolMaster controller will recognize the device instantly. You can also hold this button to manually toggle the power to the connected device.
Can I use the DSH-2 with any TrolMaster system?
Yes, the DSH-2 is fully compatible with the Hydro-X, Green-X, and Tent-X control systems, allowing for seamless integration into your existing environmental automation setup.
