Dab Pumps DAB Pumps EsyBox Max Commercial Booster Pump
Dab Pumps DAB Pumps EsyBox Max Commercial Booster Pump
Dab Pumps DAB Pumps EsyBox Max Commercial Booster Pump
Dab Pumps DAB Pumps EsyBox Max Commercial Booster Pump
Dab Pumps DAB Pumps EsyBox Max Commercial Booster Pump
Dab Pumps DAB Pumps EsyBox Max Commercial Booster Pump
Dab Pumps DAB Pumps EsyBox Max Commercial Booster Pump
Dab Pumps DAB Pumps EsyBox Max Commercial Booster Pump
Ask Sage about this product

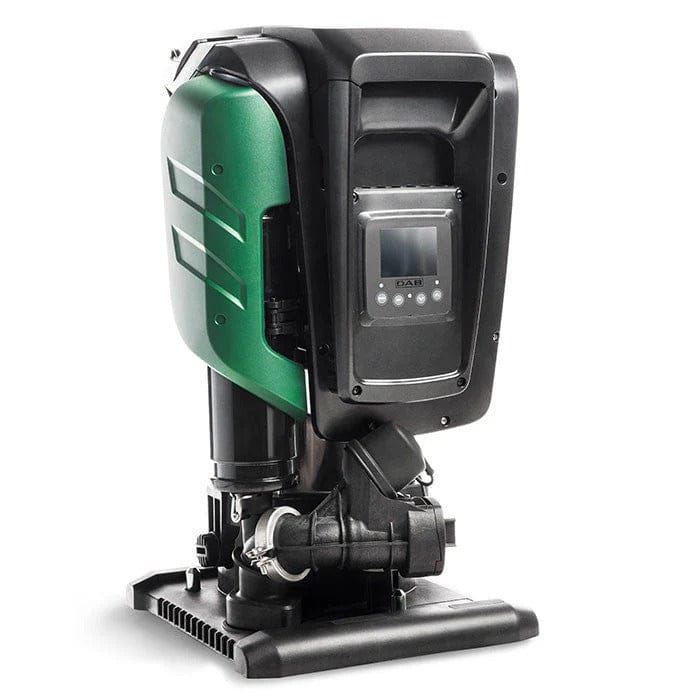

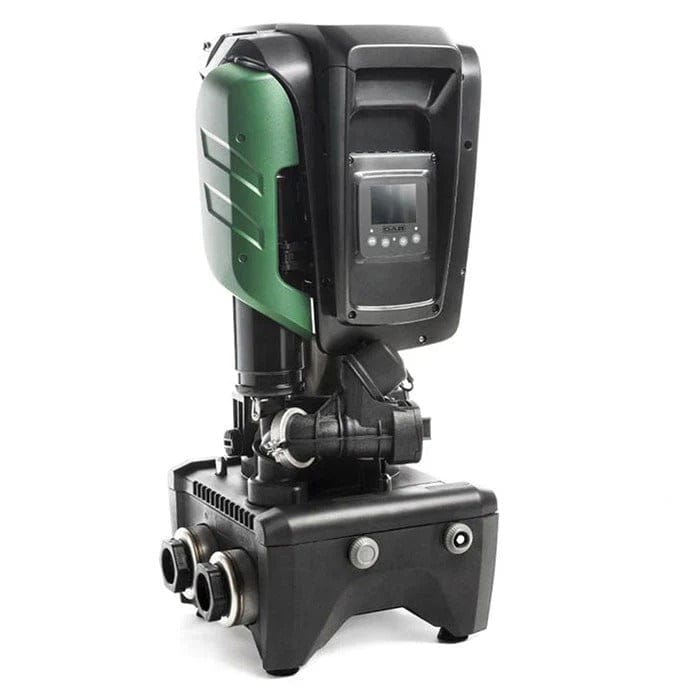

DAB Pumps EsyBox Max Commercial Booster Pump

Official Dab Pumps Dealer Model: 60217370
Translation missing: fr.product.price.range_htmlTranslation missing: fr.product.price.range_htmlTranslation missing: fr.product.price.range_html
 $8,333.00 CAD
starting from 0% interest financing from /mo.

Payment Options

Options:Pay in Four, Pay Monthly
Amount:Up to $1,500 (Pay in 4)
Up to $10,000 (Monthly)
Schedule:Bi-weekly to Monthly
Term:6 weeks, 12 or 24 months
Interest:0% to 35.99% APR*
Credit Check?Soft Check Only
Schedule:Bi-weekly to Monthly
Term:6 weeks, 6 or 12 months
Interest:0% to 35.99% APR*
Credit Check?Soft Check Only
Finance up to:$4,000
Options:Pay in 6, Pay Monthly
Amount:Up to $1,500 (Pay in 6)
$1,501–$30,000 (Monthly)
Schedule:Bi-weekly / Monthly
Term:6 bi-weekly / 6–60 months
Interest:0% (up to $1,500) / 11.99% APR
Not available in:Quebec
Looking to finance equipment under your corporation? Learn more about Business Financing
  • Delivers up to 17.4 cubic metres per hour of flow at 96 metres of head
  • Integrated variable frequency drive maintains steady pressure from 1 to 12 bar
  • Water-cooled permanent magnet motor provides high efficiency with minimal noise output
  • View More Details
Special Order: Please Contact Us For Availability

Gagnez 5,499 points en faisant vos achats et obtenez $54.99 de réduction sur votre prochaine commande. Adhérez gratuitement au Club Récolte.
Des questions ? Parlez à un spécialiste. Mon–Fri, 9am–5pm PST
(778) 300-3154 Live Chat Available now
Livraison gratuite sur la plupart des articles Vers les 48 États continentaux
Tarification transparente Bénéficie d'une garantie d'alignement tarifaire
4.8/5 average Top Quality Store on Google
Paiement sécurisé Paiements sécurisés SSL

Send Us a Message
Ask Sage about this product
VOLUME PRICING

Achats commerciaux et en gros

Nous assistons les opérations et les installations agréées grâce à des tarifs dégressifs, des gestionnaires de compte dédiés et des consultations personnalisées sur l'équipement.

Commercial Inquiry

Contact Information
À TRAVERS LE REGARD DU CULTIVATEUR Évaluation pratique

  • You are scaling up your building water supply because your current single pump cannot maintain pressure across multiple floors
  • You are upgrading to an integrated modular system because you need to keep output stable even when demand fluctuates wildly

  • The wireless pairing between units simplifies the plumbing layout since you avoid running extra control wiring
  • We found the H2D app dashboard makes it easy to spot a pressure drop before it becomes a tenant complaint

  • Building managers who swapped out traditional tank setups report they saved significant labour costs on site assembly
  • Installers who rely on the modular support base say they handle the setup solo without needing extra hands

DAB Pumps EsyBox Max Commercial Booster Pump

Pressurizing water reliably across a high-rise building or a large condominium takes more than a single residential pump — it takes a system that scales. The Dab Pumps EsyBox Max is an integrated pumping system built for commercial building service, delivering up to 96 meters of head and 17.4 m³/h of flow per unit, with modular single, double, triple, or quadruple configurations covering medium and large condominiums and high buildings, even over 14 floors.

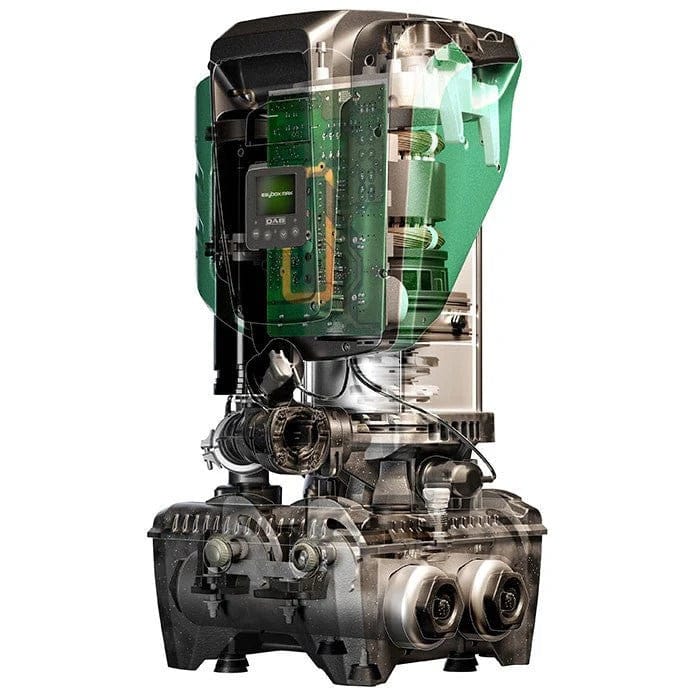

Each unit combines a hydraulic connection base with a pumping unit that includes an electronic vertical multi-impeller pump, display, Wi-Fi module, pressure sensors, a non-return valve on delivery, and an integrated expansion tank. The innovative support base and wireless communication between pumps make on-site assembly (OSA) possible even for a single installer, and a variable frequency drive keeps pressure constant according to demand, working alongside the water-cooled permanent magnet motor for greater efficiency, quiet operation, and energy savings.

EsyBox Max is compatible with the H2D remote monitoring app (DAB's current platform, which has replaced and improved on the earlier DConnect service), letting you configure and view operating parameters from a smartphone or tablet. EsyBox Max is ACS certified.

Features

🏢
High-Rise Ready

Modular single, double, triple, or quadruple configurations cover buildings over 14 floors.

⚡
Constant Pressure Control

A variable frequency drive holds output steady from 1-12 bar based on demand.

🔧

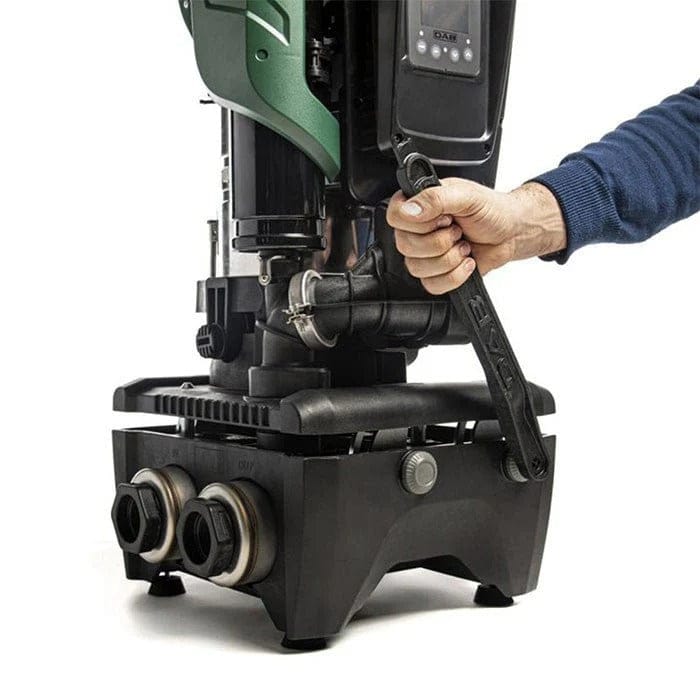

On-Site Assembly

The innovative support base lets a single installer assemble the unit directly on site.

🤫
Quiet, Efficient Motor

The water-cooled permanent magnet motor delivers IE5-comparable efficiency with low noise.

📶
Remote Monitoring

Integrated Wi-Fi and the H2D app provide remote configuration, alarms, and consumption tracking.

🛡️
Integrated Safety Systems

Protection against dry running, overvoltage, overheating, freezing, and cycling faults.

What's Included

  • EsyBox Max electronic pumping unit

Specifications

Specification Value
Maximum Flow Rate (single unit) Up to 17.4 m³/h
Maximum Head Up to 96 m
Liquid Temperature +50°C
Maximum Ambient Temperature +55°C
Maximum Inlet Pressure 5 bar
Operating Pressure 12 bar / 1200 kPa
Constant Pressure Range 1-12 bar (3 bar default)
Maximum Suction Height 4 m (with bottom valve)
Motor Protection Rating IP X5
Motor Insulation Class F
Impeller Material Technopolymer with steel wear rings
Installation Type Fixed, vertical position
Connection Size (Suction/Discharge) 1¼" - 2" / 1¼" - 2"
Weight (per pump unit) 30 kg
Certifications WRAS, ACS, NSF61

Frequently Asked Questions

What size building can EsyBox Max support? +

EsyBox Max is built for medium and large condominiums and high buildings, even over 14 floors, using modular single, double, triple, or quadruple pump configurations.

What's the difference between the 45/120, 60/120, and 85/120 models? +

These designations refer to power size: 45/120 delivers up to 58m of head, 60/120 up to 69m, and 85/120 up to 96m, with increasing power input and current draw at each step up.

What's the difference between the M and T versions? +

M denotes single-phase power supply (208-240V), while T denotes three-phase power supply (380-480V). The 85/120 size is only available in the three-phase T version.

Can I connect multiple EsyBox Max units together? +

Yes. EsyBox Max units can be assembled into double, triple, or quadruple configurations using compatible EsyDock mounting bases to meet higher-demand building requirements.

How is EsyBox Max installed? +

The innovative support base and wireless communication between pumps allow the system to be assembled directly at the installation site, even by a single installer, using the On-Site Assembly (OSA) concept.

How do I monitor or control the system remotely? +

EsyBox Max connects to Dab Pumps' H2D app via its integrated Wi-Fi module, letting you configure parameters, view alarms, and check instantaneous and historical consumption from a smartphone or tablet.

What safety protections does EsyBox Max include? +

Integrated protections cover dry running, amperometric and abnormal voltages, overheating, freezing, and anti-blocking and anti-cycling functions.

Is EsyBox Max suitable for potable water systems? +

Yes. EsyBox Max is ACS certified and rated WRAS and NSF61, confirming suitability for water pressurization in residential and commercial building service.
