You are upgrading your water delivery system because inconsistent pressure in your building keeps causing your irrigation cycles to fail during peak demand.
You are building a scalable commercial water network because your current setup cannot handle the load of a multi-unit complex as you expand.
We love the water-cooled motor because it stays nearly silent even when the pump is working at full capacity.
The built-in VFD is the real deal, as it keeps your output steady without needing an external controller.
Operators who integrated the EsyBox into their commercial irrigation report that they no longer deal with pressure drops during morning watering.
Managers of multi-story sites say the compact footprint allowed them to fit the pump in tight mechanical rooms where other systems would not clear.

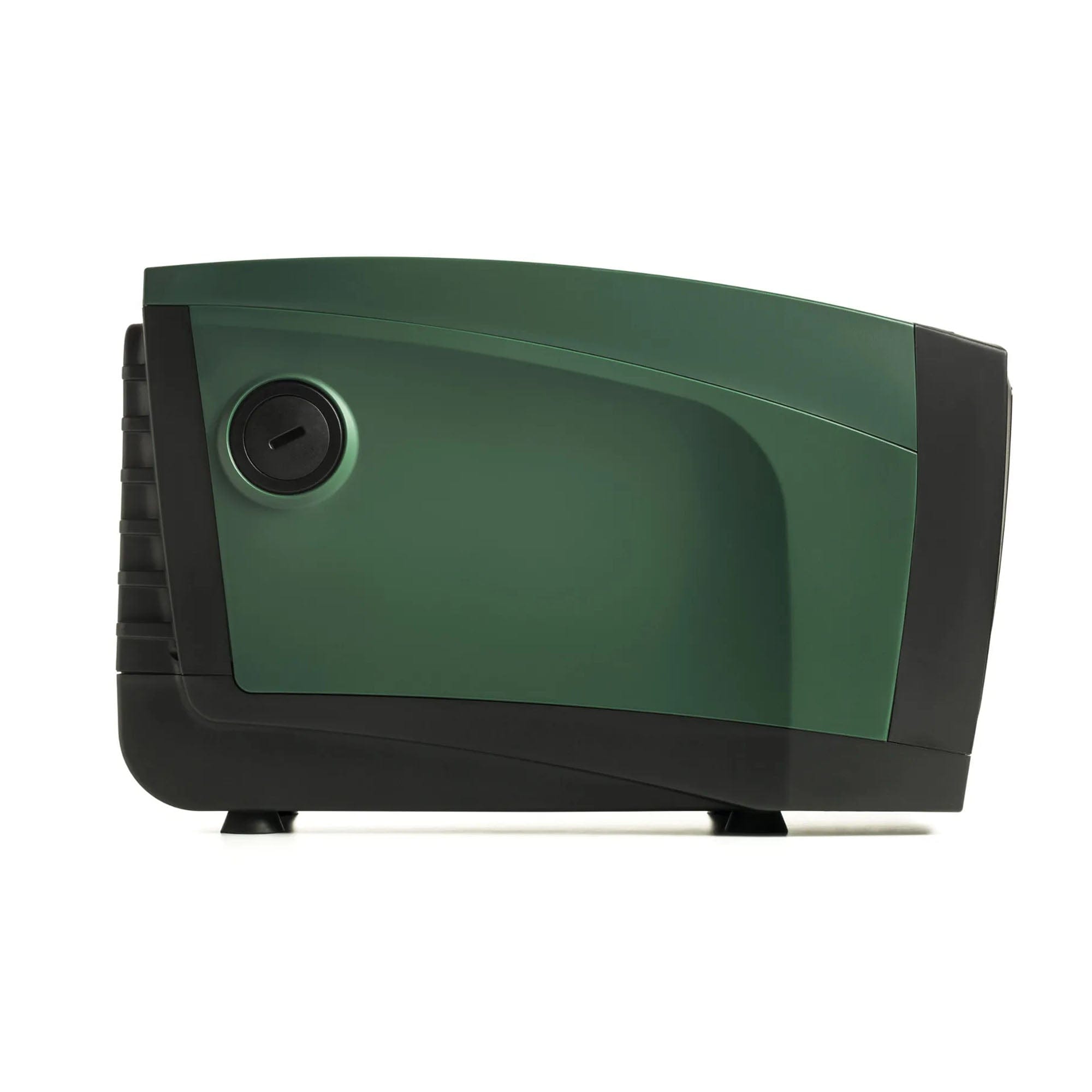

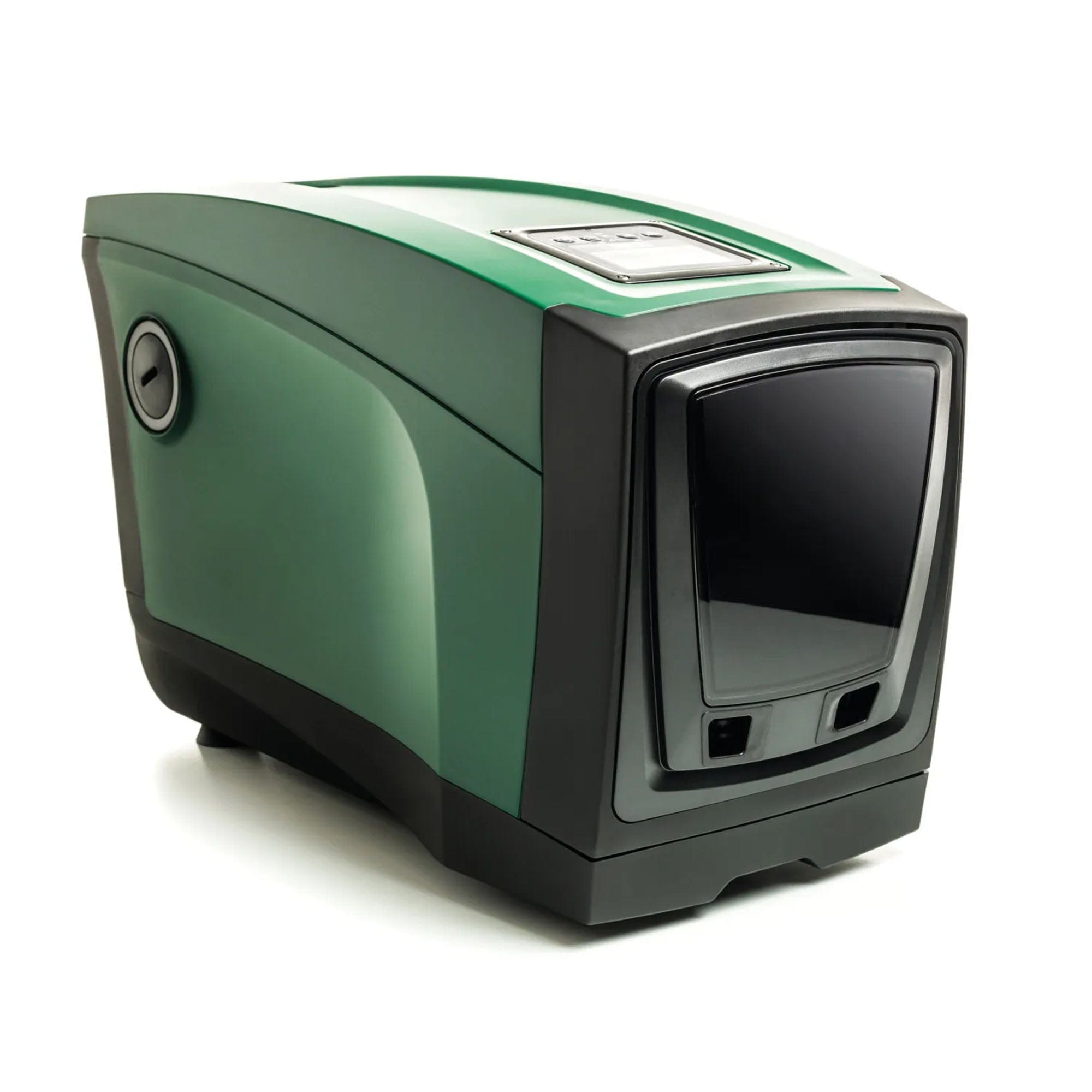

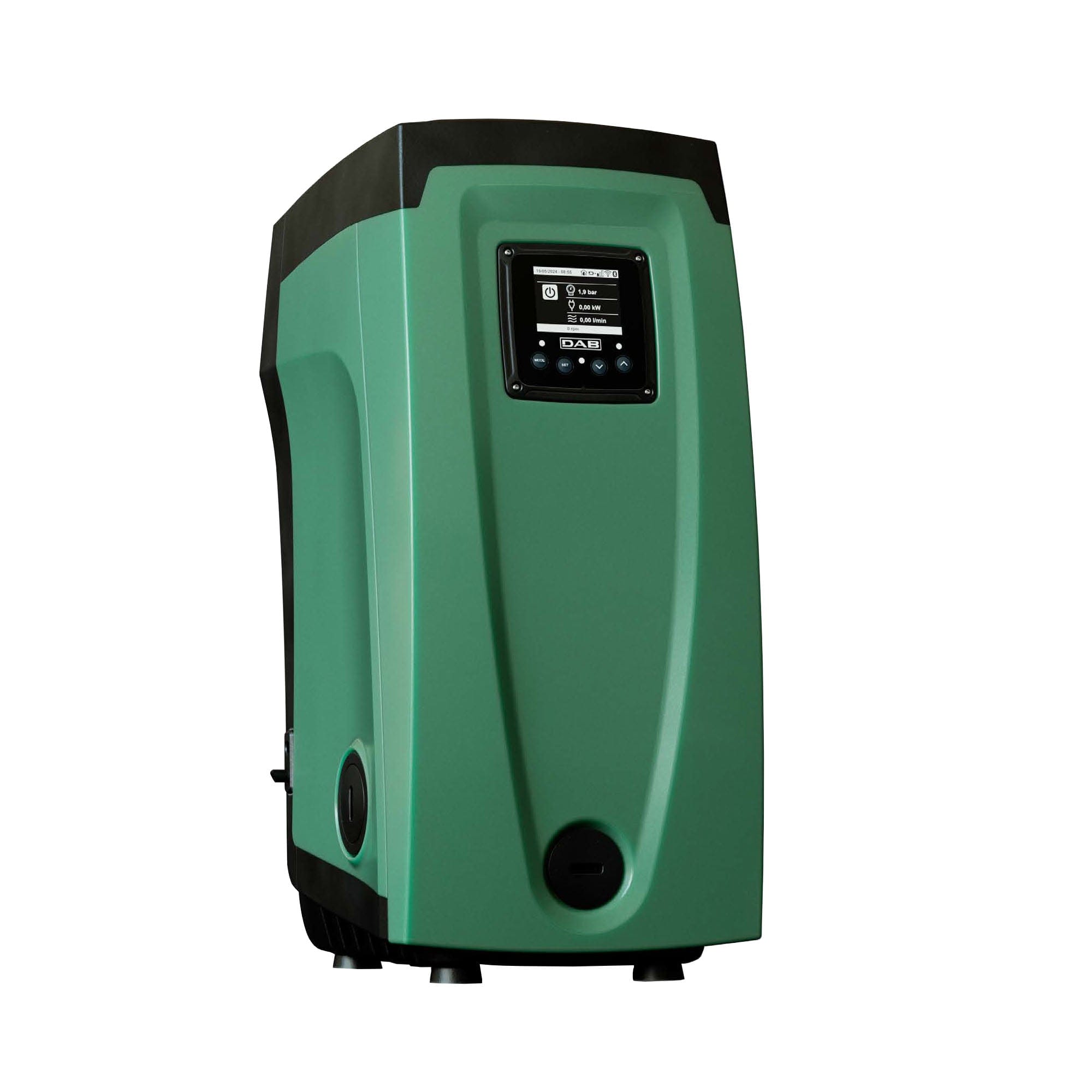

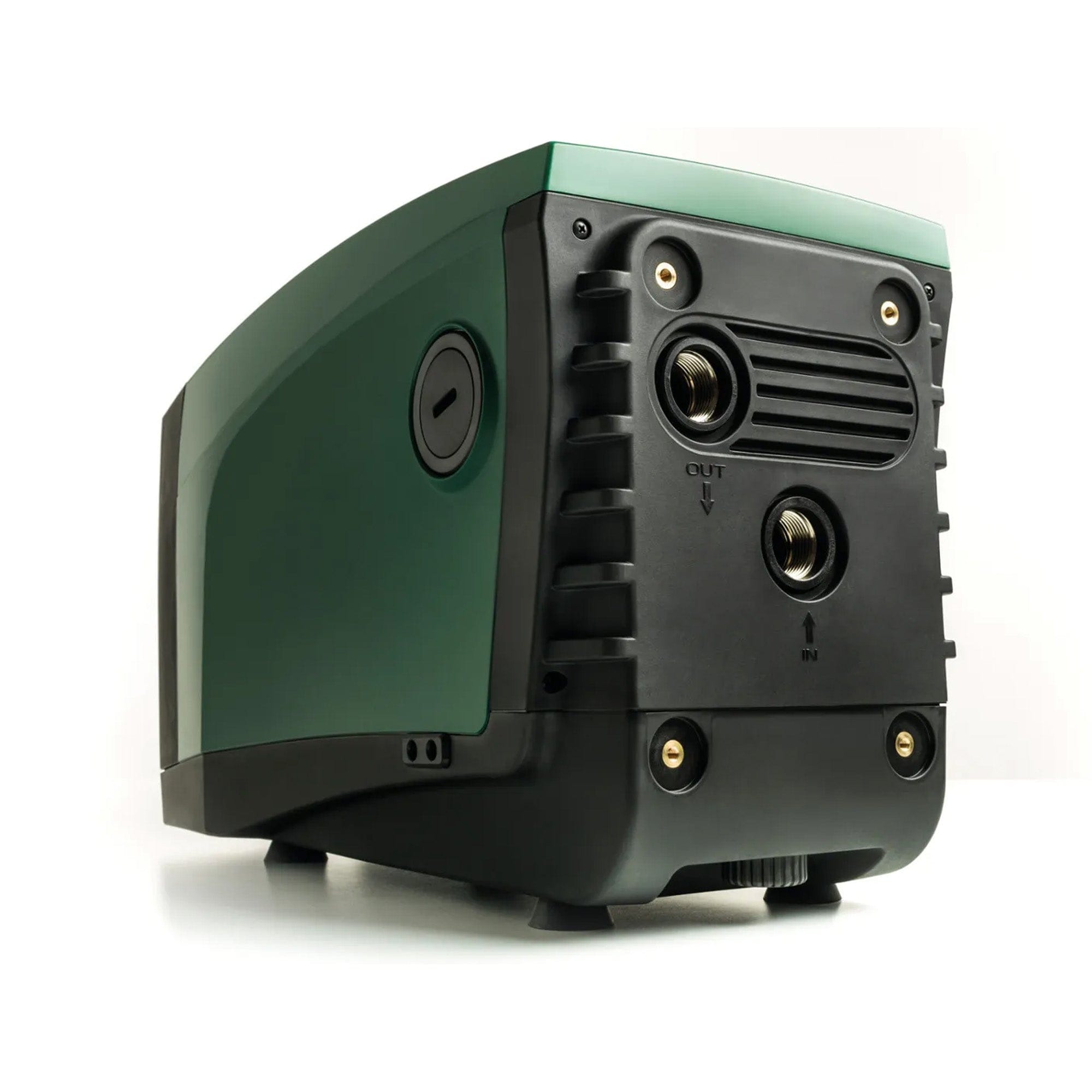

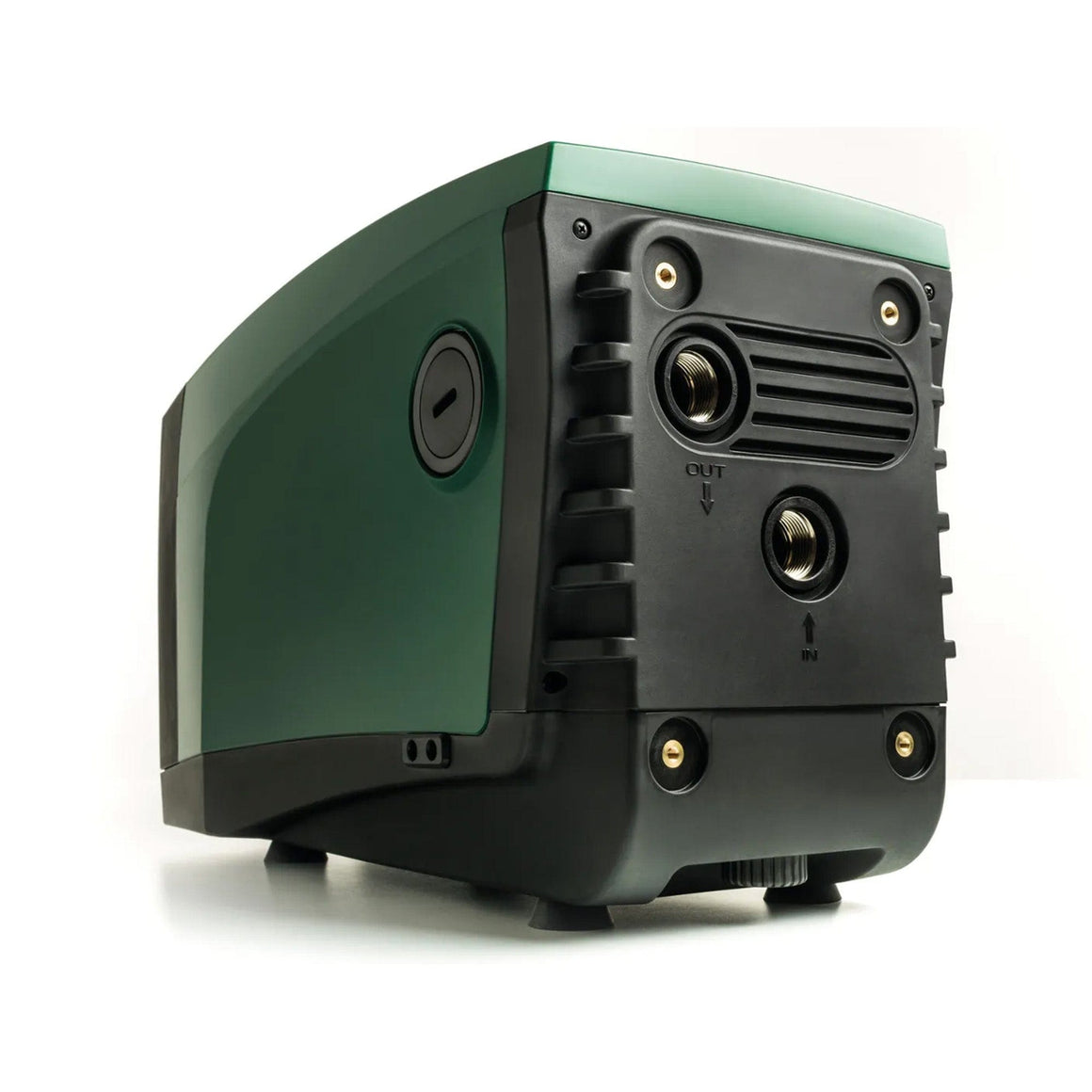

DAB Pumps EsyBox Booster Pump
Inconsistent water pressure across a multi-story building, an irrigation system, or a commercial water supply calls for more than a standard pump — it calls for a system that adjusts automatically to demand. The Dab Pumps EsyBox is an all-in-one electronic pressure boosting system delivering up to 7.2 m³/h of flow and 65 meters of head, with a built-in VFD that keeps output pressure constant no matter how usage fluctuates. It's rated for villas and small apartment complexes with up to 6 floors and 9 apartments, and it's equally suited to gardening, irrigation, agriculture, and general residential or commercial water service.
EsyBox is compact and self-contained, requiring no separate add-ons to function — yet it scales easily: up to four EsyBox units can be connected together using Esytwin, the quick-connection dock, to build larger booster sets. The result is exceptional performance in a footprint roughly 50% smaller than an equivalent traditional system. For above-ground installations needing dedicated storage, Esytank (a 480-liter tank) pairs with Esydock for fast setup alongside the EsyBox unit.
Built-in Wi-Fi connectivity lets you manage the system remotely through Dab Pumps' H2D platform, viewing and adjusting parameters, settings, and comfort functions from a smartphone. Careful material selection and a water-cooled motor keep the pump particularly quiet, and the unit is ACS certified.
Features
💧
High-Capacity Flow
Up to 7.2 m³/h and 65m of head cover villas and small apartment complexes up to 6 floors.
🔗
Expandable Booster Sets
Connect up to four EsyBox units together with Esytwin for higher-capacity systems.
🤫
Quiet Operation
A water-cooled motor and sound-absorbing enclosure keep noise down to just 43 dB.
📶
Wireless H2D Connectivity
Built-in Wi-Fi lets you monitor and manage settings remotely through the H2D app.
🌱
Multi-Purpose Use
Suited for pressurization, groundwater extraction, irrigation, gardening, and agriculture.
🛡️
Built-In Safety Features
Protections against dry running, overload current, overheating, and freezing run automatically.
What's Included
EsyBox electronic pressure boosting system
Specifications
Specification
Value
Flow Rate
Up to 7.2 m³/h
Head
65 m
Number of Impellers
5
Maximum Working Pressure
8 bar / 800 kPa
Liquid Temperature Range
5°C to +40°C
Maximum Ambient Temperature
+50°C
Maximum Suction Depth
8 m (self-priming)
Noise Level
43 dB
Built-In Pressure Vessel
2 liters
Motor Protection Rating
IP X4
Motor Insulation Class
F
Impeller Material
Technopolymer
Power Supply
230V, 50Hz, single-phase
Power Input (P1 Max)
1.4 kW / 1.9 HP, 10A
Power Cord Length & Plug
1.5 m, Schuko plug
Connection Size (Suction/Discharge)
1" / 1"
Weight
27 kg
Installation Options
Fixed, horizontal, vertical, or wall-mounted (with accessory)
How big of a building can one EsyBox unit support?+
A single EsyBox is rated for villas and small apartment complexes with up to 6 floors and 9 apartments, delivering up to 7.2 m³/h of flow and 65 meters of head.
Can I connect more than one EsyBox unit together?+
Yes. Up to four EsyBox units can be combined using Esytwin, a quick-connection dock designed to build larger pressure booster sets.
How loud is the EsyBox during operation?+
EsyBox operates at approximately 43 dB thanks to its water-cooled motor and sound-absorbing enclosure, quiet enough for installation in occupied spaces.
Can EsyBox be used for irrigation or agricultural applications?+
Yes. Beyond residential and commercial pressurization, EsyBox is designed for gardening, irrigation, and farming applications as well as groundwater extraction from shallow wells.
How do I monitor or control the pump remotely?+
EsyBox has built-in Wi-Fi connectivity and connects to Dab Pumps' H2D platform, letting you view and manage parameters, settings, and comfort functions from a smartphone.
What safety protections does EsyBox include?+
Built-in protections cover dry running, overload current, abnormal voltage, overheating, and freezing, along with anti-seize and anti-cycling functions.
What mounting positions does EsyBox support?+
EsyBox can be installed fixed, horizontally, vertically, or wall-mounted using the relevant accessory, giving flexibility for different installation spaces.
Does EsyBox need to be primed before use?+
No. EsyBox is a self-priming multistage pump capable of drawing water from a suction depth of up to 8 meters.
