Dab Pumps DAB Pumps EsyBox Diver Submersible Pump
Ask Sage about this product

DAB Pumps EsyBox Diver Submersible Pump

Official Dab Pumps Dealer Model: 60197922
$4,488.00 CAD$3,231.95 CAD$4,488.00 CAD
 $4,488.00 CAD
starting from 0% interest financing from /mo.

Payment Options

Options:Pay in Four, Pay Monthly
Amount:Up to $1,500 (Pay in 4)
Up to $10,000 (Monthly)
Schedule:Bi-weekly to Monthly
Term:6 weeks, 12 or 24 months
Interest:0% to 35.99% APR*
Credit Check?Soft Check Only
Schedule:Bi-weekly to Monthly
Term:6 weeks, 6 or 12 months
Interest:0% to 35.99% APR*
Credit Check?Soft Check Only
Finance up to:$4,000
Options:Pay in 6, Pay Monthly
Amount:Up to $1,500 (Pay in 6)
$1,501–$30,000 (Monthly)
Schedule:Bi-weekly / Monthly
Term:6 bi-weekly / 6–60 months
Interest:0% (up to $1,500) / 11.99% APR
Not available in:Quebec
Looking to finance equipment under your corporation? Learn more about Business Financing
  • Maximum flow rate of 7.2 cubic metres per hour with 55 metres of head.
  • Variable frequency drive automatically modulates power to match real-time system demand.
  • Fully submersible IP68 rating allows for direct installation inside cisterns or wells.
  • View More Details
Special Order: Please Contact Us For Availability

Gagnez 3,231 points en faisant vos achats et obtenez $32.31 de réduction sur votre prochaine commande. Adhérez gratuitement au Club Récolte.
Des questions ? Parlez à un spécialiste. Mon–Fri, 9am–5pm PST
(778) 300-3154 Live Chat Available now
Livraison gratuite sur la plupart des articles Vers les 48 États continentaux
Tarification transparente Bénéficie d'une garantie d'alignement tarifaire
4.8/5 average Top Quality Store on Google
Paiement sécurisé Paiements sécurisés SSL

Send Us a Message
Ask Sage about this product
VOLUME PRICING

Achats commerciaux et en gros

Nous assistons les opérations et les installations agréées grâce à des tarifs dégressifs, des gestionnaires de compte dédiés et des consultations personnalisées sur l'équipement.

Commercial Inquiry

Contact Information
À TRAVERS LE REGARD DU CULTIVATEUR Évaluation pratique

  • You are upgrading to an automated pump system because your current manual setup fails to maintain consistent pressure during high-demand irrigation cycles.
  • You are installing a smarter water management solution because monitoring tank levels by eye is costing you too much labour time each week.

  • The NFC pocket is a clever touch that lets you add float sensors without risking a seal leak on the pump body.
  • The built-in expansion tank is a huge space saver for tight cistern setups where adding external hardware is not feasible.

  • Users who transitioned to this unit say they stopped worrying about water pressure drops during peak irrigation times.
  • Operators who integrated the DConnect app report that remote monitoring saved them from manual check-in trips to the facility.

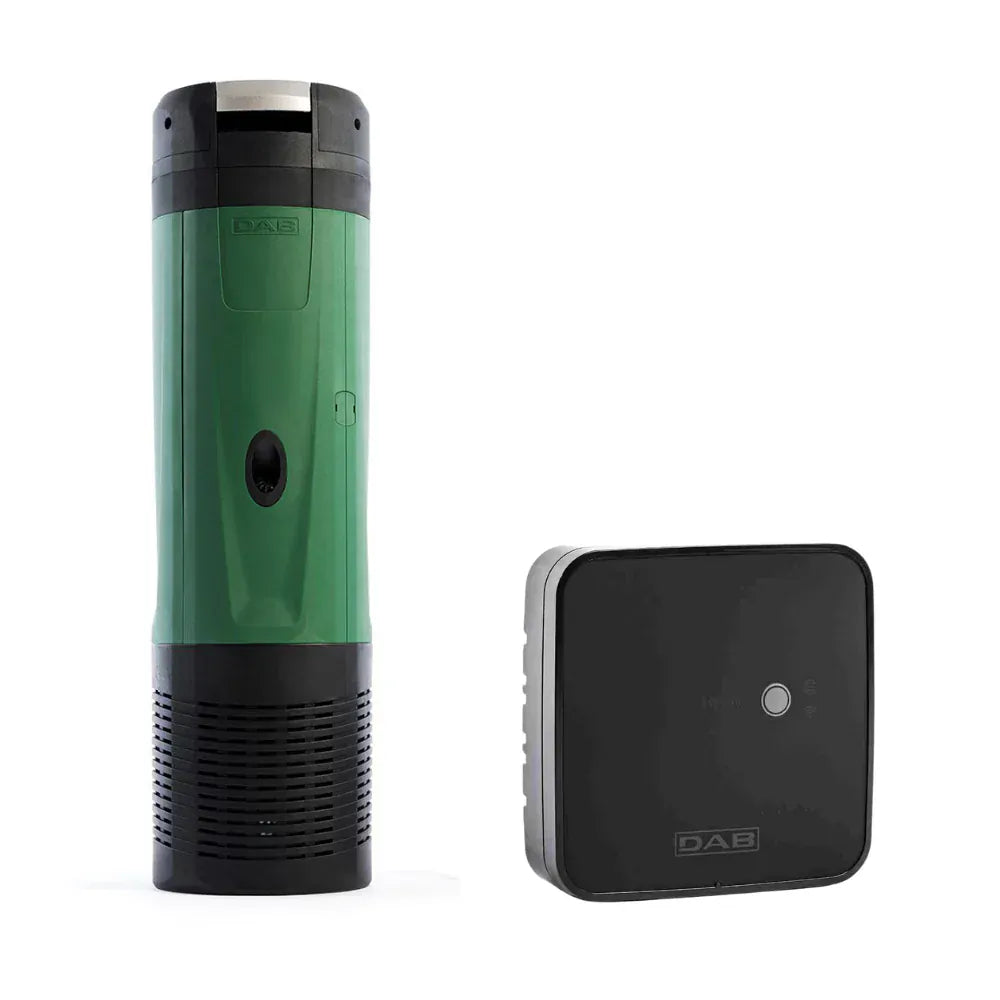

DAB Pumps EsyBox Diver Submersible Pump

Pumping clean water out of a well, cistern, or tank calls for a pump that can handle submersion without sacrificing the smart controls of a standard booster system. The Dab Pumps EsyBox Diver is a 7-inch multistage electronic submersible pump with variable frequency drive, delivering up to 7.2 m³/h of flow and 55 meters of head. It can be used fully submerged, partially submerged, or on the surface (with the separately sold DOC68 accessory), and it's built for pressurization, rainwater reuse, gardening, and irrigation in residential building service.

The pump integrates a variable frequency drive that adjusts operation to match system demand, along with an integrated non-return valve and a stainless steel handle for easy transport. Suction height can be adjusted from the bottom up to 8 cm to keep the intake clear of sediment. An NFC (Near Field Communication) pocket allows a float or level sensor to be connected without compromising the pump's watertight seal, and a built-in expansion tank eliminates the need for a separate external unit.

EsyBox Diver is Wi-Fi enabled and ships with a DConnect Box 2 as standard, so downloading the DConnect app for Android or iOS gives you full smartphone control of the pump right out of the box.

Features

🌊
Flexible Installation

Runs submerged, partially submerged, or on the surface with the DOC68 accessory.

⚡
Variable Frequency Drive

Adjusts operation automatically to match real-time system demand.

🛡️
IP68 Protection

Fully rated for continuous submerged operation without compromise.

📶
Wi-Fi & DConnect Ready

Includes a DConnect Box 2 for smartphone control via the DConnect app.

🔌
NFC Sensor Connection

Connects a float or level sensor without opening the pump's watertight seal.

🧰
Built-In Expansion Tank

Eliminates the need for a separate external expansion tank.

What's Included

  • EsyBox Diver submersible pump
  • DConnect Box 2
  • 15 m power cable with plug

Specifications

Specification Value
Maximum Flow Rate 7.2 m³/h
Maximum Head 55 m
Maximum Immersion Depth Up to 15 m
Type of Pumped Liquid Clean, non-viscous, non-aggressive, non-crystallized liquid, free of solids and abrasive substances
Liquid Temperature Range 0°C to +50°C
Adjustable Constant Pressure Pre-set 3 bar, adjustable 1–5.5 bar
Outlet Connection Threaded 1¼"
Impeller Material Technopolymer with ring impeller in AISI 304 stainless steel
Protection Class IP68
Power Cable & Plug 15 m with plug
Power Supply Single-phase, 230V, 50/60Hz
Power Input (P1) 1.3 kW
Weight 17 kg
Certifications WRAS, ACS, NSF (drinking water version pending approval)

Frequently Asked Questions

Can the EsyBox Diver be used above the water surface? +

Yes. While it's designed to run submerged or partially submerged, it can also be installed as a surface pump using the separately sold DOC68 accessory.

How deep can the EsyBox Diver be submerged? +

The pump is rated for submersion up to 15 meters, with full IP68 protection for continuous submerged operation.

Does the EsyBox Diver need a separate expansion tank? +

No. It has a built-in expansion tank, so no external unit is required for normal operation.

Can I monitor the EsyBox Diver from my phone? +

Yes. It includes a DConnect Box 2 as standard and is Wi-Fi enabled, so downloading the DConnect app for Android or iOS gives you smartphone control right away.

How does the NFC pocket work? +

The NFC pocket lets you connect a float or level sensor to the pump without opening it, preserving the watertight seal.

What applications is the EsyBox Diver suited for? +

It's built for pressurization, rainwater reuse, and gardening or irrigation activities in residential building service, drawing from wells, tanks, or cisterns.
