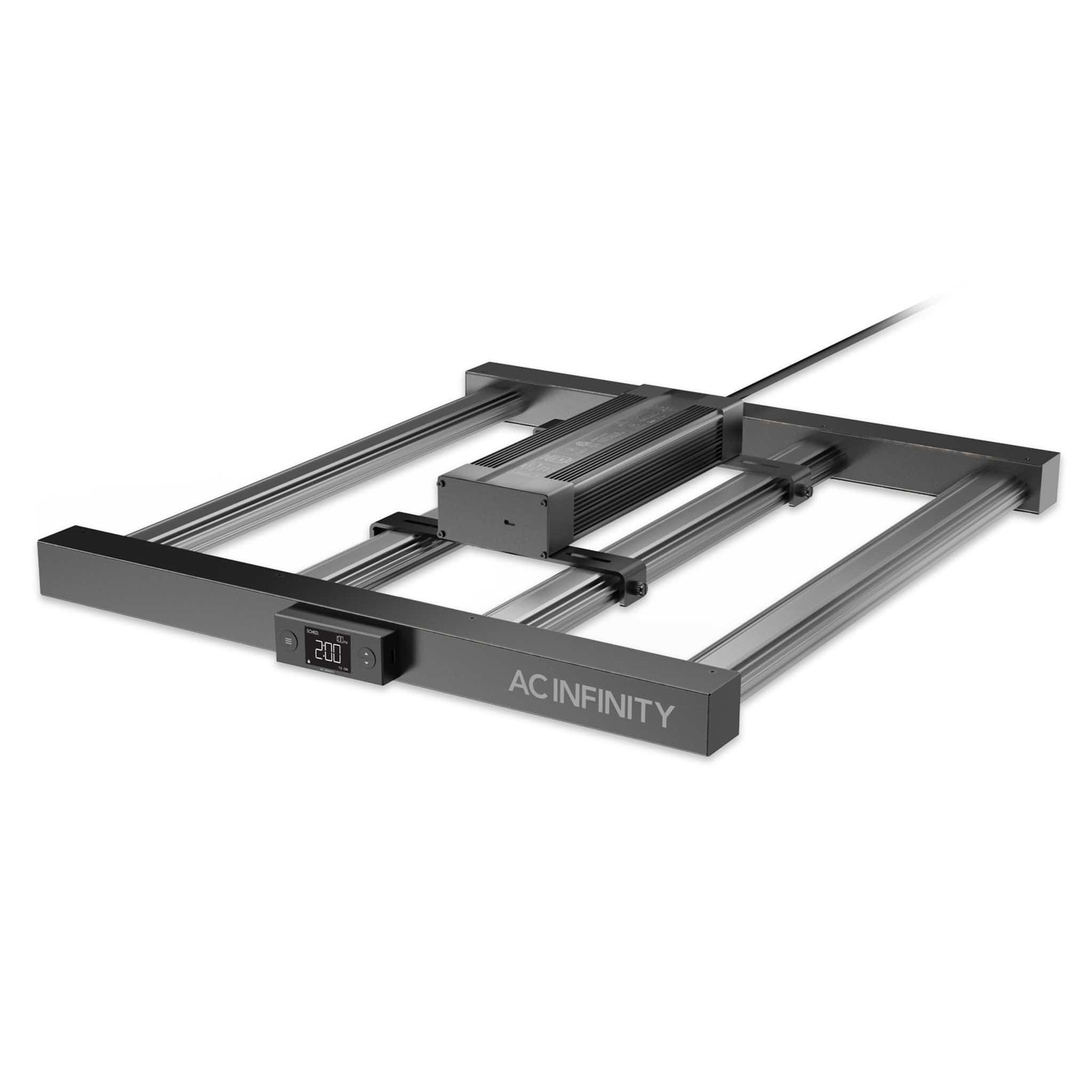

AC Infinity Ionframe EVO4 300W Commercial Full Spectrum LED Grow Light

The AC Infinity IonFrame EVO4 is the LED grow light meant for growers who want to scale up the quality and quantity of their harvests.

Loaded with Samsung LM301H EVO LEDs, this fixture was designed to cover all stages of plant growth with its white, red, and IR LEDs. The IonFrame EVO4 delivers even light distribution in a 4 x 4 feet grow space with its linear bar design and four-sided halo design.

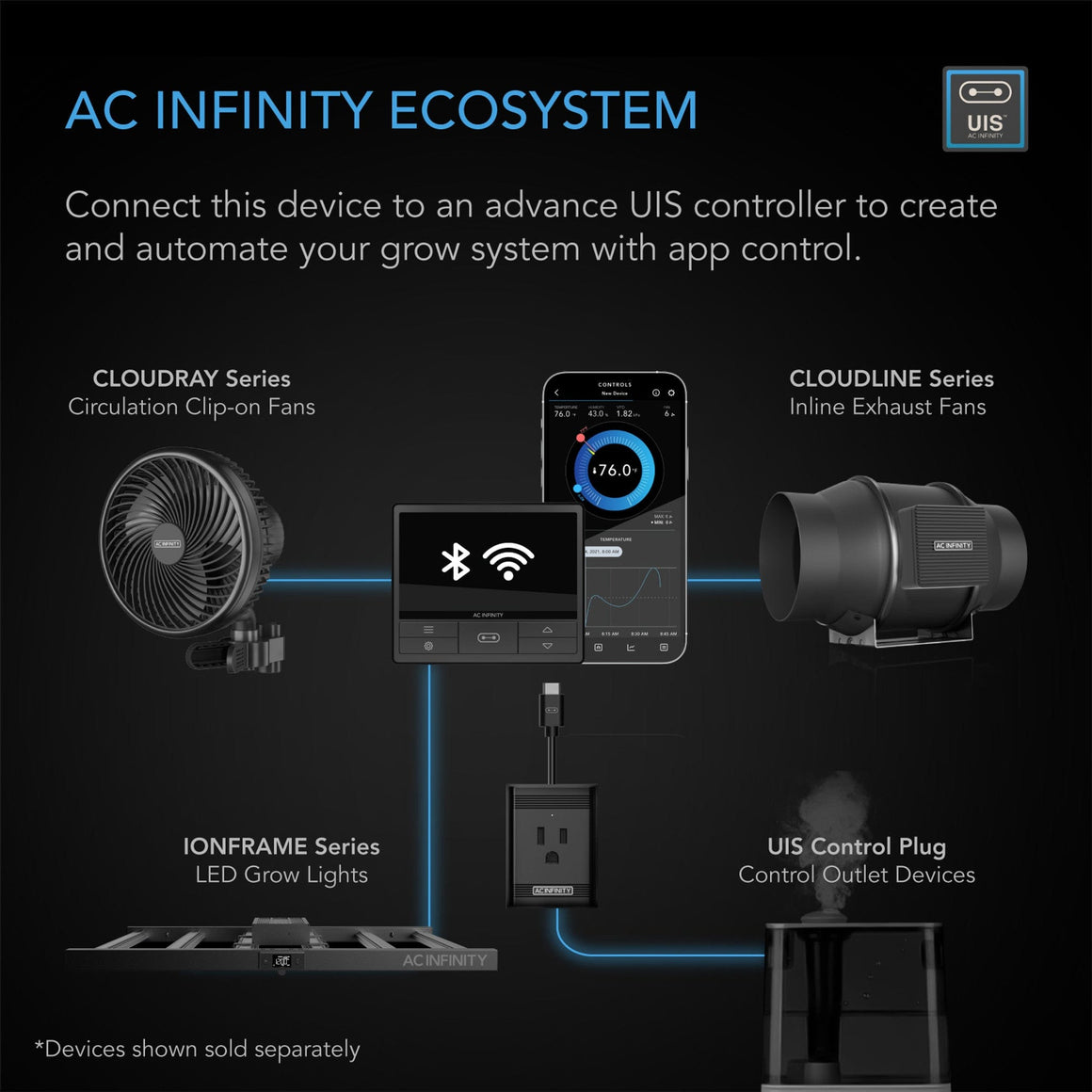

The IonFrame EVO4 features a digital controller allowing you to dim, set timers, and back up your settings. There’s also Wi-Fi connectivity to help you control the light when away from your indoor garden

AC Infinity Ionframe EVO4 Features

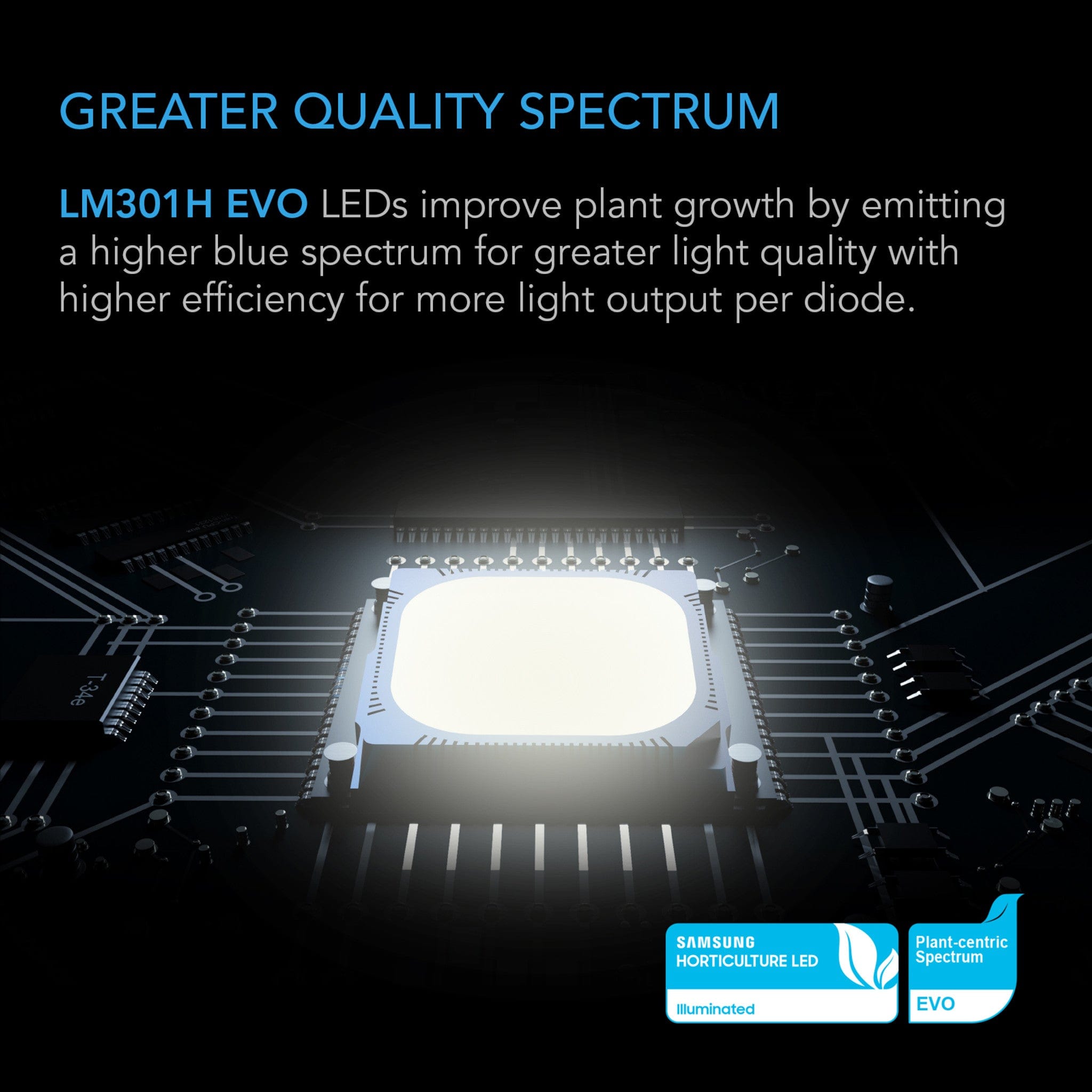

Samsung LM301 EVO diodes

The IonFrame uses high-quality LM301 EVO diodes, known for better quality than other Samsung diodes.

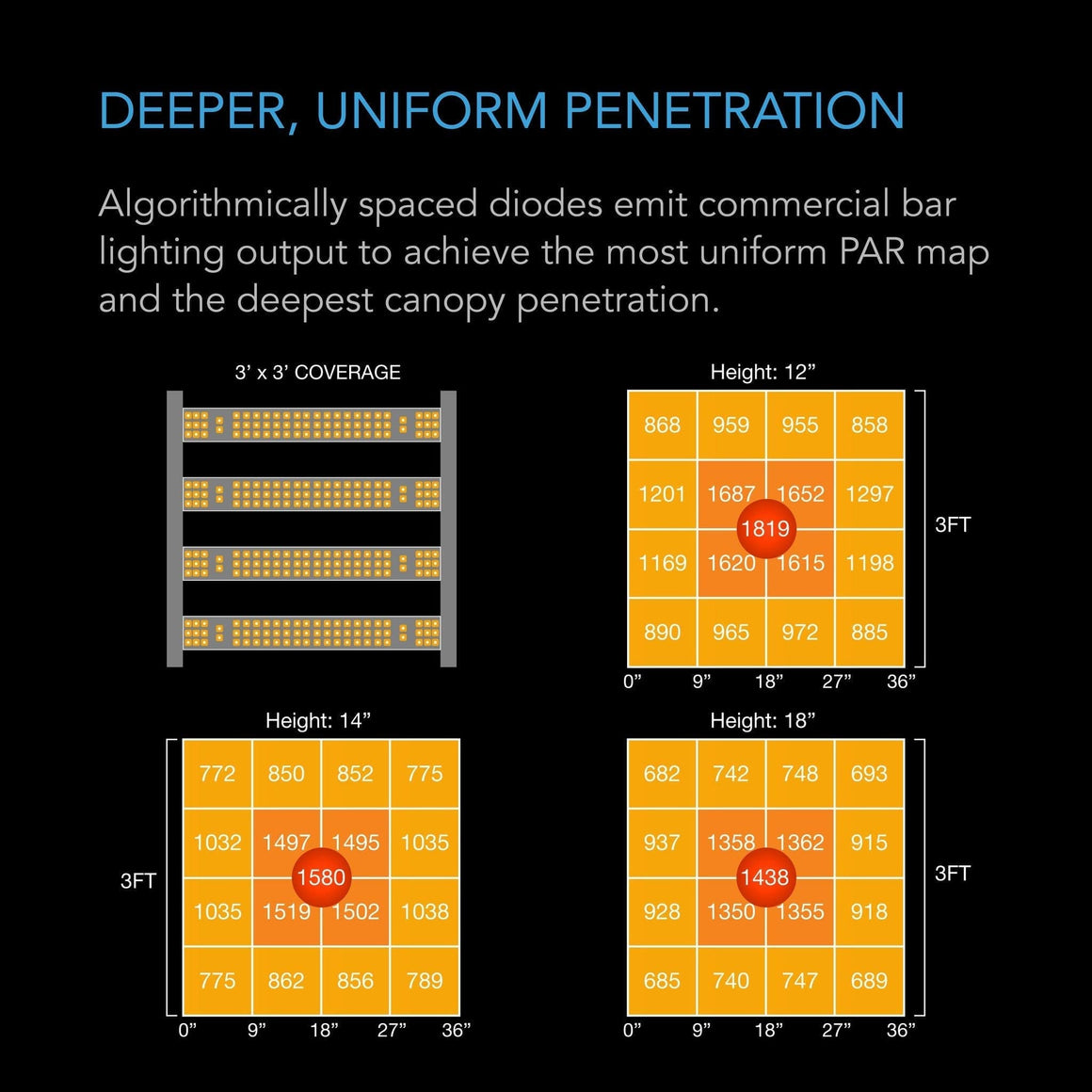

Algorithmically-spaced diodes

The IonFrame EVO4 spreads its diodes using an algorithm that ensures even light distribution and deeper canopy penetration.

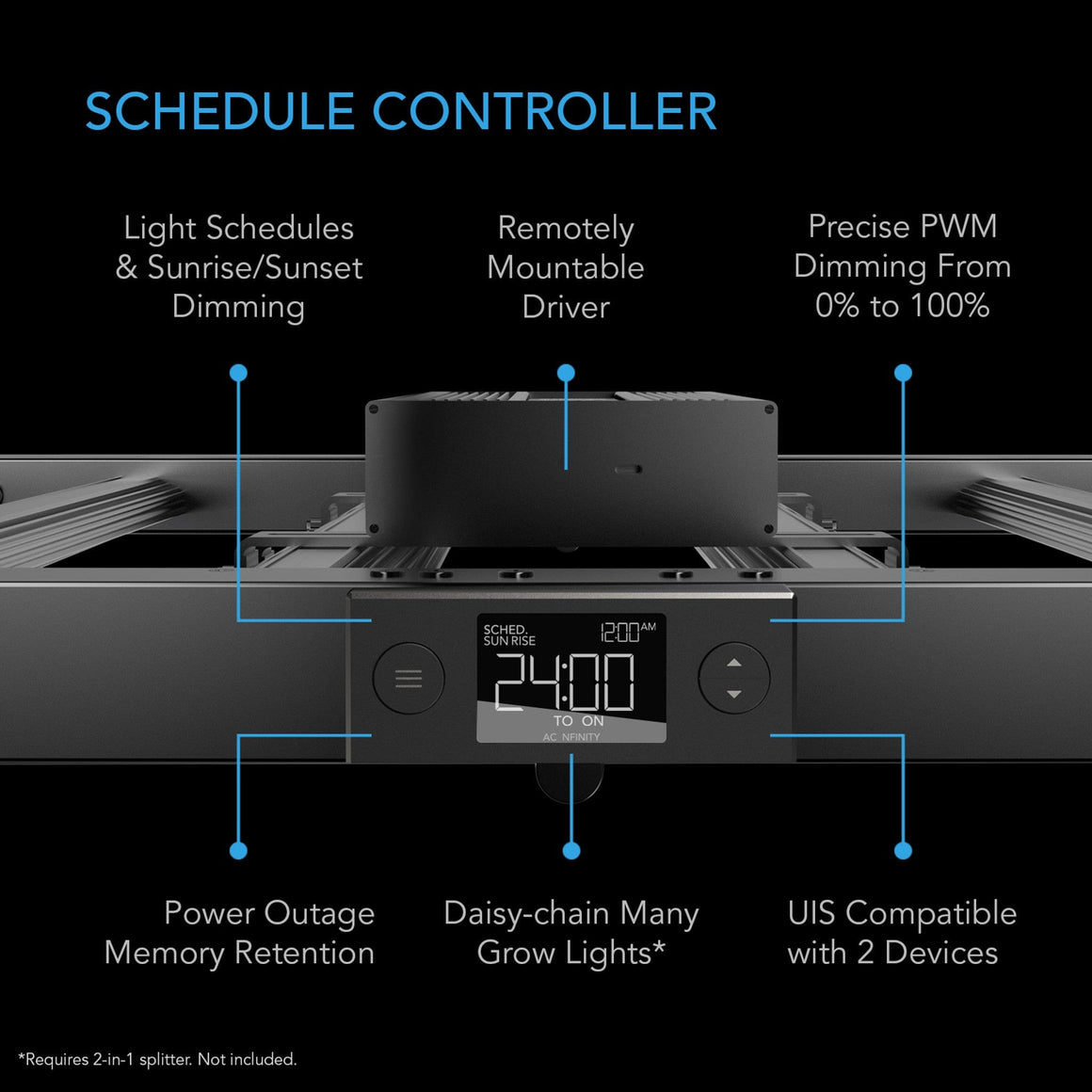

Digital Controller

Each IonFrame EVO4 uses a digital controller that lets you set lighting recipes and gradual shifts in light. You may also control the controller using the Wi-Fi control app.

Passive Cooling

The IonFrame EVO4 uses passive cooling to reduce heat emissions in the grow tent. The LED driver is also detachable to reduce heat in your grow tent.

AC Infinity Ionframe EVO4 Highlights

Up 4x4 feet grow areas
300 watts
3.14 µmol/J PPE
1819 PPFD
Passive Cooling
Wi-Fi Control App
Detachable Driver
Daisy-chains 80 fixtures
IP65-rated

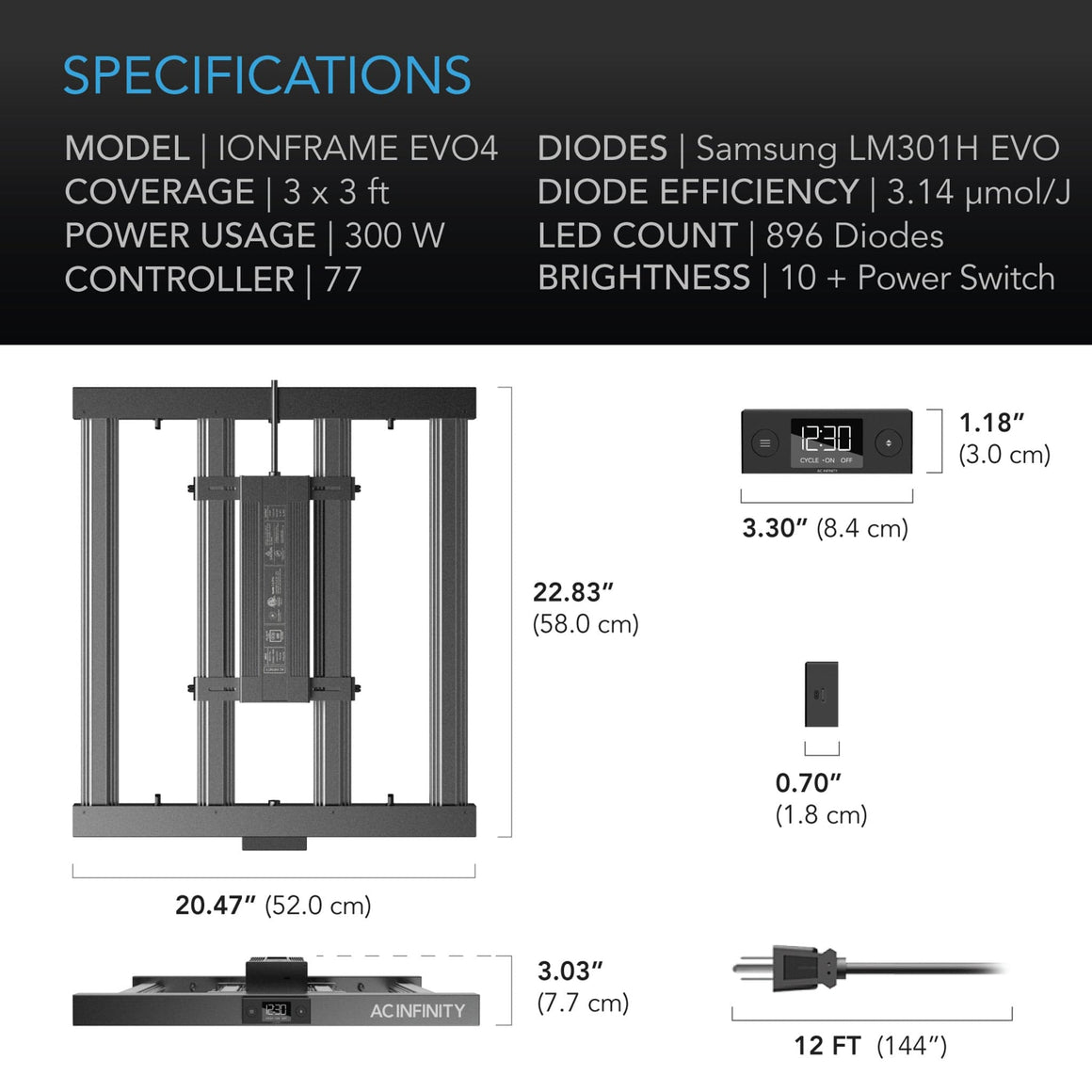

AC Infinity Ionframe EVO4 LED Light Specifications

Manufacturer	AC Infinity Inc.
Product Name	IONFRAME EVO4
Product Model	AC-IF4K
UPC Code	819137024052
Light Dimensions	20.47 x 22.83 x 2.99 in. (52.0 x 58.0 x 7.6 cm)
Coverage	3 x 3 ft.

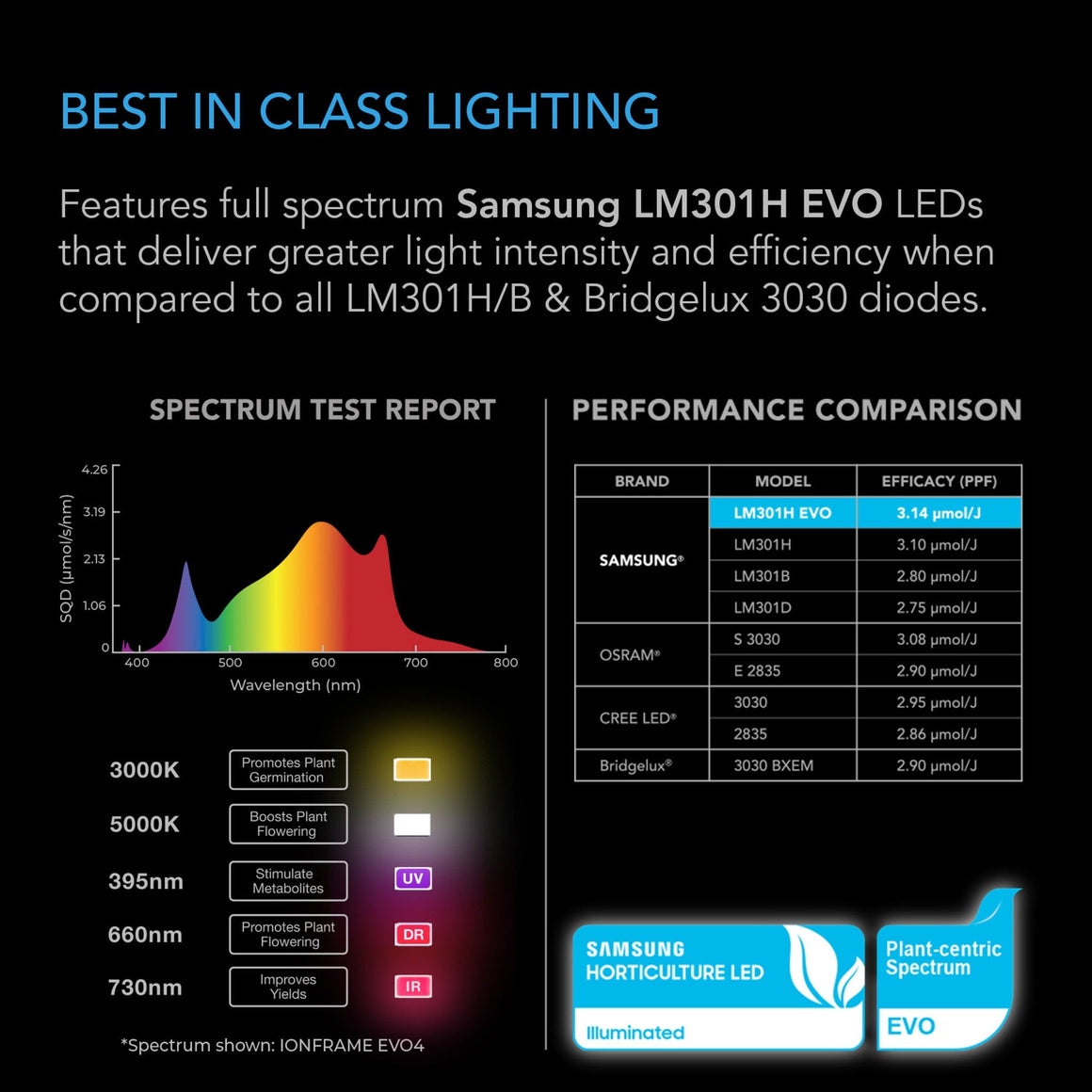

Diodes	Samsung LM301H EVO
Spectrum	395nm, 660nm, 730nm, 3000K, 5000K
Chip Count (Total)	896
Chip Count (EVO 3000K)	360
Chip Count (EVO 5000K)	500
Chip Count (Seoul 395 nm)	4
Chip Count (OSRAM 660 nm)	28
Chip Count (OSRAM 730 nm)	4
LED Driver	SOSEN-320W
Efficiency (Single Diode)	3.14 µmol/J
PPFD	1819 PPFD
Wattage	300 W
Voltage	100-277V AC
Frequency	50/60 Hz
Controller	Schedule Controller
Power Connector Type	US Plug (NEMA 1-15 Type-A)
Operating Humidity	35 to 85% RH
Operating Temperature	32 to 140°F
Waterproof Rating	IP-65
Life Expectancy	50,000 Hours

AC Infinity Ionframe EVO4 Manual

Manual AC Infinity Ionframe EVO4 Product Manual

AC Infinity Ionframe EVO4 Warranty

All sales final. AC Infinity comes with a two-year warranty.
