Faven Lighting Under Canopy R8 4' x 8' Starter Pack - 120V

$1,995.00 CAD
starting from 0% interest financing from /mo.

Payment Options

Options:Pay in Four, Pay Monthly
Amount:Up to $1,500 (Pay in 4)
Up to $10,000 (Monthly)
Schedule:Bi-weekly to Monthly
Term:6 weeks, 12 or 24 months
Interest:0% to 35.99% APR*
Credit Check?Soft Check Only
Schedule:Bi-weekly to Monthly
Term:6 weeks, 6 or 12 months
Interest:0% to 35.99% APR*
Credit Check?Soft Check Only
Finance up to:$4,000
Options:Pay in 6, Pay Monthly
Amount:Up to $1,500 (Pay in 6)
$1,501–$30,000 (Monthly)
Schedule:Bi-weekly / Monthly
Term:6 bi-weekly / 6–60 months
Interest:0% (up to $1,500) / 11.99% APR
Not available in:Quebec
  • Boosts harvest yield by 20-30% across a 4' x 8' canopy zone
  • High-efficacy 2.9 µmol/J LEDs with IP66 waterproof rating
  • Draws 480W total at 120V with daisy-chaining for all four bars
  • 5-year warranty covering defects in materials and workmanship
  • View More Details

Earn 1,795 points for shopping and get $17.95 off your next order. Join Harvest Club for free.

Questions? Talk to a specialist. Mon–Fri, 9am–5pm PST
Free Shipping On Most Items To the Provinces*
Transparent Pricing Backed w/ price match guarantee
4.8/5 Rating 1938+ verified reviews
Secure Checkout SSL encrypted payments

Send Us a Message

REBATE PROGRAM

Commercial Rebate Program

Licensed operations may qualify for up to a 60% rebate on qualifying equipment.

Rebate & Commercial Inquiry

Contact Information
THROUGH THE Cultivator's LENS Hands-On Evaluation

Who This Is For

  • You are adding under canopy light because your lower biomass is airy and you want more uniform density across the crop.
  • You are installing a full 4x8 kit because manual under-clearing takes too much labour and hurts your bottom line.

What We Found

  • The internal driver design prevents a messy floor by eliminating external power bricks and extra heat.
  • We found the daisy-chain couplings make for a much tidier 4' x 8' setup than running separate cords for every bar.

What Users Say

  • Growers who added these to their 4x8 trays say the extra weight on bottom branches paid for the kit in one cycle.
  • Users say they stopped heavy pruning of lower branches since the extra light turns that biomass into quality harvest.

Faven Lighting Under Canopy R8 4' x 8' Starter Pack - 120V

Struggling with inconsistent canopy development and excessive low-value biomass across larger grow spaces? The Faven Lighting Chroma Under Canopy 4' x 8' Starter Pack delivers 20-30% yield increases while reducing labor costs and waste. Over 85% of customers report full ROI within a single grow cycle, making this the fastest path to improving your bottom line without expanding square footage.

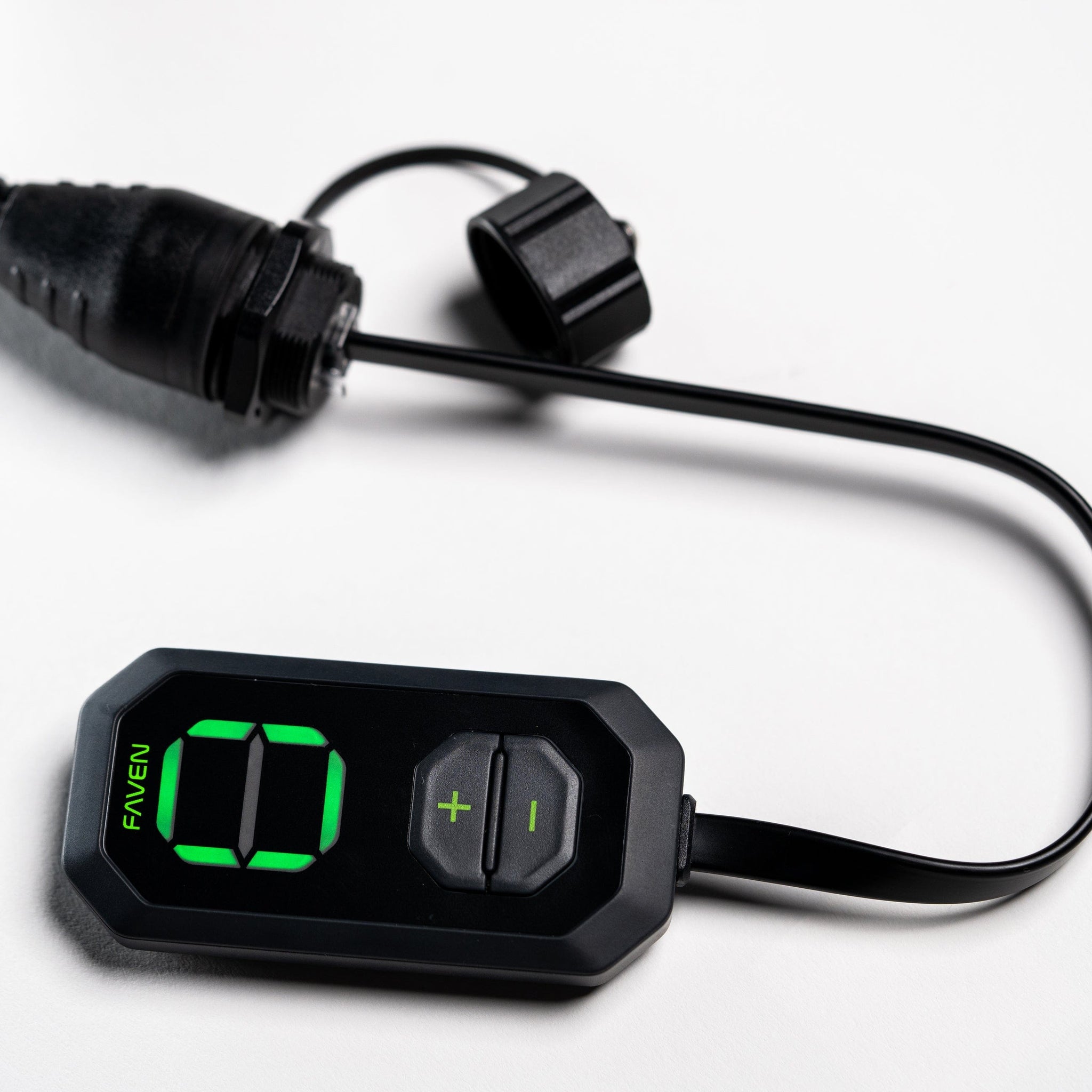

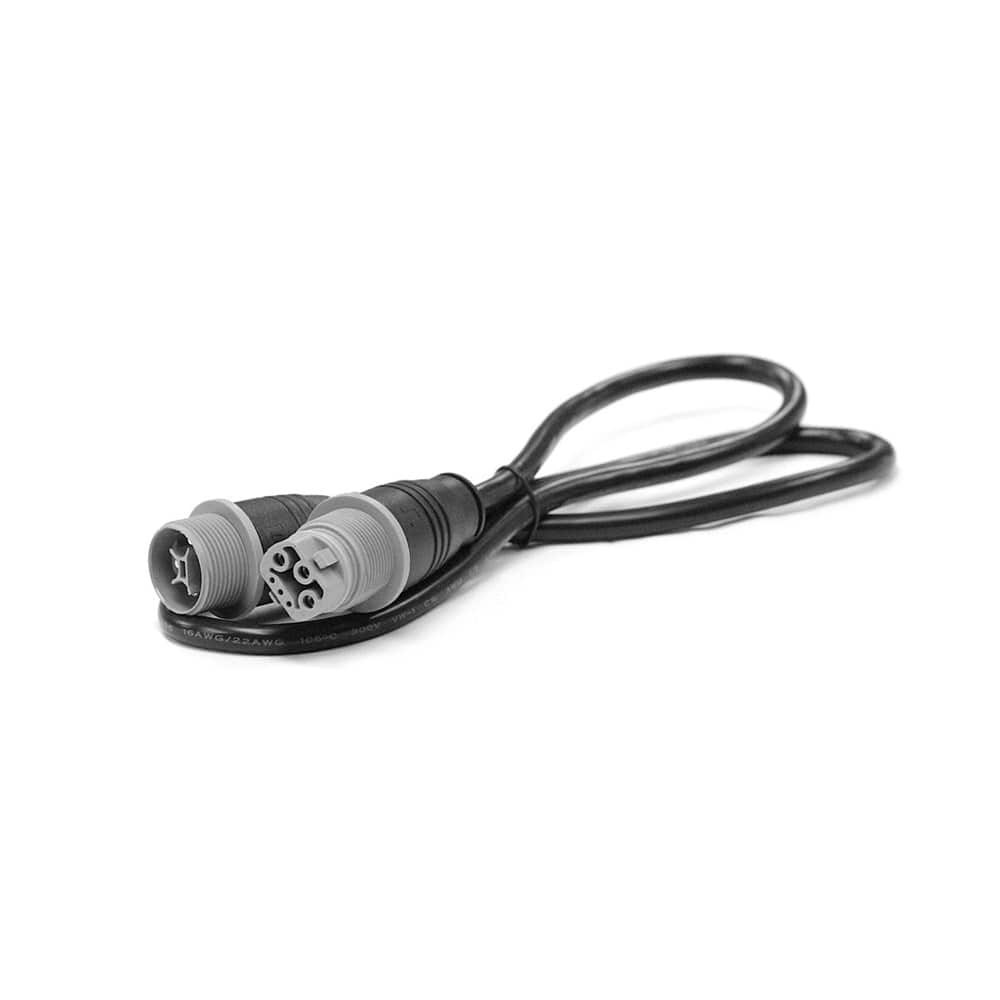

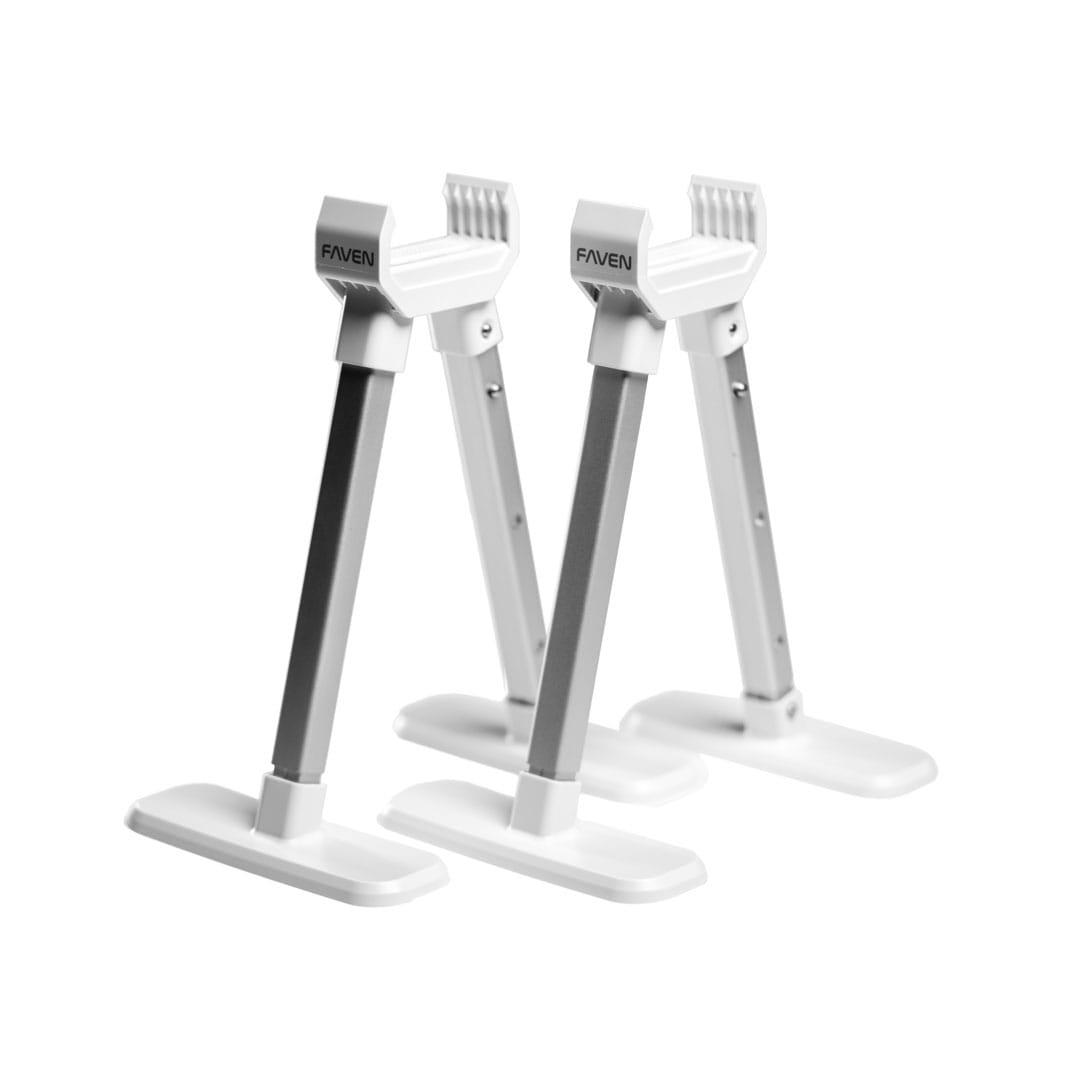

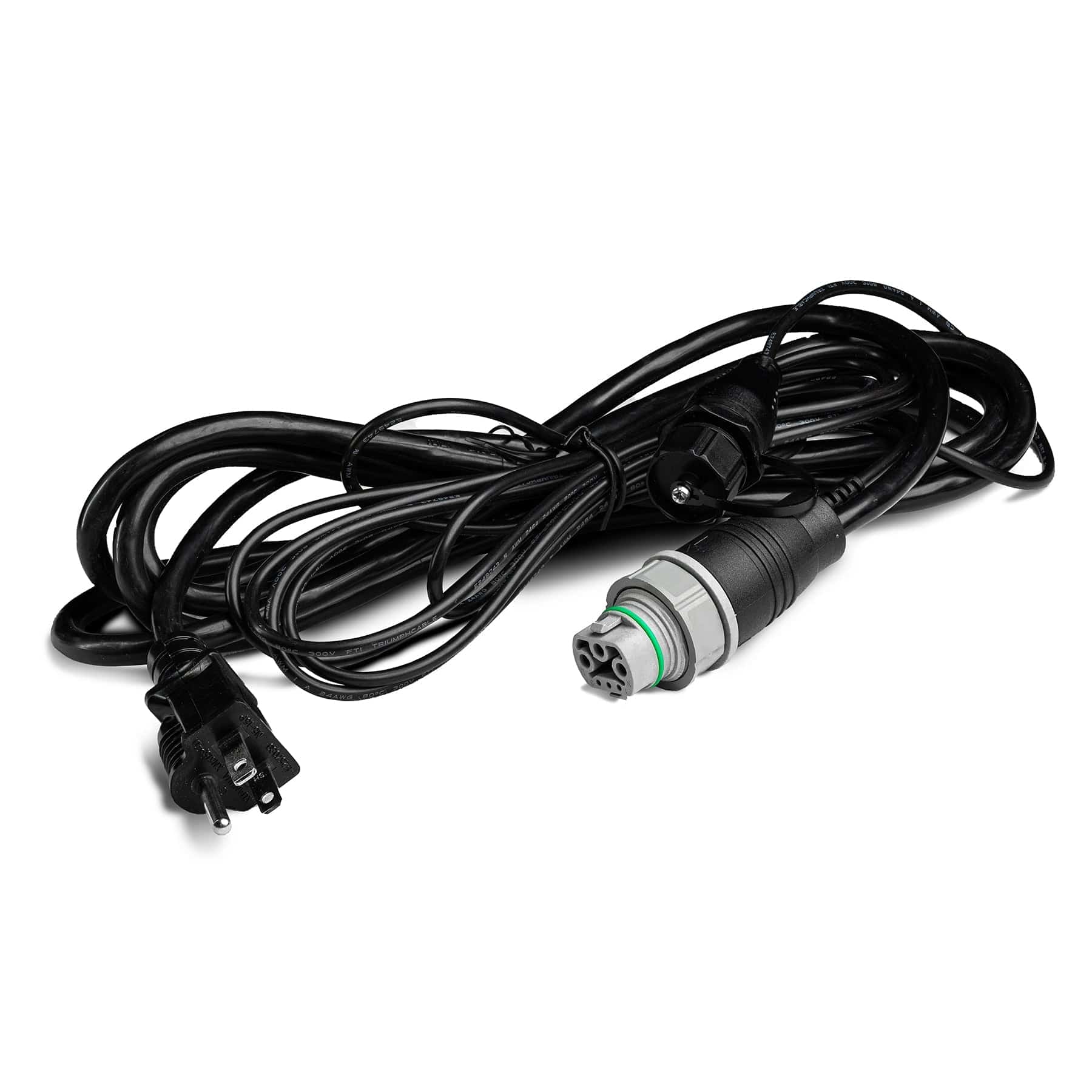

This complete 4x8 kit includes four professional-grade under canopy lights engineered at 2.9 µmol/J efficacy, complete with a Faven Lighting Chroma Power Cord, a Faven Under Canopy Lighting Jumper Cable, two couplings for seamless daisy-chaining, Faven Lighting Adjustable Stands, and the Faven Lighting R6/R8 Mini Controller. The IP66 waterproof-rated fixtures deliver targeted photon delivery to lower canopy zones, increasing usable canopy depth and eliminating the labor-intensive task of under-clearing. Commercial growers report significant reductions in smalls and B-grade product while achieving more uniform color and density throughout the entire plant structure.

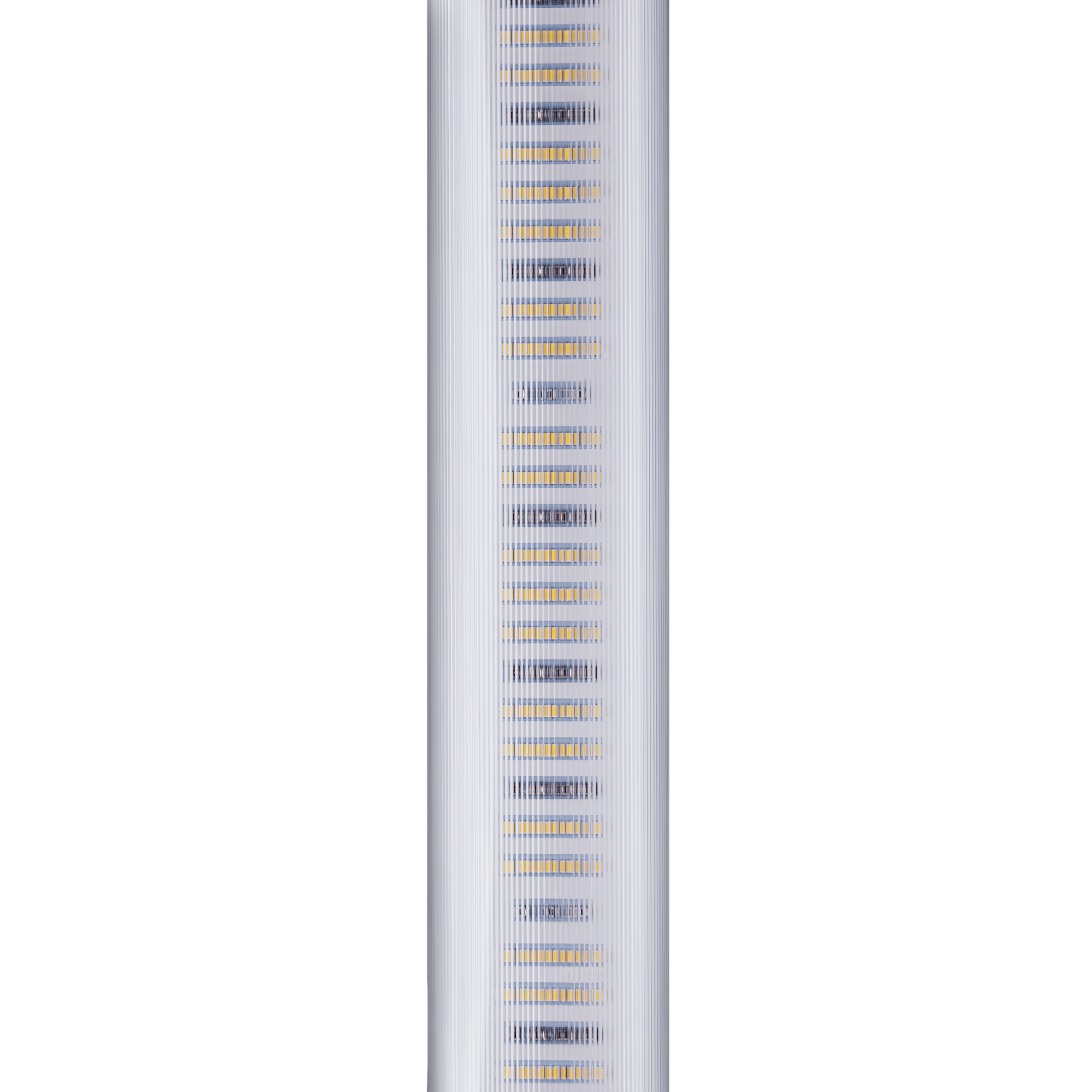

Each 120W dimmable LED grow light fixture measures 46" L × 2.9" W × 3.3" H and carries ETL, DLC, CE, and FCC certifications. The internal driver design simplifies installation, and the system qualifies for electrical rebates in many jurisdictions. Backed by a 5-year warranty, the Faven Under Canopy Starter Pack transforms underperforming lower canopies into productive, high-quality zones across your entire 4x8 footprint.

Features

📈
Proven Yield Increase

Achieve 20-30% yield gains with targeted light penetration to lower canopy zones

💰
Single-Run ROI

Over 85% of customers report complete return on investment within one grow cycle

📐
Extended 4x8 Coverage

Four R8 fixtures provide complete under canopy illumination for 4x8 grow areas

High-Efficiency LEDs

2.9 µmol/J efficacy delivers maximum photon output while minimizing energy costs

💧
IP66 Waterproof

Fully protected against moisture and spray for reliable operation in high-humidity environments

🔗
Daisy-Chain Ready

Includes couplings and jumper cable for seamless connection of all four fixtures

What's Included

Specifications

Specification Value
Efficacy Up to 2.9 µmol/J
Power Consumption 120W per fixture (480W total)
Voltage 120V
Waterproof Rating IP66
Dimensions (per light) 46" L × 2.9" W × 3.3" H
Coverage Area 4' × 8'
Number of Fixtures 4
Driver Type Internal Driver
Dimming Yes (via included controller)
Certifications ETL, DLC, CE, FCC

Spectrum

The R8 delivers a targeted spectrum optimized for under canopy penetration, combining deep red and far-red wavelengths to drive photosynthesis in light-deprived lower bud sites while supporting dense, uniform development throughout the full canopy depth.

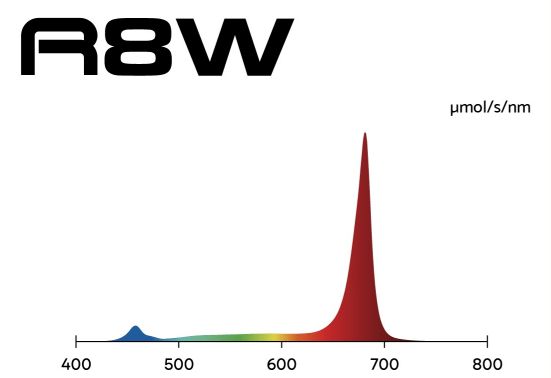

Faven Lighting R8 Under Canopy LED Spectrum Chart

Warranty

The Faven Under Canopy Starter Pack is backed by a comprehensive 5-year warranty covering defects in materials and workmanship.

Frequently Asked Questions

How do I arrange four lights for optimal 4x8 coverage? +

Position the four R8 lights in a linear configuration along the length of your 4x8 space, spacing them evenly to ensure uniform light distribution. Use the included adjustable stands to target the lower third of your canopy, and connect all fixtures using the jumper cable and couplings. The Growing with Faven Guide provides detailed layout diagrams for maximum effectiveness.

What's the purpose of the two couplings included in this kit? +

The couplings enable you to daisy-chain all four R8 fixtures together in series, creating a unified lighting system controlled by a single Faven Lighting R6/R8 Mini Controller. This simplifies installation by reducing the number of power connections needed and ensures synchronized dimming across all fixtures. The system draws power from one source while distributing it to all four lights.

How quickly can I expect to see ROI on this investment? +

Over 85% of Faven customers report full return on investment within a single grow cycle. A typical 20% yield increase covers the cost of the lights, with additional value from reduced labor (less under-clearing), fewer low-value smalls, and improved product uniformity. Many operations also benefit from electrical rebates that further accelerate payback.

Will this system work with my existing overhead lighting? +

Yes, Faven under canopy lights are designed as supplemental lighting to work alongside any overhead LED or HPS system. The lights target lower canopy zones that overhead fixtures cannot adequately illuminate, regardless of your primary lighting setup. The dimming controller allows you to balance intensity with your specific overhead configuration.

What's the total power draw for all four fixtures? +

Each R8 fixture draws 120 watts, bringing the total system power consumption to 480 watts at full intensity. However, the included dimming controller allows you to reduce power consumption during vegetative stages or when full intensity isn't required. This flexibility helps optimize energy costs while maintaining the yield-boosting benefits of under canopy lighting.

Can I expand beyond this 4x8 configuration for larger spaces? +

Absolutely. The Faven system is modular and scalable using additional Faven Under Canopy Lighting Jumper Cable and couplings to daisy-chain more fixtures. You can add individual R8 lights to expand coverage beyond 4x8, or combine multiple starter packs—like the Faven Lighting Chroma Under Canopy 4' x 8' Starter Pack—for very large operations. This allows you to grow your under canopy lighting system incrementally as your cultivation area expands.

How does under canopy lighting reduce labor costs? +

By delivering usable light throughout the entire canopy depth, Faven lights eliminate the need for extensive under-clearing and lollipopping during the vegetative stage. Lower branches develop into productive, high-quality colas rather than becoming waste material. This reduces both cultivation labor and post-harvest sorting time spent separating premium flower from low-value smalls.

What electrical rebates are available for DLC-certified lights? +

The Faven system's DLC certification makes it eligible for utility rebate programs in many regions, which can offset 20-40% of the initial investment. Rebate availability and amounts vary by location, so contact your local utility company to determine specific opportunities in your area.
