Mobius Infeed Conveyor System

Conveyor Type
Infeed Conveyor
Variable Speed
6 - 35 feet per minute
Warranty
1 Year

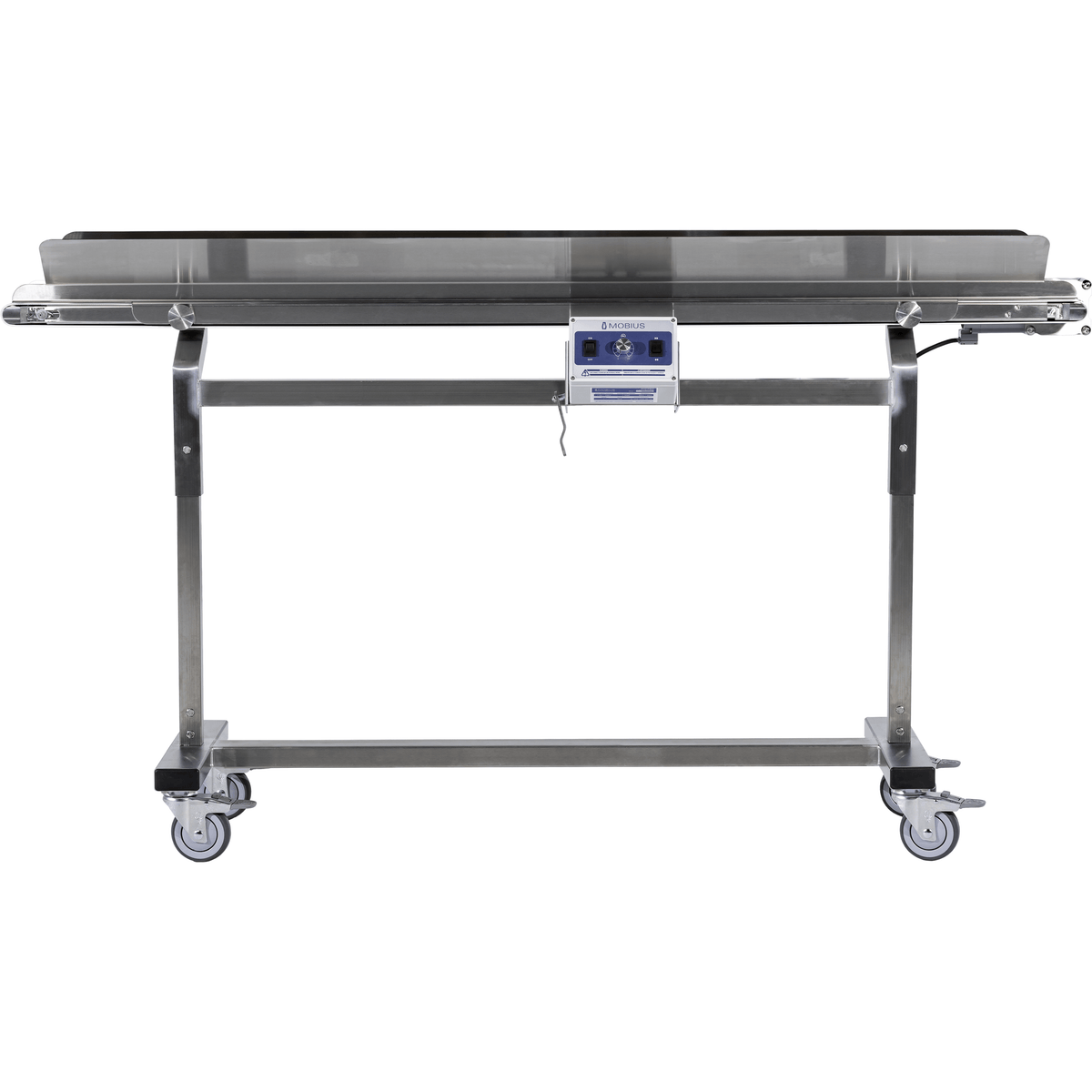

Mobius Infeed Conveyor System

The automation of Mobius will never be complete without its conveyor system.

And what better way to start by investing with the Mobius Infeed Conveyor. The Infeed Conveyor is a perfect complement to your Mobius machines. It reduces processing costs, worker costs, and risks of product contamination.

The Infeed Conveyor comes equipped with a custom conveyor guide to keep your trimmer filled all the time. It uses a 0.03 HP motor with a speed range of 6 – 35 feet a minute. The Infeed Conveyor also uses a 55 FDA Sealed Edge Urethane Belt to keep your buds safe for consumption.

The total length of the Infeed Conveyor is 72 inches and goes from end to end in two (2) minutes.

Features

Reduce Product Contamination

The Infeed Conveyor helps you reduce product contamination when moving between different machines.

Variable Speed

The Infeed Conveyor moves your product with speeds of up to 35 feet a minute.

Food-Safe Belt Material

The Infeed Conveyor keeps buds safe ,for consumption with its 55 FDA Sealed Edge Urethane Belt.

Custom Conveyor Guide

The Infeed Conveyor keeps your trimmer filled all the time, with the customized Conveyor Guide.

Highlights

Reduce Product Contamination
Custom Infeed system
55 FDA Sealed Edge Urethane Belt
0.03 HP Motor
Maximum Speed of 35 feet a minute
72 Inches total conveyor length

Specifications

Description	Specification
MOTOR HP:	0.03HP
POWER REQUIREMENTS:	115 1.5A
SPEED RANGE:	6 – 35FT / MIN
BELT MATERIAL:	55 FDA SEALED EDGE URETHANE
BELT DIMENSIONS:	5″ X 72″
OVERALL WIDTH:	18″
OVERALL LENGTH:	72″
OVERALL HEIGHT:	45″
OVERALL WEIGHT:	85LBS

Downloads

Cut Sheet

Warranty

No warranty on consumable parts, including blades/blade bars, tumbler, fan housing filter bag, brush-bar, filters, trim tote gasket, die plates, rolls, and screens.

Warranty coverage for one (1) year or 1,000 operating hours, whichever occurs first, on motors, electrical components, and remainder of machine components.

The warranty period begins on the date the equipment is received by the customer. Any damage that occurs during shipping will be the responsibility of Eteros Technologies.

The above terms are valid if Mobius equipment is used and maintained as directed. If the equipment is modified in any way, all terms of this warranty are void. This warranty does not apply to cosmetic damage, such as scratches or general wear and tear

All sales final.
