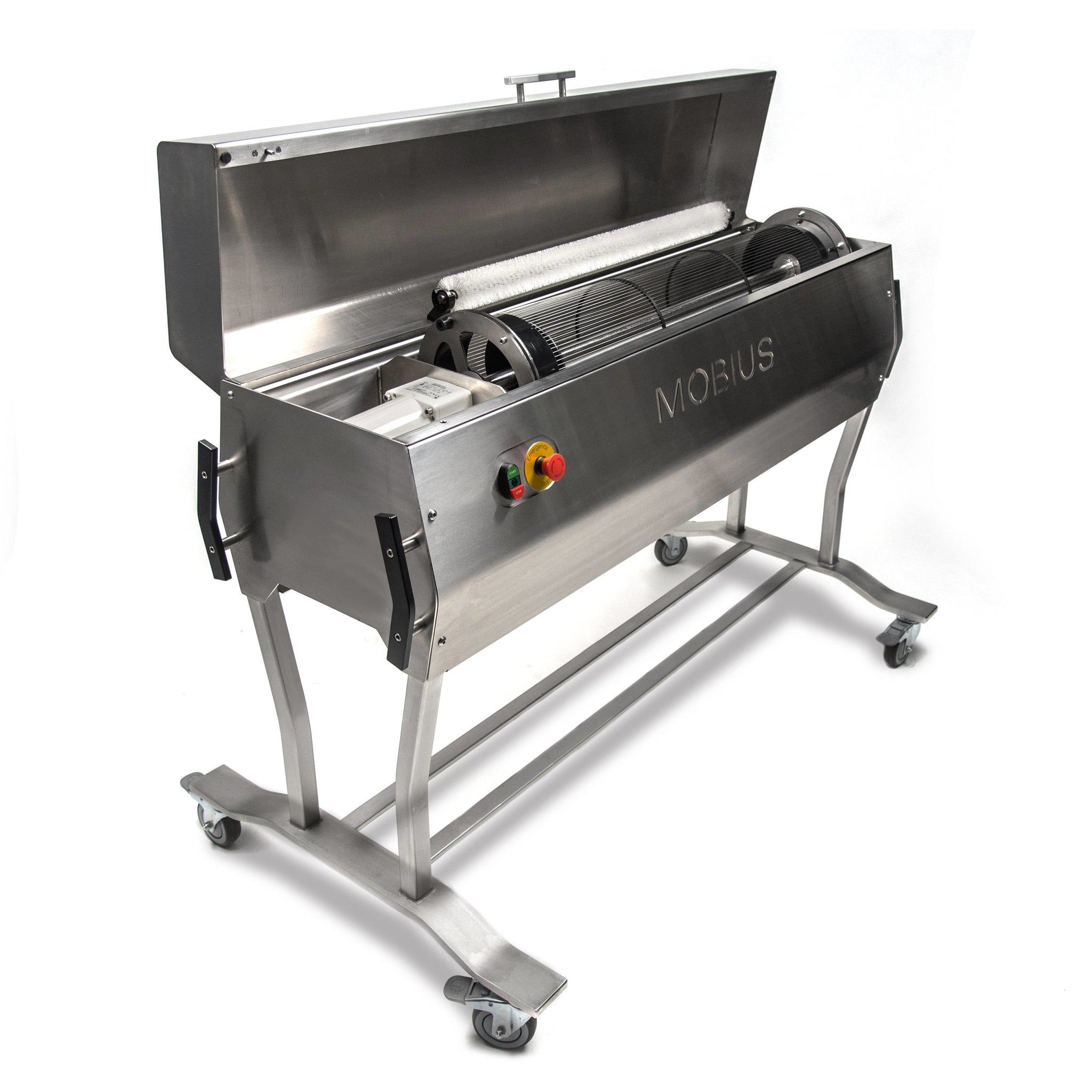

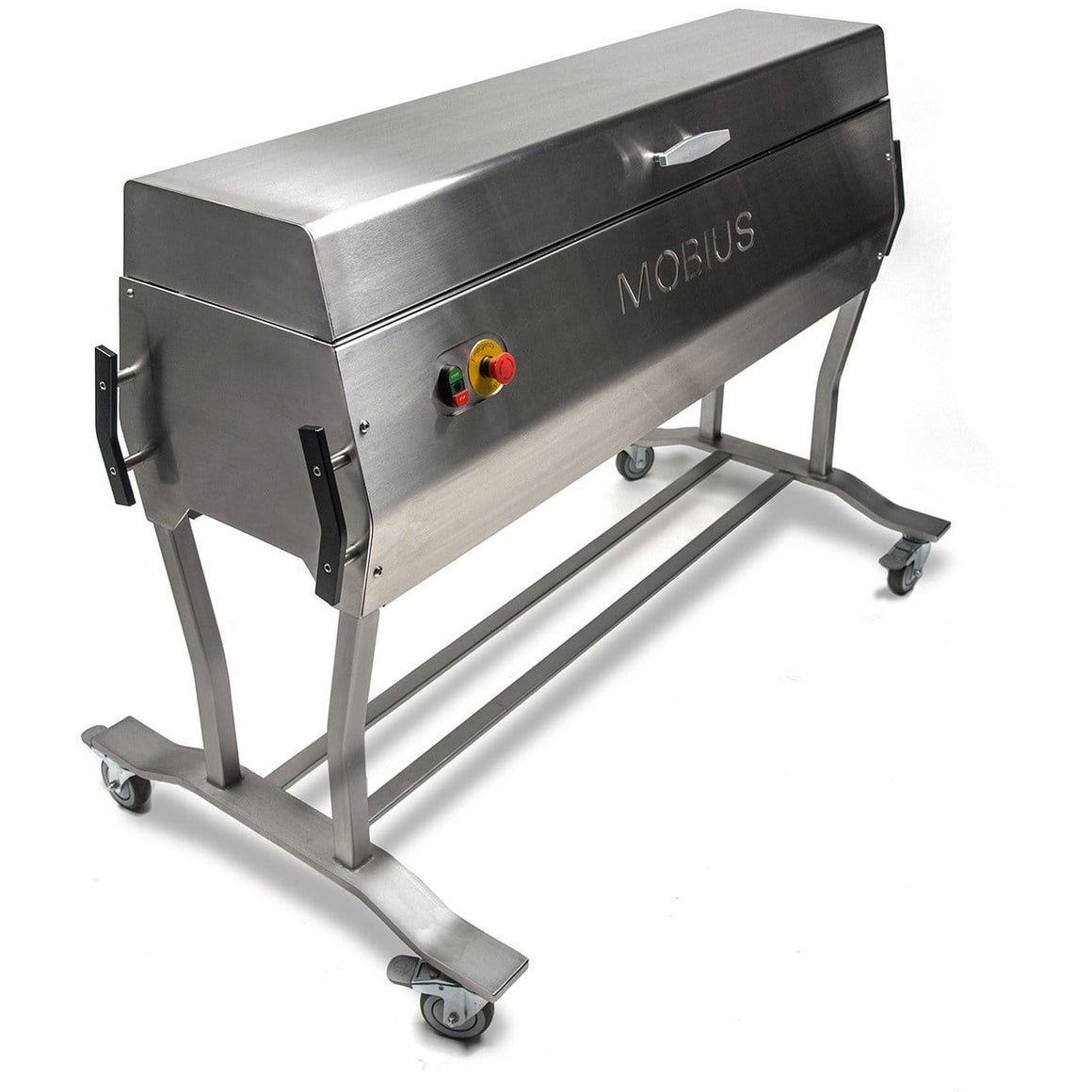

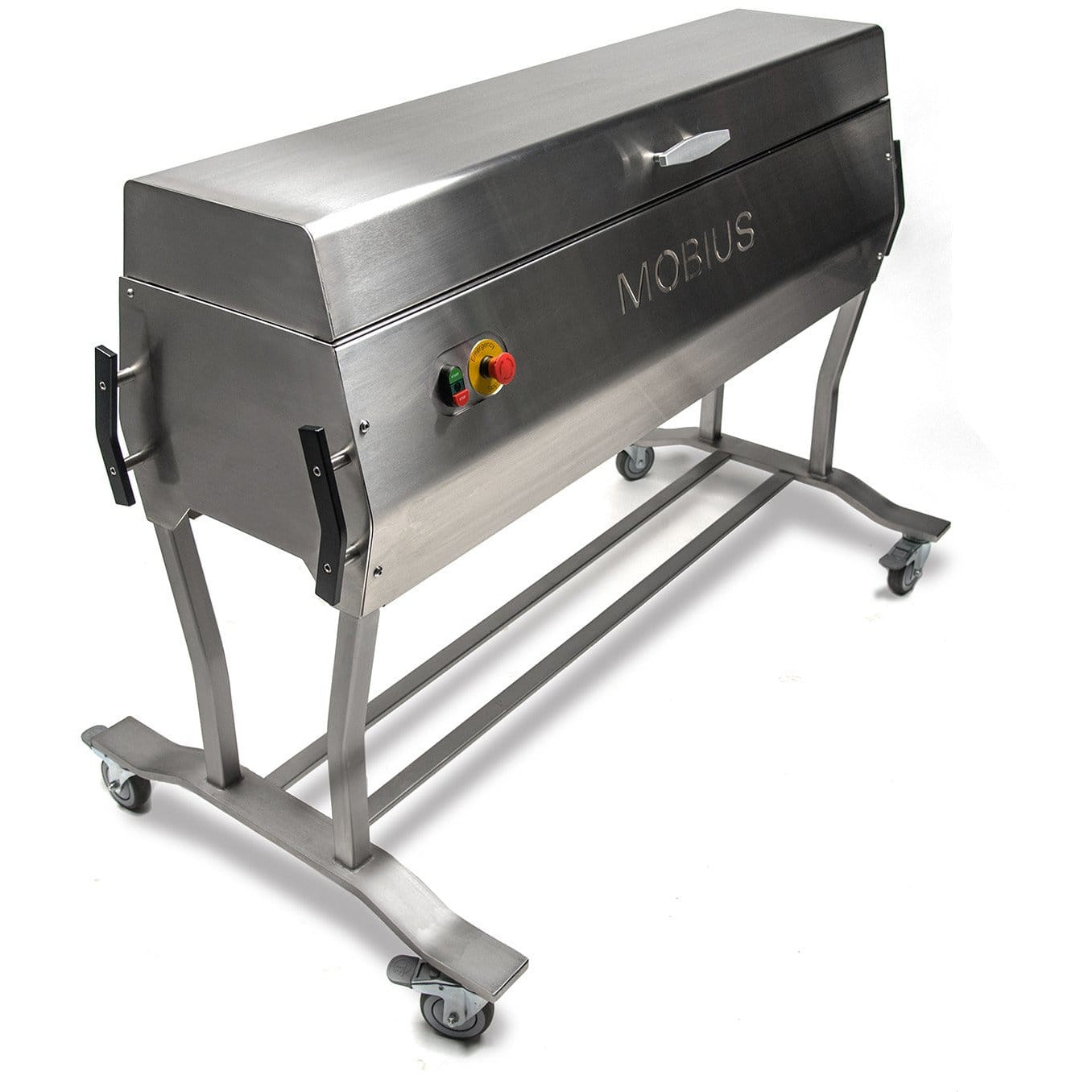

Mobius Tumbler & Brush Washer Automatic Cleaning System

Stop letting tedious cleaning cycles slow down your workflow. If you've invested in a high-performance Mobius M108S trimmer, you need a cleaning solution that matches its efficiency. The Mobius Tumbler & Brush Washer is engineered to slash your cleaning downtime from 30 minutes of manual scrubbing to an automated 5-minute cycle.

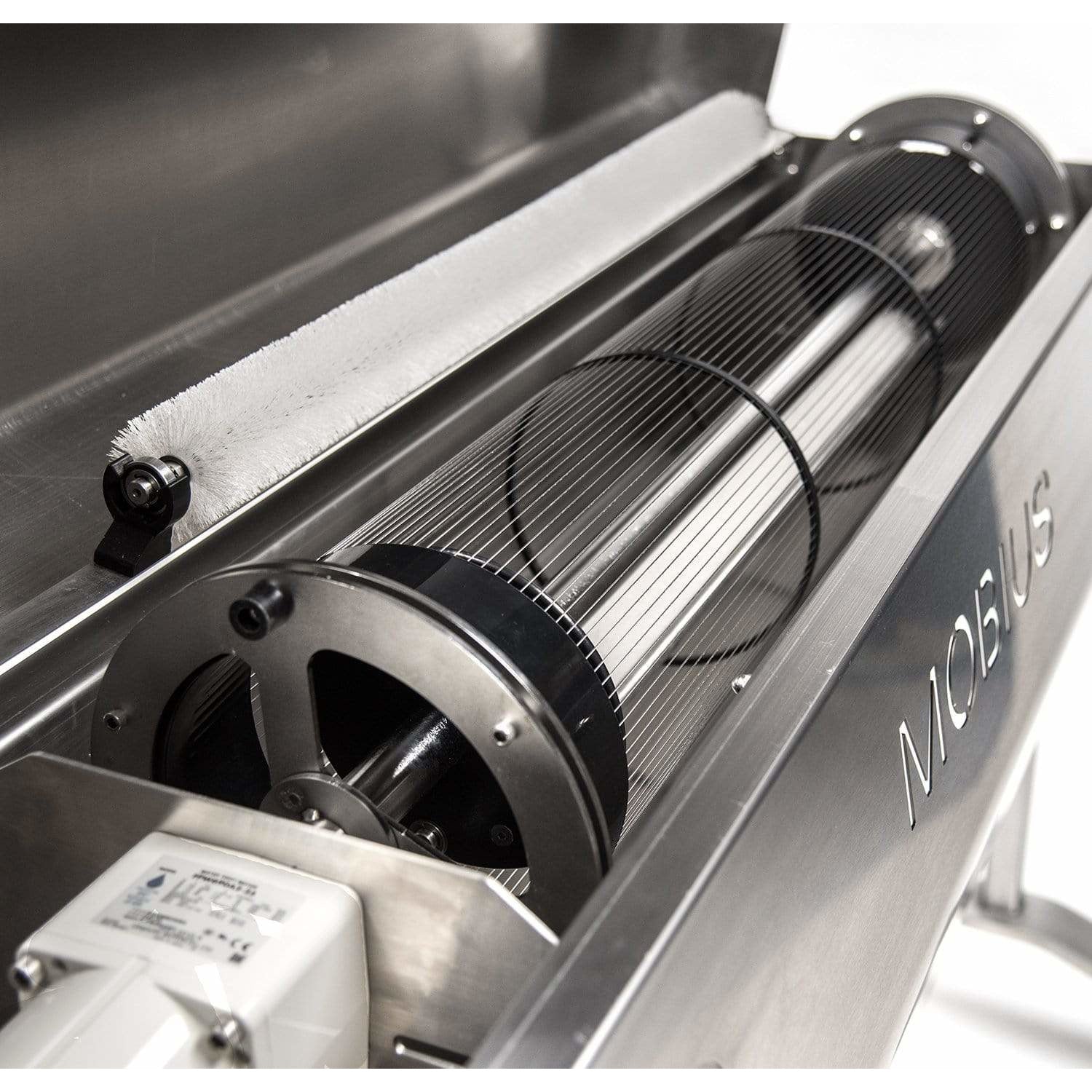

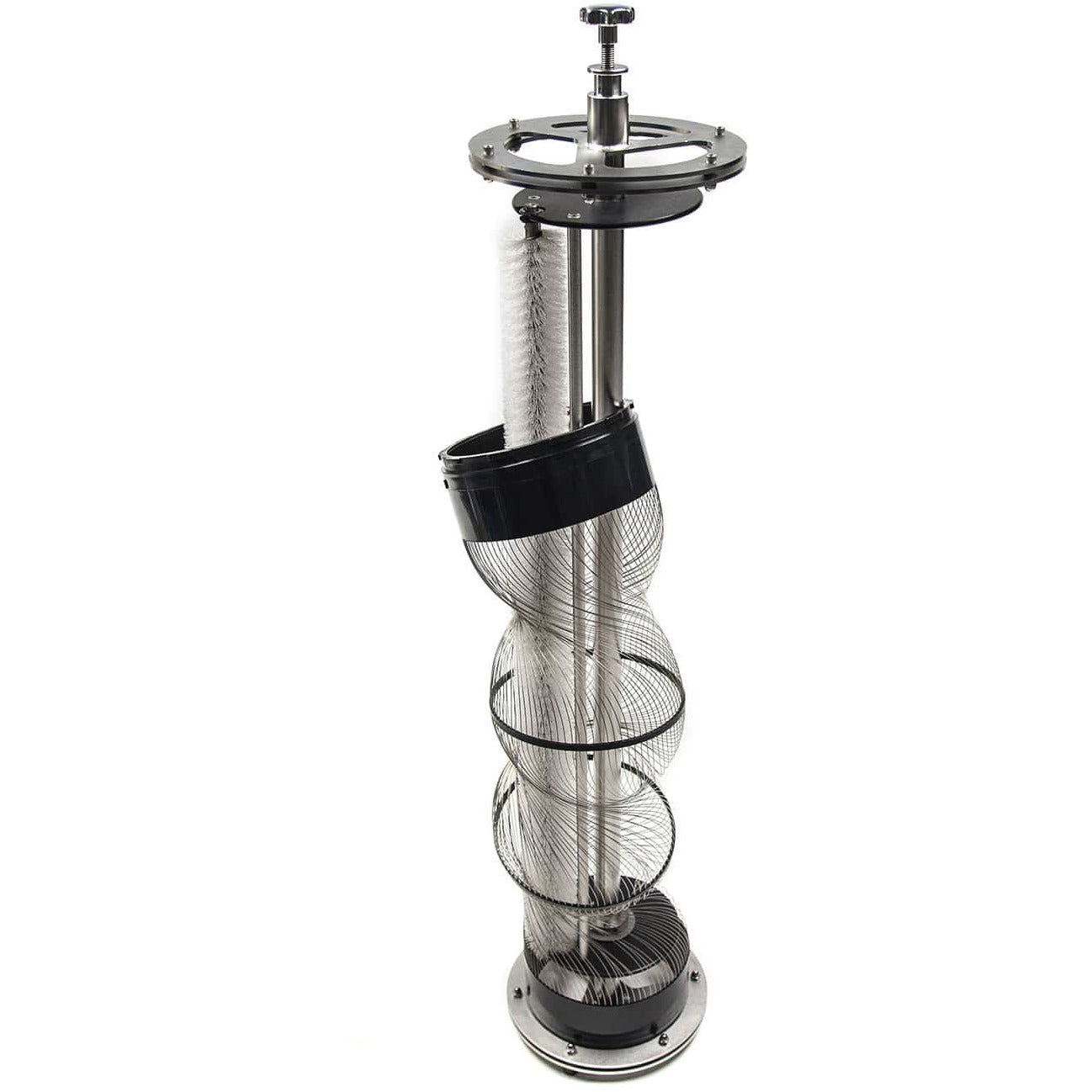

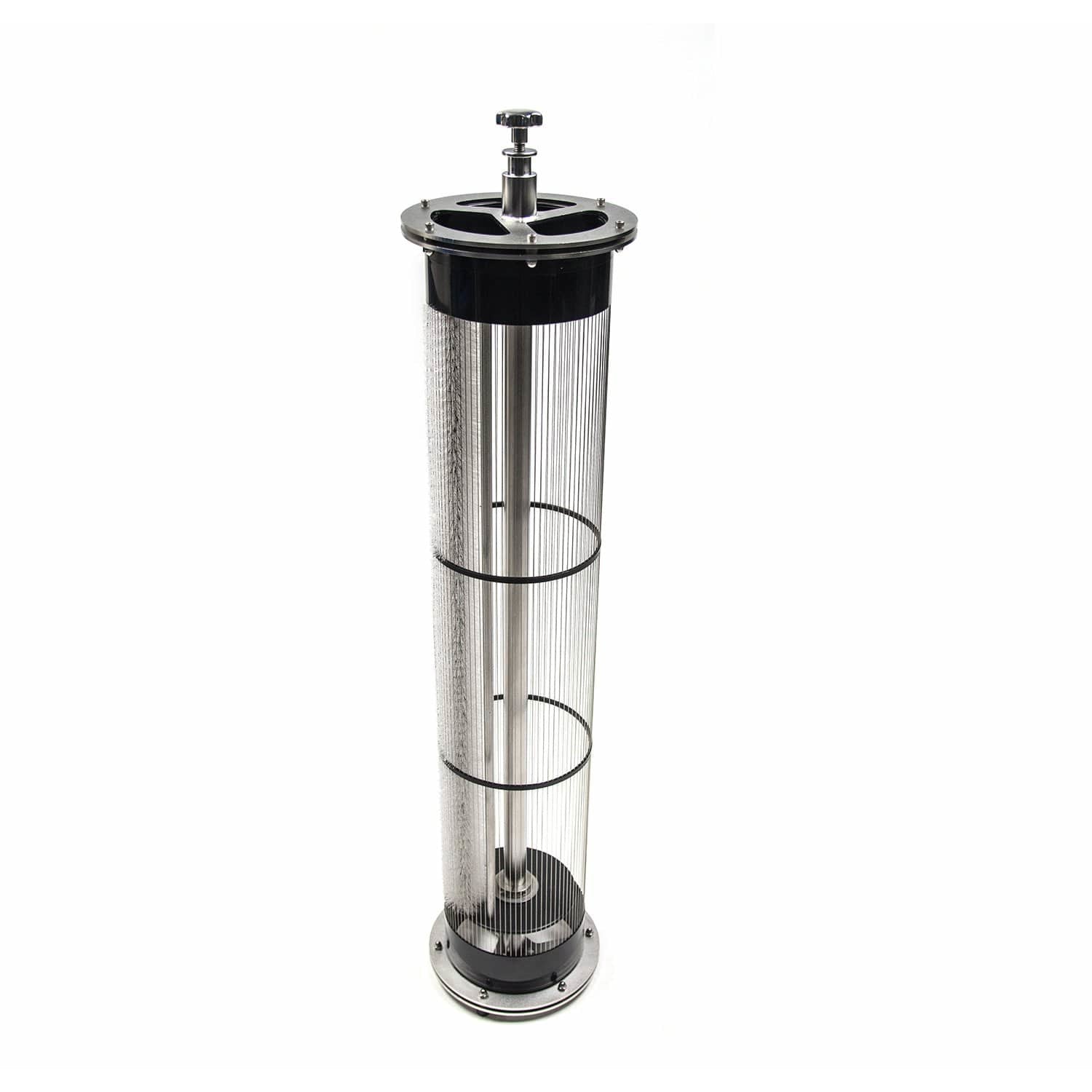

This powerful system is specifically designed to clean your AirThread Tension Tumbler and brush bar with unparalleled speed. Powered by a robust, IP67 washdown-rated 1/8 HP motor, it tackles the toughest spots that are difficult to clean by hand. Operation is simple: attach the components, add your preferred cleaning solution with warm water, and let the machine handle the rest. When the cycle is complete, the 1.5-inch brass spout ensures fast and easy draining. Built from rugged stainless steel, this washer is another example of the premium, durable quality you expect from Mobius equipment.

What's Included

Mobius Tumbler & Brush Washer
User Manual

Features

⏱️

5-Minute Rapid Clean

Reduces cleaning time from 30 minutes of manual labor to just a 5-minute automated cycle, maximizing your uptime.

🤖

Automated Process

Effortlessly cleans hard-to-reach spots on your tumbler and brushes without the need for manual scrubbing.

✅

Simple Operation

Just mount the components, add your cleaning solution and water, and let the machine do all the work for you.

💧

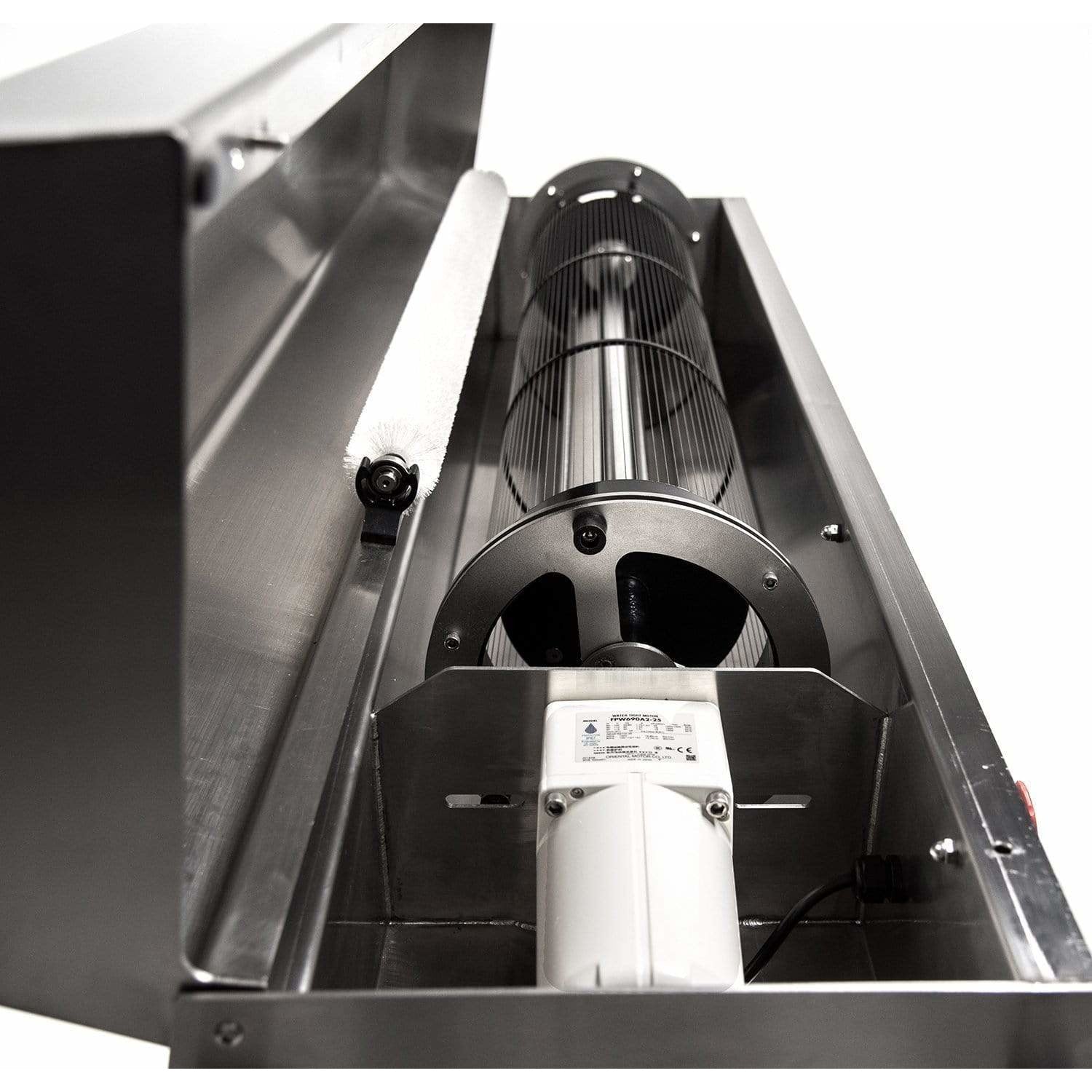

IP67 Washdown Motor

Features a powerful 1/8 HP motor that is fully rated for safety and reliability in wet cleaning applications.

🔩

Stainless Steel Build

Constructed from rugged, high-quality stainless steel for exceptional durability and a long service life.

⏩

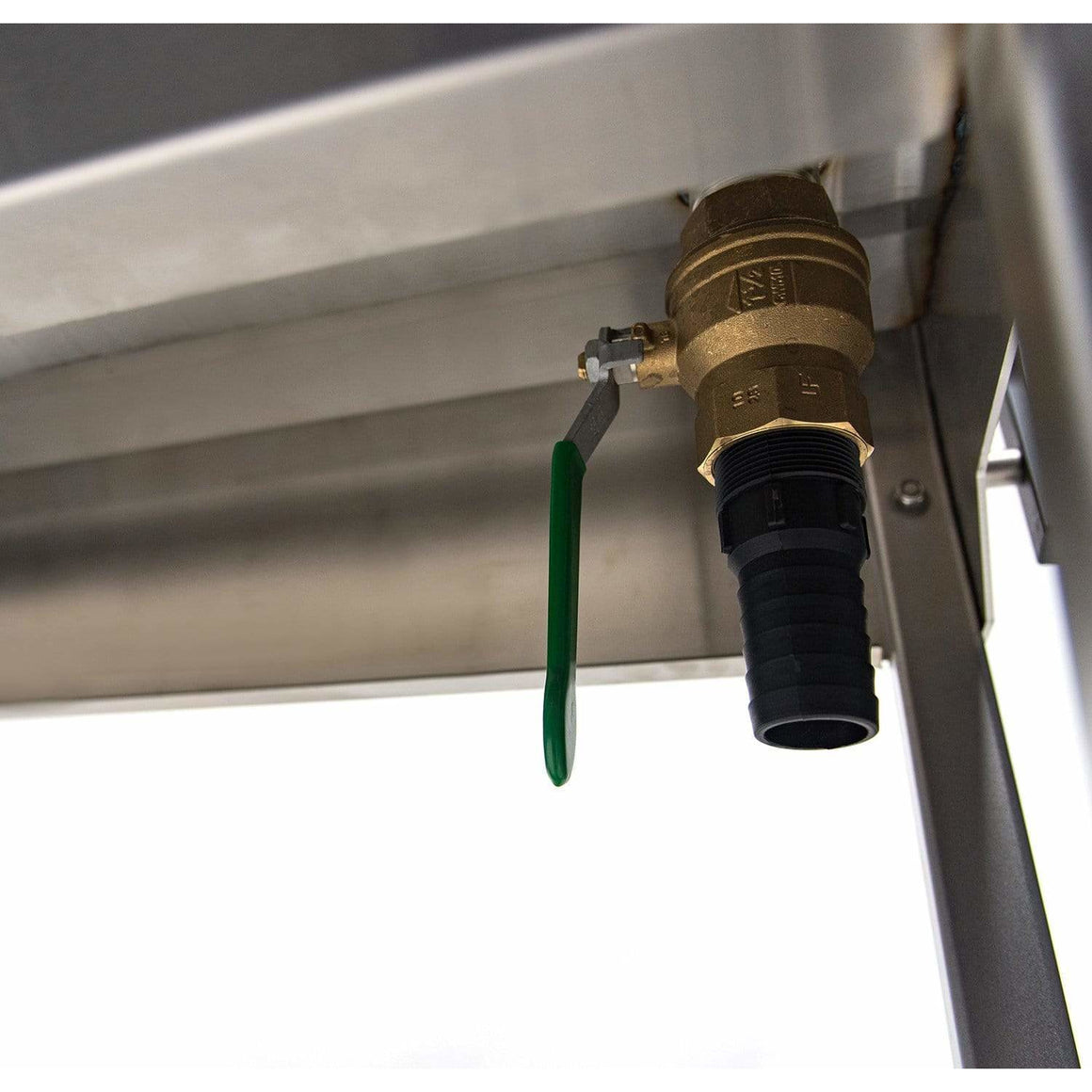

Easy Draining System

Equipped with a 1.5-inch brass spout for quick, convenient draining of used cleaning solution after each cycle.

Specifications

Specification	Value
TUMBLER MOTOR	IP67 WASHDOWN RATED
CONSTRUCTION	STAINLESS STEEL
TUMBLER MOTOR HP	1/8 HP
POWER REQUIREMENTS	SINGLE PHASE 115 1.5A
SPEED	72 RPM
MOTOR SAFETY STANDARDS	UL, CSA, CCC, EN, CE
FITS THROUGH 32″ DOOR	YES
WIDTH	32″
LENGTH	64″
HEIGHT	44″
WEIGHT	270LBS
WARRANTY	1 YEAR
SAFETY FEATURES	AUTOMATIC SHUTOFF WHEN LID IS OPEN BUILT USING SAFETY COMPLIANT COMPONENTS
BASIN CAPACITY	9 US GALLONS / 34 LITRES

Support & Manuals

📄Cut Sheet

Warranty

This product includes warranty coverage for one (1) year or 1,000 operating hours, whichever occurs first, on motors, electrical components, and the remainder of machine components. The warranty period begins on the date the equipment is received by the customer. No warranty is offered on consumable parts, including blades/blade bars, tumbler, fan housing filter bag, brush-bar, filters, trim tote gasket, die plates, rolls, and screens. If the equipment is modified, all terms of this warranty are void. This warranty does not apply to cosmetic damage, such as scratches or general wear and tear. All sales are final.

FAQs

What Mobius trimmers is this washer compatible with?+

It's specifically designed for the tumbler and brushes of the Mobius M108S Trimmer and the AirThread Tension Tumbler.

How long does a cleaning cycle take?+

A full cleaning cycle takes only 5 minutes, a significant time-saving compared to the 30 minutes often required for manual cleaning.

What kind of cleaning solution should I use?+

You can use your preferred cleaning solution. Simply mix it with warm water in the basin according to the solution's instructions for best results.

Is the motor safe for use with water?+

Yes, the washer is equipped with a powerful 1/8 HP motor that is IP67 washdown rated, ensuring it is completely safe and designed for wet cleaning applications.

How do I drain the machine after cleaning?+

Draining is simple thanks to the built-in 1.5-inch brass spout, which allows for quick and easy connection to a hose for clean disposal of used water.

What is the washer made of?+

The unit is built with rugged stainless steel, ensuring durability and a long service life, consistent with the high quality of all Mobius equipment.

How does this washer help my commercial operation?+

By reducing cleaning downtime to just five minutes, it maximizes the operational uptime of your trimming equipment, leading to higher throughput and efficiency. It's a key part of optimizing workflows for commercial-scale production.

Where can I learn more about new Mobius products?+

We recommend checking out articles like the one introducing the new Mobius TD15 and TD25 dry trimmers to stay updated on the latest innovations.
