The Cluster Bucker sets a bold new standard for efficiency and throughput. The dual drive belts, combined with the new die plate design (both patent pending), let you buck much larger branch clusters. This means more buds are bucked with every branch feed, which increases throughput for each operator and decreases the time and labor needed for harvest.

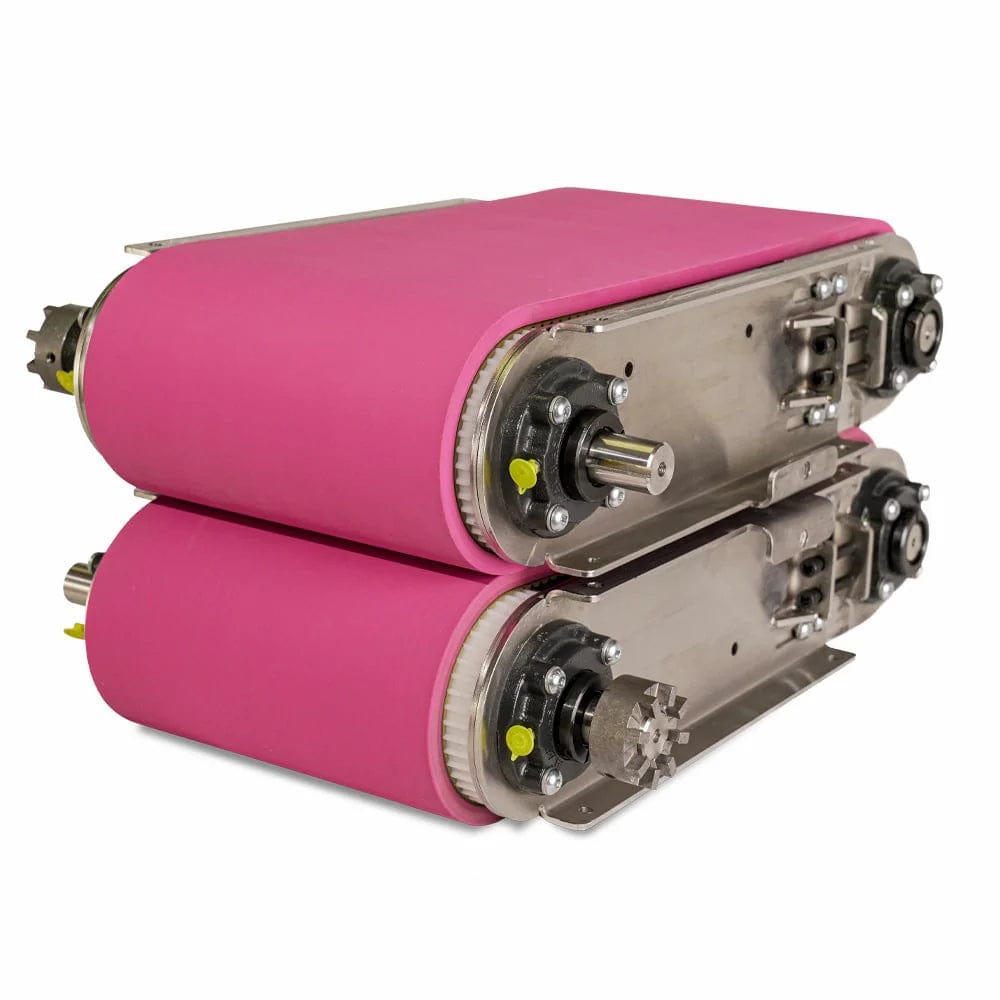

Dual 1 HP motors drive the belt cassettes, giving the machine the necessary grip and power to buck larger branches and branch clusters. As less branch breakdown and stem prep are necessary, the Cluster Bucker will buck more material with each pull, in less time, than any other bucker on the market.
The keyhole style die plate (patent pending) features strategically placed holes that let gravity assist in pulling the branch cluster down and through the tapered slot. This new die plate is designed for those seeking the highest throughput possible.
Throughput is only 1 aspect of harvest efficiency. The Cluster Bucker also increases upstream efficiency by reducing branch breakdown and stem prep. This offers major time and labor savings before you even start bucking.
The Cluster Bucker is engineered for easy service and cleaning: Protection hoods and faceplate feature tool-less removal. Each belt cassette is easily removed with only 4 fasteners. The entire unit is washdown rated for fast and easy cleaning. Dual compound belts reduce resin buildup and cleaning time.
Cluster Bucker | |
Power Requirements | 240V 60Hz |
Current Draw | 20 Amp (30Amp Max Breaker Size) |
Generator Compatible | YES |
GFCI Compatible | NO |

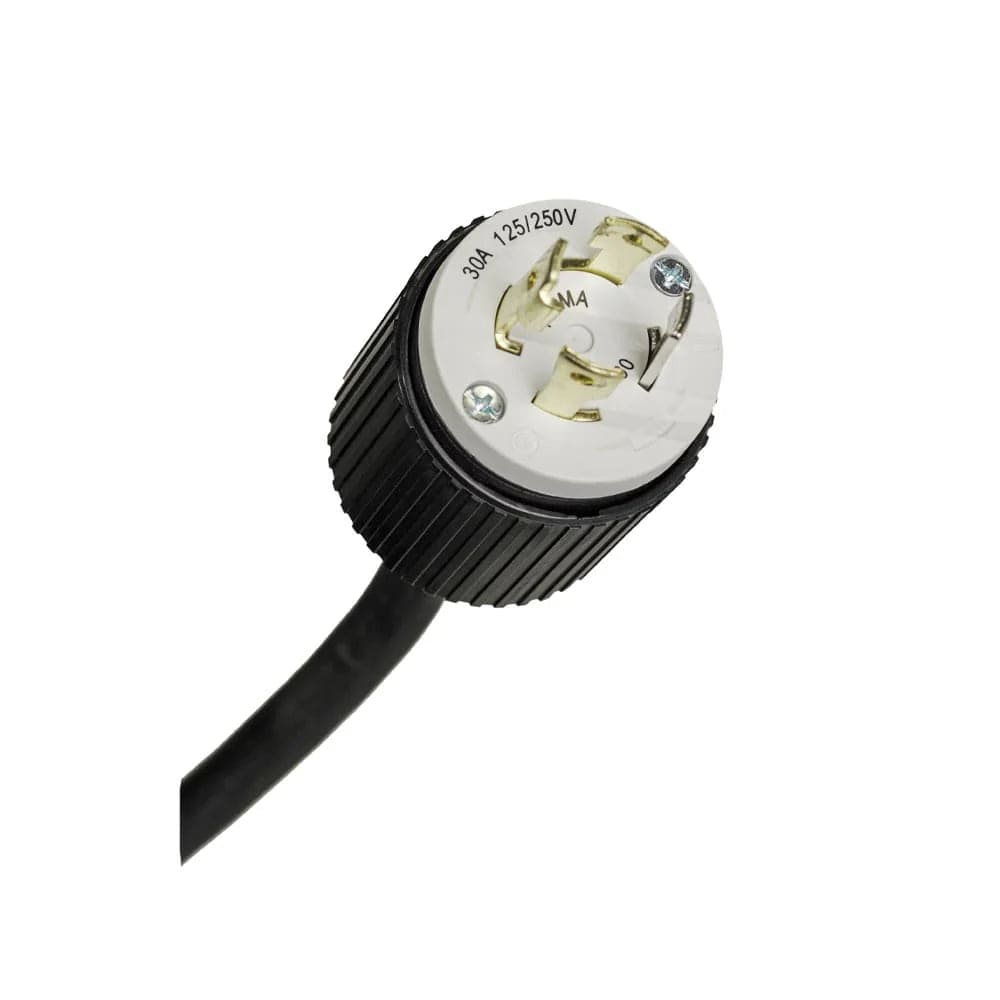

Connector Plug | NEMA L14-30P |
Accessory Power | 120V 10 Amp |
Accessory Plug | NEMA 5-15R |
Electrical Cord Length | 50' |
Control Box Ratings | NEMA 4/12 |
Motor | Dual 240V 1 HP |
Die Plate Size Range | Kethole Die Plate (included), Round Hole Die Plate (Optional accessory) |
Machine Dimensions | |
Height | 57.6" |
Width | 37" |
Depth | 45" |
Weight | 650 lbs |
Shipping Crate Dimensions | |
Height | 66" |
Width | 40" |
Depth | 48" |
Weight | 1000 lbs |
Features | |
Wet / Dry Capable | YES |
Throughput Hydrated | 650 - 800 lbs per hour |
Throughput Dry | 200 - 350 lbs per hour |
Multiple Die Plates | YES |
Variable Speed Control | YES |
Reverse Operation | YES |
Safety Off Switch | YES |
Conveyor Compatible | YES |
Indoor / Outdoor Use | YES |
Duty Cycle | Continuous |
Washdown Electronics | YES |
GMP Compliant | YES |
304 Stainless Steel | FDA Food Grade |
Belts |
FDA Food Grade NeopreneFDA Food Grade Urathane and Natural Rubber |
Rollers | FDA Food Grade Neoprene |
Lubricants | FDA Food Grade |
Powder Coating | FDA Food Grade |
UL Certified | YES |
CSA Certified | YES |
CE Certified | YES |
Warranty | 5 Year |
Munch Machine offers a 5 Year Warranty On Any Manufacturer Defects. The Double Bucker is 100% serviceable.
This warranty does not cover operator error or abuse. All sales final.
