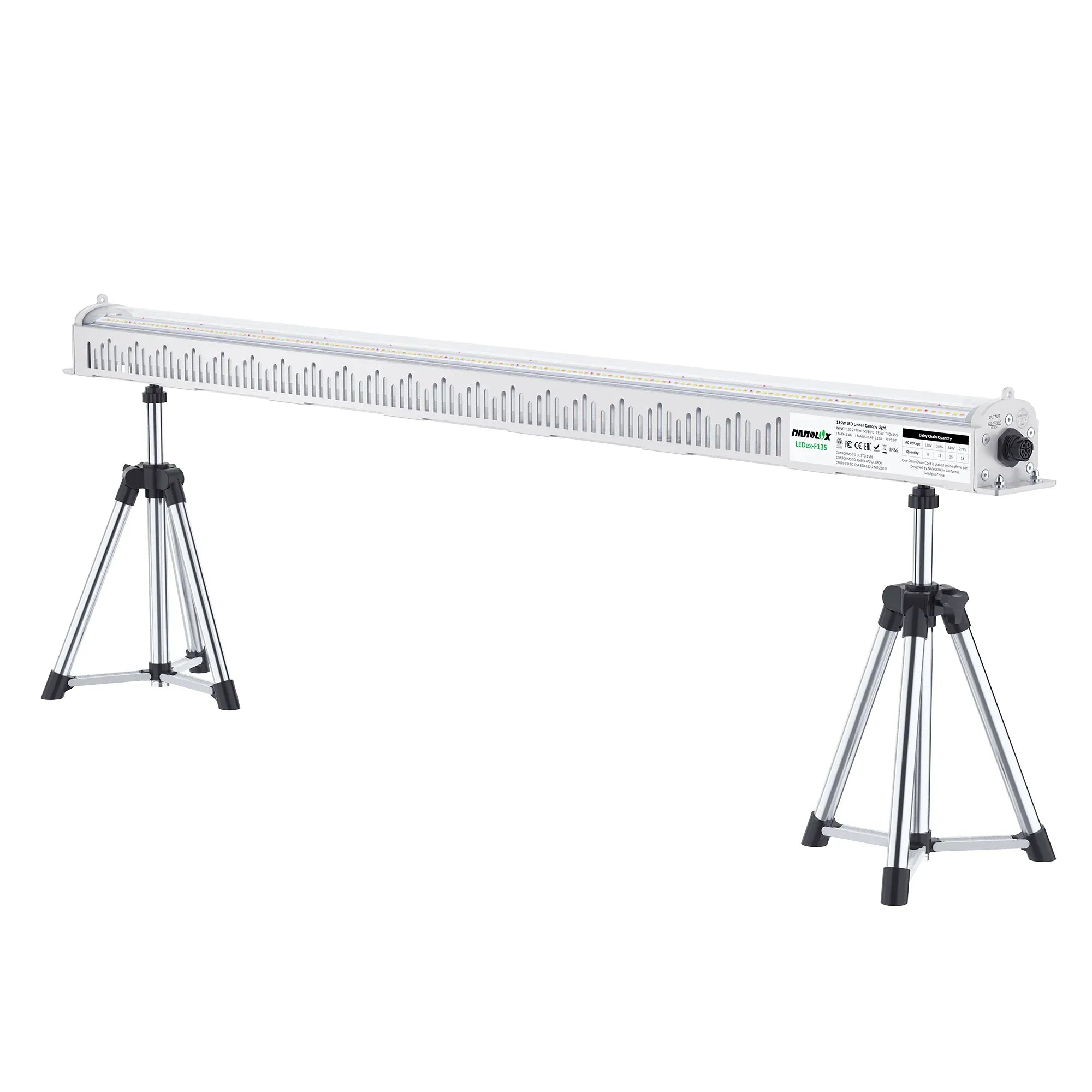

Nanolux LEDex-F135 135W under canopy LED grow light, a white rectangular light bar on two silver tripods.

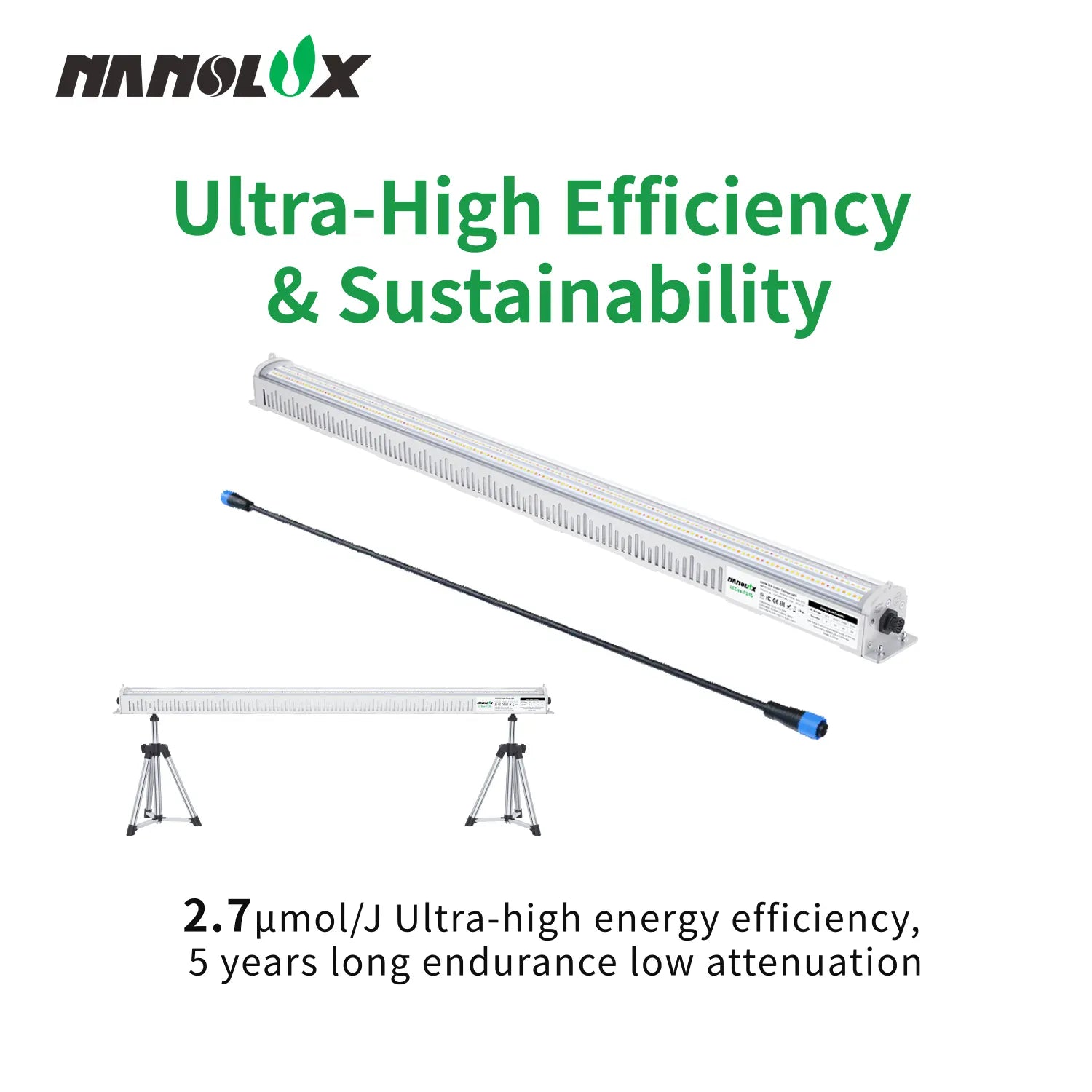

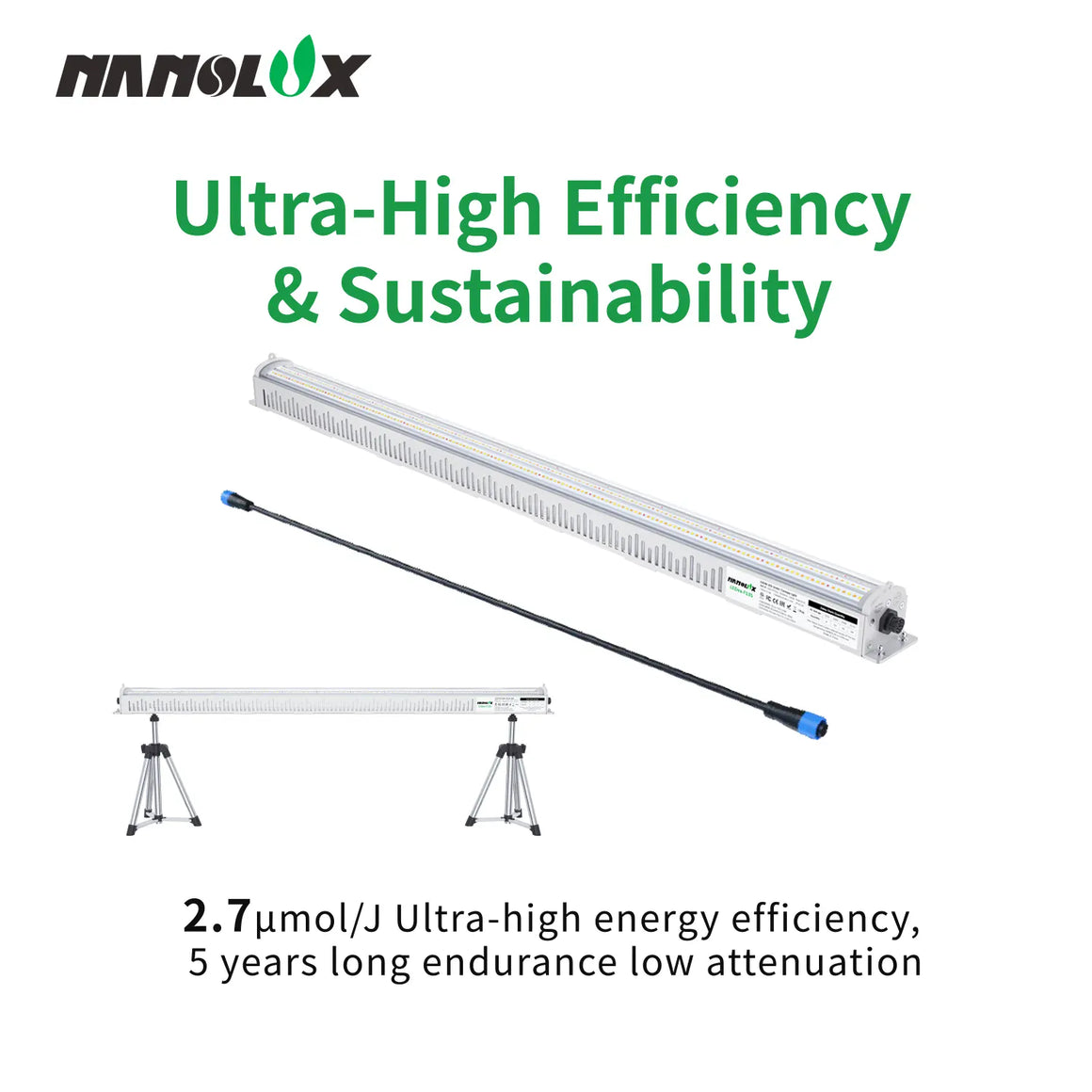

Nanolux Subray F35 LED grow light bar with 2.7µmol/J ultra-high energy efficiency and sustainability.

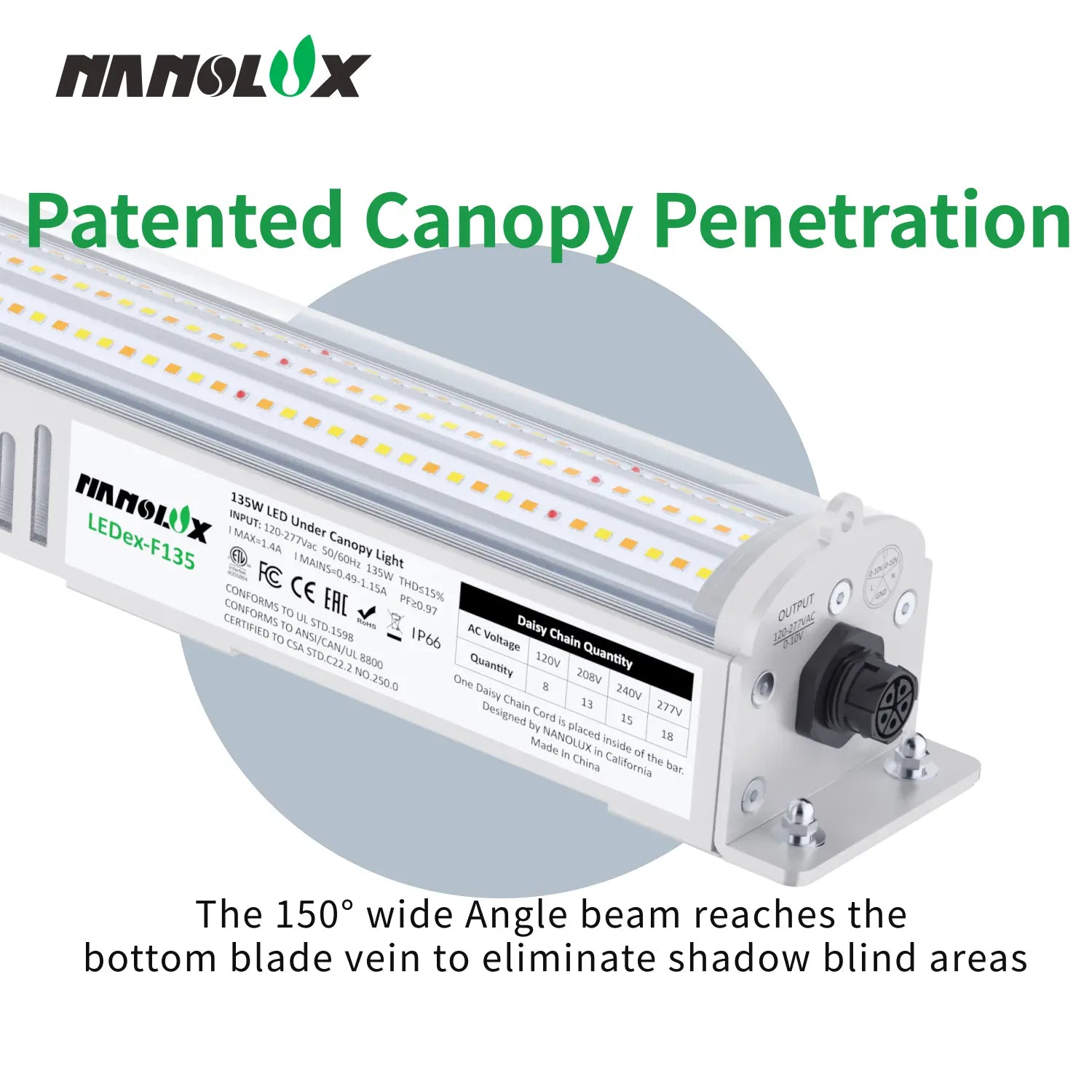

Nanolux LEDex-F135 under canopy grow light with patented canopy penetration and 150° wide-angle beam.

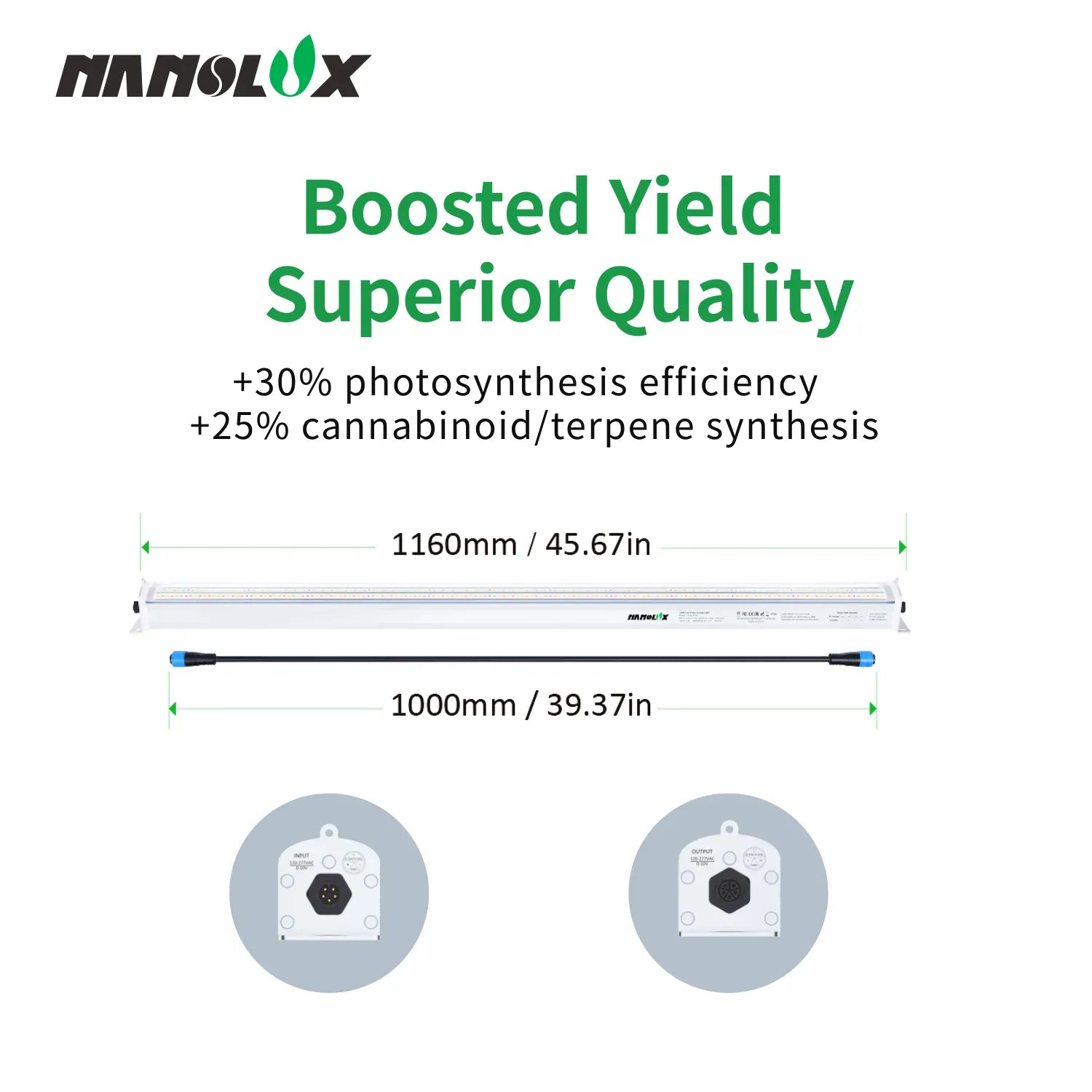

Nanolux SubRay 135W under canopy LED grow light, showing dimensions & input/output ports for boosted yield.

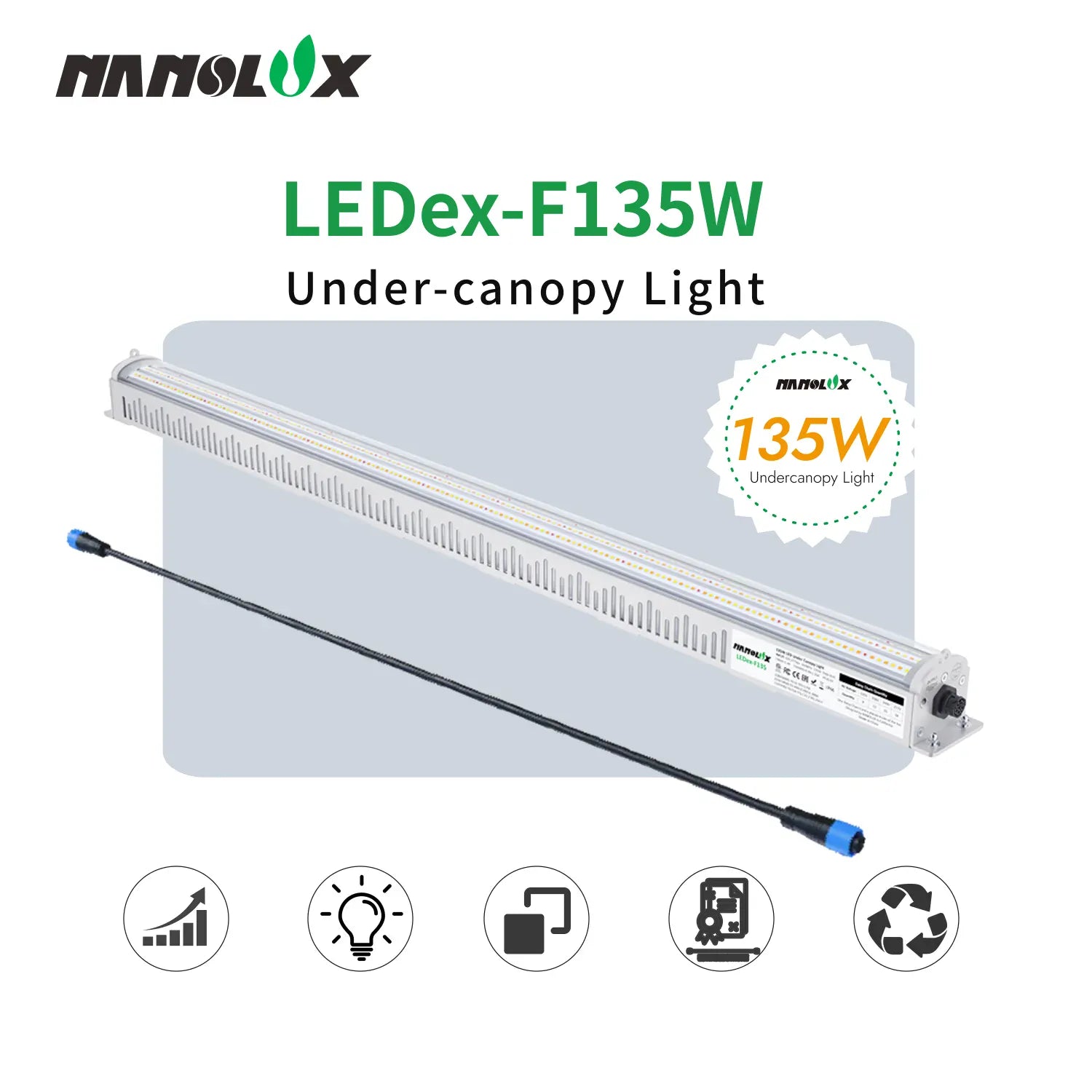

Nanolux LEDex-F135W 135W under-canopy LED grow light with feature icons for growth, efficiency, and sustainability.
Nanolux LEDex-F135 135W under canopy LED grow light, a white rectangular light bar on two silver tripods.
Nanolux Subray F35 LED grow light bar with 2.7µmol/J ultra-high energy efficiency and sustainability.
Nanolux LEDex-F135 under canopy grow light with patented canopy penetration and 150° wide-angle beam.
Nanolux SubRay 135W under canopy LED grow light, showing dimensions & input/output ports for boosted yield.
Nanolux LEDex-F135W 135W under-canopy LED grow light with feature icons for growth, efficiency, and sustainability.
Ask Sage about this product
Sold Out

Nanolux SubRay 135W Under Canopy LED Grow Light

Official Nanolux Dealer Model: LEDex-F135
Questions? Talk to a specialist. Mon–Fri, 9am–5pm PST
(778) 300-3154 Live Chat Available now
Free Shipping On Most Items To the Provinces*
Transparent Pricing Backed w/ price match guarantee
4.8/5 average Top Quality Store on Google
Secure Checkout SSL encrypted payments

Send Us a Message
Ask Sage about this product
VOLUME PRICING

Commercial & Bulk Purchasing

We support operations & licensed facilities with volume pricing, dedicated account managers, and custom equipment consultation.

Commercial Inquiry

Contact Information
THROUGH THE Cultivator's LENS Hands-On Evaluation

  • You are adding under-canopy lighting because your lower plant zones are staying shaded and losing development
  • You are installing supplemental bars because your overhead lights cannot penetrate dense foliage to reach the bottom

  • We noticed the 150-degree beam angle actually hits the underside of leaves better than standard bar lights.
  • The IP66 rating is legitimate as we have seen these fixtures take direct spray during cleaning without a flicker.
  • Most people skip the dimming but the 0-10V control is great for preventing light burn on younger plant material.

  • Commercial labs say that adding these fixtures significantly reduced the amount of undeveloped biomass at harvest.
  • Growers who switched to these bars report that the lower flowers now reach a similar density to the top canopy.
  • Facilities using the daisy-chain setup say it saved their electrical team hours of labour during the initial install.

Nanolux SubRay 135W Under Canopy LED Grow Light

The Nanolux SubRay 135W Under Canopy LED Grow Light delivers targeted supplemental lighting where traditional overhead fixtures can't reach. Engineered specifically for under-canopy applications, this IP66-rated fixture features a patented 150° beam angle that provides exceptional light penetration to lower canopy zones, maximizing photosynthesis across your entire plant structure from seed to harvest.

Operating at 2.7 μmol/J efficacy with 370 μmol/s PPF output, the SubRay provides efficient full-spectrum lighting that drives vegetative growth and flowering development in previously shaded areas. The rugged, waterproof design withstands greenhouse conditions and high-humidity environments, while the daisy-chain configuration simplifies installation in commercial multi-light setups. Compatible with 0-10V dimming systems and universal 120-277V input voltage, this 135W fixture integrates seamlessly into existing grow operations requiring enhanced lower-canopy illumination.

Features

⚡
High Efficiency Output

2.7 μmol/J PPF full-spectrum lighting enhances plant development from seed through harvest stages.

🌿
Under-Canopy Optimization

Purpose-engineered for under-canopy placement to maximize light penetration and increase overall plant yield.

💧
IP66 Waterproof Rating

Sealed, rugged construction ensures safe operation in greenhouse and high-humidity growing environments.

📐
Patented 150° Beam Angle

Wide beam coverage delivers uniform PAR distribution across broader canopy area with reduced shadowing.

🔗
Daisy-Chain Ready

Simplified installation with chain-connectable design for scalable commercial and multi-fixture grow systems.

🎚️
0-10V Dimming Compatible

Integrates with standard dimming controllers for precise light intensity control throughout growth cycles.

What's Included

  • 1x 120V Power Cord
  • 1x Communication Cable
  • 2x Stands

Frequently Asked Questions

What makes this light specifically designed for under-canopy use? +

The SubRay 135W features a patented 150° beam angle that's engineered to penetrate lower plant zones where overhead lights can't reach effectively. This wide-angle coverage ensures uniform PAR distribution to previously shaded areas, maximizing photosynthesis across your entire plant structure and improving overall yield potential.

Can I use this light in my greenhouse or high-humidity grow room? +

Yes, the SubRay 135W is rated IP66 waterproof, making it fully protected against dust and high-pressure water jets. This sealed, rugged construction ensures safe operation in greenhouse environments and high-humidity grow rooms where moisture exposure is common.

How efficient is this light compared to other grow lights? +

The SubRay operates at 2.7 μmol/J photosynthetic photon efficacy, delivering 370 μmol/s of full-spectrum light output while consuming only 135W of power. This high-efficiency performance reduces energy costs while providing optimal light intensity for plant growth from vegetative through flowering stages.

Can I connect multiple SubRay lights together? +

Yes, the SubRay features daisy-chain connectivity that allows you to connect multiple fixtures together for simplified wiring in commercial grow operations. The universal 120-277V input voltage also ensures compatibility with various electrical systems, making multi-light installations straightforward.

Is this light compatible with my existing dimming system? +

The SubRay 135W supports standard 0-10V dimming protocols, allowing integration with most commercial lighting controllers. This enables precise light intensity adjustments throughout different growth stages without requiring proprietary equipment.

How long will this light last before needing replacement? +

The SubRay has an L90 lifetime rating exceeding 50,000 hours, meaning it will maintain at least 90% of its initial light output for over 50,000 hours of operation. At 12 hours per day usage, this translates to over 11 years of reliable performance with minimal maintenance requirements.

What electrical requirements do I need for installation? +

The SubRay operates on standard AC 120V-277V input voltage, making it compatible with both residential (120V) and commercial (208-277V) electrical systems. The fixture draws 135W of power, so a standard 15-amp circuit can support multiple units safely when daisy-chained.

Who is this light best suited for? +

The SubRay 135W is ideal for commercial growers, greenhouse operators, and serious hobbyists seeking to maximize yields by supplementing lower canopy zones. It's particularly beneficial for tall plants, multi-tier growing systems, or any setup where overhead lighting alone cannot adequately reach lower plant sections.
