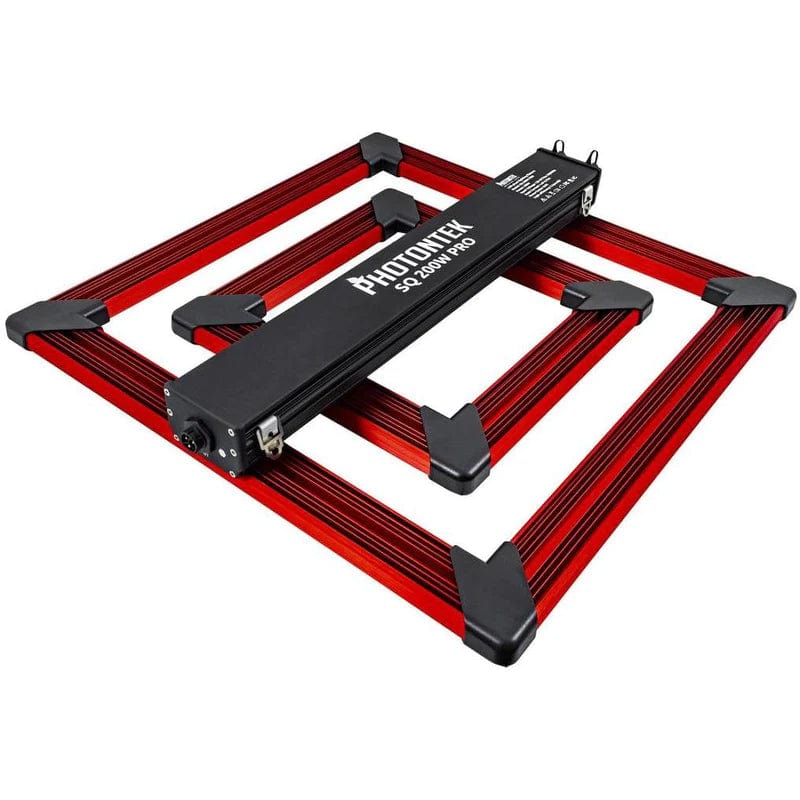

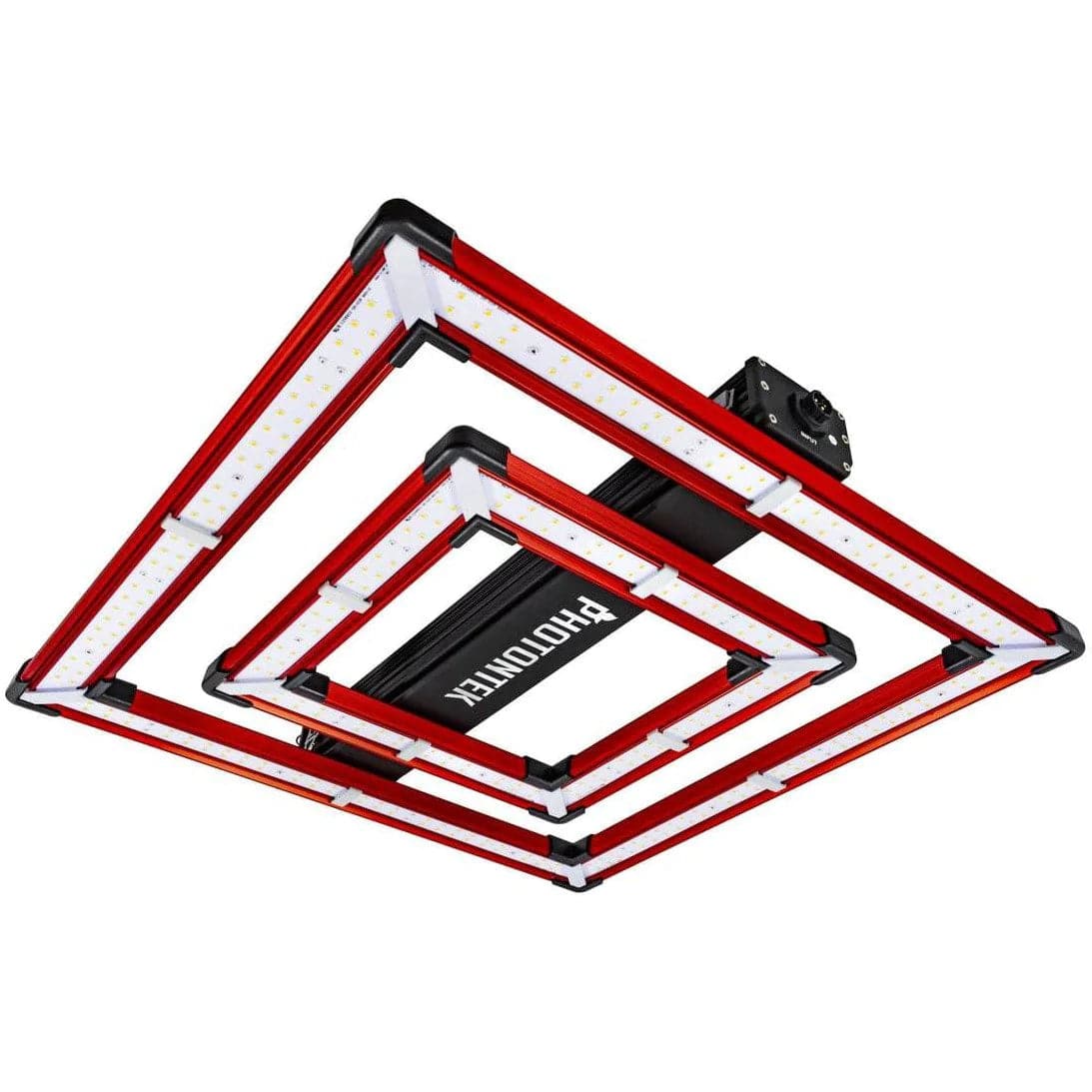

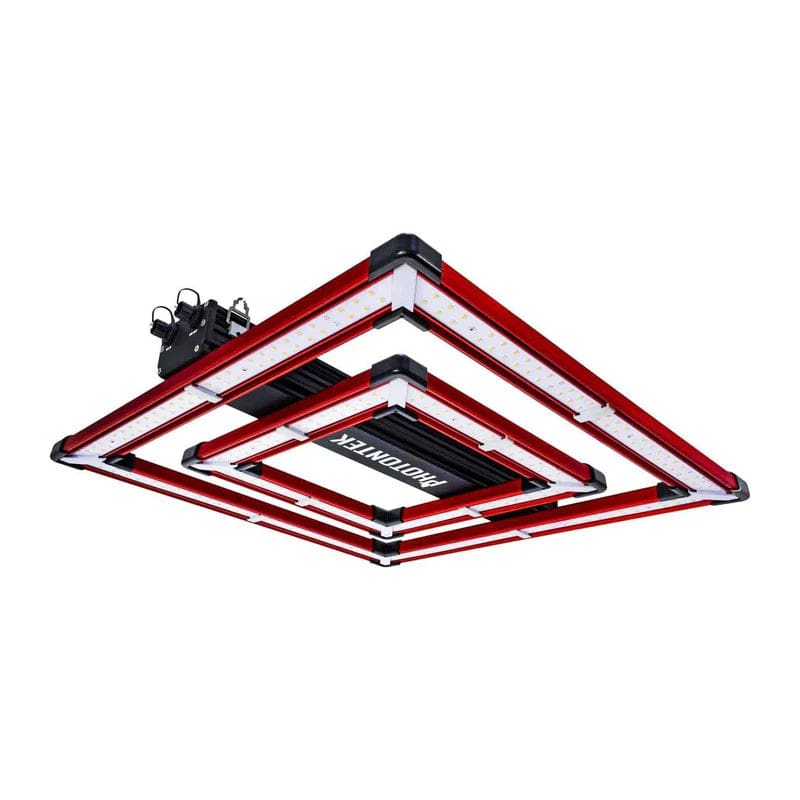

Photontek SQ200W Pro Full Spectrum LED Grow Light Fixture

Struggling to find a powerful, efficient lighting solution for your compact grow tent or multi-layer setup? The Photontek SQ200W Pro is engineered specifically for you, delivering a balanced, high-intensity light spread without taking up valuable vertical space. Its unique square design ensures a remarkably homogenous light distribution, even at close distances, eliminating hotspots and providing your plants with the consistent energy they need to thrive.

Powered by high-spec Photontek drivers and a premium blend of white, red, and far-red LEDs, this fixture boasts an impressive efficacy of 2.5 µmol/J. It's an ideal choice among modern 200W LED grow lights, offering full-spectrum coverage for the entire growth cycle. For ultimate control, the SQ200W Pro integrates seamlessly with the Photontek Digital Lighting Controller, or any system using a standard 0-10V output, making it a versatile and intelligent addition to any grow room. Consider adding a Photontek 30W UV LED Light Bar to further enhance resin production during the flowering stage.

What's Included

1 x SQ200W Pro LED Fixture (LED Driver Included)
1 x 0-10V Light Dimmer + Velcro Mounting Strap
2 x Metal Cable Hangers
1 x Manual

Features

🌱

Full-Spectrum Power

Optimized for the entire growth cycle, from vegetative to flowering, ensuring robust plant development.

✨

High-Efficiency Output

Delivers an impressive 2.5 µmol/J efficacy, providing high-intensity light with minimal energy consumption.

📏

Compact Square Design

Provides superior light distribution at close distances, perfect for low-clearance tents and vertical racks.

💎

Premium Components

Built with a high-performance Photontek driver and top-bin white, red, and far-red diodes for reliability.

🎛️

Fully Dimmable

Includes a 0-10V dimmer for precise control over light intensity (OFF-25%-50%-75%-100%).

🔌

Universal Control

Easily integrates with any 0-10V control system, including the advanced Photontek Digital Controller.

💧

IP65 Water Resistant

Protected against dust and water, ensuring long-term durability and safety in humid grow environments.

Photontek SQ200W Specifications

Specification	Value
Product Code	PTEKLED023
Efficacy	2.5 µmol/J
PPF	508 µmol/s
Input Voltage	120-277V, 50-60Hz
Input Power (100%)	205W
Footprint	Up to 2.6’ x 2.6’
Waterproof	IP65
Lifetime	60,000 hrs
Light Distribution	120°
Light Source	Higher Spec White, Red & Far Red Diodes
Dimmable	OFF-25%-50%-75%-100% with 0-10V Light Dimmer (Included)
External Control	With Photontek Digital Controller
Weight	8.82 lbs
Dimensions	20.65’’ x 20.65’’ x 2.82’’
Spectrum	Full Spectrum
BTU	703 BTUs/h

Support & Manuals

📄Instruction Manual 📄Spec Sheet

Warranty

Photontek warrants the mechanical and electronic components of their product to be free of defects in material and workmanship if used under normal operating conditions for a period of five (5) years from the original date of purchase.

FAQs

What is the ideal coverage area for the SQ200W Pro?+

The Photontek SQ200W Pro is designed to perfectly cover a footprint of up to 2.6' x 2.6' (or 80cm x 80cm). This makes it an excellent choice for standard-sized grow tents and compact cultivation areas.

Can I control this light with a non-Photontek controller?+

Yes. The SQ200W Pro is universally compatible with any control system that utilizes a 0-10V output signal. While it works perfectly with the Photontek Digital Lighting Controller, you can easily integrate it into your existing setup.

Is this light suitable for both vegetative and flowering stages?+

Absolutely. The SQ200W Pro features a carefully balanced full spectrum light output, including white, deep red, and far-red diodes. This ensures your plants receive the ideal light recipe for vigorous growth during vegetation and heavy yields during flowering.

How does the square design benefit my plants?+

The square formation of the LED diodes allows for a more even and homogenous light spread across the canopy, especially at lower hanging heights. This eliminates common issues like hotspots (too much light in the center) and dim edges, ensuring every part of your plant gets consistent, high-quality light.

What's the difference between the SQ200W and the SQ300W Pro?+

The primary difference is power and coverage. The SQ200W is ideal for a 2.6' x 2.6' area, while the more powerful Photontek SQ300W Pro is designed for a larger 3.3' x 3.3' footprint. Both models share the same high-quality components and design philosophy from the Photontek LED family of lights.
