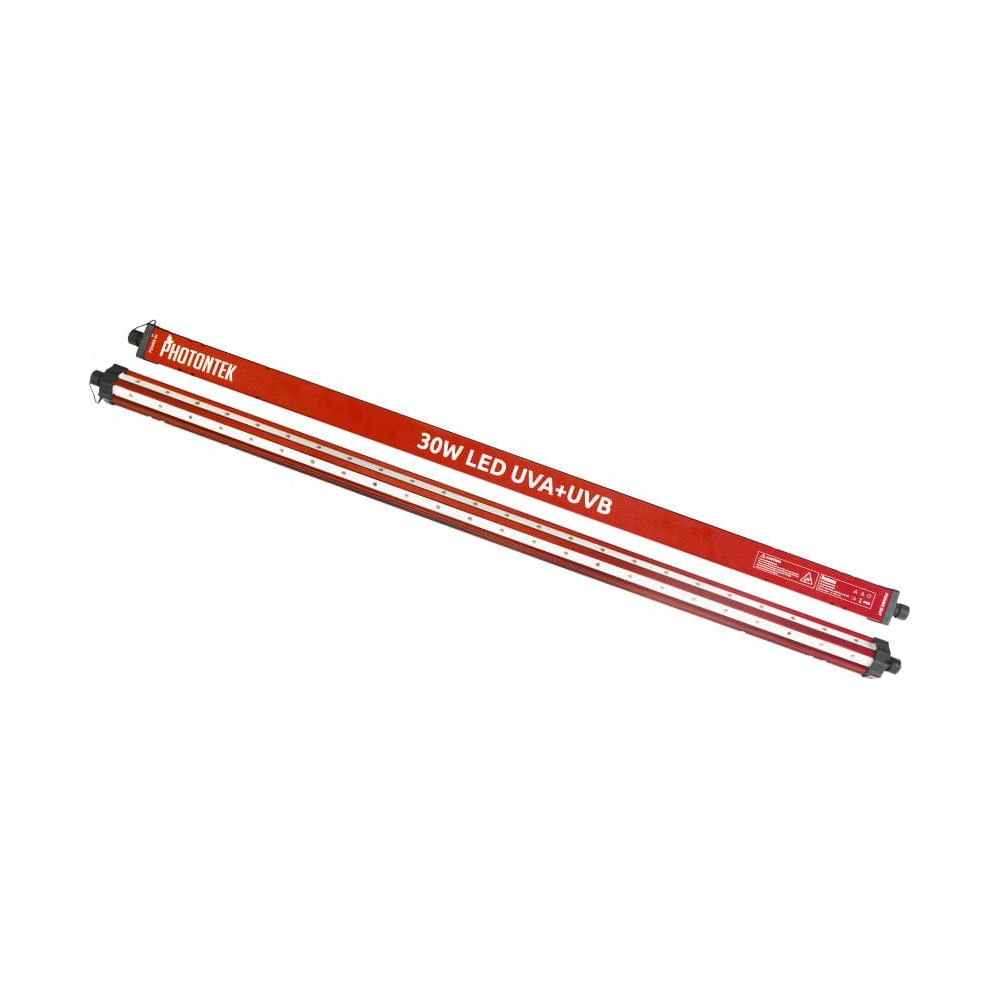

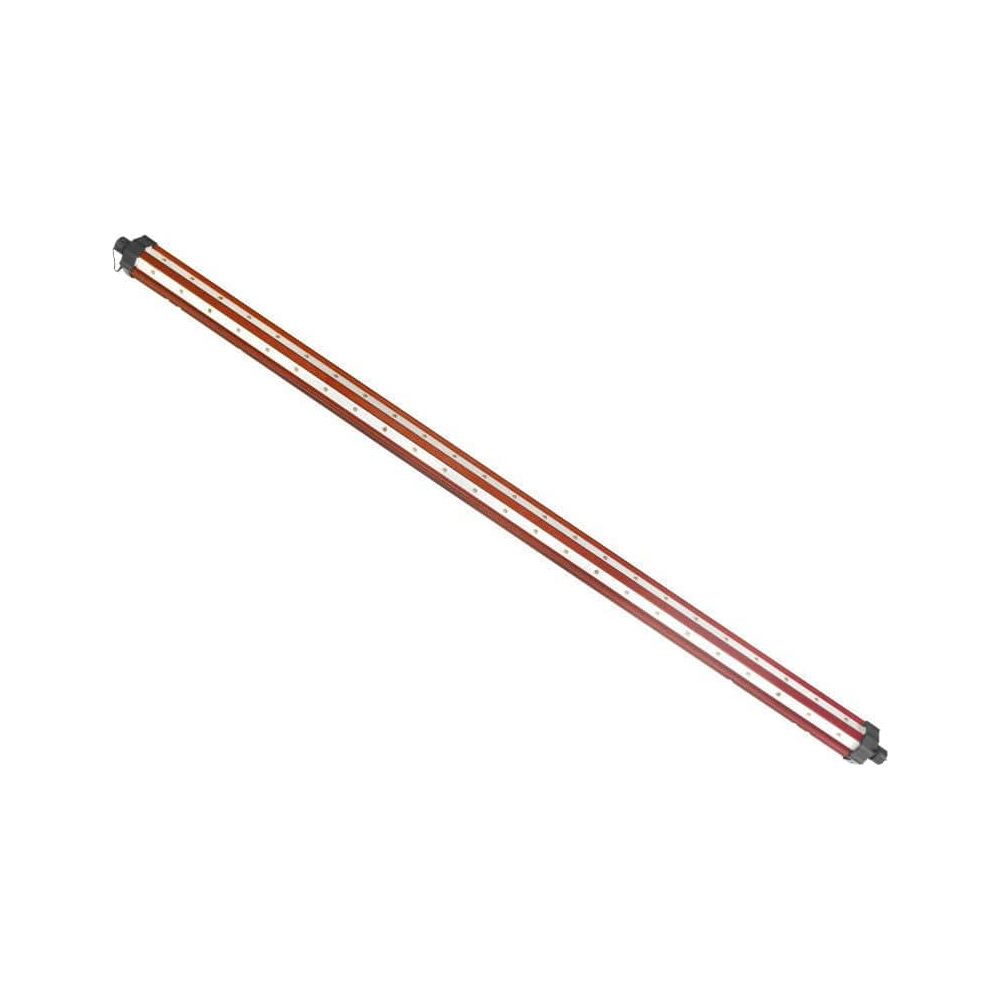

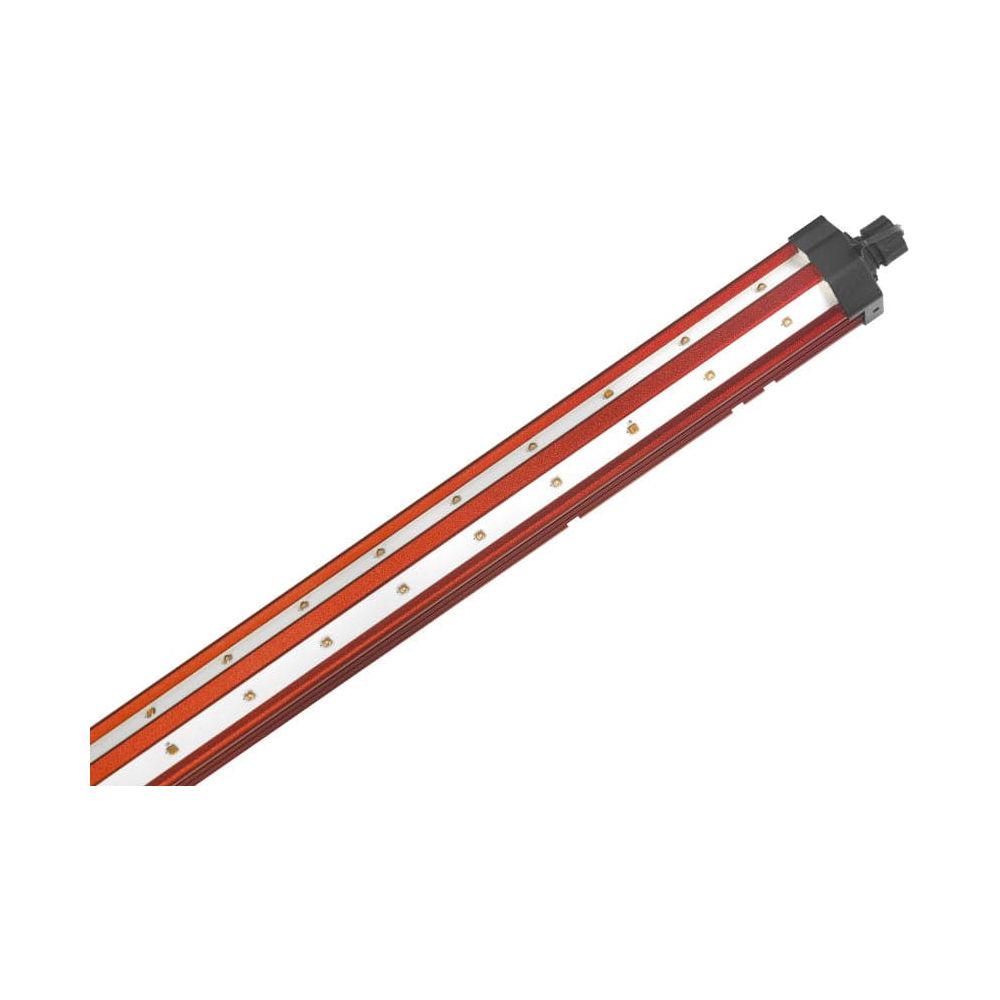

Photontek 30W UV LED Light Bar

Struggling to maximize the flavor, aroma, and potency of your indoor harvest? The Photontek 30W UV LED Light Bar is the essential supplement designed to push your plants beyond their limits, delivering professional-grade results. This advanced bar seamlessly integrates with existing Photontek LED fixtures like the powerful X 465W Pro, providing a scientifically supported dosage of UV-B and UV-A radiation during the crucial flowering stage. Experience a significant boost in taste, smell, and substance levels by up to 30%. With this supplemental light in your setup, you can gain greater control over your grow, reduce the need for chemical interventions, and even extend your crop's shelf life.

Compatibility Guide

For optimal results, integrate the UV bar with your primary Photontek fixture. The number of bars depends on your light and coverage area:

Use at least 2 UV bars with:
- X 465W PRO (4' x 4' footprint)
- X 600W PRO (5' x 5' footprint)
- XT 1000W CO2 (5' x 5' footprint with CO2)
Use at least 3 UV bars with:
- X 1000W PRO (6.5' x 5' footprint)

Caution: This product emits powerful UV radiation. Do not place the bar in contact with any surface while ON and only use it for plant cultivation. High risk of burning plants if used improperly.

What's Included

1 x 30W UV Supplemental Light LED Bar
2 x Stainless Steel Hooks

Features

☀️

Premium UV Diodes

Equipped with top-bin UV-A and UV-B chips to maximize your crop's flavor, aroma, and potency.

🔗

Daisy-Chain Ready

Easily connect multiple UV bars together for streamlined control and a clean, scalable setup.

🔌

Plug-and-Play Design

Features an integrated power driver for a simple, hassle-free installation right out of the box.

🔧

Flexible Installation

Includes versatile hanging brackets, allowing you to customize the position for optimal light spread.

↔️

Wide Light Distribution

A 140° light distribution angle ensures broad, even coverage over your plant canopy.

💧

Durable & Safe

IP65 rated for water and dust resistance, ensuring reliability and a long lifespan in grow environments.

Specifications

Specification	Value
UV-B (280-315 nm)	100 mW
UV-A (315-400 nm)	12000 mW
Input Voltage	120-277V AC, 50-60 Hz
Driver	30W, 120-277V AC, Integrated
Input Power	30W (±5%)
Waterproof Rating	IP65
Lifetime	8,500 Hours
Light Distribution	140°
Light Source	UV-B and UV-A Diodes
Dimmable	No
External Control	No
Daisy Chain Capability	Yes
Weight	2.65 lbs
Dimensions	39.4" x 1.9" x 1.7"
BTU	102 BTUs/h

Support & Manuals

📄Photontek 30W UV LED Bar Manual

Warranty

Photontek warrants the mechanical and electronic components of this product to be free of defects in material and workmanship if used under normal operating conditions for a period of one (1) year from the original date of purchase.

FAQs

What is the main benefit of adding a UV light bar?+

The primary benefit is a significant increase in crop quality. UV-A and UV-B light stresses the plant in a beneficial way, encouraging it to produce more terpenes and flavonoids, which enhances the final product's aroma, flavor, and potency.

When should I use the UV light bar in my grow cycle?+

This supplemental bar is designed specifically for the flowering stage. It's recommended to introduce UV light for a few hours each day during the last 2-3 weeks of flowering to maximize resin production.

Is this light bar compatible with other LED grow lights?+

While it can be used as a standalone supplement with various LED grow lights, it's engineered for seamless integration with Photontek LED fixtures. Its daisy-chain feature and hanging brackets are designed to work perfectly within the Photontek ecosystem.

How many UV bars do I need for my grow space?+

This depends on your main light fixture. For a fixture like the Photontek X 465W Pro in a 4'x4' area, a minimum of two bars is recommended for even coverage. Larger fixtures may require three or more.

Can I connect this light to a controller?+

This UV bar is a plug-and-play device with an integrated driver and does not connect to an external controller like the Photontek Digital Lighting Controller. It should be connected to a separate timer to manage its operating schedule during the flowering cycle.

How close should the UV bar be to my plants?+

To avoid burning your plants, it's crucial to maintain a safe distance. Start by positioning the light bar at least 12-18 inches above the canopy and monitor your plants closely for any signs of stress, adjusting the height as needed.
