Hydraulic Rosin Press

Why Hydraulic Pressure Produces Better Rosin Than Mechanical Force

Every rosin press converts applied force into pressure across a heated plate surface — but the mechanism of that conversion determines how consistent and controllable the extraction is. Hydraulic systems transmit force through fluid at uniform pressure in all directions, which means the load distributes evenly across the entire plate surface from first contact to peak tonnage. Screw presses apply force through a mechanical thread that concentrates stress at the central contact point, producing uneven pressure gradients that stress filter bag seams and reduce yield consistency. For extractors who care about repeatability from batch to batch, hydraulic is the baseline standard.

Four Tiers of Hydraulic Output: From Personal Craft to Commercial Floor

The hydraulic press market has matured into four distinct performance tiers, each serving a different production volume and investment level. Matching the press to the actual throughput requirement — not the aspirational one — produces better return on the hardware and better yield consistency on every press.

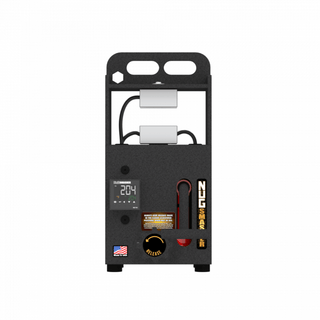

• Personal Scale — The NugSmasher Mini 2 Ton: The NugSmasher Mini operates at 2 tons of hand-pump hydraulic pressure across 2.5" heated plates, processing up to 5 grams per press. The self-contained design requires no external power for pressure generation — just plug in for heat and pump for force. This is the appropriate starting point for home extractors measuring output in personal-use quantities, and the compact footprint makes it the most portable option in the lineup. Bundles are available that include filter bags, a pre-press mold, and collection tools for growers who want a complete setup from day one.
• Serious Craft — The NugSmasher XP 12 Ton: The NugSmasher XP steps up to 12 tons of pressure and quad-heated 4" × 6" plates capable of processing 28 grams per press. The jump from 2T to 12T is not incremental — it opens the door to pressing full ounces per session and handling denser, more challenging starting materials that the Mini's plates cannot accommodate. The XP targets serious hobby producers and small craft operations where personal-use quantities have grown into regular, volume-driven sessions.
• Digital Precision — The NugSmasher Touch 12 Ton: The NugSmasher Touch matches the XP's 12 tons and 4" × 6" plate configuration but adds the Interactive Extraction Brain — a 5-inch touchscreen interface that delivers real-time digital PSI readouts and automatic surface-area pressure calculation. For extractors who dial in specific pressure targets by starting material and need to reproduce those exact conditions consistently, the Touch eliminates the analogue guesswork that limits the XP at scale.
• Commercial Production — The NugSmasher Pro 20 Ton: The NugSmasher Pro operates at 20 tons across massive 7" × 10" plates with triple heating elements per plate for temperature uniformity at scale. At 100 grams per press capacity, this is a commercial production tool — the plate surface accommodates the large pre-press pucks needed for batch-level extraction, and the dual-pressure control system provides both hydraulic and manual override for pressure management across long production runs.

FV Rosintech and Triminator: When Output Volume Demands Automated Pressure

Manual hand-pump hydraulic systems require operator effort to build and maintain tonnage throughout each press cycle. For high-frequency production environments where the operator runs dozens of presses per session, an electric hydraulic pump or pneumatic system removes that fatigue variable entirely — delivering the same peak tonnage on the hundredth press as on the first.

• FV Rosintech Ultra Series — Electric Hydraulic at 20 Tons: The FV Rosintech Ultra 5" × 7" model pairs an electric hydraulic pump with large-format plates at a 20-ton ceiling. The electric pump builds pressure automatically to the set point without manual input, making it practical for operators running continuous sessions where hand-pump fatigue would compromise consistency. The 3" × 5" Ultra handles tighter-plate applications; the 5" × 7" version suits operators pressing larger pucks or working with higher-volume material loads per cycle. For the full FV Rosintech lineup and brand-specific accessories, the Electric Rosin Press collection provides the complete picture.
• FV Rosintech ROLLIE — Paperless Extraction at 1 lb/Hour: The FV Rosintech ROLLIE introduces the DripTech collection system, which eliminates parchment paper from the workflow entirely. The integrated rolling mechanism captures rosin output directly, reducing material loss from parchment adhesion and accelerating per-press cycle times. Rated at one pound of material per hour, the ROLLIE is the highest-throughput option in the FV lineup and the right choice for operations where parchment consumption and collection time represent meaningful overhead costs.
• Triminator TRP Stack — Stackable Pneumatic for Multi-Press Floors: The Triminator TRP Stack operates at 25 tons of pneumatic pressure and is specifically engineered for stacking — multiple units can run from a shared air compressor in a tiered configuration that maximizes floor space efficiency. At $7,995, this is purpose-built commercial infrastructure for extraction operations running continuous production shifts, not occasional large batches. The non-stacking Triminator TRP variant serves the same throughput level without the stackable form factor at a lower entry point.

Completing the Hydraulic Press Setup

A press without the right consumables and prep tools consistently underperforms its rated capacity — the hardware ceiling only becomes relevant when each element of the workflow is matched to the press output.

• Pre-Press Molds Prevent Blowouts and Improve Yield: Loading loose, uncompressed flower directly into a filter bag distributes pressure unevenly and concentrates stress on bag seams at the moment of peak tonnage. A pre-press mold forms the material into a uniform puck before loading, which produces even pressure distribution across the entire plate surface and reduces blowout frequency significantly — particularly relevant at 12 tons and above where uneven loads fail abruptly rather than gradually. The Rosin Press Pre-Press Molds collection includes mold sizes matched to each plate format in the lineup above.
• Match Filter Bag Micron to Starting Material: The filter bag sits between the plate surface and the extract — the wrong micron rating contaminates the rosin with plant matter (too open) or restricts yield (too tight). Flower pressing generally calls for 90–120µm; hash and dry sift pressing targets 25–37µm for full melt quality. The Rosin Bags collection includes the full micron range in sizes matched to every plate configuration in this lineup.
• Temperature Governs Quality; Tonnage Governs Yield: These two variables move in opposite directions for most starting materials. Lower temperatures (160–185°F) preserve terpene content and produce a more stable, flavorful product at a yield cost. Higher temperatures (200–220°F) maximize yield but accelerate terpene degradation. Finding the right balance for a specific cultivar and starting material requires running controlled tests at fixed tonnage with variable temperature — the digital PSI readout on the Touch makes this iterative process significantly faster than analogue pressure estimation.

Hydraulic rosin extraction produces repeatable, high-quality solventless concentrate at every scale — the only variable is matching the right press to the right output requirement. Trimleaf carries the full hydraulic and high-tonnage lineup alongside every consumable and accessory needed to run these systems at full efficiency.
