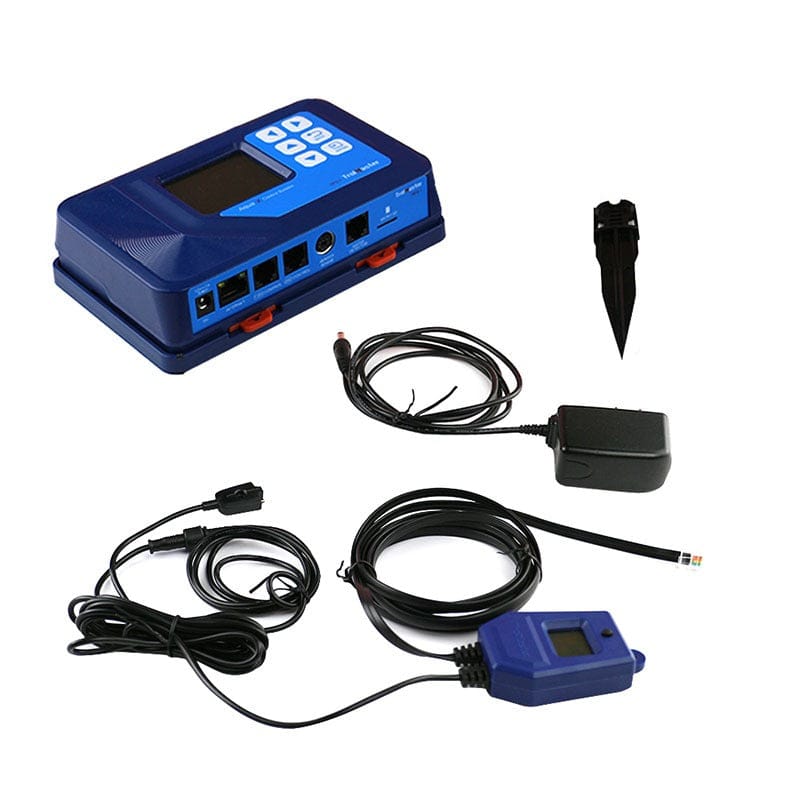

- 1x Aqua-X Irrigation Controller (NFS-1)
- 1x WD-1 Water Detector
- 1x Touch Spot
- 1x 12V Power Adapter
Ask Sage about this product
TrolMaster Aqua-X NFS-1 Irrigation Controller
starting from 0% interest financing from
/mo.
- Controls up to 30 independent zones using 24VAC valves or 120VAC pumps.
- Supports up to 8 moisture sensors for real-time volumetric water content tracking.
- Includes WD-1 leak detection with automated system shutoff capability.
- 3-year warranty covering mechanical and electronic components.
- View More Details
Earn 485 points for shopping and get $4.85 off your next order. Join Harvest Club for free.
Free Shipping On Most Items
To the Provinces*
Transparent Pricing
Backed w/ price match guarantee
Secure Checkout
SSL encrypted payments
Ask Sage about this product
VOLUME PRICING
Commercial & Bulk Purchasing
We support operations & licensed facilities with volume pricing, dedicated account managers, and custom equipment consultation.
- You are moving to sensor-driven irrigation because fixed timers fail to account for the actual moisture levels in your medium.
- You are building out a multi-zone irrigation system because you need central control over individual pumps and valves.
- We tell growers to put the WD-1 sensors in the lowest spots first, because catching a leak early saves the entire floor.
- The RJ12 bus makes upgrading straightforward because you can just daisy-chain new sensors as you add more zones.
- Users who switch to sensor-triggered watering report they no longer find dry pockets or overwatered runoff in their medium.
- Facilities that added the WD-1 leak detectors say they sleep better knowing the system catches plumbing failures instantly.
TrolMaster Aqua-X NFS-1 Irrigation Controller
Precision irrigation is the backbone of a successful harvest, and the TrolMaster Aqua-X NFS-1 is the modular brain designed to handle it all. The NFS-1 is a professional-grade, fully customizable irrigation controller that simplifies complex watering schedules. Whether you are running 24VAC solenoid valves or 110V pumps, this system manages up to 30 separate zones with ease. To maximize your facility's potential, this system can be integrated alongside a TrolMaster Hydro-X controller for total environmental synchronization.
Beyond simple timing, the Aqua-X system is a comprehensive monitoring hub. It tracks your pH, EC, and water temperature in real-time via the AMP-2 Sensor Board, while also monitoring growing medium moisture levels via up to eight Water Content Sensors. The system includes a WD-1 water detector to provide immediate alerts for leaks or watering confirmations. With the free TrolMaster app, you can access your settings, view historical charts, and receive critical alerts from anywhere in the world, giving you total peace of mind over your facility's hydration.
What's Included
Features
📟

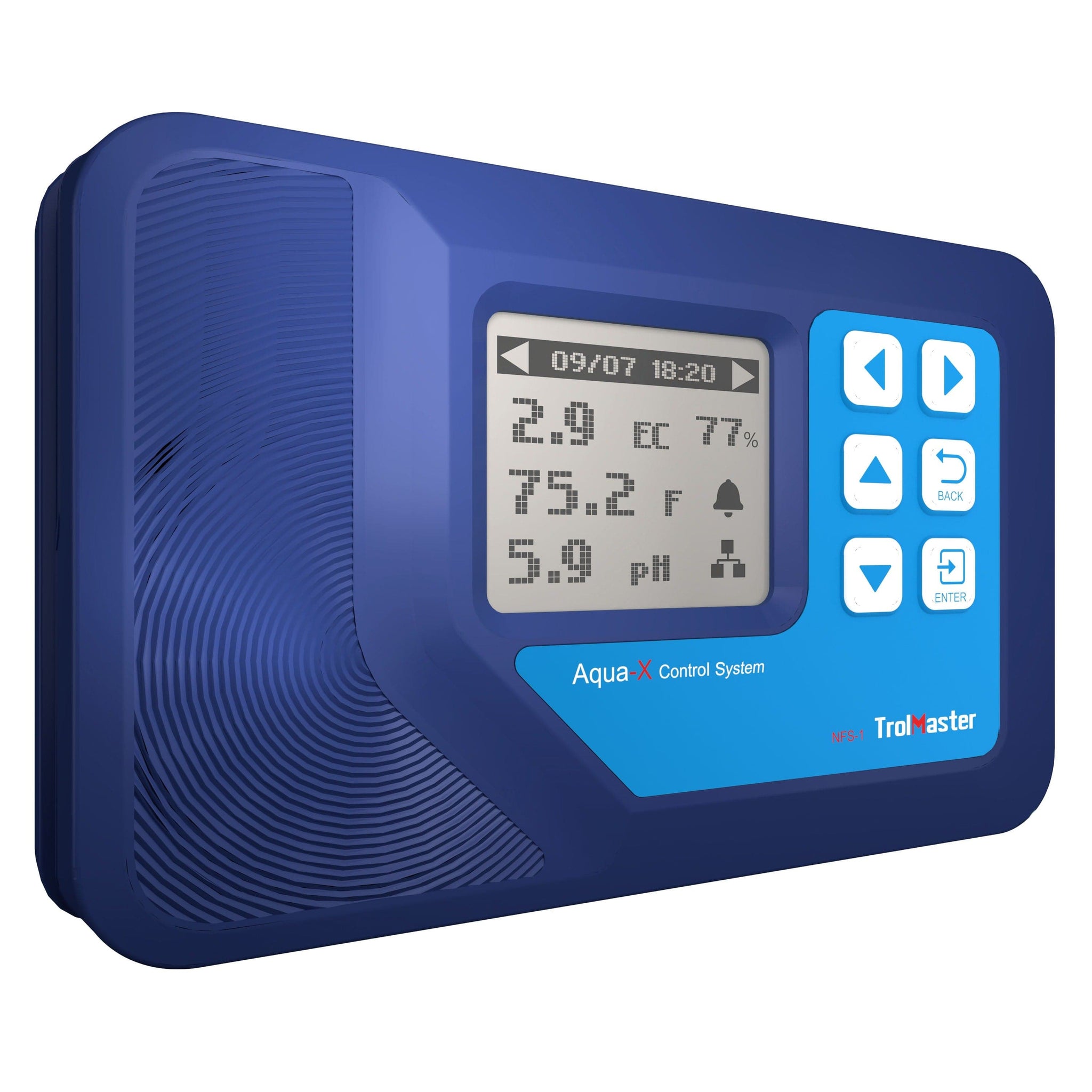

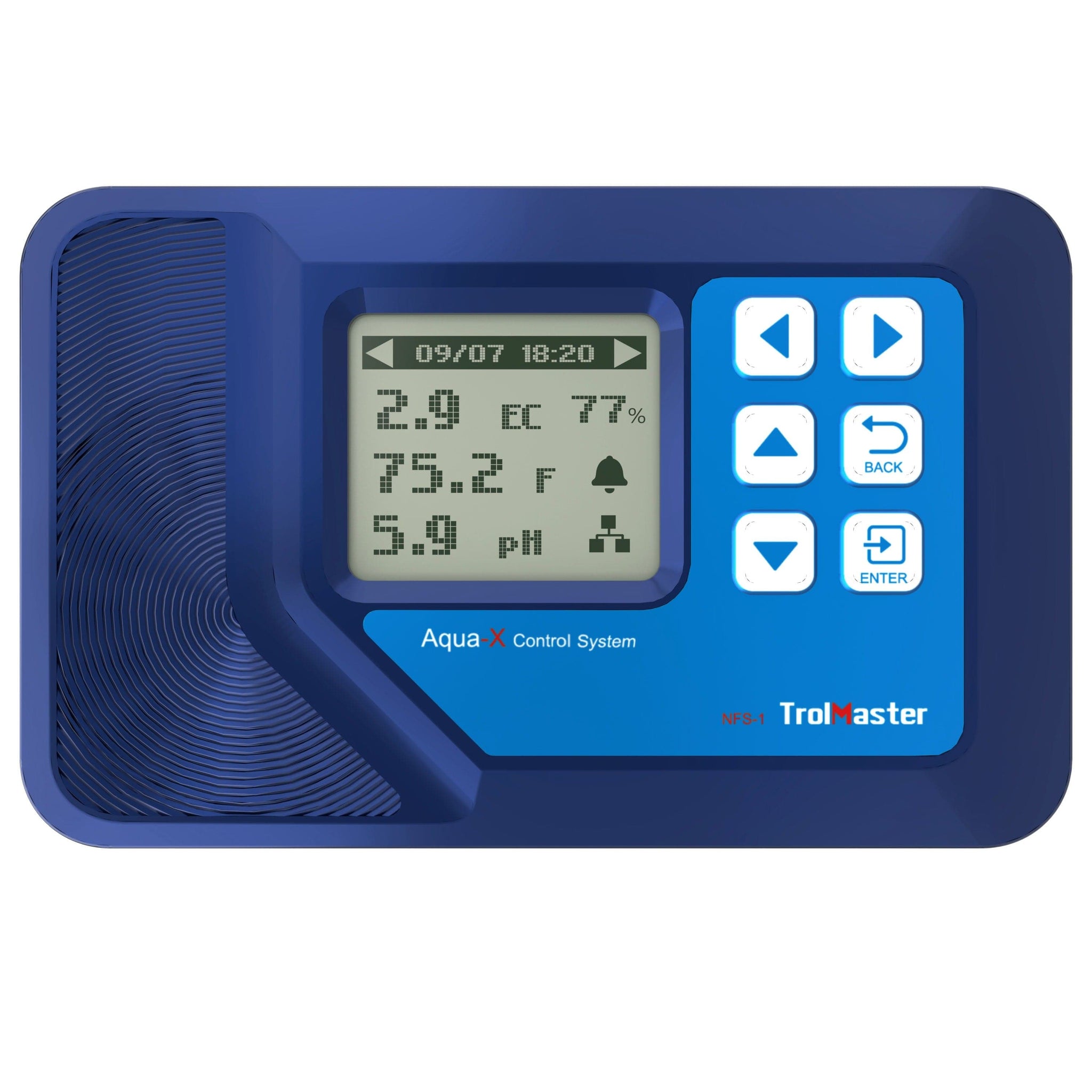

LCD Interface
Easy-to-read display for rapid onsite configuration and real-time status monitoring.
💧
30-Zone Control
Manage up to 30 separate irrigation outputs using a mix of 24V solenoids or 110V pumps.
🧪
Full Monitoring
Track pH, EC, and Water Temp to ensure your nutrient solution is always within the sweet spot.
⚠️
Leak Protection
Includes the WD-1 Water Detector to alert you of leaks and confirm watering events.
Specifications
| Specification | Value |
|---|---|
| Input Voltage | 100-240 VAC, 50/60Hz |
| Device Stations (OA6-24/OA6-110) | Max 5pcs each |
| Program Device Station (DSP-1) | Max 5pcs |
| Water Detectors (WD-1) | Max 30pcs |
| Water Content Sensors (WCS) | Max 8pcs |
| Sensor Boards (AMP-2) | Max 1pc |
| Sensors (pH / EC / Temp) | Max 1pc each |
Support & Manuals
Warranty
TrolMaster provides a standard 1-year manufacturer warranty for the Aqua-X NFS-1 Irrigation Controller, covering any defects in materials or workmanship under normal use.
FAQs
How many zones can I control with the NFS-1?
Does it monitor substrate moisture levels?
Yes. You can connect up to 8 Water Content Sensors (WCS) to a single NFS-1 controller to track actual soil or substrate moisture in real-time.
Can I use the NFS-1 with standard 110V pumps?
Yes, by using the OA6-110 Control Board or the DSP-1 Device Station, you can manage standard 110V/120V pumps through the NFS-1 system.
Is the NFS-1 app-controlled?
Yes, once connected to the internet via an RJ45 cable, the NFS-1 works with the free TrolMaster smartphone app, allowing for remote monitoring, data logging, and push notifications.
Does this unit include pH and EC probes?
The NFS-1 does not include probes. To monitor pH and EC, you must add the AMP-2 Sensor Board and the corresponding pH and EC sensors.
