- 1x Greenhouse Controller (GCS-1)
- 1x Temp/Humidity/CO₂/Day & Night 4-in-1 Sensor (MBS-GH)
- 1x RJ12 Cable Set for Light Connection
- 1x 12V Power Adapter
- 1x RJ12 T-Splitter

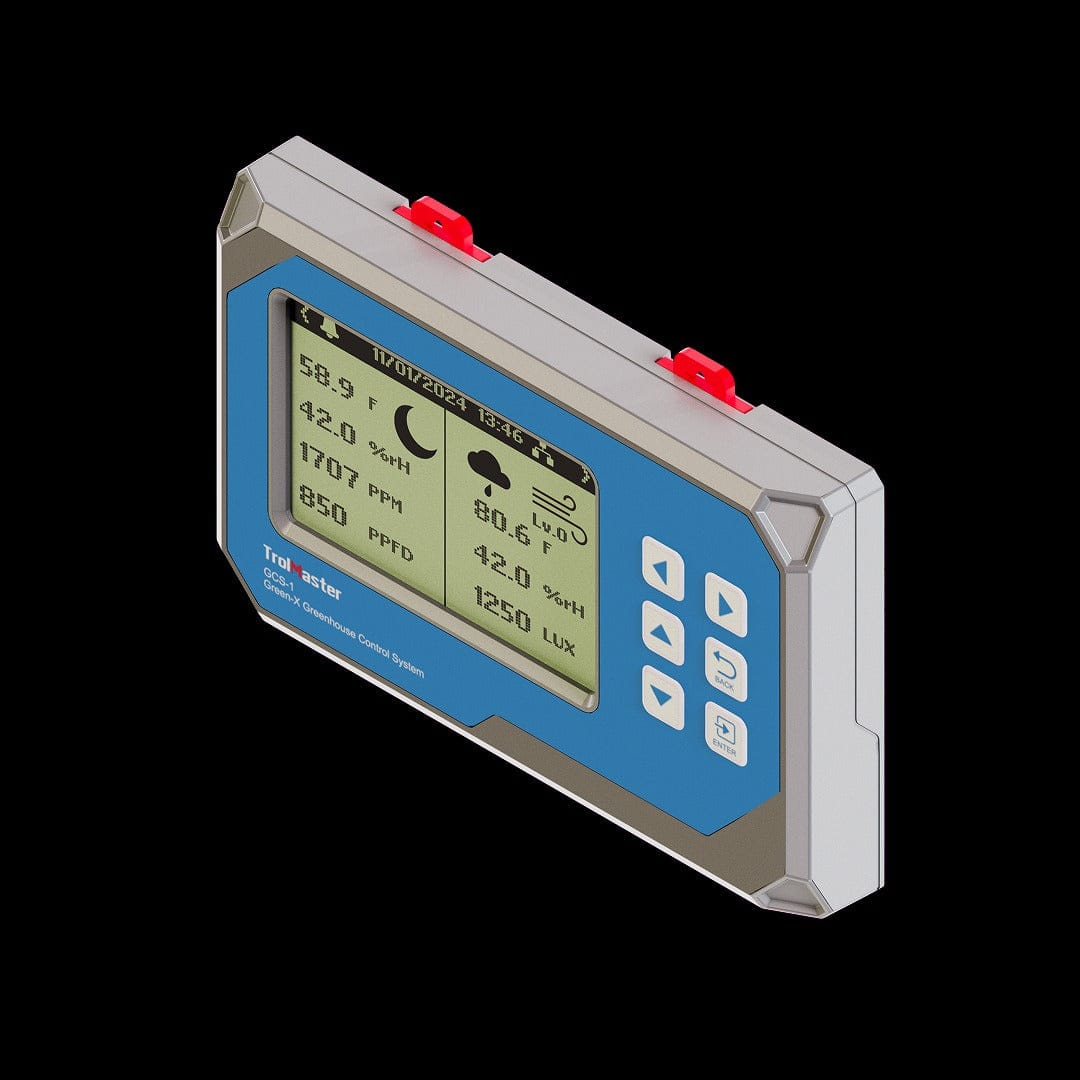

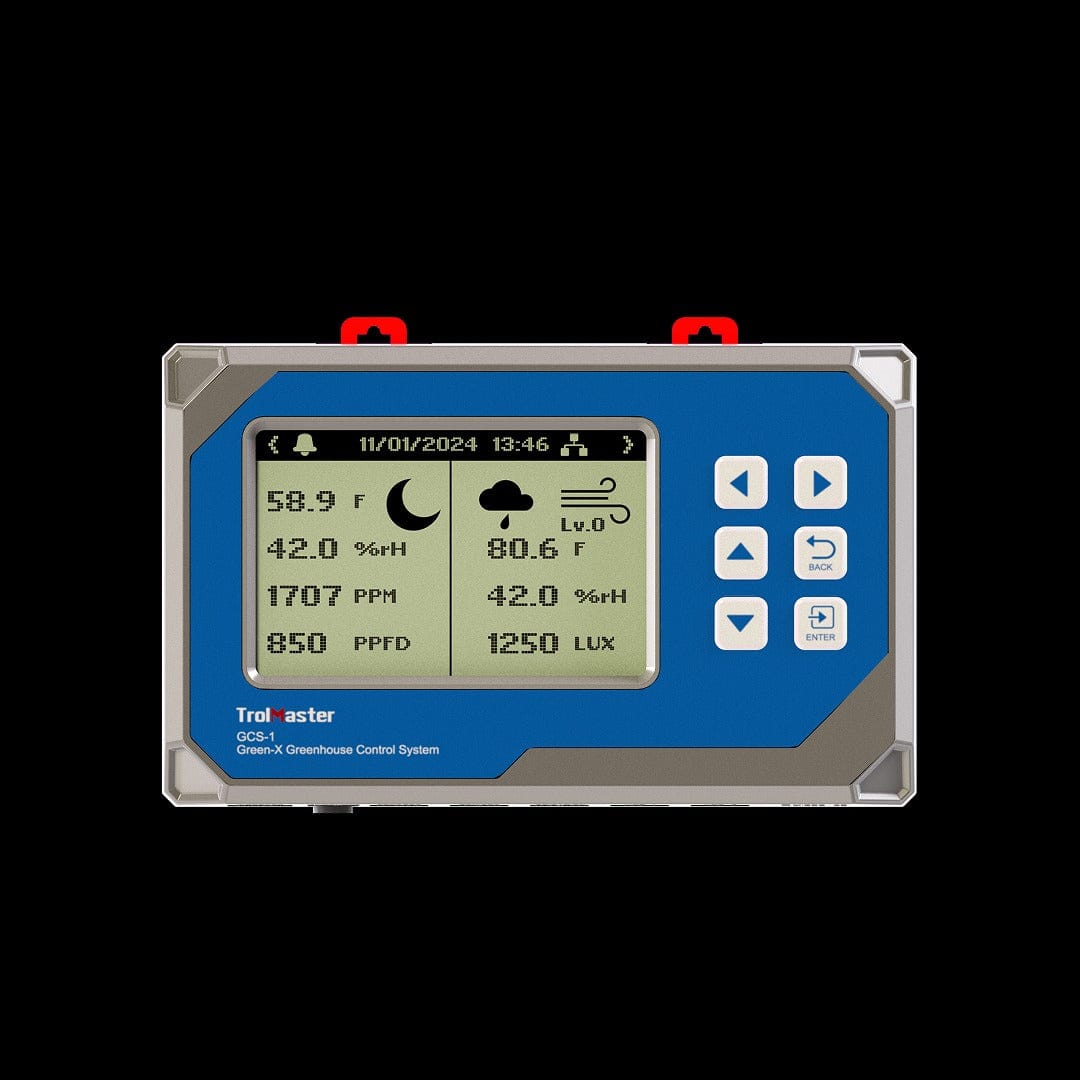

TrolMaster Green-X GCS-1 Greenhouse Controller
$824.65 CAD
starting from 0% interest financing from
/mo.
- Manages up to 512 light fixtures and 96 individual irrigation outputs from a single control interface.
- Includes a 4-in-1 sensor suite for real-time monitoring of temperature, humidity, CO2 levels, and light intensity.
- Operates on 100 to 240VAC input, making it compatible with most standard commercial electrical environments.
- 3-year warranty covering mechanical and electronic components under normal operating conditions.
- View More Details
Earn 824 points for shopping and get $8.24 off your next order. Join Harvest Club for free.
Free Shipping On Most Items
To the Provinces*
Transparent Pricing
Backed w/ price match guarantee
4.8/5 Rating
1938+ verified reviews
Secure Checkout
SSL encrypted payments
VOLUME PRICING
Commercial & Bulk Purchasing
We support operations & licensed facilities with volume pricing, dedicated account managers, and custom equipment consultation.
Who This Is For
- You are integrating diverse greenhouse systems because your current disconnected controls force you to manage lights, climate, and irrigation as separate, manual tasks.
- You are scaling your facility from a single zone to a complex network because you need a modular platform that keeps the same wiring standard as you add more capacity.
What We Found
- We appreciate how this uses a shared RJ12 bus, which means you do not have to buy entirely new gear just to expand your sensor network.
- The modular design is a relief for anyone who has had to scrap a whole system because they hit a limitation on light fixture count.
What Users Say
- Operators who switched to this system say they no longer waste time hopping between different apps to sync their irrigation and climate schedules.
- Facility managers report that the ability to log historical data helped them finally identify exactly where their humidity spikes were coming from.
TrolMaster Green-X GCS-1 Greenhouse Controller
Managing a commercial greenhouse often feels like a balancing act between disconnected systems for lighting, climate, and irrigation. The TrolMaster Green-X GCS-1 Greenhouse Control System solves this fragmentation by consolidating every critical function into a single, modular command center. Whether you are managing complex greenhouse control environments or scaling a specialized facility, the GCS-1 provides the precision needed to synchronize grow light controllers with climate and irrigation schedules seamlessly.
Designed for ultimate scalability, this system grows with your operation. It comes standard with the TrolMaster Green-X MBS-GH Greenhouse Control sensor to track temperature, humidity, CO2, and light. For those requiring advanced outdoor monitoring, the system integrates perfectly with the TrolMaster Green-X MBS-WS Greenhouse Control weather station. With the ability to manage up to 512 light fixtures and 96 irrigation outputs, the GCS-1 is the definitive solution for growers demanding professional-grade environmental controllers.
What's Included
Features
🏠
All-in-One Command
A single controller manages grow lights, climate, irrigation, curtain motors, CO₂, and ventilation.
🔧
Modular Architecture
Start small and expand as you grow. The modular design supports significant capacity additions.
💧
96 Irrigation Outputs
Schedule up to 96 individual irrigation outputs via 24VDC or 110VAC control boards.
🌡️
4-in-1 Sensor Suite
Includes the MBS-GH sensor for real-time temperature, humidity, CO₂, and light intensity.
📊
Historical Data Logs
Records climate and crop data to help you analyze trends and optimize growth cycles.
📱
TrolMaster App
Monitor and adjust every parameter remotely from anywhere using the free smartphone app.
Specifications
| Specification | Value |
|---|---|
| Input Voltage | 100–240VAC, 50/60Hz |
| Output Current | 3A |
| LCD Resolution | 256 × 160 |
| Operating Temperature | 32–122°F (0–50°C) |
| Operating Humidity | 5–95% RH |
| Max Irrigation Outputs | 96 outputs |
| Irrigation Voltage | 24VDC / 110VAC |
| Lighting Channels | 2 Channels (up to 512 fixtures total) |
| Temperature Stations | Max 4 per set |
| Humidity Stations | Max 4 per set |
| CO₂ Stations | Max 2 per set |
| Motor Controllers | Max 4 (AMC-1 / DMC-1) |
| EC Fan Control | Max 4 (EFC-1) |
| Compatible Sensors | MBS-GH, MBS-WS, MBS-PAR, MBS-SD, AMP-3, DFM-1/2/3, WCS-1/2/3, WD-1 |
Support & Manuals
FAQs
What greenhouse systems can the GCS-1 control?
The GCS-1 manages grow lights, climate (temperature and humidity), CO₂, irrigation, curtain motors, and ventilation from one unit.
How many irrigation zones can the GCS-1 handle?
It supports up to 96 scheduled irrigation outputs by connecting up to 8 compatible control boards, such as the TrolMaster OAT-24 Environmental Control.
Does the GCS-1 come with a sensor?
Yes, it includes the MBS-GH 4-in-1 sensor. You can add more specialized sensors like the TrolMaster WCS-1 Environmental Control for soil moisture.
Can it factor in outdoor weather?
Yes. By adding the TrolMaster Green-X MBS-WS Greenhouse Control, the system can adjust ventilation and curtains based on outdoor wind and temperature.
How many grow lights can it control?
The GCS-1 features two independent channels, each supporting up to 256 fixtures, for a total of 512 grow lights.
