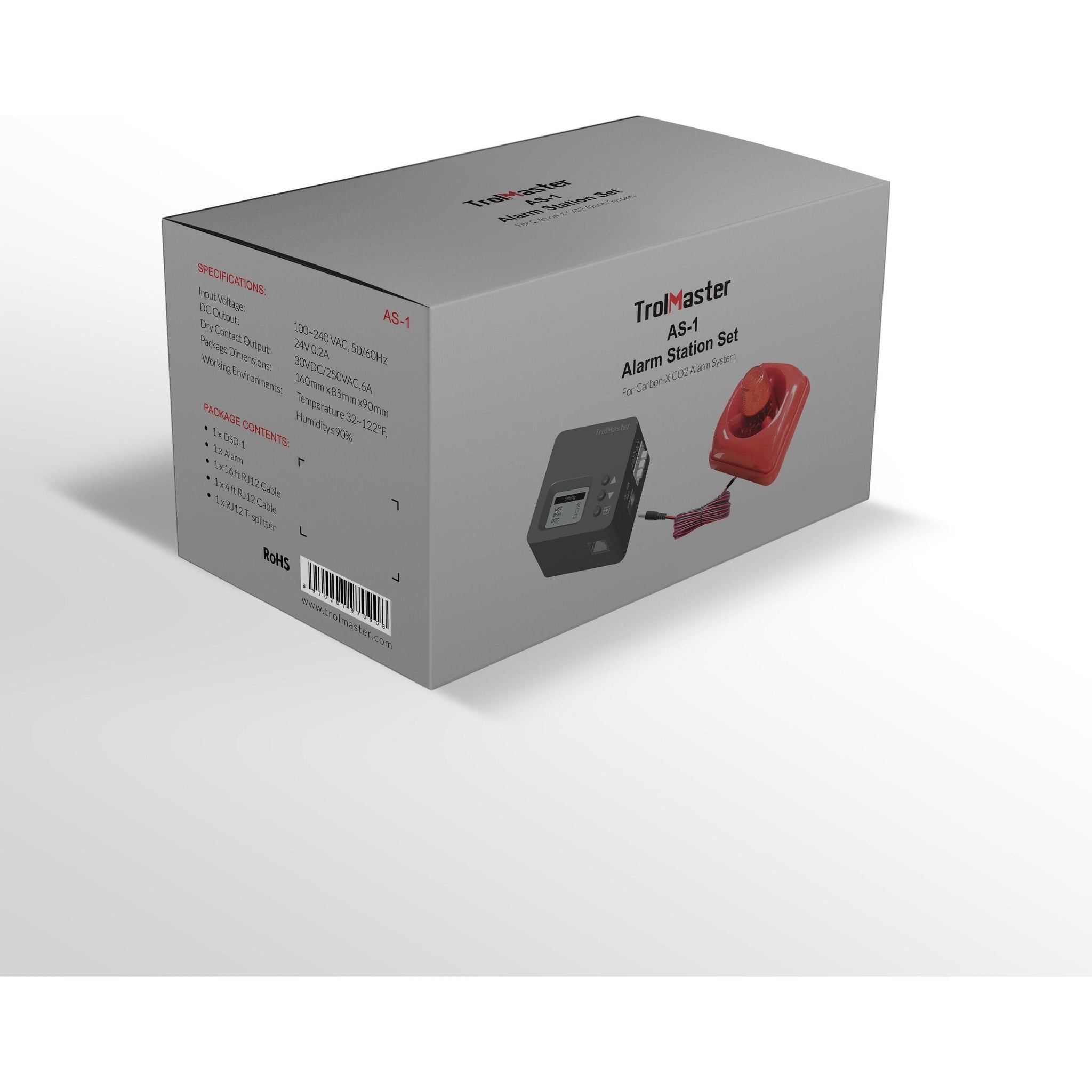

- 1 x DSD-1
- 1 x Alarm Station
- 1 x 16ft RJ12 Cable
- 1 x 4ft RJ12 Cable
- 1 x RJ12 T-Splitter

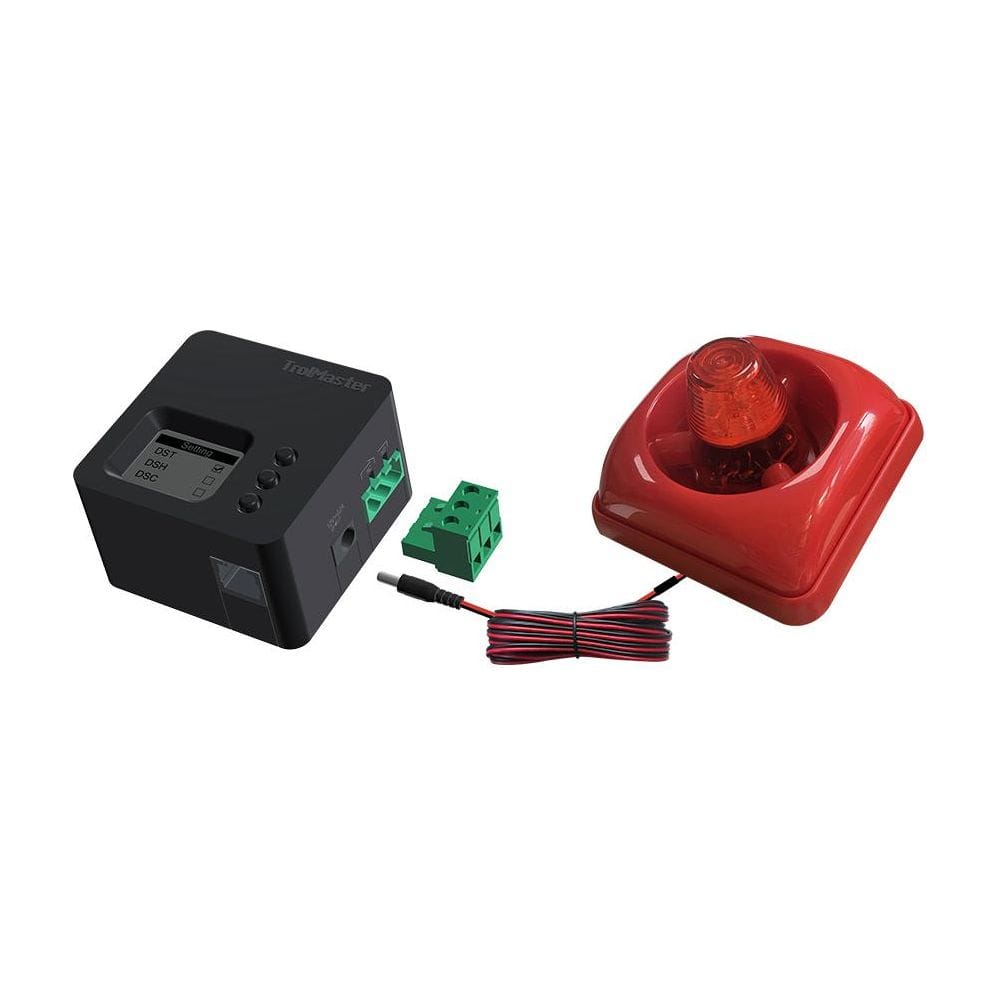

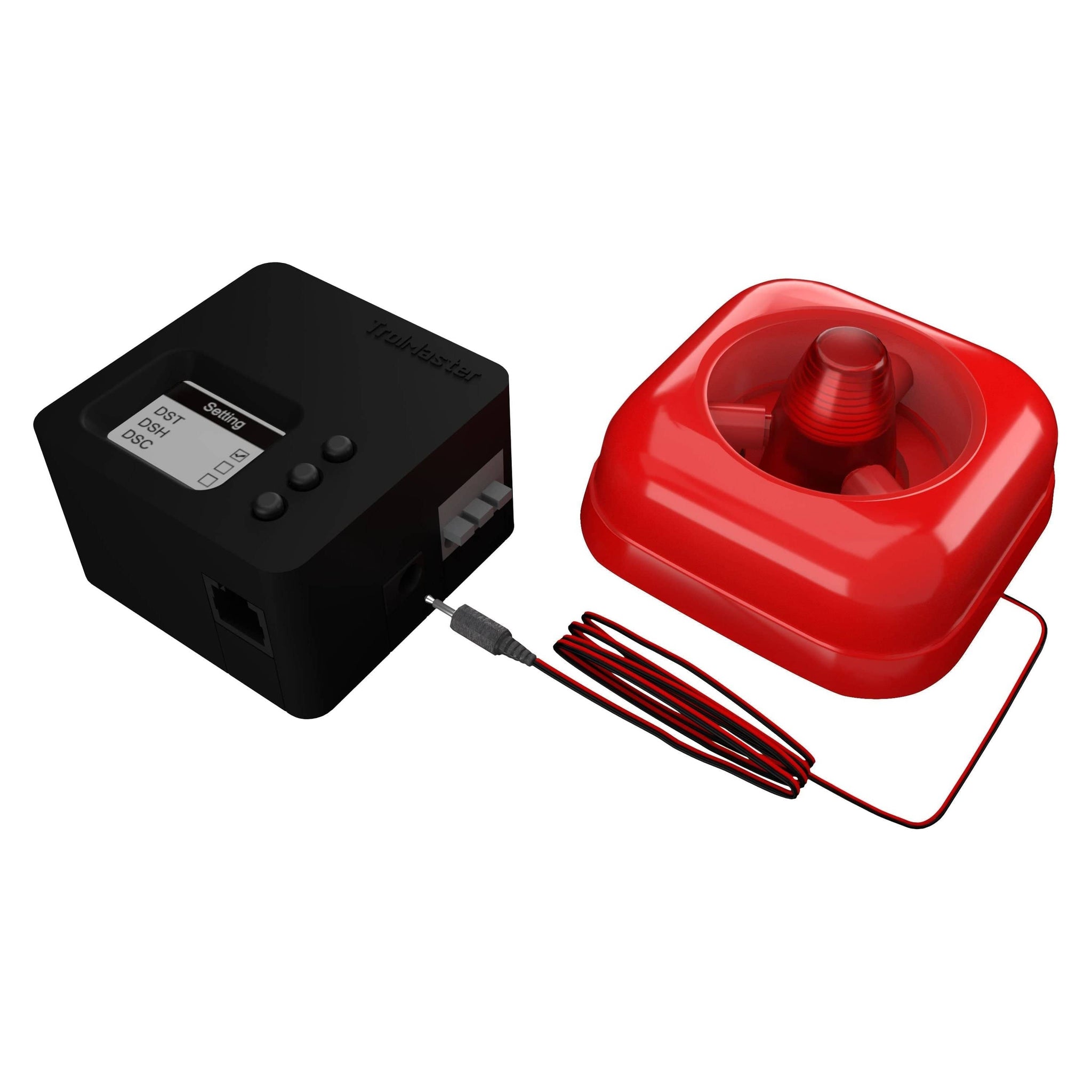

TrolMaster Carbon-X AS-1 CO2 Alarm Station
$192.22 CAD
starting from 0% interest financing from
/mo.
- Monitors CO2 concentration with instant audio and visual alert output
- Includes one DSD-1 device station for direct system integration
- Connects via 12V RJ12 cabling with a wide input voltage range of 100 to 240 VAC
- 3-year warranty on mechanical and electronic components
- View More Details
Earn 192 points for shopping and get $1.92 off your next order. Join Harvest Club for free.
Free Shipping On Most Items
To the Provinces*
Transparent Pricing
Backed w/ price match guarantee
Secure Checkout
SSL encrypted payments
VOLUME PRICING
Commercial & Bulk Purchasing
We support operations & licensed facilities with volume pricing, dedicated account managers, and custom equipment consultation.
Who This Is For
- You are adding high-level safety monitoring because manual spot checks fail to catch CO2 spikes during off-hours
- You are building out a multi-room facility because you need a centralised alarm system that covers every zone locally
What We Found
- We like that this unit can mount inside or outside the room since it saves us from running extra long signal cables
- The plug and play setup actually works as advertised and cuts down on the time we spend crimping our own RJ12 cables
What Users Say
- Facility managers say the audible alarm is loud enough to be heard through exterior walls during a shift change
- Growers using this station say it removes the guesswork from atmospheric safety and helps them pass building inspections
TrolMaster Carbon-X AS-1 CO2 Alarm Station
Maintaining safe CO2 levels is critical for both plant health and worker safety in any commercial cultivation environment. The TrolMaster Carbon-X AS-1 CO2 Alarm Control provides a reliable, automated solution to monitor these levels, acting as a failsafe that alerts you the moment concentrations exceed your pre-defined safety thresholds. By integrating this station into your environmental control strategy, you ensure a secure workplace without sacrificing atmospheric optimization.
Designed for maximum versatility, the AS-1 can be mounted either inside or outside the monitored zone using a TrolMaster TSB-1 sensor mount bracket to provide clear notification where it's needed most. As a key component of the TrolMaster Carbon-X CO2 Alarm System (CDA-1), it features both audible and visible alarms, ensuring that no alert goes unnoticed. Whether you are managing a single room or a complex facility that requires additional warning points like the TrolMaster Carbon-X AS-2, the AS-1 offers the plug-and-play reliability required for professional CO2 monitoring.
What's Included
Features
🚨
Audio-Visual Alarm
Instant audible and visual notifications when CO2 levels reach critical safety thresholds.
🔌
Plug and Play
Sets up quickly and easily without the need for complex electrical installations or wiring.
🔗
Sensor Linkage
Can be linked to low and high-level sensors to cover all possible safety scenarios.
🛠️
DSD-1 Included
Comes standard with the DSD-1 device station and can be used in tandem with a TrolMaster DSC-1 CO2 Device Station for immediate system integration.
Specifications
| Specification | Value |
|---|---|
| Input Voltage | 100~240 VAC, 50/60Hz |
| Output Current | 24V 0.2A |
| Dry Contact Output | 30VDC/250VAC, 6A |
| Working Environments | Temperature 32-122°F, Humidity <=90% |
| Package Dimensions | 160mm(L) x 80mm(W) x 90mm(H) |
Support & Manuals
Warranty
TrolMaster only uses high-quality components. Under normal operating conditions, the mechanical and electronic components are covered by a three-year warranty from the original date of purchase. Components that have failed due to abnormal usage are excluded from this warranty.
FAQs
What is the primary function of the AS-1?
The AS-1 is designed to provide immediate audio and visual alerts if CO2 levels in your grow room exceed the safety thresholds set on your controller.
Where should I install the AS-1 station?
It can be mounted either inside or outside the room being monitored, depending on where you need the alarm notification to be most visible and audible.
Is the AS-1 compatible with other TrolMaster sensors?
Yes, it can be used alongside other notification modules such as the AS-4 blue light station to provide comprehensive coverage and clear status indicators throughout your facility.
Does this unit require professional electrical installation?
No, the AS-1 features a plug-and-play design using standard RJ12 cables, making installation straightforward for any user.
Can I use the AS-1 as a standalone device?
The AS-1 is designed to work as part of the Carbon-X system and requires a main controller, which can be safely housed in a TrolMaster SCC-1 Controller Cabinet, to function correctly.
