- 1x MBS-K30 CO2 Sensor
- 1x 16ft RJ12 Cable
- 1x T-Shape Splitter

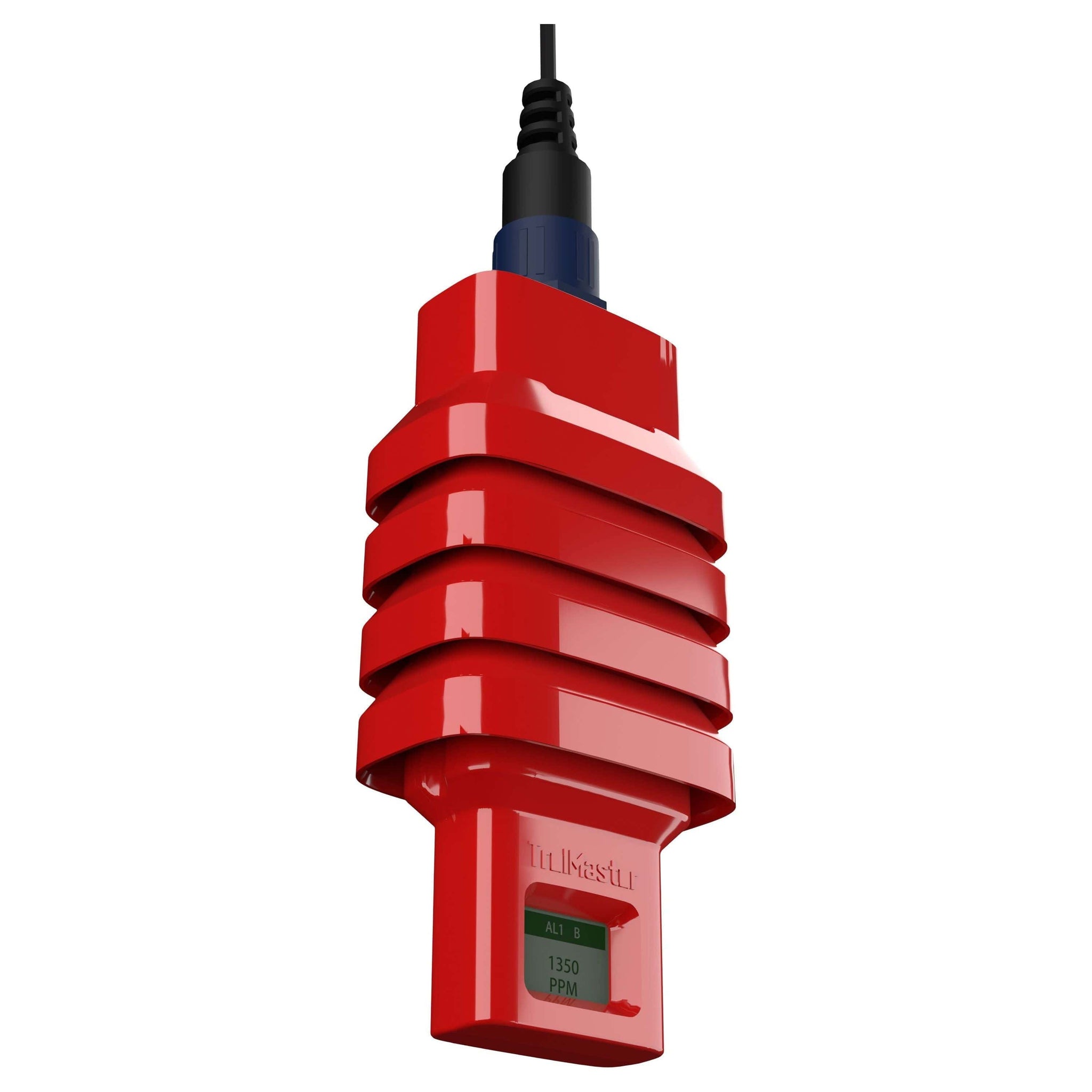

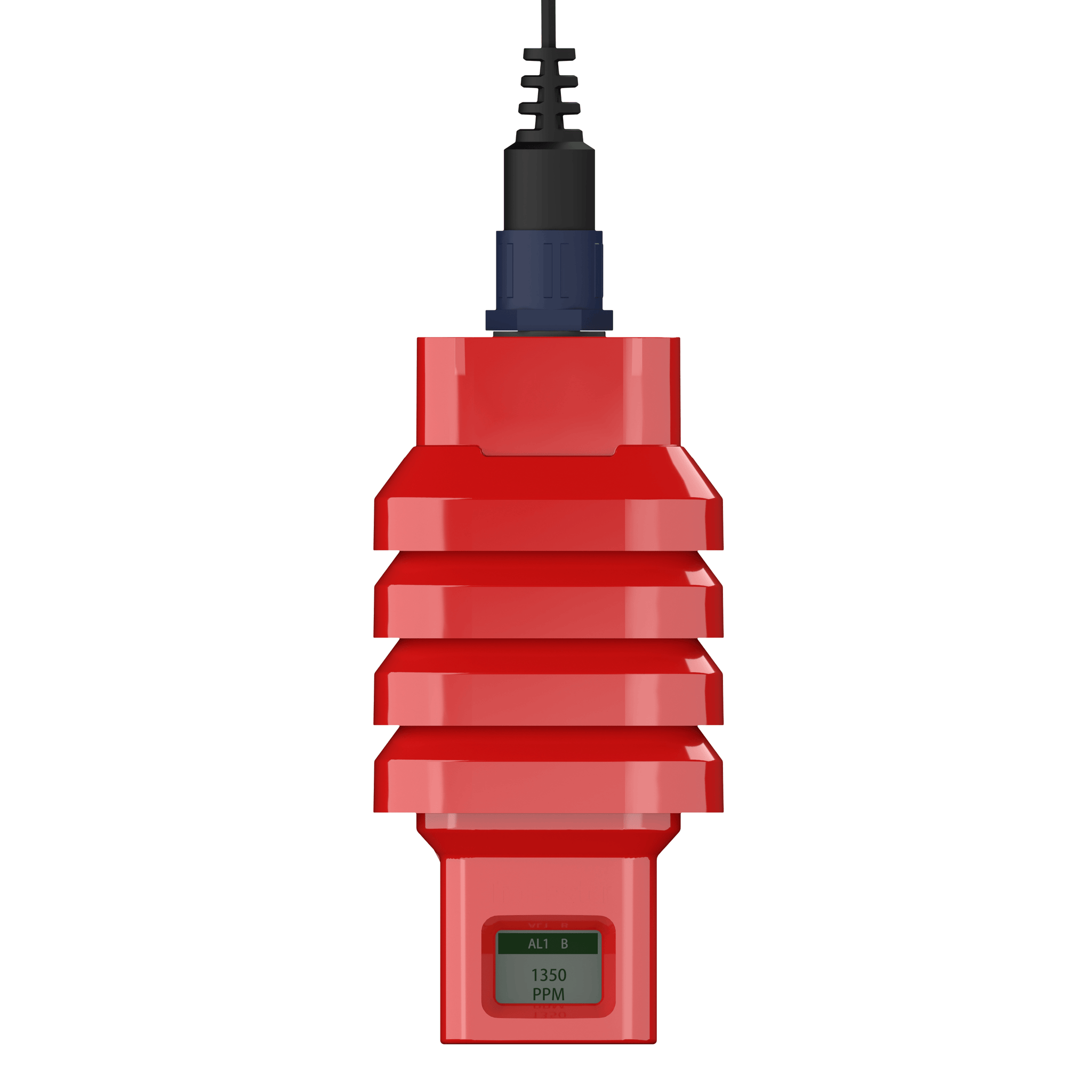

TrolMaster Carbon-X MBS-K30 CO2 Sensor
$552.32 CAD
starting from 0% interest financing from
/mo.
- Tracks concentrations from 0 up to 30,000 ppm for safety management.
- Employs a high-precision NDIR sensor for consistent reading accuracy.
- Uses a standard RJ12 connection for simple integration into the Carbon-X network.
- 3-year warranty from the original date of purchase covering mechanical and electronic components.
- View More Details
Earn 552 points for shopping and get $5.52 off your next order. Join Harvest Club for free.
Free Shipping On Most Items
To the Provinces*
Transparent Pricing
Backed w/ price match guarantee
4.8/5 Rating
1938+ verified reviews
Secure Checkout
SSL encrypted payments
VOLUME PRICING
Commercial & Bulk Purchasing
We support operations & licensed facilities with volume pricing, dedicated account managers, and custom equipment consultation.
Who This Is For
- You are adding independent CO2 monitoring because your central controller has no way to detect a gas leak at the tank level.
- You are integrating safety protocols into your facility because your current setup lacks an alert system to protect staff.
What We Found
- The self-aspirated housing makes a difference in airflow, so it gives you a much faster reaction to concentration shifts.
- We recommend the SPH-1 power hub if you want to keep the readings consistent during long-term monitoring sessions.
What Users Say
- Facility managers who installed these in their storage areas say they stopped worrying about dangerous gas accumulation.
- Operators who added these to their alarm network say they finally have a reliable way to catch leaks before they escalate.
TrolMaster Carbon-X MBS-K30 CO2 Sensor
Maintaining safe and precise CO2 levels is critical for both plant health and worker safety in large-scale cultivation environments. The TrolMaster Carbon-X MBS-K30 CO2 Sensor provides a robust solution, tracking CO2 concentrations up to 30,000 ppm to ensure your facility remains within safe operational limits. When integrated into the TrolMaster Carbon-X CO2 Alarm System（CDA-1）, this sensor acts as a vital safeguard, alerting you to potential leaks or dangerous accumulation before they become hazards.
This high-precision monitor features a built-in NDIR (Non-Dispersive Infrared) sensor housed in a self-aspirated enclosure for accurate, consistent readings. The integrated LCD screen provides real-time data at a glance, while its plug-and-play design allows for seamless expansion within your TrolMaster Carbon-X network. Note that for supplemental power, this unit requires the SPH-1 power hub to maintain peak performance and reliability.
What's Included
Features
🔬
NDIR Technology
High-precision Non-Dispersive Infrared sensor for accurate CO2 detection.
📊
30k PPM Range
Capable of reading extreme CO2 levels for maximum commercial safety.
🖥️
LCD Display
On-board screen shows real-time CO2 concentrations without needing a controller check.
🔌
Plug & Play
Quick RJ12 connection for effortless integration into your existing system.
Specifications
| Specification | Value |
|---|---|
| Working Environment | Temperature 32-122°F, Humidity <= 90% |
| Package Dimensions | 275mm(L) x 164mm(W) x 62mm(H) |
| Detection Range | 0-30,000 ppm |
| Sensor Type | NDIR (Non-Dispersive Infrared) |
Warranty
TrolMaster only uses high quality components. Under normal operating conditions, the mechanical and electronic components are covered by a three-year warranty from the original date of purchase. Components that are excluded from warranty are components that have failed due to abnormal usage.
FAQs
What is the detection range of the MBS-K30?
The MBS-K30 is designed for high-range monitoring, capable of detecting CO2 concentrations from 0 up to 30,000 ppm, making it suitable for commercial safety and industrial applications.
Does this sensor require a separate power supply?
Yes, the MBS-K30 requires the SPH-1 supplemental power hub to function correctly within the Carbon-X system network.
Can I use this sensor with the Hydro-X system?
The MBS-K30 is specifically designed for use with the Carbon-X CO2 Alarm System. For standard grow room CO2 enrichment, please check the Hydro-X collection for compatible sensors.
What type of sensor technology is used?
It utilizes Non-Dispersive Infrared (NDIR) technology, which is the industry standard for reliable, accurate, and long-term CO2 monitoring.
Is the display visible in real-time?
Yes, the MBS-K30 features a built-in LCD screen that provides clear, real-time CO2 ppm readings directly on the unit for easy on-site verification.
