- 1 × Device Station (DSH-1)
- 1 × 16ft RJ12 Cable
- 1 × 4ft RJ12 Cable
- 1 × RJ12 T-Splitter
TrolMaster DSH-1 110V Humidity Device Station
$110.64 CAD
starting from 0% interest financing from
/mo.
- Handles up to 10A current for compatibility with most commercial humidifiers or dehumidifiers.
- Includes 16ft and 4ft RJ12 cables plus a T-splitter for rapid integration into existing controller setups.
- Works with 100 to 240 VAC systems to accommodate diverse facility power standards.
- 3-year warranty from the original date of purchase
- View More Details
Earn 110 points for shopping and get $1.10 off your next order. Join Harvest Club for free.
Free Shipping On Most Items
To the Provinces*
Transparent Pricing
Backed w/ price match guarantee
4.8/5 Rating
1938+ verified reviews
Secure Checkout
SSL encrypted payments
VOLUME PRICING
Commercial & Bulk Purchasing
We support operations & licensed facilities with volume pricing, dedicated account managers, and custom equipment consultation.
Who This Is For
- You are adding humidity automation because your manual adjustments are failing to stop rapid shifts in moisture levels.
- You are linking your environmental controls to one system because switching between multiple devices creates gaps.
What We Found
- The LED light is actually helpful to confirm the signal is active without walking over to check the controller screen.
- We use the RJ12 T-splitter to daisy chain multiple modules together, which keeps the cable management clean.
What Users Say
- Growers who integrated their humidifiers into the central controller say they no longer battle mold from humidity spikes.
- Users who swapped to these modules report that their environment stays stable even when the ambient weather changes.

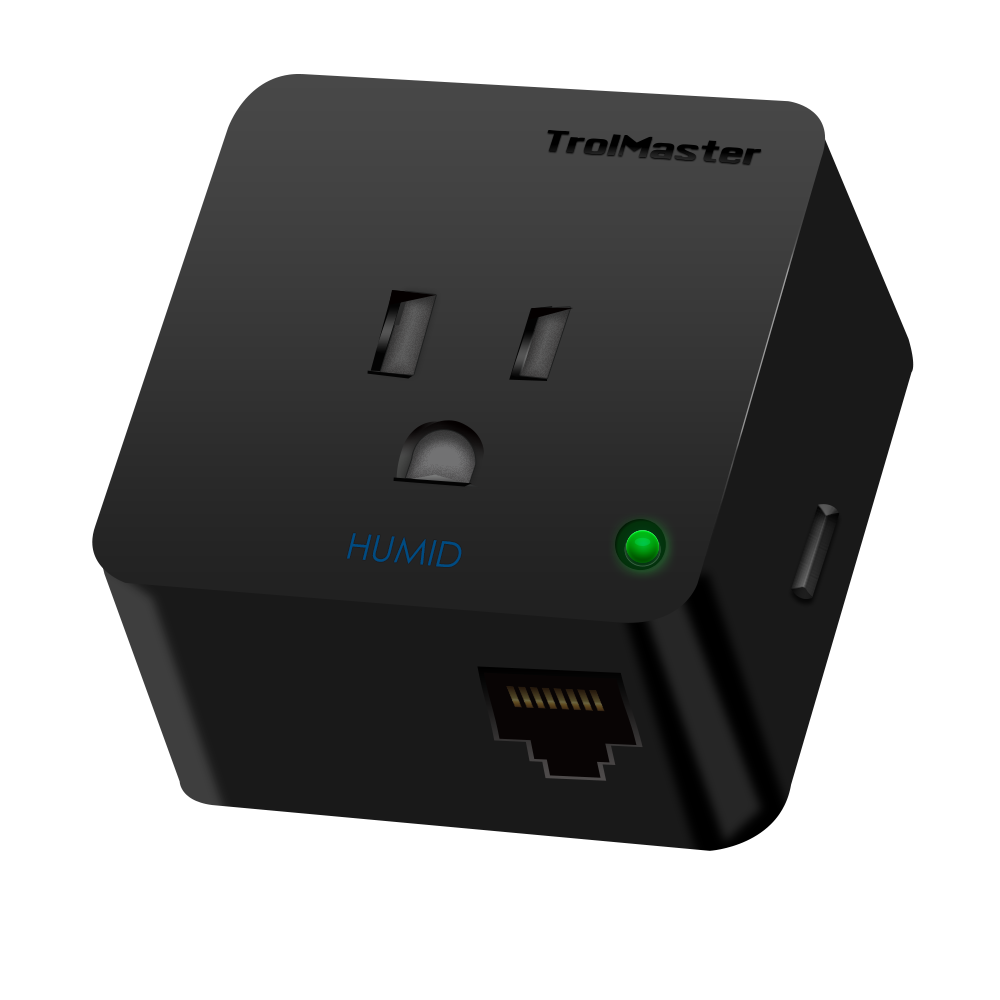

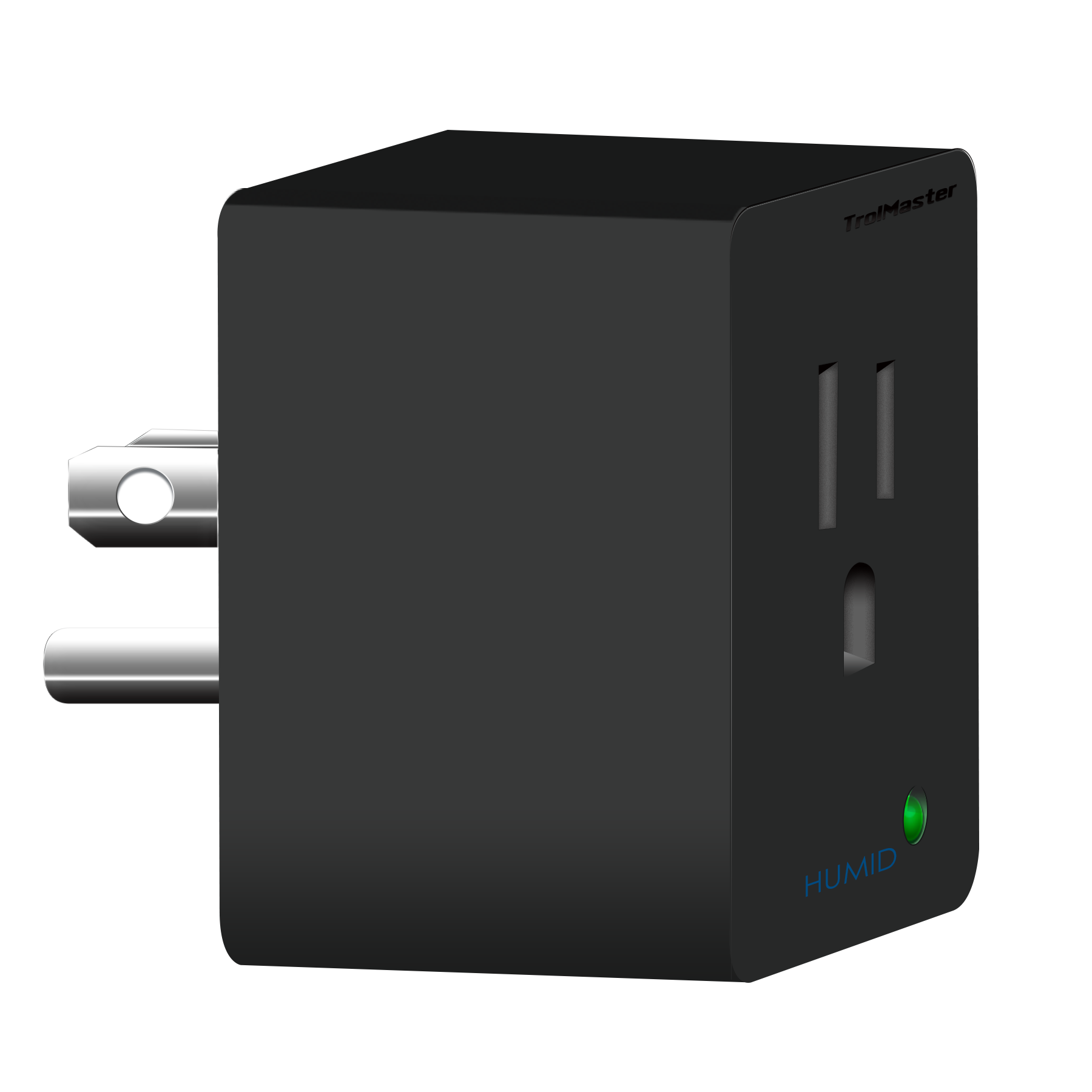

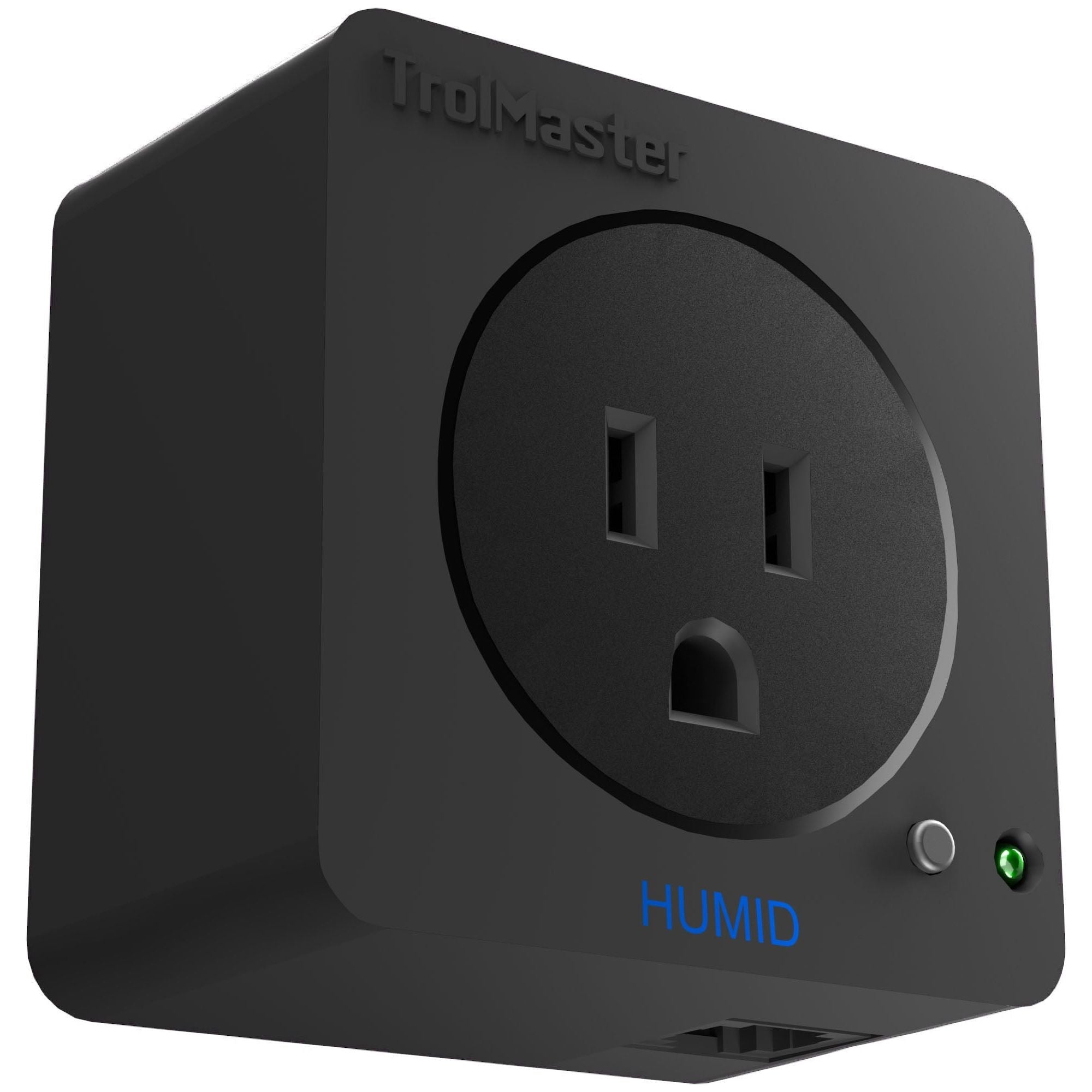

TrolMaster DSH-1 110V Humidity Device Station
Humidity swings are one of the most damaging variables in a sealed grow environment—too high and you're battling mold and bud rot; too low and your plants lock up under stress. The TrolMaster DSH-1 Humidity Device Station puts your humidifier or dehumidifier under direct command of your environmental controller, automating humidity management without manual intervention.
Designed for seamless integration with systems like the TrolMaster Hydro-X HCS-1, the DSH-1 supports any humidifying or dehumidifying device running on global voltage standards (100–240 VAC). It handles up to 10 amps, making it compatible with virtually any unit on the market while providing real-time feedback via a color-coded LED status indicator.
Compatibility: TrolMaster Hydro-X, Green-X, and Tent-X Systems
⚠️ When controlling a dehumidifier, ensure the unit draws less than 7 amps to avoid triggering current overload on the DSH-1.
What's Included
Features
💧
Universal Voltage Support
Supports 100–240 VAC at up to 10A—compatible with humidifiers and dehumidifiers worldwide.
💡
LED Status Indicator
Color-coded LED shows connection, activity, and overload status at a glance.
📍
One-Button Addressing
Press to link to your controller instantly or hold to manually override the connected device.
🔌
Plug & Play Setup
Includes all necessary RJ12 cables and a T-splitter for immediate installation.
TrolMaster DSH-1 Specifications
| Specification | Value |
|---|---|
| Input Voltage | 100–240 VAC, 50/60 Hz |
| Output Voltage | 100–240 VAC, 50/60 Hz |
| Output Current | 10A (7A max recommended for dehumidifiers) |
| Working Environment | Temperature 32–122°F (0–50°C), Humidity ≤90% |
| Package Dimensions | 3.35" × 3.15" × 3.54" |
| Gross Weight | 12.0 oz (340g) |
| Compatibility | TrolMaster Hydro-X, Green-X, Tent-X |
Support & Manuals
Warranty
TrolMaster backs the DSH-1 with a 3-year warranty from the original date of purchase, covering all mechanical and electronic components under normal operating conditions.
FAQs
What devices can I control with the DSH-1?
The DSH-1 can control any standard humidifier or dehumidifier running on 100–240 VAC that draws no more than 10 amps. For dehumidifiers, TrolMaster recommends stay under 7 amps to prevent overload protection triggers.
What do the LED blink patterns mean?
- Fast blinking green: Not yet addressed or connection lost.
- Slow blinking green: Connected and device is OFF.
- Solid green: Connected and device is ON.
- Blinking red: Module is overloaded; unplug to reset.
How do I link the DSH-1 to my controller?
Connect the DSH-1 via RJ12 cable and press the button on the module once. The LED will change from fast blinking to slow blinking once successfully addressed.
Can I manually toggle the device?
Yes, press and hold the button on the DSH-1 to manually override the controller and toggle the connected device on or off directly from the station.
Is it compatible with all TrolMaster systems?
Yes, the DSH-1 is fully compatible with the Hydro-X, Green-X, and Tent-X environmental control platforms using standard RJ12 connections.
