- 1x Single/Three Phase Curtain Motor Controller (AMC-1)
- 1x 12ft RJ12 to 4-Pin IP65 Connector Cable
TrolMaster Green-X AMC-1 AC Curtain Motor Controller
$818.91 CAD
starting from 0% interest financing from
/mo.

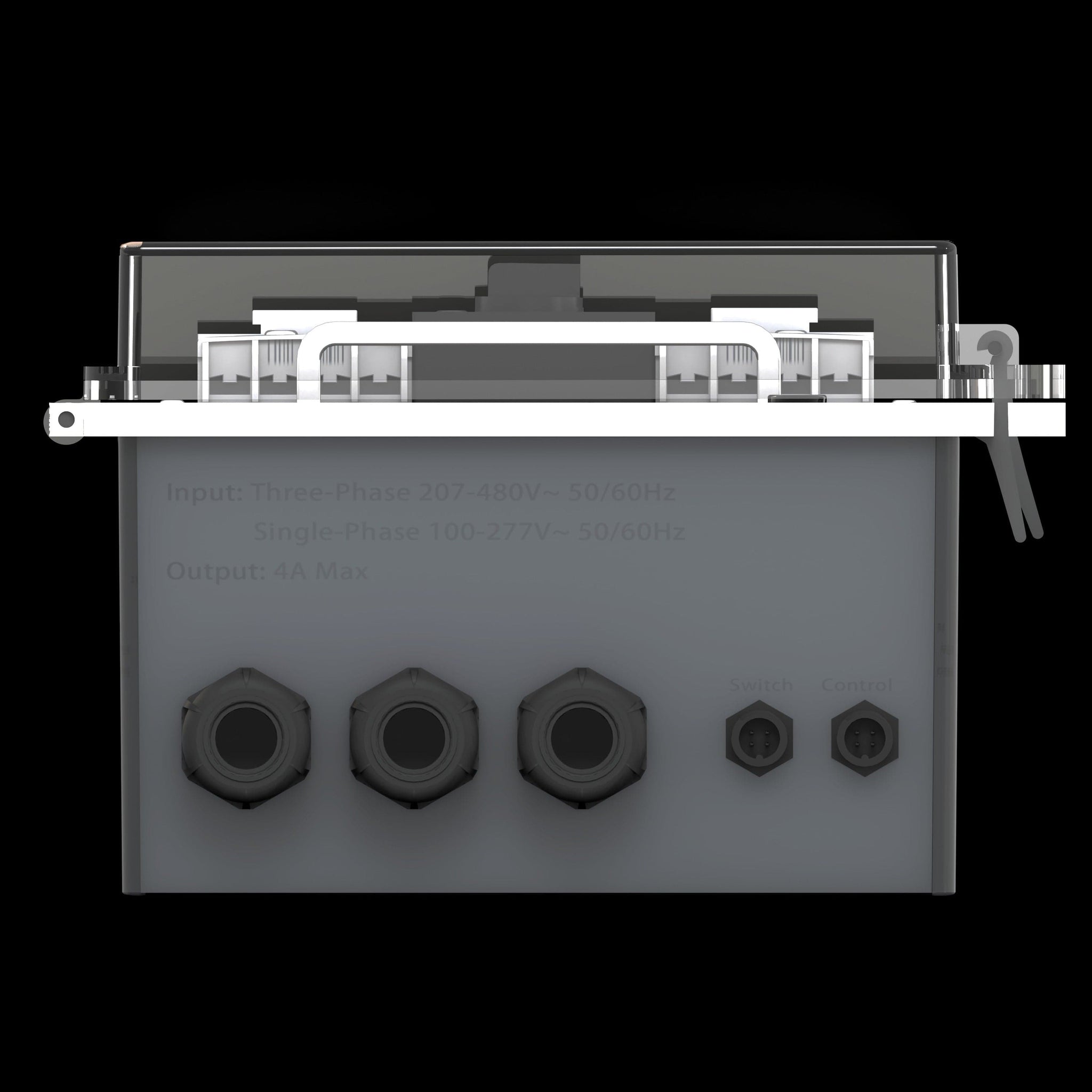

- Supports 100 to 277V single-phase and 207 to 480V three-phase power.
- IP54-rated enclosure keeps dust and moisture out of the internal electronics.
- Integrates over RS-485 waterproof connectors for noise-resistant data transmission.
- 3-year warranty covering mechanical and electronic components
- View More Details
Earn 818 points for shopping and get $8.18 off your next order. Join Harvest Club for free.
Free Shipping On Most Items
To the Provinces*
Transparent Pricing
Backed w/ price match guarantee
Secure Checkout
SSL encrypted payments
VOLUME PRICING
Commercial & Bulk Purchasing
We support operations & licensed facilities with volume pricing, dedicated account managers, and custom equipment consultation.
Who This Is For
- You are integrating curtain control into a large-scale greenhouse because your current manual switching makes managing airflow across multiple zones a bottleneck.
- You are choosing the AMC-1 because you need a controller that handles both single and three-phase power motors without requiring a separate relay system.
What We Found
- The IP54 rating is no joke, and we have seen these units handle high-humidity zones where standard controllers would corrode internally.
- We prefer the AMC-1 because it uses the standard RJ12 bus, which makes linking it into your existing controller network a plug-and-play task.
What Users Say
- Operators who switched to this unit report that their curtain movement is much more precise, which keeps the temperature in their house much more stable during the day.
- Users who run multiple large motors say they saved time on installation because the unit handles high electrical loads without needing extra contactors.

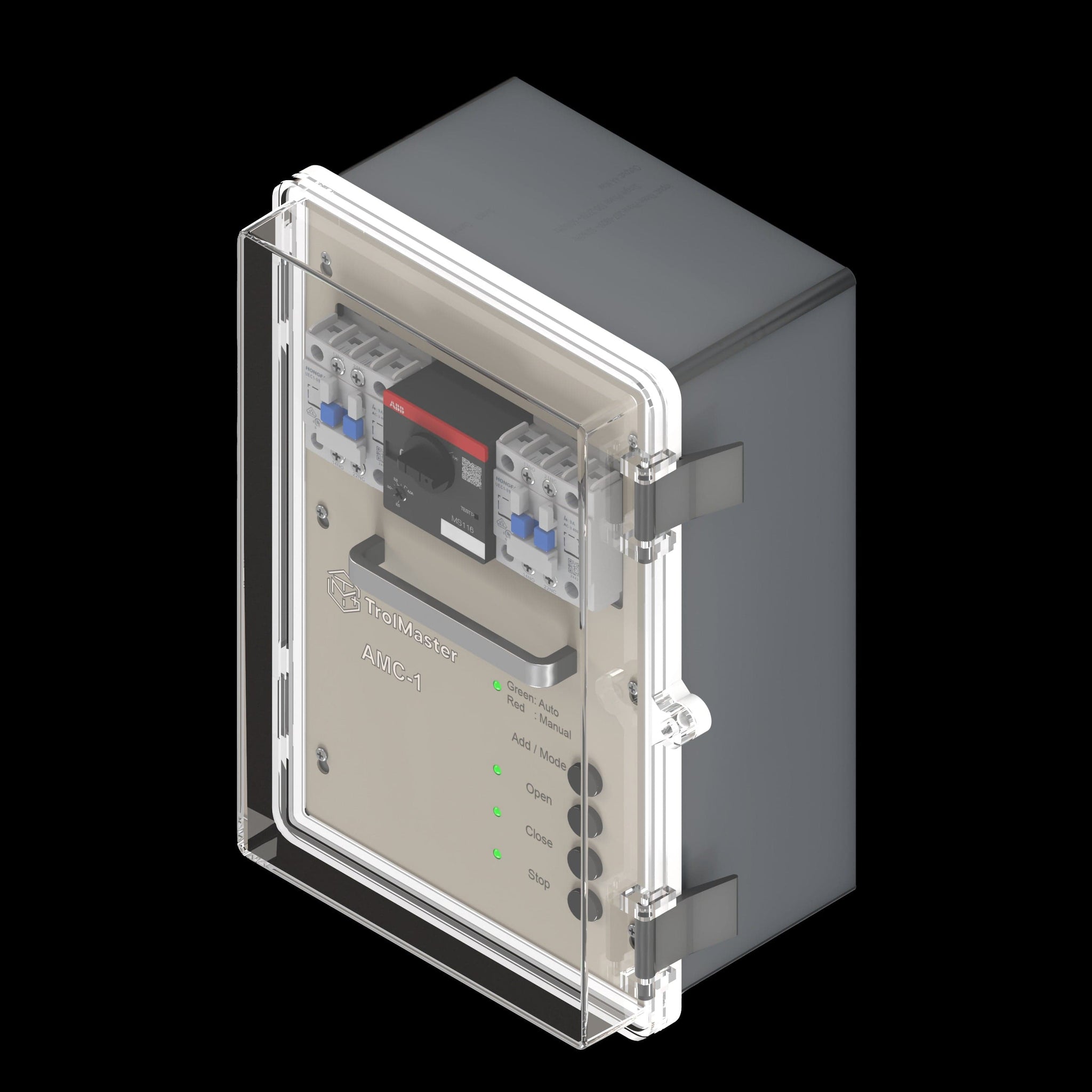

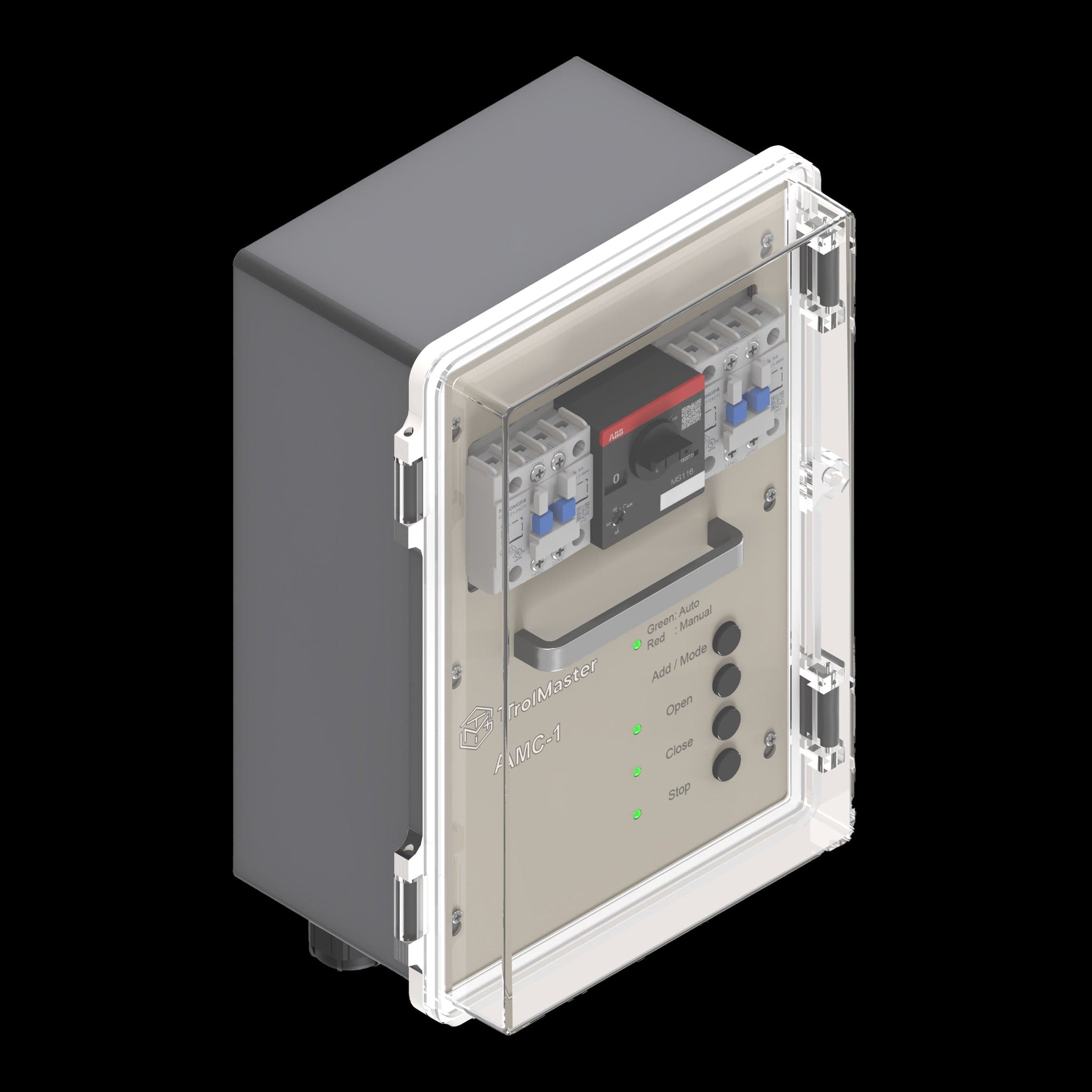

TrolMaster Green-X AMC-1 AC Curtain Motor Controller
Managing industrial-grade curtain motors in a commercial greenhouse requires more than just a simple switch; it demands a controller that can handle high electrical loads while syncing with your automation ecosystem. The TrolMaster Green-X AMC-1 is engineered specifically for this purpose, offering a versatile driver for AC-powered curtain motors that works alongside the Green-X MBS-GH climate sensor to automate ventilation based on real-time data. Whether your facility utilizes single-phase or three-phase power, this unit ensures your climate control barriers operate with surgical precision.
This advanced controller is a cornerstone of the TrolMaster Green-X line, designed to work in tandem with the GCS-1. By supporting both single-phase (100–277V) and three-phase (207–480V) power configurations, the AMC-1 provides commercial growers with the flexibility needed to manage diverse hardware across large-scale greenhouse control systems. Its rugged IP54-rated design ensures that even in high-humidity environments, your motor control remains precise and reliable, while safety features like overcurrent protection protect your valuable equipment from mechanical failure. For those running 24V DC motors instead, consider the TrolMaster Green-X DMC-1 24V Curtain Motor Controller.
What's Included
Features
⚡
Phase Versatility
Supports both single-phase and three-phase power configurations for universal commercial compatibility.
🏠
GCS-1 Integration
Integrates directly with the Green-X GCS-1 system for centralized climate and curtain automation.
⚙️
Full Motor Logic
Complete forward/reverse operation with programmable stop positions and safety timeout shutoff.
🛡️
Rugged IP54 Rating
Built to resist dust and water splashes, ensuring long-term reliability in humid greenhouse zones.
📡
Waterproof Comms
Utilizes RS-485 via waterproof connectors; for extended cable runs, use the ECW-1 IP68 RJ12 Inline Coupler to maintain a sealed connection.
Specifications
| Specification | Value |
|---|---|
| Input Voltage (Single-Phase) | 100–277V, 50/60Hz |
| Input Voltage (Three-Phase) | 207–480V, 50/60Hz |
| Maximum Output Current | 4A |
| Communication Method | RS-485 (4-pin waterproof connector) |
| Waterproof Rating | IP54 |
| Operating Temperature | 32–104°F (0–40°C) |
| Operating Humidity | ≤90% RH |
Support & Manuals
FAQs
What is the difference between the AMC-1 and the DMC-1?
The DMC-1 is designed specifically for 24V DC curtain motors, while the AMC-1 supports AC curtain motors on both single-phase (100–277V) and three-phase (207–480V) power. Both integrate with the GCS-1 and offer identical automation features, but the AMC-1 is the choice for industrial AC drive systems.
Does the AMC-1 work with both single-phase and three-phase power?
Each AMC-1 unit is wired for either single-phase or three-phase power during installation. While a single unit doesn't switch between them on the fly, multiple AMC-1 units can be connected to the same GCS-1 system to manage different power zones in one facility.
How many AMC-1 units can be connected to a GCS-1?
The GCS-1 supports up to 4 motor controllers per set. This pool is shared between AMC-1 and DMC-1 units; the combined total must not exceed 4 units per GCS-1 set.
Can I control curtains manually?
Yes, the AMC-1 supports both manual and automated modes. Manual operation is ideal for maintenance, setup, or overriding automation logic when direct adjustment is required.
What safety protections are included?
The AMC-1 features overcurrent protection to prevent motor damage during stalls or obstructions, as well as a timeout shutoff that halts operation if the curtain travel exceeds programmed duration limits.
Is it suitable for high-humidity greenhouses?
Yes. With an IP54 rating, the AMC-1 is resistant to dust and water splashes from any direction, making it highly reliable in humid greenhouse environments compared to lower-rated controllers.
