- 1x 24V DC Greenhouse Roll-Up Motor Controller (DMC-1)
- 1x Power Cable
- 1x Cross Screwdriver
- 1x 12ft RJ12 to 4-Pin IP65 Connector Cable
TrolMaster Green-X DMC-1 24V Curtain Motor Controller
$621.73 CAD
starting from 0% interest financing from
/mo.
- Supports 100 to 240VAC input with automatic power shutoff during motor stalls.
- IP44-rated enclosure keeps internal circuitry protected from high-humidity production environments.
- Connects directly to the TrolMaster RJ12 bus for full integration with the GCS-1 system.
- 3-year warranty covering mechanical and electronic components under normal operating conditions.
- View More Details
Earn 621 points for shopping and get $6.21 off your next order. Join Harvest Club for free.
Free Shipping On Most Items
To the Provinces*
Transparent Pricing
Backed w/ price match guarantee
Secure Checkout
SSL encrypted payments
VOLUME PRICING
Commercial & Bulk Purchasing
We support operations & licensed facilities with volume pricing, dedicated account managers, and custom equipment consultation.
Who This Is For
- You are integrating curtain motors into your centralized facility because manual adjustments lead to human error.
- You are upgrading your climate infrastructure because you need automated control over large-scale greenhouse vents.
What We Found
- The 24V DC motor compatibility makes this a much safer option than running high voltage lines for basic vent control.
- We like how the RS-485 connector creates a stable signal that holds up even when other equipment creates interference.
What Users Say
- Facilities that added these to their existing system report that they no longer spend labour hours checking vents.
- Users who swapped out manual cranks say they now sleep soundly knowing the overcurrent protection prevents motor stalls.

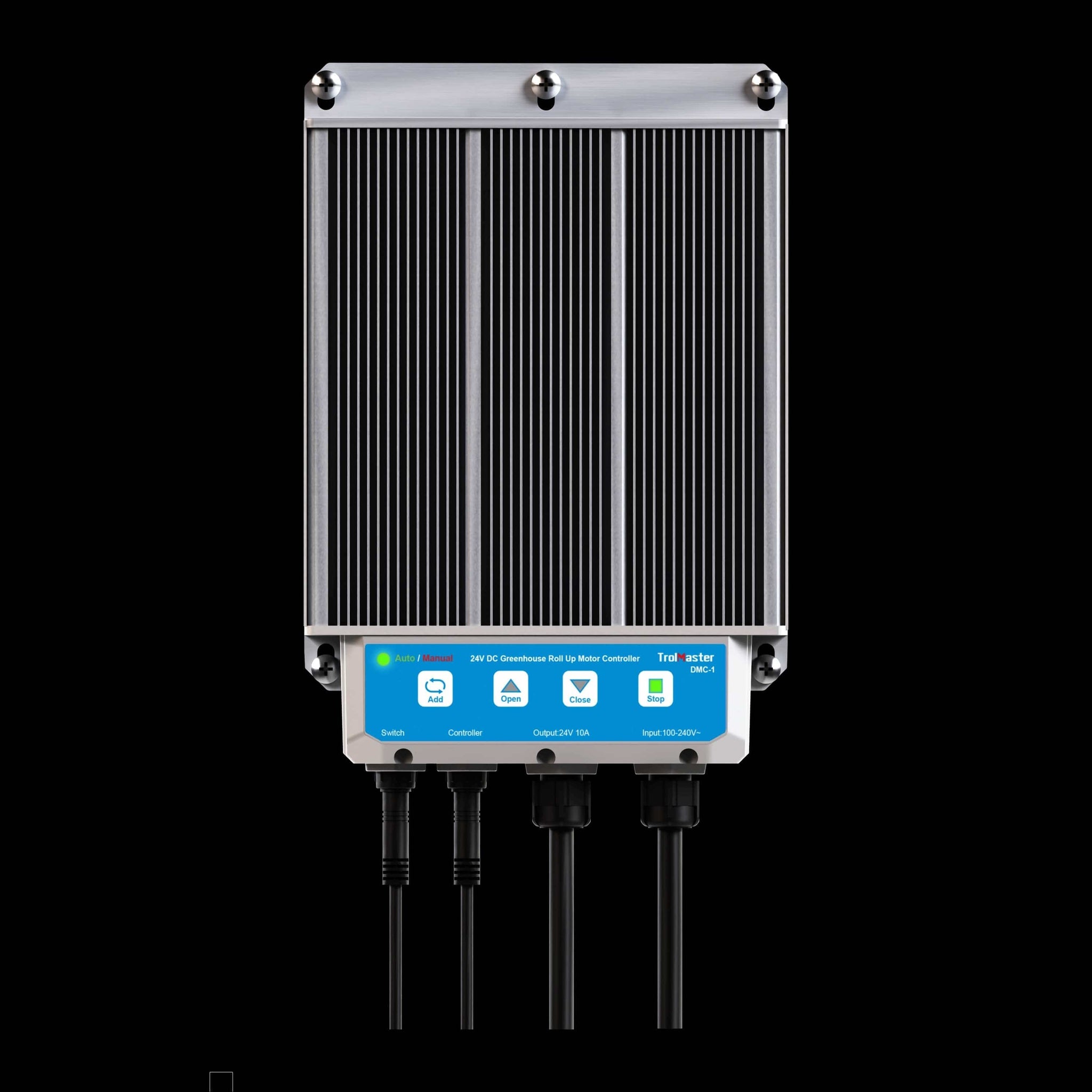

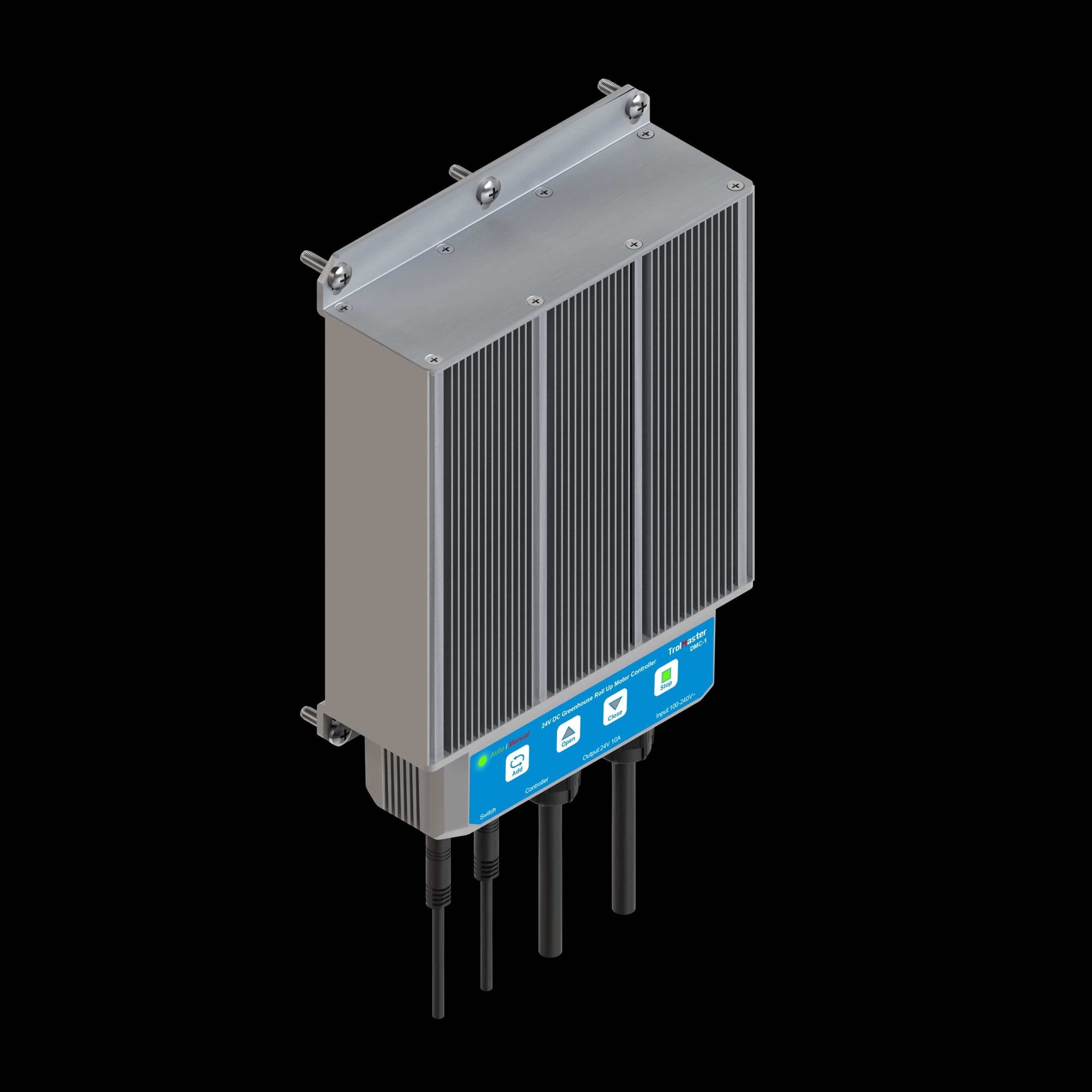

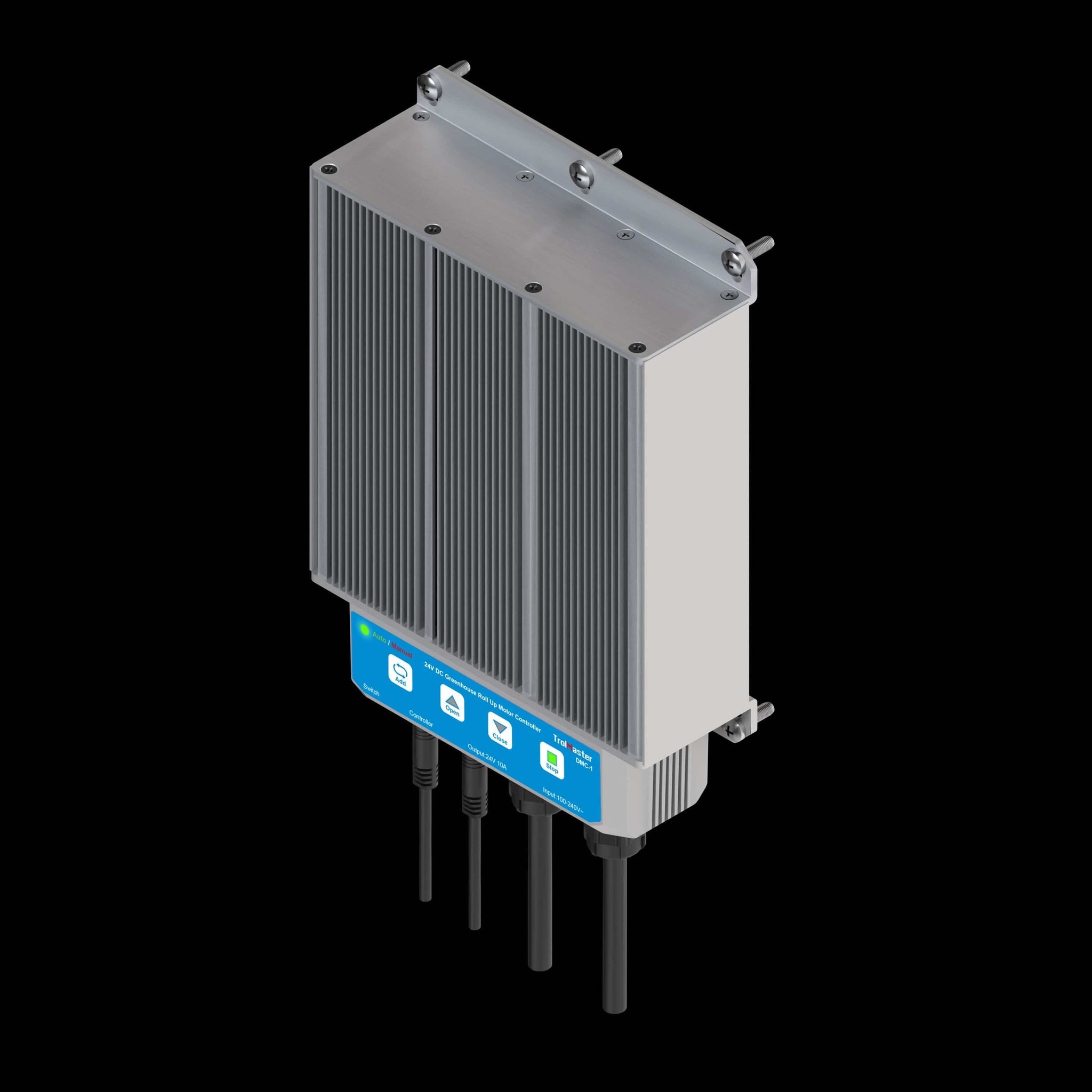

TrolMaster Green-X DMC-1 24V Curtain Motor Controller
Manually managing greenhouse curtains across a large facility is not only labor-intensive but also prone to human error, which can jeopardize your crop's environment. The TrolMaster Green-X DMC-1 provides the ultimate solution by bringing 24V DC roll-up motor management into a centralized greenhouse control system.
This controller allows for both manual override and fully automated operation through the TrolMaster Green-X GCS-1 system. With features like overcurrent protection and programmable stopping, it ensures your curtains move exactly when and where they need to, protecting your hardware and your harvest. It works seamlessly alongside other components like the TrolMaster Green-X AMC-1 AC Curtain Motor Controller and the Green-X MBS-GH 4-in-1 Greenhouse Climate Sensor to provide a complete environmental solution.
What's Included
Features
🏠
Seamless GCS-1 Integration
Designed specifically for the Green-X GCS-1 system, allowing for centralized control and visual monitoring via the TrolMaster TC-2 2K Camera.
⚙️
Full Motor Control
Supports forward/reverse operation, programmable stop functions, and timeout shutoff for precision.
🛡️
Overcurrent Protection
Automatically cuts power during stalls or obstructions to protect the motor and controller.
💧
IP44-Rated Enclosure
Resists moisture and condensation typical in production greenhouse environments.
📡
RS-485 Communication
Uses waterproof 4-pin connectors for stable signal transmission, compatible with the TrolMaster ECW-1 Inline Coupler.
🔌
Universal Voltage
Accepts 100–240VAC input, making it compatible with global electrical standards.
Specifications
| Specification | Value |
|---|---|
| Input Voltage | 100–240VAC, 50/60Hz |
| No-Load Power Consumption | <2W (at 240V input) |
| Output Wire Gauge | Minimum 16 AWG |
| Communication Method | RS-485 (4-pin waterproof connector) |
| Waterproof Rating | IP44 |
| Operating Temperature | 32–104°F (0–40°C) |
| Operating Humidity | ≤90% RH |
| Gross Weight | 4.63 lbs (2.1 kg) |
Support & Manuals
FAQs
What types of motors and curtains is the DMC-1 compatible with?
The DMC-1 is designed to control 24V DC roll-up curtain motors used in agricultural greenhouse applications, including shade curtains, thermal screens, and side curtains.
Can I still operate the curtains manually with the DMC-1 installed?
Yes — the DMC-1 supports both manual override and automated control modes, allowing for direct adjustment during maintenance or inspections.
What happens if the motor stalls or encounters an obstruction?
The DMC-1 includes built-in overcurrent protection that automatically shuts off power to the motor if it draws excessive current due to a stall or mechanical resistance.
How many DMC-1 units can be connected to a single GCS-1?
The GCS-1 supports up to 4 motor controllers, including the TrolMaster Green-X AMC-1 AC and DMC-1 units, per set. For larger facilities, additional GCS-1 controller sets can be utilized.
Is the DMC-1 suitable for outdoor greenhouse installations?
It features an IP44 rating, making it suitable for humid greenhouse environments. However, it should be sheltered from direct rain or standing water.
