Trimming machines have enabled producers to trim faster with fewer people required. But cleaning has always been a time-consuming process.
It takes physical effort to do a quality cleaning job that meets the QA department’s standards and requirements.

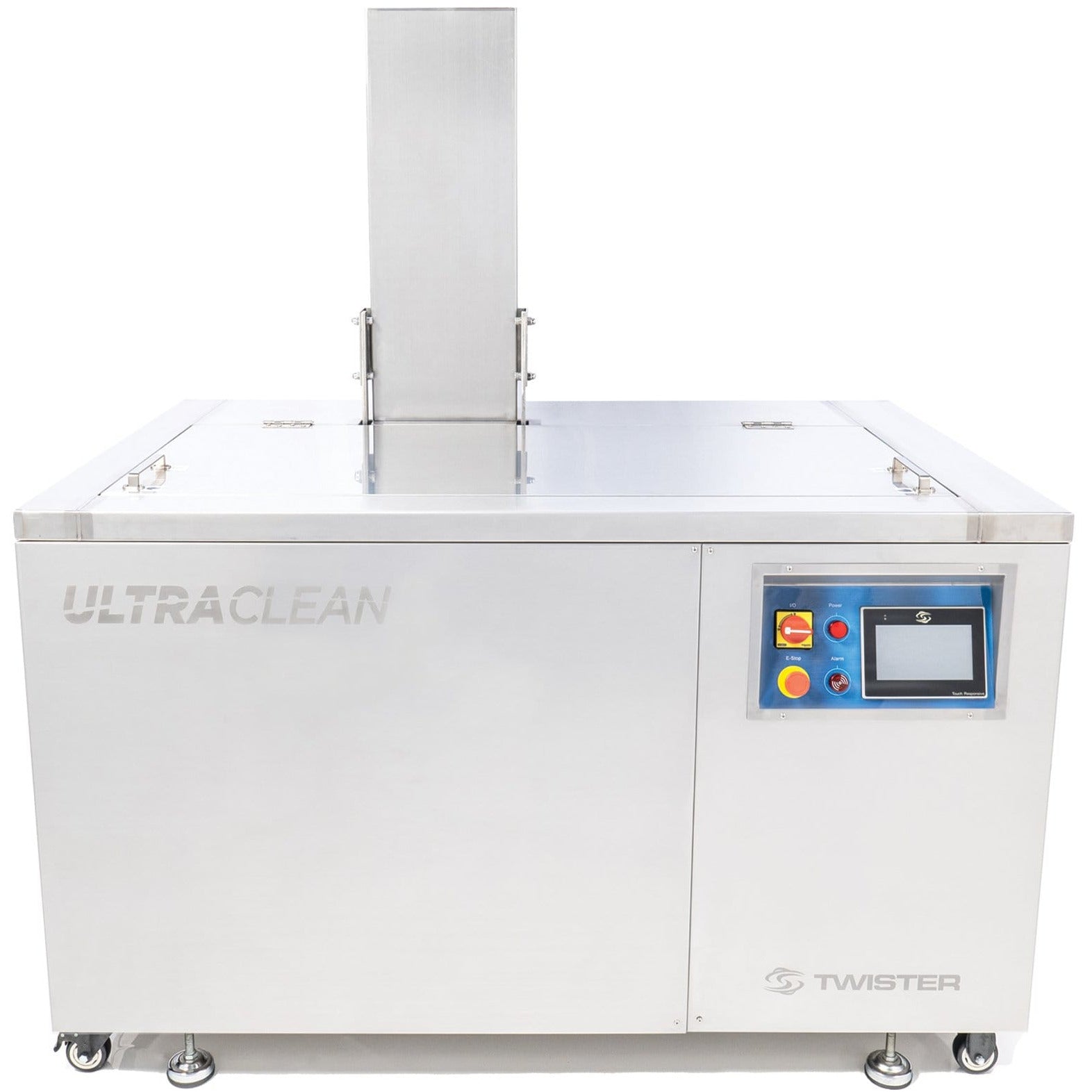

The UltraClean allows producers to increase efficiency by a One-Touch Deep Clean. With only one personnel required, the fully automated Siemens touch screen panel does the work for you, including an Automated Lift to help lower and raise the equipment safely out of the tank and self-filtering the organic residue during cycles.
The UltraClean is built to fit Twister T2 & T4 products but can also be used for additional products*
We do not recommend for use with products manufactured with mild steel as there is opportunity for corrosion. In the event of use with mild steel, the product should be removed and dried immediately to prevent corrosion.
|Low Buildup/Soil||One – 15 minute cycle with quick wipe down or hose|
|Medium Buildup/Soil||Two – 15 minute cycles with a quick wipe down or hose after each cycle|
|Heavy Buildup/Soil||Two to Four – 30 minute cycles with a wipe down after each cycle and final pressure wash is required|
|Power Options (02-10019A)||208V 3P 60Hz 60A|
|Power Options (02-10030A)||204V 1P 60Hz 50A|
|Heating Time 15°C – 75°C (02-10019A)||100min|
|Heating Time 15°C – 75°C (02-10030A)||160min|
|Heating Time 15°C – 75°C (-2-10031A)||100min|
|Overall Dimension (Width)||1,660mm|
|Overall Dimension (Depth)||1,080mm|
|Overall Dimension (Height)||1,860mm|
|Tank Inner Size (Width)||1,000mm|
|Tank Inner Size (Depth)||580mm|
|Tank Inner Size (Height)||760mm|
|Storage Tank Size (Width)||350mm|
|Storage Tank Size (Depth)||580mm|
|Storage Tank Size (Height)||600mm|
|Tank Capacity||125G / 470L|
|Effective Liquid Level||500mm|
|Heating Power (1P)||7.5W|
The entire T4 device can fit. We recommend removing the tumbler and shroud and placing them beside the trimmer, and flipping up the bedknife, for improved cleaning.
The removable components along with the Trim Saver can go into the UltraSonic tank. A custom T2 rack system holds 4 sets of T2 parts (tumblers, brushes, shrouds) or can be broken down into systems as shown below.
Twister offers live tech support 12 hours a day, seven days a week, along with a 1 Year Warranty for the UlraClean. All sales final.
