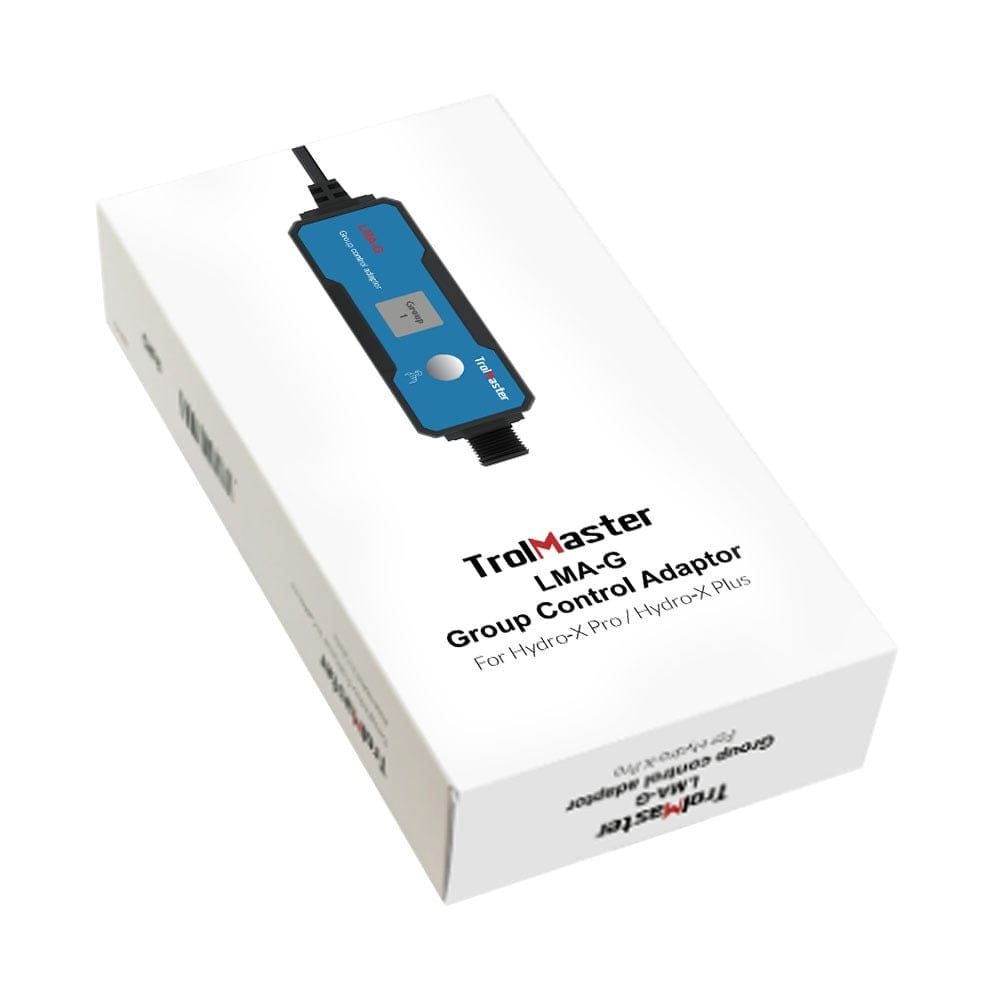

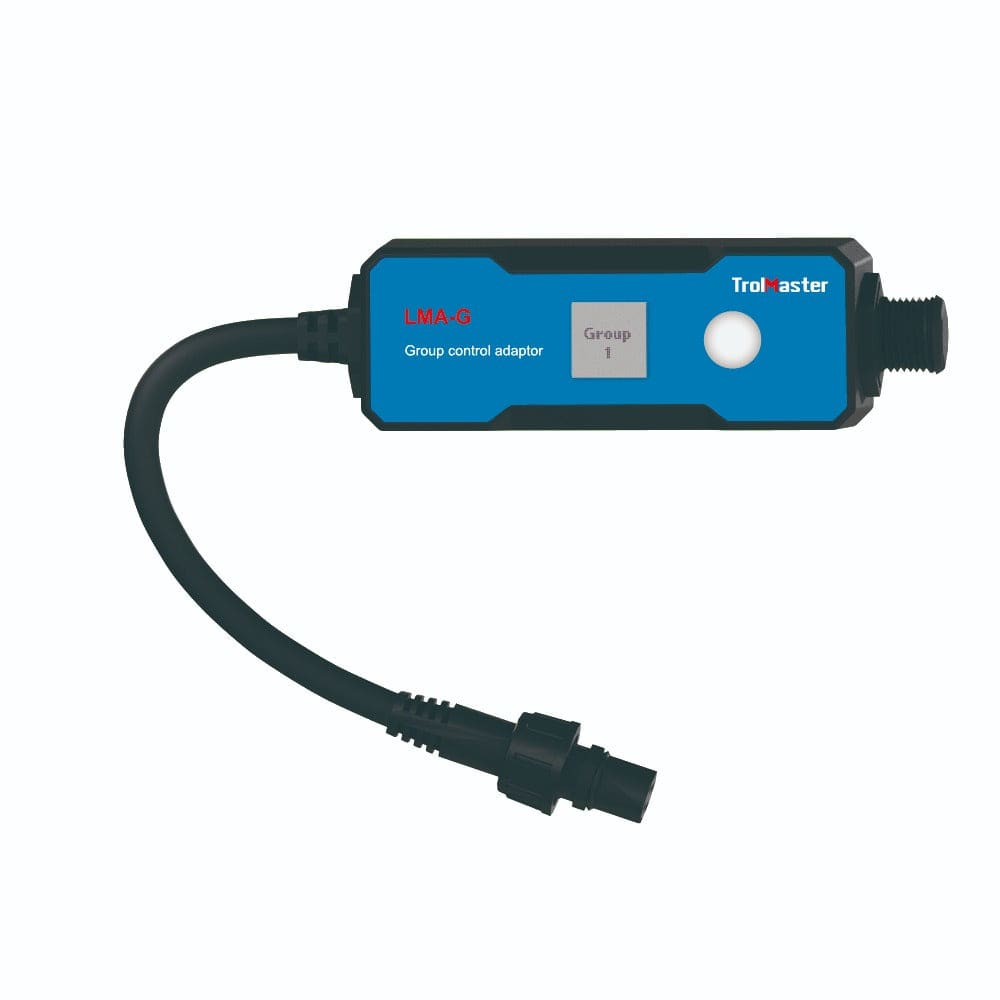

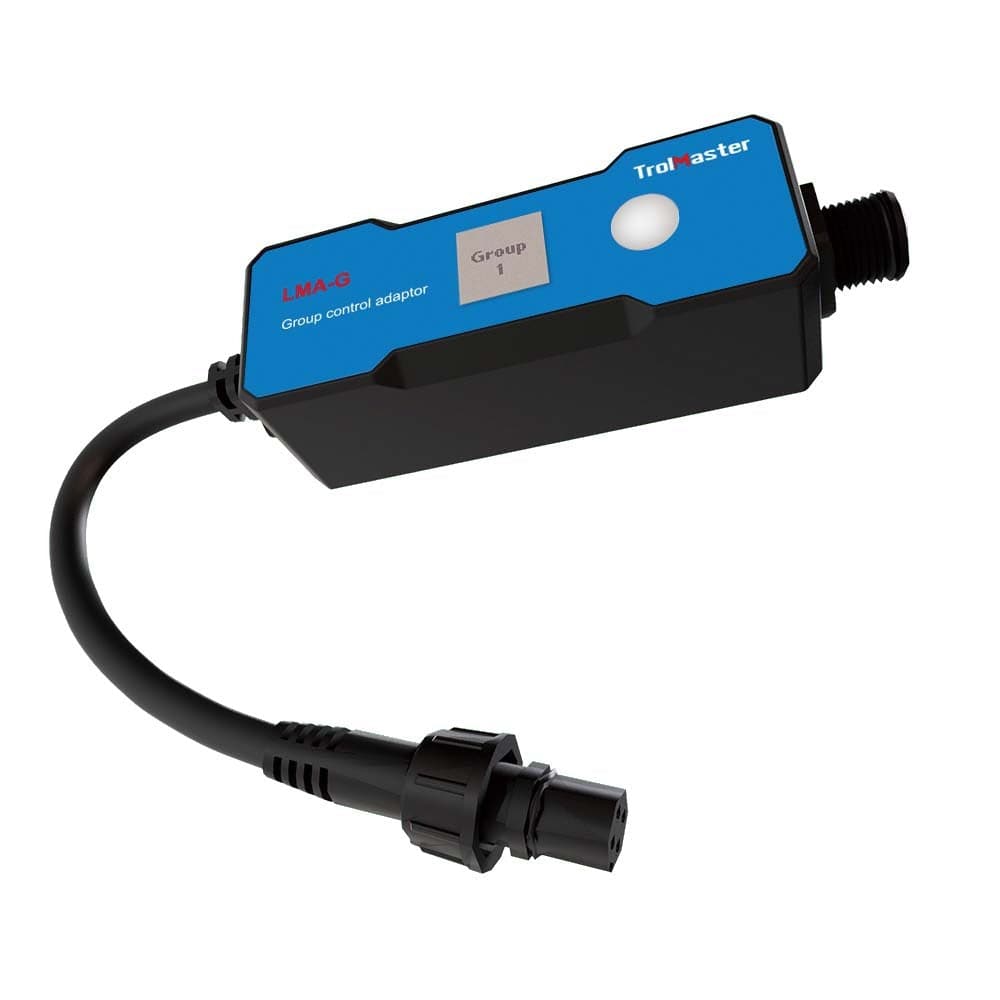

Managing individual light bars in a large-scale facility can be a logistical nightmare, leading to inconsistent growth and wasted time. The TrolMaster LMA-G Group Control Lighting Adapter solves this by providing a dedicated bridge for ThinkGrow Model-I and Model-I Plus fixtures, enabling synchronized management across your entire grow space.
When integrated with a primary controller such as the TrolMaster Hydro-X HCS-1 Grow Room Controller, the LMA-G unlocks sophisticated group-based dimming and spectrum adjustments. This allows growers to segment their facility into precise zones, ensuring every fixture responds instantly to the central controller's commands for maximum efficiency.
Compatibility: Exclusively designed for ThinkGrow Model-I and Model-I Plus fixtures. Requires a TrolMaster Hydro-X Pro (HCS-2) and a compatible lighting adapter for full operation.
Custom-built for seamless integration with Model-I and Model-I Plus single-bar LED fixtures.
Built-in screen allows for quick and error-free group identification and addressing during setup.
Simple RJ12 connection using a TrolMaster RJ12 cable and splitter kit—no complex hardwiring required.
Allows users to add a dedicated LMA-G for every light group, providing unlimited facility scalability.
| Specification | Value |
|---|---|
| Input Voltage | 12V |
| Maximum Current | 0.1A |
| Working Temperature | 32-122°F (0-50°C) |
| Working Humidity | ≤90% |
| Dimensions | 156mm(L) x 83mm(W) x 30mm(H) |
| Weight | 2.12oz / 60g |
You need one LMA-G for each group of lights you wish to control independently. For example, if you have three separate light groups with different dimming schedules, you will need three LMA-G adapters.
No, the LMA-G is specially designed for the ThinkGrow Model-I and Model-I Plus LED bar fixtures. For other 0-10V dimmable fixtures, consider the TrolMaster LMA-14G Group Control Lighting Adapter.
The LMA-G receives its 12V power through the connection to the lighting control network via the RJ12 cable, maintaining its low-profile, plug-and-play design.
The LCD display is used for "Group Addressing." This allows you to assign a specific ID to the adapter so the main Hydro-X Pro controller can distinguish between different light groups in your room.
It connects seamlessly using a standard RJ12 cable, often expanded with a TrolMaster SPH-1 Powered Splitter Hub, which is then linked to your main controller.
