TrolMaster 4RS-2 4-Outlet Device Station
$297.96 CAD
starting from 0% interest financing from
/mo.
- Four independent 15A output channels for heavy duty climate equipment
- Consolidates four control slots into a single RJ12 data connection
- Default configuration ready for temperature, humidity, and two timed programs
- 3-year warranty on all mechanical and electronic components
- View More Details
Earn 297 points for shopping and get $2.97 off your next order. Join Harvest Club for free.
Free Shipping On Most Items
To the Provinces*
Transparent Pricing
Backed w/ price match guarantee
Secure Checkout
SSL encrypted payments
VOLUME PRICING
Commercial & Bulk Purchasing
We support operations & licensed facilities with volume pricing, dedicated account managers, and custom equipment consultation.
Who This Is For
- You are consolidating your climate devices because the web of cables and power blocks makes your room hard to clean
- You are expanding your automated grow room because you need more control over equipment without adding more wall outlets
What We Found
- The 4RS-2 is the cleanest way to clear up cable mess since it pulls everything onto one RJ12 line
- We like that this unit gives you fifteen amps per outlet, which is plenty for even the heavy duty heaters
What Users Say
- Users who swapped to this station say they finally have a clear workspace and fewer tripping hazards on the floor
- Growers who run complex climate setups report that saving three extra controller slots helped them scale their system

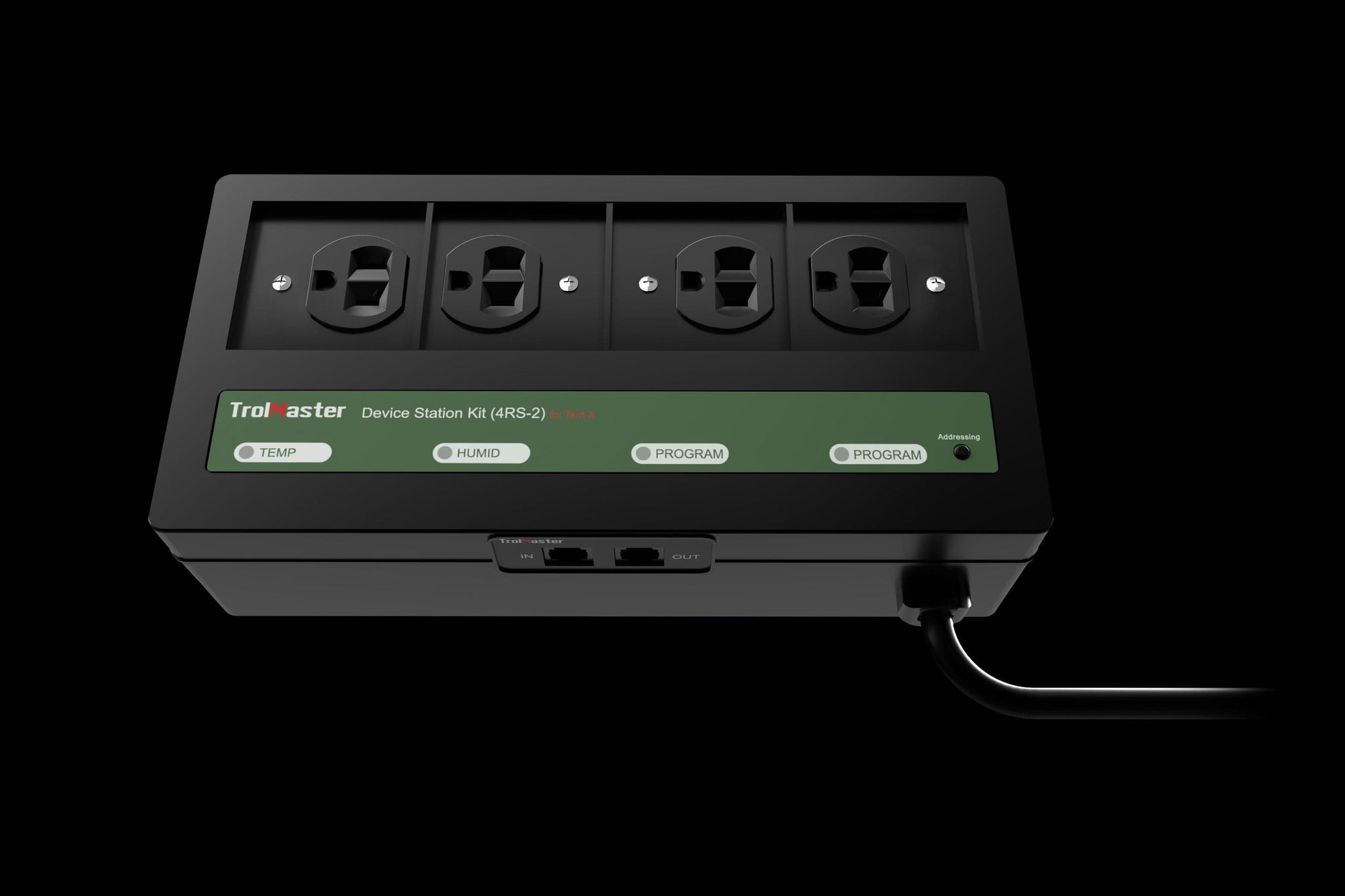

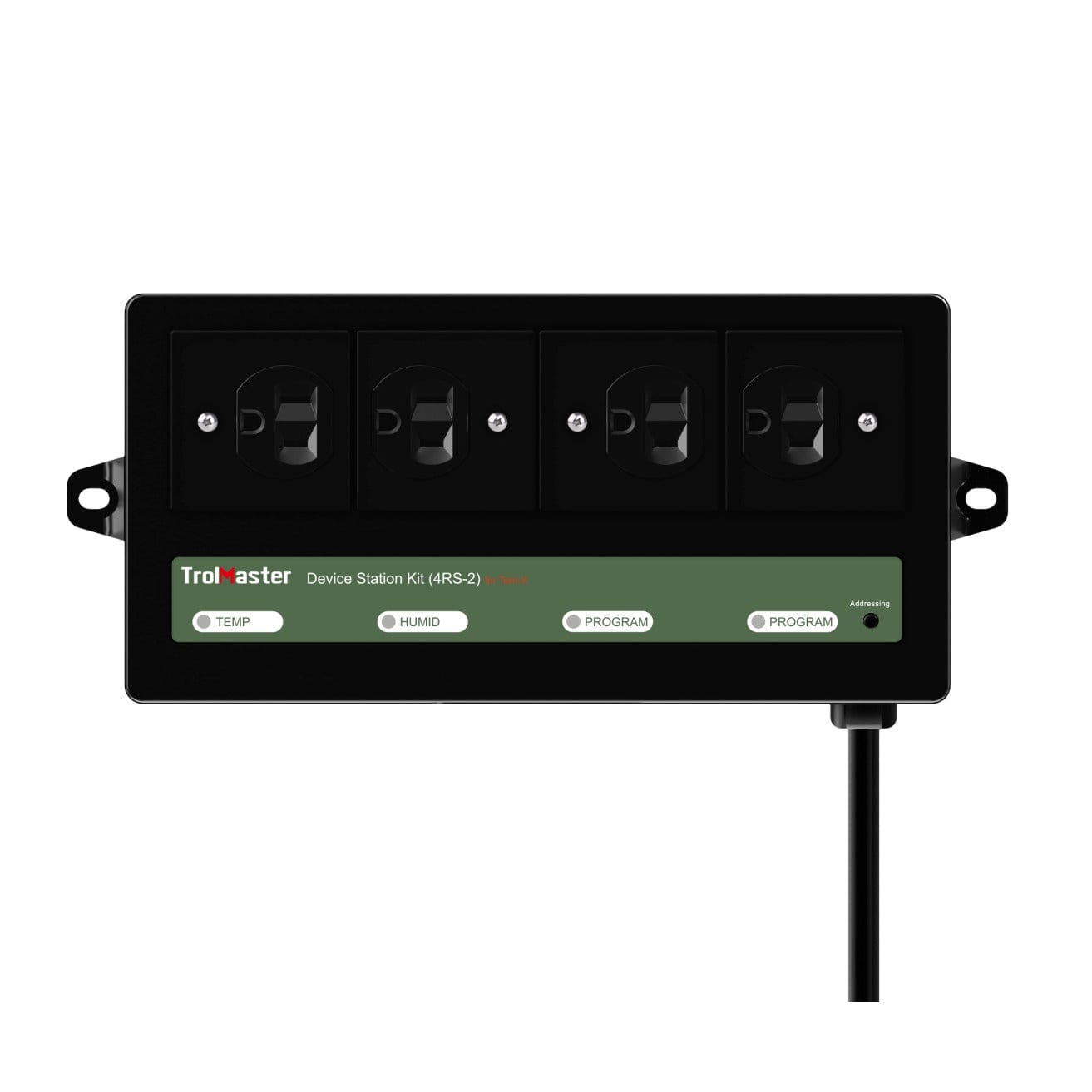

TrolMaster 4RS-2 4-Outlet Device Station
Managing multiple climate devices often leads to a messy web of cables and individual modules that clutter your workspace. The TrolMaster 4RS-2 Environmental Control simplifies your grow room by consolidating four independent device outputs into a single, streamlined station. By utilizing a single coiled RJ12 communication cable, you can instantly expand your system's capacity without the need for complex wiring or additional hardware, making it an essential upgrade for growers looking to professionalize their setup.
Designed for high-performance environments, this kit allows you to manage temperature, humidity, and timed programs with precision. It integrates seamlessly with your existing TrolMaster Green-X or advanced units like the Hydro-X Pro HCS-2, providing up to 15A of power per outlet. This high-amperage capacity ensures you have the headroom to run heavy-duty equipment like heaters and AC units; for specialized high-current switching, it works alongside the DSR-1 25A relay station. For advanced safety monitoring, it pairs perfectly with systems like the TrolMaster Carbon-X CDA-1.
Compatibility: TrolMaster Green-X and Tent-X Systems
What's Included
Features
🔌
4 Pre-Configured Outlets
Ready for temperature, humidity, and program control immediately with DSTx1, DSHx1, and DSPx2 defaults.
⚡
15A Per Output
High-amperage rating handles heaters, fans, and heavy-duty climate equipment across all four channels.
🔗
Single RJ12 Connection
Occupies four device slots on your controller using one cable. For robust extensions, use an IP68 RJ12 inline coupler to maintain signal integrity.
🛠️
Tool-Free Setup
Plugs directly into a standard wall socket with no hardwiring required for a fast, hassle-free installation.
TrolMaster 4RS-2 Specifications
| Specification | Value |
|---|---|
| Number of Outputs | 4 |
| Input Voltage | 100–240 VAC, 50/60 Hz |
| Max Output Voltage | 100–240 VAC, 50/60 Hz |
| Max Output Current | 15A |
| Max Input Current | 15A |
| Default Output Configuration | DSTx1 (Temp), DSHx1 (Humidity), DSPx2 (Program) |
| Controller Slots Used | 4 device module slots |
| Working Environment | Temp 32–104°F (0–40°C), Humidity ≤90% |
| Connection Interface | RJ12 |
| Compatibility | TrolMaster Green-X, Tent-X |
Support & Manuals
Warranty
TrolMaster backs the 4RS-2 with a 3-year warranty from the original date of purchase, covering all mechanical and electronic components under normal operating conditions. Components that fail due to abnormal or improper usage are excluded from this coverage.
FAQs
Which controllers is the 4RS-2 compatible with?
The 4RS-2 is compatible with the TrolMaster Green-X, Tent-X, and the Hydro-X Plus HCS-3 environmental control systems. It connects via standard RJ12 cable and occupies 4 device module slots on the controller, expanding the number of devices you can power and automate from a single system.
What are the default output assignments on the 4RS-2?
The four outputs are pre-configured from left to right as DSTx1 (temperature device station), DSHx1 (humidity device station), and DSPx2 (two program device stations). This default layout covers the most common grow environment device types and is ready to use immediately upon connection.
Can all four outputs run at full 15A simultaneously?
Each of the four outlets is independently rated at 15A. However, total draw across all four outputs is still subject to the capacity of the circuit the 4RS-2 is plugged into. Ensure your wall circuit can support the combined load of all connected devices.
Does the 4RS-2 require any special wiring or tools to install?
No — the 4RS-2 power cable plugs directly into a standard wall socket, and the RJ12 data cable connects straight to your TrolMaster controller. There is no hardwiring or additional hardware required.
Can I use the 4RS-2 instead of purchasing individual DS modules?
Yes — the 4RS-2 is designed as a consolidated alternative to buying four separate DS modules. If you want to minimize cable runs and installation time, the 4RS-2 delivers all four functions in a single kit with one wall connection.
