- 1 × 25A Relay Device Station (DSR-1)
- 1 × 0.5ft RJ12 Cable
- 1 × 4ft RJ12 Cable
TrolMaster DSR-1 25A High-Current Relay Station
$181.97 CAD
starting from 0% interest financing from
/mo.
- Supports up to 25A continuous current output across a 100 to 277V range.
- Configurable for temperature, humidity, CO2, or timer-based switching modes.
- Connects via standard RJ12 ports for integration with all TrolMaster ecosystem controllers.
- 3-year warranty on all mechanical and electronic components
- View More Details
Earn 181 points for shopping and get $1.81 off your next order. Join Harvest Club for free.
Free Shipping On Most Items
To the Provinces*
Transparent Pricing
Backed w/ price match guarantee
Secure Checkout
SSL encrypted payments
VOLUME PRICING
Commercial & Bulk Purchasing
We support operations & licensed facilities with volume pricing, dedicated account managers, and custom equipment consultation.
Who This Is For
- You are integrating high-draw dehumidifiers or CO2 generators into your controller network because standard outlets keep tripping under heavy load.
- You are upgrading your facilitys environmental management because your existing device stations cannot handle the continuous amperage of professional-grade equipment.
What We Found
- We suggest this module for any heavy-duty equipment since the relay contacts are built to withstand 25A without heating up.
- The RJ12 daisy-chaining is reliable but we recommend keeping these units away from high-moisture exhaust paths to ensure long-term port integrity.
What Users Say
- Growers who swapped out their standard 15A stations for the DSR-1 report that they finally stopped seeing intermittent power failures on their largest heaters.
- Managers of larger facilities say that using these to consolidate their heavy-load devices has made troubleshooting their climate circuits much simpler.
TrolMaster DSR-1 25A High-Current Relay Station
Managing high-power equipment in a commercial grow environment often presents a challenge when standard 15A device stations reach their limit. The TrolMaster DSR-1 Environmental Control solves this by providing a robust 25A high-current relay, allowing you to safely manage large electric heaters, commercial-grade humidifiers, and high-capacity CO2 generators without the risk of overloading your environmental control system. While other modules like the TrolMaster DFM-3 Digital Flow Meter focus on monitoring, the DSR-1 is built for heavy-duty power delivery.
This versatile module integrates perfectly with your existing TrolMaster ecosystem. Whether you are using a Hydro-X Pro HCS-2 or Hydro-X Plus HCS-3 controller, the DSR-1 can be assigned as a temperature (DST), humidity (DSH), CO2 (DSC), or timer (DSP) station. With built-in overload protection and a universal voltage range of 100–277V, it offers the reliability and flexibility needed for professional cultivation facilities, much like the precision control found in the TrolMaster EFC-1 EC Fan Control Adapter.
Compatibility: TrolMaster Hydro-X Pro, Aqua-X Pro, Carbon-X, Green-X, and Tent-X Systems
What's Included
Features
⚡
25A High-Current Output
Supports up to 25A continuous at 100–277V to handle high-draw equipment.
🎛️

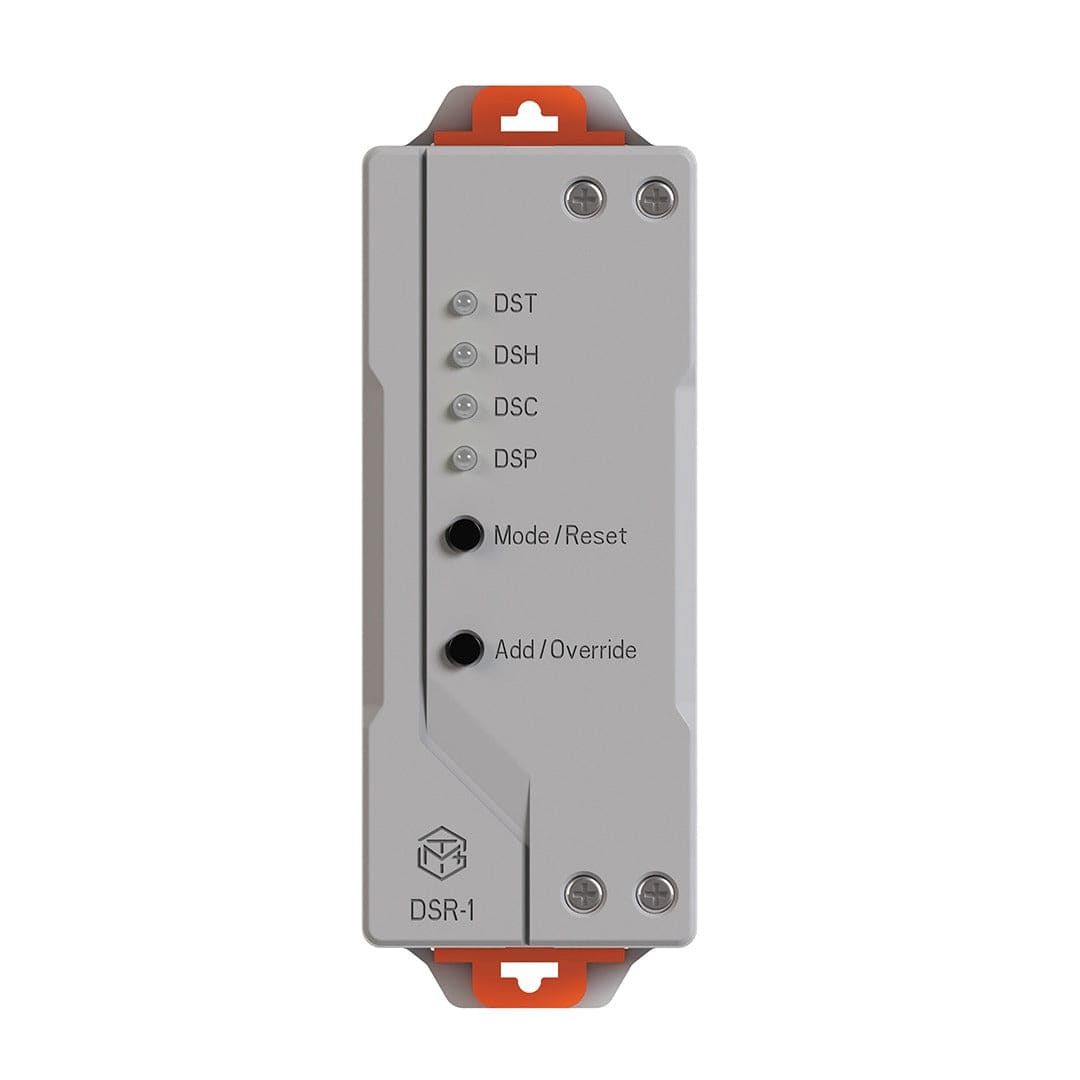

Multi-Purpose Role Assignment
Configurable as DST, DSH, DSC, or DSP modules for total flexibility.
🛡️
Built-In Overload Protection
Safeguards the station and connected devices from unexpected load spikes.
🔗
Broad Controller Compatibility
Seamlessly connects with Hydro-X Plus, Aqua-X Plus, Carbon-X, Green-X, and Tent-X.
TrolMaster DSR-1 Specifications
| Specification | Value |
|---|---|
| Input Voltage | 100–277V~, 50/60 Hz |
| Output Voltage | 100–277V~, 50/60 Hz |
| Output Current | 25A |
| Configurable Modes | DST (Temperature), DSH (Humidity), DSC (CO₂), DSP (Timer) |
| Overload Protection | Built-in |

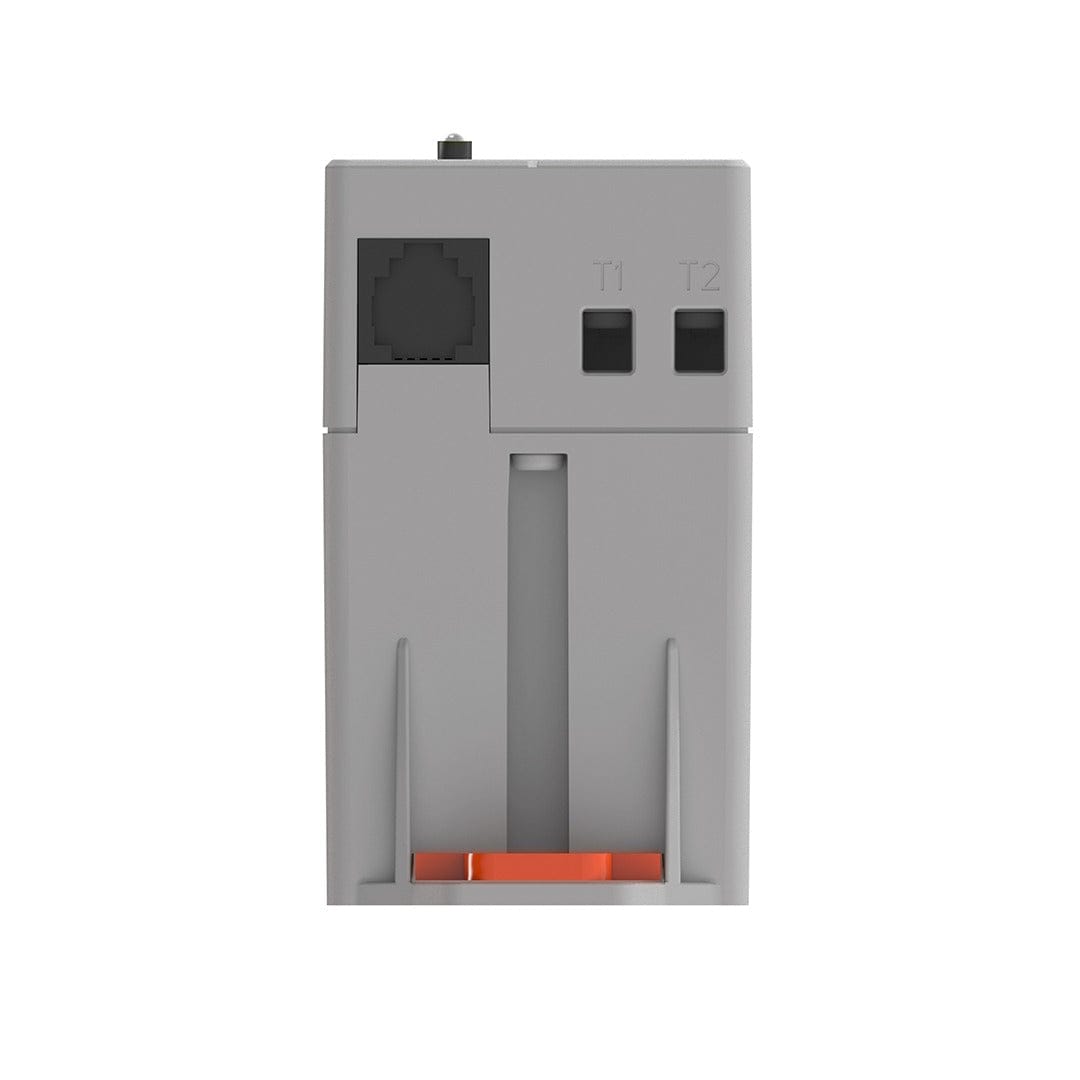

| Connection Type | RJ12 |
| Working Environment | Temperature 32–104°F (0–40°C), Humidity ≤90% |
| Compatible Controllers | TrolMaster Hydro-X, Aqua-X, Carbon-X, Green-X, Tent-X |
Support & Manuals
Warranty
TrolMaster backs the DSR-1 with a 3-year warranty from the original date of purchase, covering all mechanical and electronic components under normal operating conditions. Components that fail due to abnormal or improper usage are excluded from this coverage.
FAQs
When do I need the DSR-1 instead of a standard device station?
If your climate device (heater, humidifier, or CO2 generator) draws more than 15A, the DSR-1 is required. Standard TrolMaster stations like the 4RS-2 4-Outlet Device Station are capped at 15A, whereas the DSR-1 handles up to 25A continuous load.
What roles can the DSR-1 be assigned?
The DSR-1 is highly versatile and can be configured as a temperature station (DST), humidity station (DSH), CO2 station (DSC), or timer station (DSP) within your controller settings.
Is the DSR-1 compatible with 240V systems?
Yes, the DSR-1 features a universal voltage range of 100–277V, making it compatible with standard 120V and 240V North American electrical circuits.
Does it include overload protection?
Yes, the DSR-1 includes integrated overload protection to protect both the relay station and your expensive climate equipment from excessive current draw.
Which controllers work with the DSR-1?
It is fully compatible with the TrolMaster Hydro-X, Aqua-X, Carbon-X, Green-X, and Tent-X systems using standard RJ12 communication cabling.
