- 1 × Low Voltage Station (DSV-1)
- 1 × 16ft RJ12 Cable
- 1 × 4ft RJ12 Cable
- 1 × RJ12 T-Splitter
TrolMaster DSV-1 Low Voltage Device Station
$134.36 CAD
starting from 0% interest financing from
/mo.
- Selectable 12V or 24V output in AC or DC modes
- Integrates directly into TrolMaster RJ12 ecosystem for automation
- 3-year warranty covering all mechanical and electronic components under normal operating conditions
- View More Details
Earn 134 points for shopping and get $1.34 off your next order. Join Harvest Club for free.
Free Shipping On Most Items
To the Provinces*
Transparent Pricing
Backed w/ price match guarantee
Secure Checkout
SSL encrypted payments
VOLUME PRICING
Commercial & Bulk Purchasing
We support operations & licensed facilities with volume pricing, dedicated account managers, and custom equipment consultation.
Who This Is For
- You are adding specialized valves or solenoids to your system because standard mains-voltage modules lack the precision to handle low-voltage hardware.
- You are consolidating your equipment management because running separate power supplies for low-voltage peripherals is creating too much cable clutter.
What We Found
- We keep these on the shelf because they solve the headache of integrating 12V or 24V solenoids into a standard TrolMaster setup.
- The plug and play RJ12 connectivity makes adding a new valve as simple as chaining another sensor.
What Users Say
- Gardeners who needed to automate low-voltage irrigation valves say they finally ditched their unreliable manual timers.
- Users who added these to their existing TrolMaster controllers say they appreciate the clean installation without needing extra outlet space.

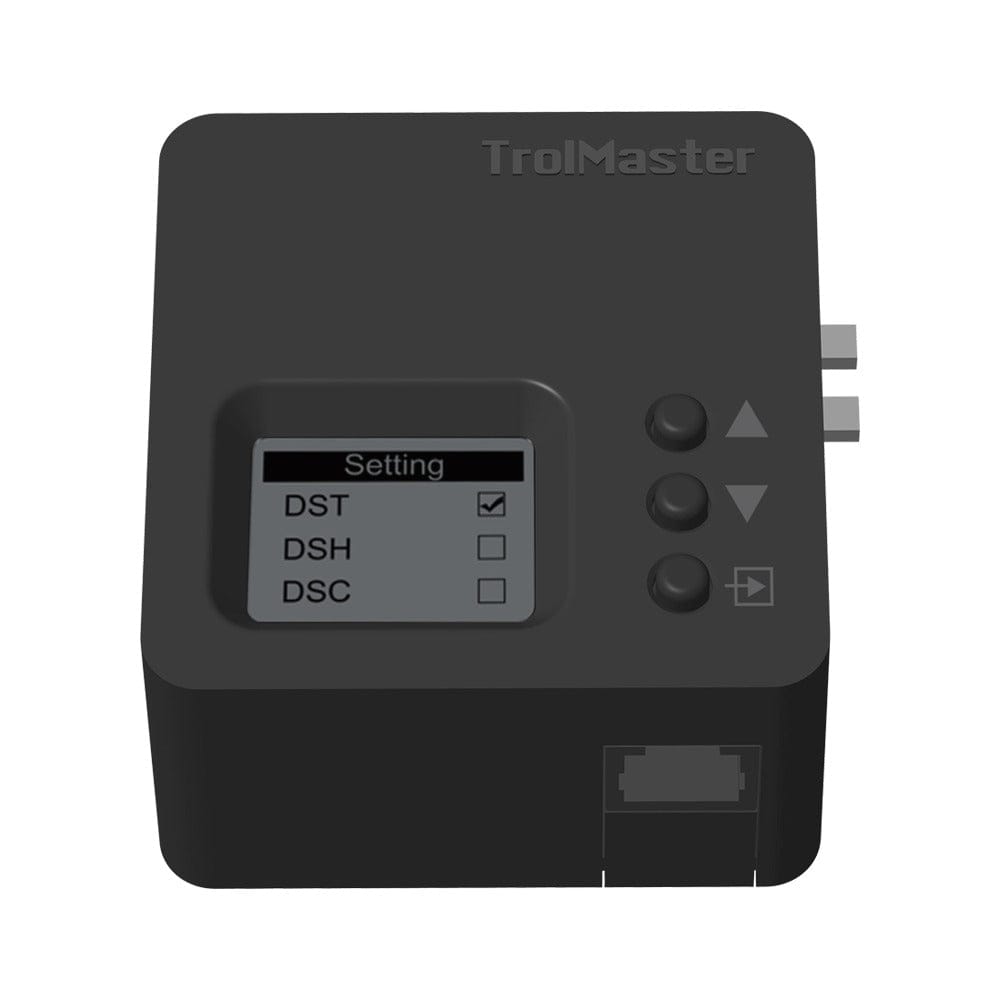

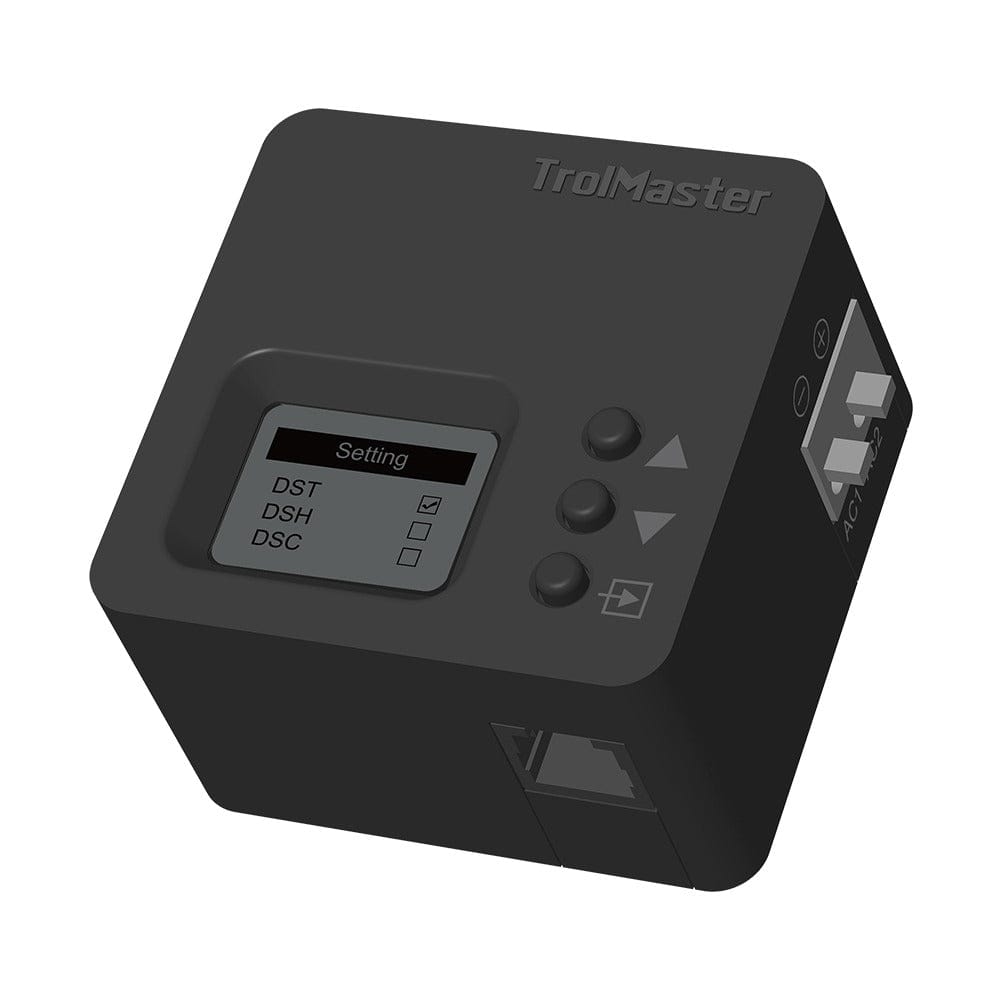

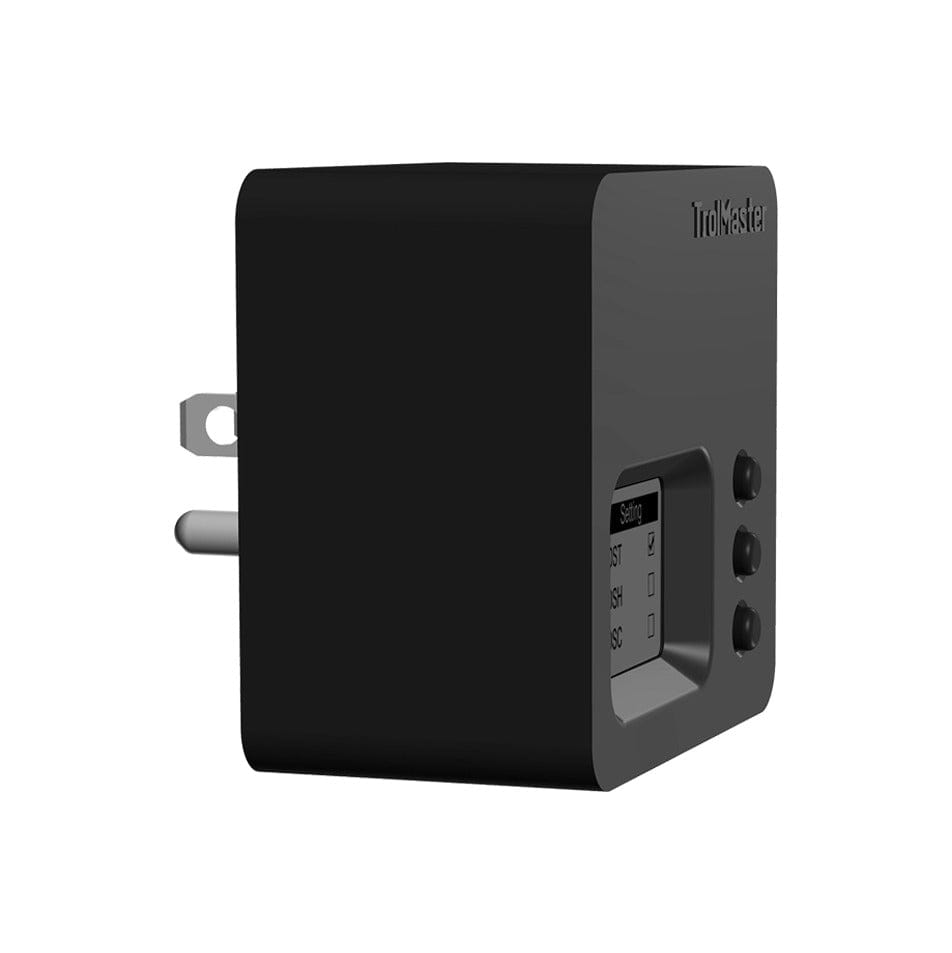

TrolMaster DSV-1 Low Voltage Device Station
Most TrolMaster device stations switch mains voltage — but many grow room peripherals run on low voltage DC or AC signals that standard modules like the TrolMaster DSP-1 or DSP-2 can't power. The TrolMaster DSV-1 Low Voltage Device Station fills that gap, providing selectable 12V or 24V output in either AC or DC to power solenoids, valves, alarms, and any other device requiring low-voltage supply directly through the TrolMaster controller ecosystem. Output voltage and current are selectable to match the requirements of the connected device, and setup follows the same plug-and-play RJ12 process shared across all TrolMaster DS-type modules.
Compatibility: TrolMaster Aqua-X, Hydro-X, Green-X, and Tent-X Systems
What's Included
Features
⚡
Selectable 12V / 24V Output
Choose between 12V and 24V output in either AC or DC to match the voltage requirements of the connected low-voltage device — solenoids, valves, alarms, and more.
🔧
Low Voltage Device Support
Brings low-voltage peripherals — solenoids, valves, alarms, and other 12V or 24V devices — under full TrolMaster controller automation without additional power supplies.
🔌
Plug & Play Setup
Both RJ12 cables and a T-splitter included. Connects into any compatible TrolMaster system in minutes — no additional wiring or hardware required.
TrolMaster DSV-1 Specifications
| Specification | Value |
|---|---|
| Input Voltage | 100–240 VAC, 50/60 Hz |
| Output (DC 24V / AC 24V) | 0.25A |
| Output (DC 12V / AC 12V) | 0.5A |
| Selectable Output Voltage | 12V or 24V (AC or DC) |
| Working Environment | Temperature 32–122°F (0–50°C), Humidity ≤90% |
| Package Dimensions | 85mm (L) × 80mm (W) × 90mm (H) |
| Compatibility | TrolMaster Aqua-X, Hydro-X, Green-X, Tent-X |
Warranty
TrolMaster backs the DSV-1 with a 3-year warranty from the original date of purchase, covering all mechanical and electronic components under normal operating conditions. Components that fail due to abnormal or improper usage are excluded from this coverage.
FAQs
What types of devices can I connect to the DSV-1?
The DSV-1 is designed for any low-voltage device operating on 12V or 24V AC or DC within the module's current rating. Common applications include solenoid valves, irrigation valves, alarms, and other peripherals that require a low-voltage power supply rather than mains voltage. If you are unsure whether a specific device is compatible, confirm its voltage and current requirements against the DSV-1's output specs before connecting.
How do I select the output voltage on the DSV-1?
The DSV-1 provides selectable output between 12V and 24V in either AC or DC configuration. The selection is made on the unit itself to match the voltage requirements of the connected device. Ensure you select the correct voltage and current type (AC or DC) before connecting to prevent damage to the peripheral device.
What is the difference between the DSV-1 and the OA6-24?
The TrolMaster OA6-24 is a dedicated 24V AC control board with six individually controlled outputs specifically for irrigation solenoid valves — it outputs a fixed 24V AC at up to 0.2A per channel. The DSV-1 is a single-output low voltage station with selectable 12V or 24V in AC or DC at up to 0.5A, designed for individual peripherals like valves, alarms, and other low-voltage devices that don't require multi-channel control. Choose the OA6-24 for multi-zone solenoid valve management, and the DSV-1 for powering individual low-voltage devices through the controller.
How does the DSV-1 differ from the DSD-1?
The TrolMaster DSD-1 is a dry contact station — it provides a relay signal to trigger devices that have their own power supply and accept a dry contact input. The DSV-1 is a low voltage power station — it actually supplies 12V or 24V AC or DC power directly to devices that require it. Choose the DSD-1 for devices with dry contact trigger inputs, and the DSV-1 for devices that need a low-voltage power feed.
How do I address (link) the DSV-1 to my controller?
After connecting the DSV-1 via RJ12 cable, press the small button on the module once to link it to your TrolMaster controller. The LED will confirm the connection status — fast blinking green means unaddressed, slow blinking green means addressed and standing by for controller commands.
Can I manually override the DSV-1 without using the controller?
Yes. Press and hold the button on the DSV-1 to manually toggle the output on or off directly from the module. This is useful during setup, device testing, or any situation where you need to activate the connected peripheral independently of the controller's programmed schedule.
Which TrolMaster controllers is the DSV-1 compatible with?
The DSV-1 is compatible with the TrolMaster Aqua-X, Hydro-X HCS-1, Green-X GCS-1, and Tent-X TCS-1 control platforms. It connects via the standard RJ12 interface shared across all TrolMaster DS-type modules, making it a straightforward addition to any existing TrolMaster setup that requires low-voltage device control.
