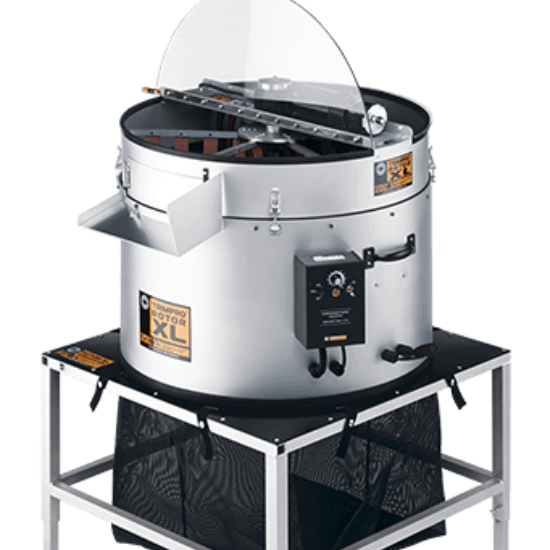

Trimpro Rotor XL Workstation Wet Bud Trimming Machine

Trimpro Rotor XL Wet Bud Trimming Machine

Ready to scale up your operation without compromising quality?

The Trimpro Rotor XL delivers professional-grade trimming performance for growing operations demanding both speed and precision.

Designed for wet material processing, this machine integrates seamlessly into post-harvest workflows for small to mid-scale commercial growers.

The Rotor XL processes up to 10 pounds per hour using a six-arm rotating support system with 24 stick-resistant leather fingers that gently guide material across a non-stick coated steel grate with 1/4" slots. Material moves continuously across tempered steel blades that deliver precision cuts while the leather fingers prevent bruising and trichome damage during processing.

The adjustable height system lets you customize both the finger support arms and cutting head position to match your material's density and moisture content. The latched gate design enables hands-free discharge—processed material exits automatically without manual handling, maintaining product quality and improving throughput.

Constructed with an aluminum frame for durability while maintaining a manageable weight profile. The 145-pound mounted unit includes a stand for stable operation. Maintenance requires periodic cleaning with isopropyl alcohol, and blades sharpen easily with a standard grindstone to maintain cutting performance.

Product Highlights

Processes up to 10 pounds per hour of wet material with precision
24 stick-resistant leather fingers on 6 rotating arms for gentle handling
Adjustable finger height and blade position customize trim level
Tempered steel blades on 1/4" slot grate for consistent quality
Latched gate system enables hands-free material discharge

Trimpro Rotor XL Features

🤲

Gentle Material Handling

24 stick-resistant leather fingers on 6 rotating arms guide material delicately across grate

⚡

High-Output Performance

Processes up to 10 pounds per hour ideal for small-time commercial operations

⚙️

Fully Adjustable System

Customizable finger and blade height adapts to varying material density and moisture

🧼

Simple Maintenance

Quick cleanup with isopropyl alcohol and easy blade sharpening with standard grindstone

Safety Guidelines

Never place fingers, gloves, or any body part in contact with the grate, blade, or rotor
Never apply pressure on the grate
Do not use scissors, knives, or any instrument above the grate
Safety glasses and gloves required at all times—gloves must fit tightly to prevent contact with grate slots

To be used in accordance with all applicable laws and regulations. The manufacturer does not accept responsibility for damages caused to or by the Trimpro Rotor XL resulting from improper use or assembly.

Trimpro Rotor XL Specifications

Specification	Value
Throughput Capacity	Up to 10 lbs per hour (wet material)
Mounted Machine Dimensions	28" diameter x 52" height
Machine Packaging Dimensions	34" x 34" x 29"
Stand Packaging Dimensions	32" x 32" x 17"
Mounted Machine Weight	145 lbs
Machine Only Weight (with packaging)	135 lbs
Stand Only Weight (with packaging)	35 lbs
Frame Material	Aluminum
Blade Material	Tempered steel
Grate Material	Non-stick coated steel (1/4" slot size)
Rotating Arm System	6 rotating arms with 24 stick-resistant leather fingers
Adjustable Components	Finger support arm height, cutting head position

Trimpro Rotor XL Manual

Access product documentation for your Trimpro Rotor XL:

User Instructions Manual

Trimpro Rotor XL Warranty

Trimpro offers a 1-year warranty on the Rotor XL. This warranty does not cover operator error or abuse. All sales final.

Trimpro Rotor XL FAQs

How does the Rotor XL handle wet material gently at higher speeds? +

The Rotor XL uses six rotating arm supports with 24 stick-resistant leather fingers to move wet material carefully across the non-stick coated steel grate with 1/4" slots. The tempered steel blades provide precision cuts while the leather fingers prevent material damage. This combination allows the machine to process up to 10 pounds per hour without sacrificing quality.

Is the Trimpro Rotor XL suitable for my operation size? +

The Rotor XL is designed for small to mid-scale growers processing wet material at up to 10 pounds per hour. It's ideal if you need higher throughput than manual or smaller trimming machines while maintaining quality. The workstation design with its 28" diameter and 52" height requires dedicated space, making it best suited for permanent or semi-permanent installations rather than portable operations.

How do the adjustable components improve trimming results? +

The Rotor XL features adjustable height settings for both the leather finger support arms and the cutting head. This allows you to customize the trimming action based on your material's density, moisture content, and desired trim level. You can raise or lower components to achieve optimal contact between material and blades, ensuring consistent results across different batches.

What does maintenance involve for the Rotor XL? +

Maintenance includes wiping down the machine with isopropyl alcohol after use to remove resin buildup from the non-stick coated grate and components. The tempered steel blades can be sharpened with a grindstone to maintain cutting performance over time. The stick-resistant leather fingers and non-stick coating minimize material adhesion, making cleanup more efficient than standard surfaces.

How does the latched gate improve workflow? +

The latched gate allows trimmed material to exit without manual handling, reducing contamination risk and improving efficiency. This hands-free discharge system means you can collect finished material directly into containers without stopping the machine or touching processed product, maintaining quality and speeding up your workflow.

What safety precautions should I follow when operating the Rotor XL? +

Safety glasses and tight-fitting gloves are required at all times during operation. Never place fingers or any body part near the grate, blade, or rotor, and never apply pressure on the grate or use tools above it. Loose gloves are dangerous as they can get caught in the 1/4" grate slots. The Rotor XL's larger size and power require extra caution around all moving components.

What is covered under the Trimpro warranty? +

The Trimpro Rotor XL comes with a 1-year warranty covering manufacturing defects. This warranty does not cover operator error or abuse, and all sales are final. Proper assembly, use according to the instruction manual, and regular maintenance (cleaning and blade sharpening) are essential to maintain warranty coverage. The machine weighs 145 lbs mounted, so ensure proper installation and handling.
